StarTech.com 2S1P PCIe Parallel Serial Combo Card

Name: StarTech.com 2S1P PCIe Parallel Serial Combo Card
Brand: STARTECH
SKU: DN9013
Price: 42.6 USD
Availability: InStock

STARTECH

PCN#

DN9013

MFG#

PEX2S5531P

$42.60

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $14.99

1-Year $10.99

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 1 lbs.

StarTech.com 2S1P PCIe Parallel Serial Combo Card

Tech Specs

Specifications

Manufacturer	StarTech.com
Manufacturer Part Number	PEX2S5531P
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Model	PEX2S5531P
Product Name	2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART

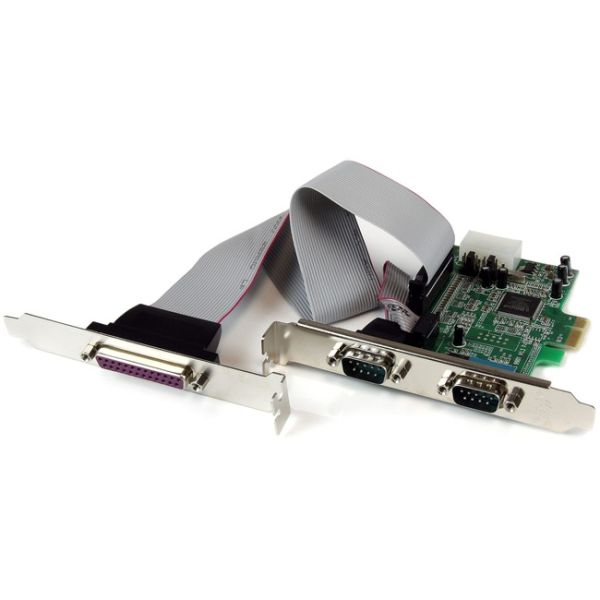

Marketing Information	The PEX2S5531P 2S1P PCI Express Card turns a PCI Express slot into two RS232 (DB9) serial ports and one Parallel port. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design. Compatible with a broad range of operating systems including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4, this 2 Port Serial 1 Port Parallel PCI-Express Card also features an optional low profile/half-height bracket that allows the card to be installed in virtually any computer case, regardless of the case form factor. This product is a replacement for our PEX2S5521P card. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Packaged Quantity	1
Product Type	Serial/Parallel Combo Adapter

Technical Information

Host Interface	PCI Express x1
Data Transfer Rate	1.5MB/s Parallel Port 460.8kB/s Serial Port
UART Type	16550
Platform Supported	PC Mac Linux

Interfaces/Ports

Number of Parallel Ports (External)	1
Number of Serial Ports (External)	2

Physical Characteristics

Miscellaneous

Package Contents	2S1P Native PCI Express Parallel Serial Combo Card with 16550 UART Parallel Port (with Ribbon Cable) Low Profile Brackets Driver CD Instruction Manual
Additional Information	Native single-chip, single lane PCI Express chipset delivers true PCIe performance. Standard and low profile/half-height bracket included to ensure fitment in any system. Easy to install and use with full step-by-step instructions saving time and hassle. Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), XP Embedded, POS Ready 2009, Embedded System 2009, CE 5.0/6.0, 2000, 98SE, 95, DOS Windows Server® 2012, 2008 R2, 2003 Mac OS® 10.4 - 10.6 Linux
Environmentally Friendly	Yes
Environmental Certification	RoHS REACH WEEE
Country of Origin	Taiwan
TAA Compliant	Yes

Warranty

Limited Warranty

2 Year
