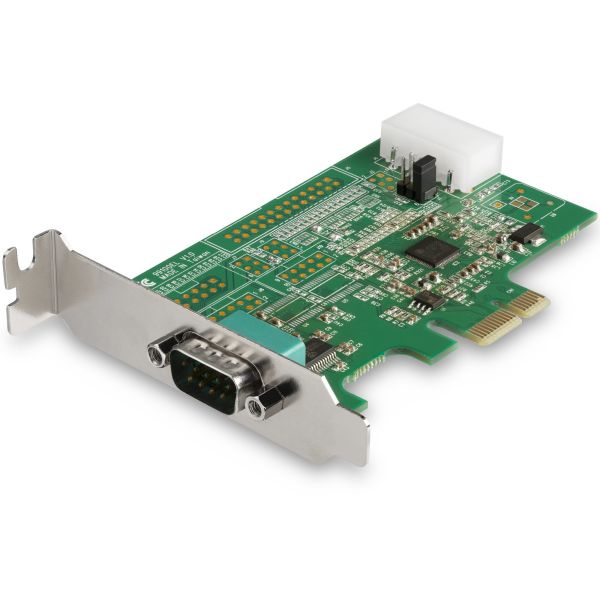

StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe Serial DB9 Controller Card 16950 UART - Low Profile - Windows/Linux

Name: StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe Serial DB9 Controller Card 16950 UART - Low Profile - Windows/Linux
Brand: STARTECH
SKU: 6PB308
Price: 48.08 USD
Availability: InStock

STARTECH

PCN#

6PB308

MFG#

PEX1S953LP

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$48.08

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $14.99

1-Year $10.99

Estimated Shipment:

Product Highlights:

1 port PCI Express RS232 serial controller card w/16950 UART/ASIX AX99100
Bi
directional speeds 921.6Kbps/port | 256 byte FIFO | 9th data bit
Pin 9 pwr out 5v/12v/none w/up to 2A total
Expansion card w/low profile (Std bracket incl)
Win/Linux

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

StarTech 1-port PCI Express RS232 Serial Adapter Card, PCIe Serial DB9 Controller Card 16950 UART, Low Profile, Windows/Linux, TAA

Overview

Tech Specs

Specifications

Manufacturer	StarTech.com
Manufacturer Part Number	PEX1S953LP
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	1-Port PCI Express Serial Card with 16950 UART - Low-Profile
Marketing Information	This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps. Maximum Compatibility With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor. Experience Optimal Technology This PCIe to serial adapter supports the following features: Compatible with industry standard 16950 UART Supports max baud rate of up-to 921.4Kbps Provides 5/12V power output on Pin 9 when external power is connected 128-byte depth FIFO per transmitter and receiver Supports 9, 8, 7, 6, 5 data bits Asix AX99100 chipset PCI Express 1.1 compliant PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support. More from the Manufacturer
Packaged Quantity	1
Product Type	Serial Adapter

Technical Information

Host Interface	PCI Express x1
UART Type	16950
Platform Supported	PC Linux

Interfaces/Ports

Number of Serial Ports (External)

Physical Characteristics

Form Factor	Plug-in Card
Card Height	Low-profile
Height	5.9"
Width	2.6"
Length	3.9"
Weight (Approximate)	1.60 oz

Miscellaneous

Package Contents	1-Port PCI Express Serial Card with 16950 UART - Low-Profile 1 x Full-Profile Bracket 1 x User Manual
Environmentally Friendly	Yes
Environmental Certification	EU RoHS
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin	Taiwan
End of Life Manual Availability	Yes
EU RoHS Declaration URL	https://media.startech.com/cms/pdfs/pex1s953lp_rohs.pdf
REACH Declaration URL	https://media.startech.com/cms/pdfs/pex1s953lp_rohs.pdf
REACH free of SVHC	Yes
WEEE Statement	https://media.startech.com/cms/pdfs/pex1s953lp_weee.pdf

Warranty

Limited Warranty

Lifetime
