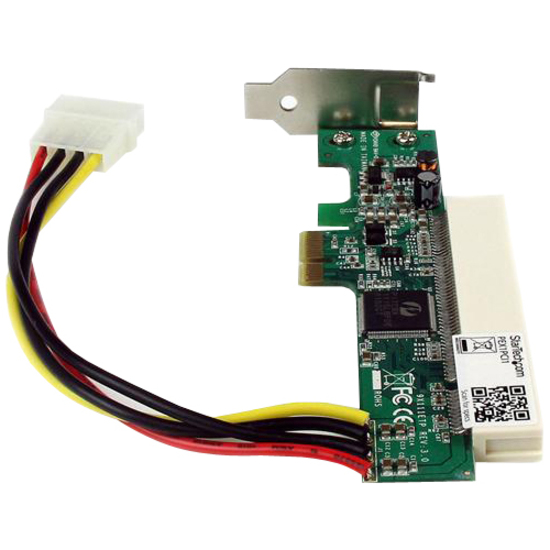

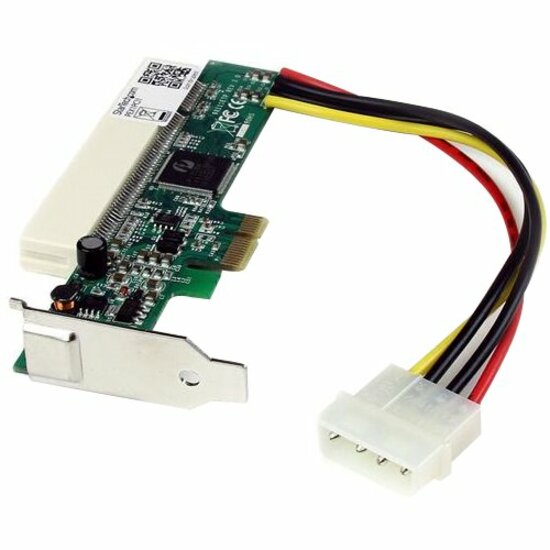

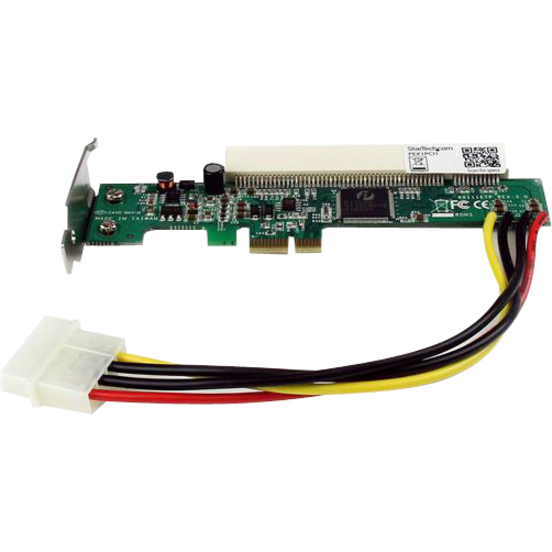

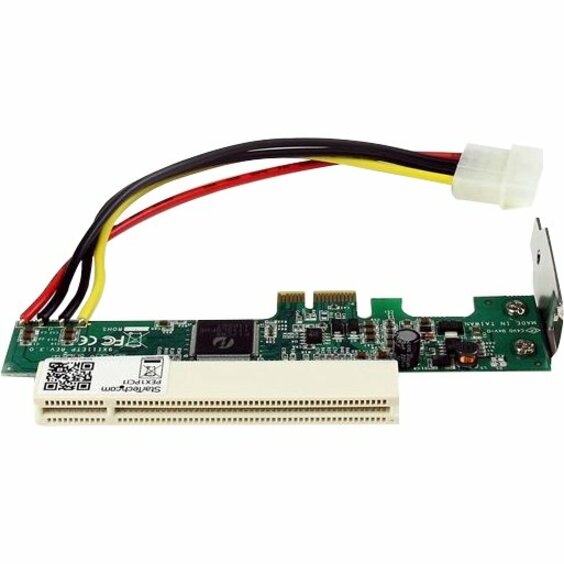

StarTech.com PCI Express to PCI Adapter Card

by
STARTECH
PCN#
BC6412
MFG#
PEX1PCI1
$46.41
cps

Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Install half
  • height/low profile PCI interface cards in a standard PCI Express expansion slot
  • pci express to pci adapter card

Show more

Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 1 lbs.
StarTech PCI Express to PCI adapter card, TAA
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

PEX1PCI1

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

PCI Express to PCI Adapter Card

Marketing Information

This PCIe to PCI Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express Specification 1.0a and PCI Specification 2.2, Card connects through a PCIe 1x slot to provide a low profile PCI slot in its place. A spare full size bracket for PCI Express card is also included for use in larger desktop or server PCI Express slots. More from the Manufacturer

Packaged Quantity

1 Each

Product Type

Riser Card
Technical Information

Host Interface

PCI Express
I/O Expansions

Total Number of Expansion Slots

1

Expansion Slot Type

PCI (Low-profile)
Physical Characteristics

Height

0.8"

Width

2.8"

Thickness

5.3"

Weight (Approximate)

1.73 oz
Miscellaneous

Additional Information

  • The unique bracket design allows a low profile/half-height PCI card to work seamlessly in a PCI Express-based expansion slot
  • Backed by a StarTech.com 2-year warranty and free lifetime technical support
  • Operating System Support:
    • Windows 2000
    • Windows XP
    • Windows Vista

Country of Origin

Taiwan

Environmentally Friendly

Yes

Environmental Certification

EU RoHS

Environmental Compliance

  • Restriction of Hazardous Substances (RoHS) 2
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Waste Electrical and Electronic Equipment Directive (WEEE)

End of Life Manual Availability

Yes

EU RoHS Declaration URL

https://media.startech.com/cms/pdfs/pex1pci1_rohs.pdf

REACH free of SVHC

Yes

WEEE Statement

https://media.startech.com/cms/pdfs/pex1pci1_weee.pdf

REACH Declaration URL

https://media.startech.com/cms/pdfs/pex1pci1_rohs.pdf
Warranty

Limited Warranty

2 Year
