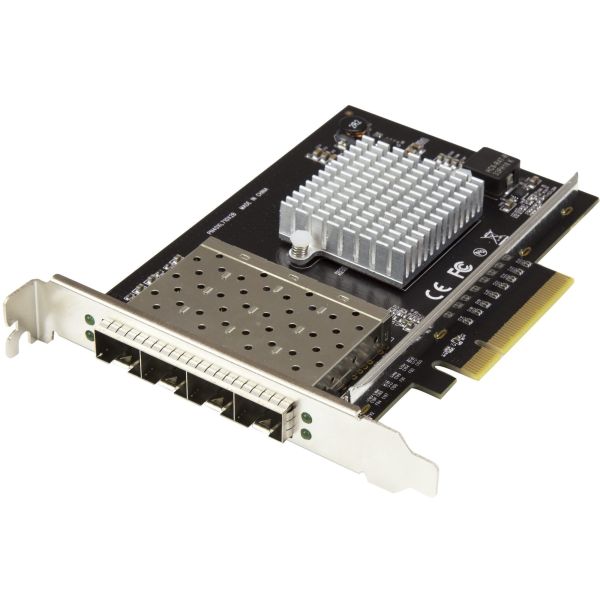

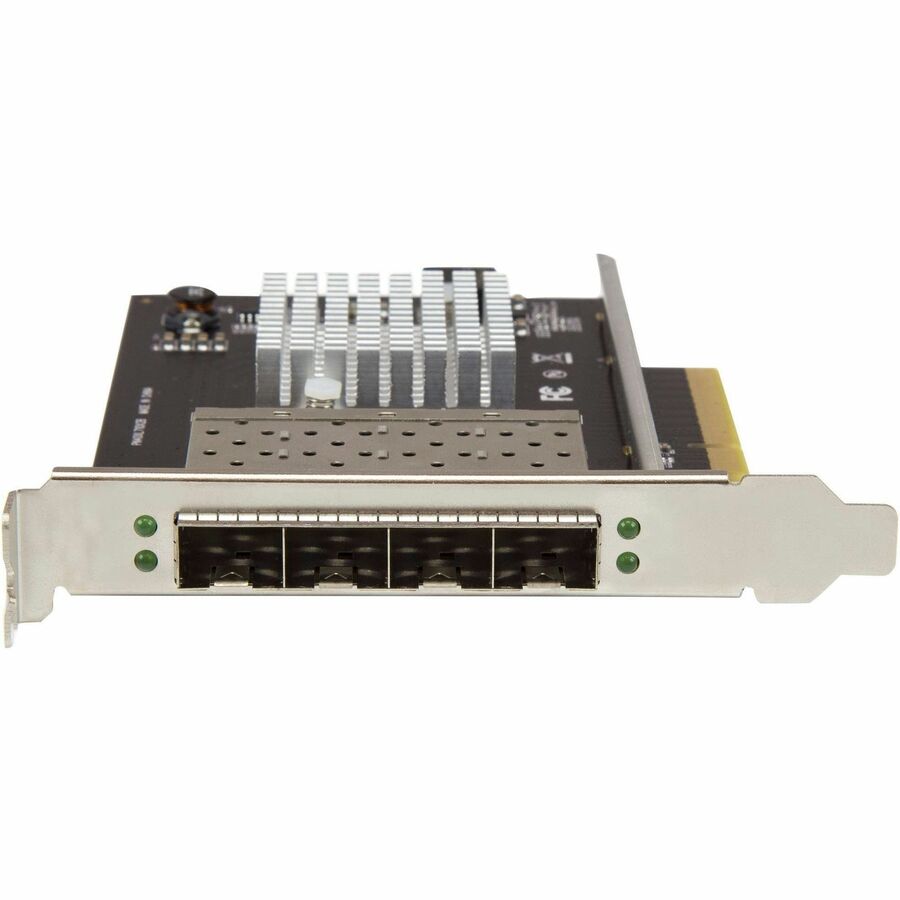

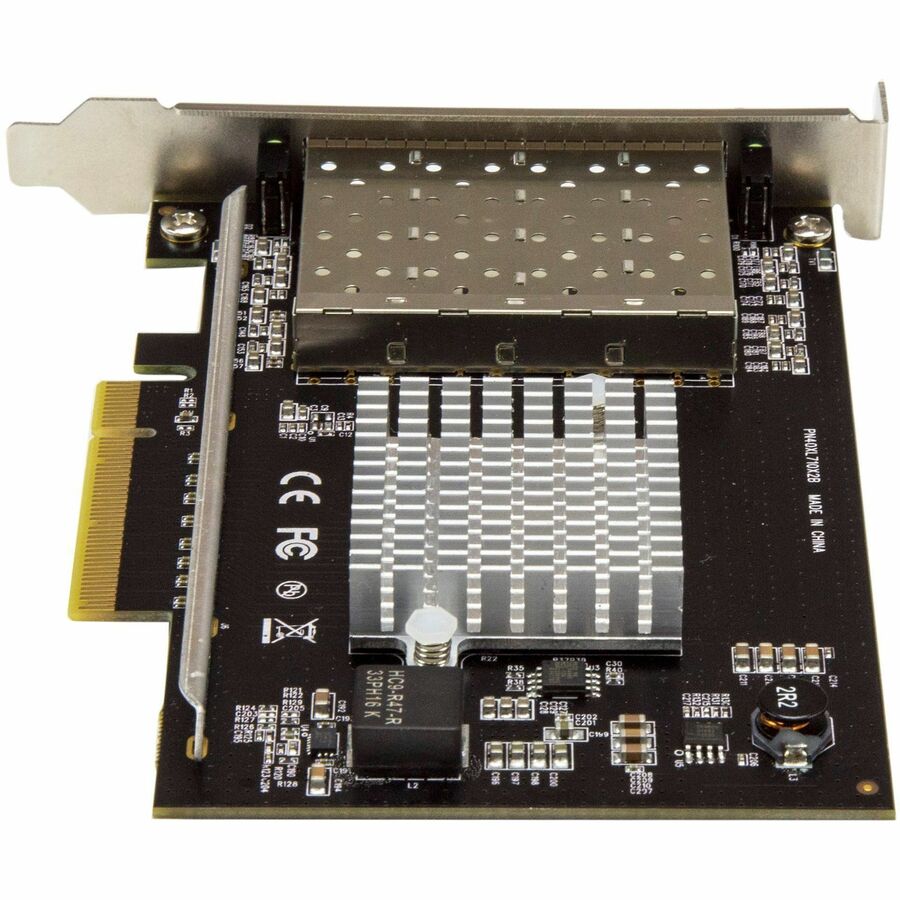

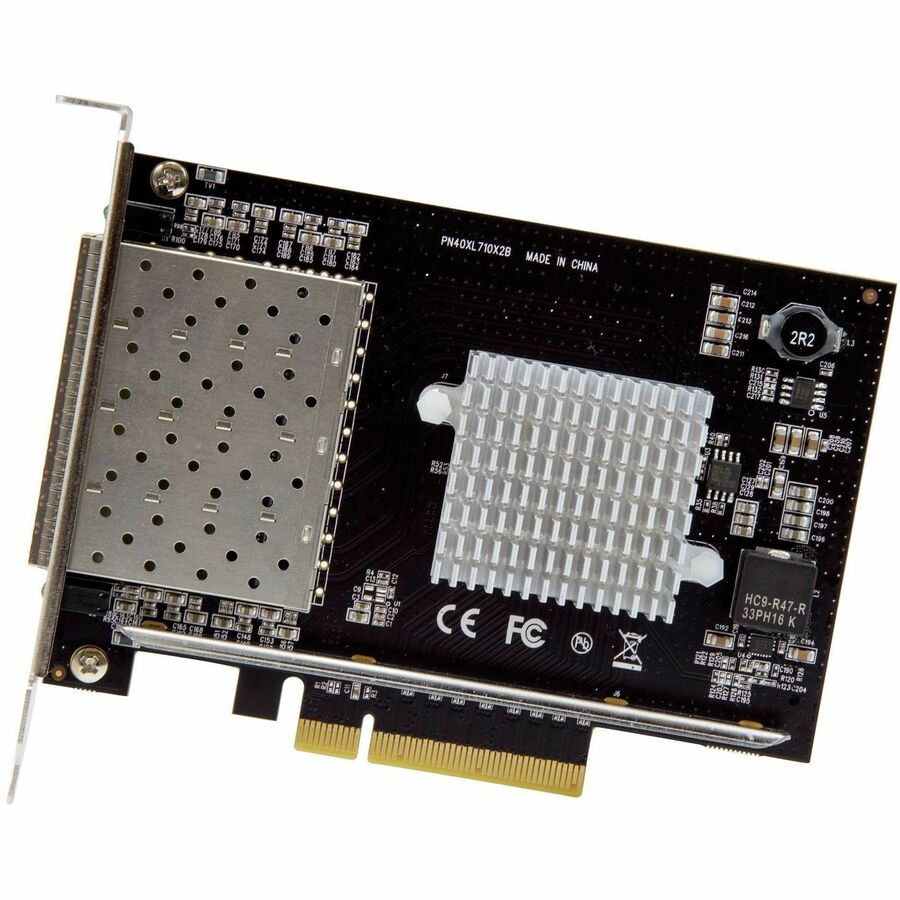

StarTech.com Quad Port 10G SFP+ Network Card - Intel XL710 Open SFP+ Converged Adapter - PCIe 10 Gigabit Fiber Optic Server NIC - 10GbE

by
STARTECH
PCN#
9X8116
MFG#
PEX10GSFP4I
$541.52
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Quad port SFP+ network card for MSA compliant SFP+ /DAC
  • 10 Gigabit Ethernet Card Intel XL710
  • BM2 10GbE converged network adapter

Show more

Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 1 lbs.
StarTech.com Quad Port 10G SFP+ Network Card - Intel XL710 Open SFP+ Converged Adapter - PCIe 10 Gigabit Fiber Optic Server NIC - 10GbE
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

PEX10GSFP4I

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

Quad-Port SFP+ Server Network Card - PCI Express - Intel XL710 Chip

Marketing Information

This SFP+ server network card delivers reliable, high-performance network connectivity, by adding four open SFP+ slots to your server or high-powered workstation. It provides an easy and cost-effective way to upgrade to a 10 Gigabit fiber network using SFP+ modules of your choice and gives you the flexibility to use either multimode or single-mode fiber.

Add redundant connections in zero-downtime environments

With multiple available ports, you can avoid network downtime by adding fault-tolerant connections using two or more modules to provide high-bandwidth network links to your mission-critical servers or workstations.

Increase your network speed

This PCIe network card lets you take advantage of the increased speed and stability of a 10 Gigabit network, with data transfers of up to 10Gbps.

Add scalable network connections to your server or workstation

The network interface card is compatible with most 10GbE SFP+ transceivers. This gives you flexible and scalable configuration options, for connecting your computer directly to a fiber network at greater distances.

The card features four open SFP+ slots with support for interchangeable 10GBase SFP+ modules. This gives you the option to use the fiber transceiver modules that best suit your network needs based on distance and connector type. StarTech.com offers a wide variety of SFP+ transceiver modules to suit your network requirements. In addition, StarTech.com SFP+ cables provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.

Enhance your network capabilities

The SFP+ server network card features the Intel® XL710 chipset, delivering the power, performance and enhanced capabilities you need for reliable connections to your server or computer. The Intel chip offers many advanced features including Intel® Virtualization Technology for Connectivity, PXE network boot support and up to 9K jumbo frame support.

The PEX10GSFP4I is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Packaged Quantity

1

Product Type

10Gigabit Ethernet Card
Technical Information

Chipset Manufacturer

Intel

Chipset Model

XL710
Interfaces/Ports

Host Interface

PCI Express x8

Total Number of Ports

4
I/O Expansions

Expansion Slot Type

SFP+
Media & Performance

Media Type Supported

Optical Fiber

Data Transfer Rate

2.50 GB/s
Network & Communication

Network Technology

  • 10GBase-LR
  • 10GBase-SR
Physical Characteristics

Product Color

Black

Form Factor

Plug-in Card

Height

3.9"

Width

0.6"

Depth

5.5"

Weight (Approximate)

4.30 oz
Miscellaneous

Package Contents

  • Quad-Port SFP+ Server Network Card - PCI Express - Intel XL710 Chip
  • 1 x Quick-start Guide

Device Supported

Server

System Requirements

  • Windows® 7, 8, 8.1, 10
  • Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019
  • (Windows Drivers are supported in 64-bit only)
  • Linux 2.6.24 to 4.11.x (64-bit Only)< LTS Versions only

Environmentally Friendly

Yes

Environmental Certification

  • RoHS
  • WEEE

Country of Origin

China
Warranty

Limited Warranty

2 Year
