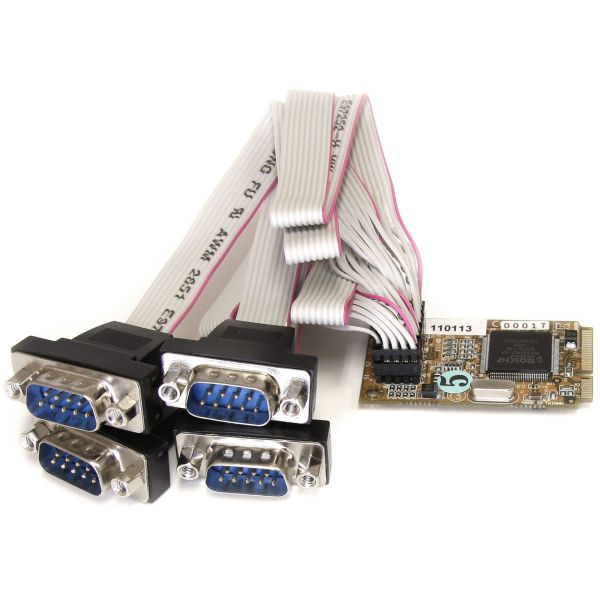

StarTech.com 4 Port RS232 Mini PCI Express Serial Card w/ 16650

Name: StarTech.com 4 Port RS232 Mini PCI Express Serial Card w/ 16650
Brand: STARTECH
SKU: LE6620
Price: 77.41 USD
Availability: InStock

STARTECH

PCN#

LE6620

MFG#

MPEX4S552

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$77.41

Extended & Accidental Damage Product Replacement Plan Available Details

1-Year $22.99

2-Year $29.99

Estimated Shipment:

Product Highlights:

Add Four RS232 Serial Ports to an Embedded System through a mini PCI Express Slot
mini pcie serial card
4 port rs232
4 port serial adapter
4 port serial pci express mini card
pci express mini card db9

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

StarTech.com 4 Port RS232 Mini PCI Express Serial Card w/ 16650

Overview

Tech Specs

Specifications

Manufacturer	StarTech.com
Manufacturer Part Number	MPEX4S552
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART

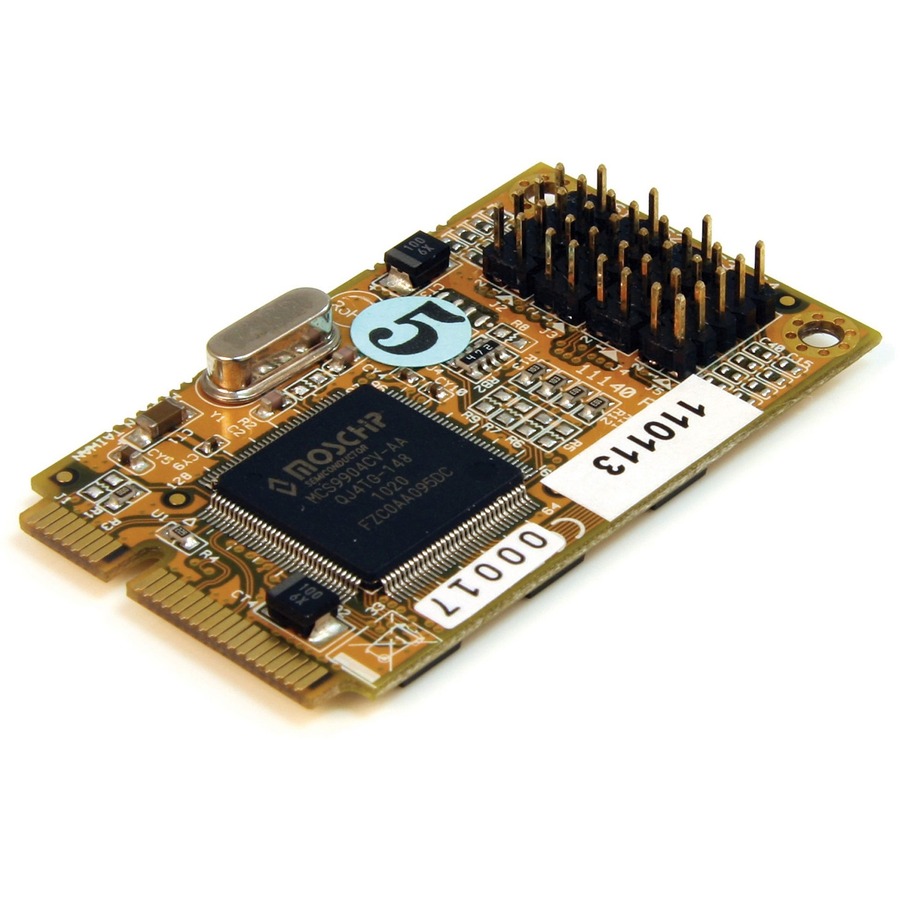

Marketing Information	The MPEX4S952 4-Port RS232 Mini PCI Express Serial Card (16650 UART) turns a mini-PCIe slot into four RS232 (DB9) serial ports with data rates up to 921.6 Kbps - a cost-saving solution for adding serial support to embedded systems missing the functionality. A native PCIe single-chip design enables you to take advantage of full PCI Express bus capability, by providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional "bridge chip" serial cards . Backed by a StarTech.com Lifetime Warranty and free lifetime technical support.
Product Type	Multiport Serial Adapter

Technical Information

Host Interface	Mini PCI Express
Maximum Data Transfer Rate	7.20 Mbit/s
Platform Supported	PC Mac Linux

Interfaces/Ports

Ports Expandability

4 x DB-9 RS-232 - Serial

Physical Characteristics

Product Color	Green
Form Factor	Plug-in Card
Card Length	Full-length
Height	1.2"
Width	0.4"
Weight (Approximate)	5.30 oz

Miscellaneous

Package Contents	4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART 4 x DB9 Ribbon Cable 1 x Driver CD 1 x Instruction Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty

Lifetime
