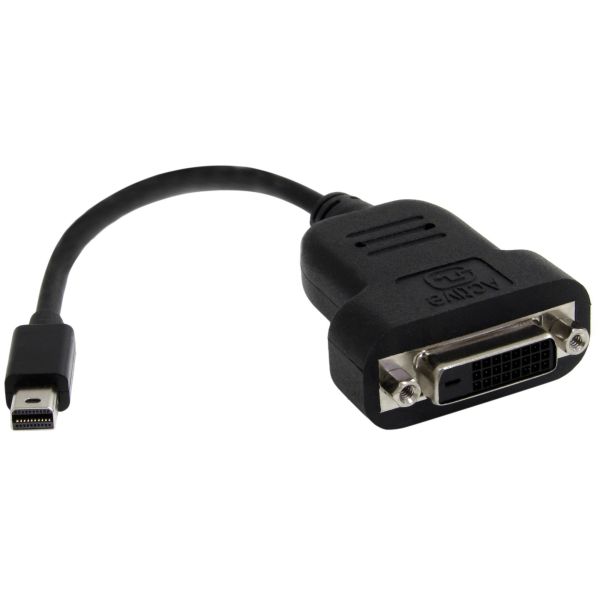

StarTech.com Mini DisplayPort to DVI Active Adapter

by
STARTECH
PCN#
GU5511
MFG#
MDP2DVIS
$33.00
cps

Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Mini DisplayPort Male Digital Video
  • DVI
  • D (Single

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 1 lbs.
StarTech.com Mini DisplayPort to DVI Active Adapter
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

MDP2DVIS

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Model

MDP2DVIS

Product Name

Mini DisplayPort to DVI Active Adapter

Marketing Information

The MDP2DVIS Mini DisplayPort to DVI Active Adapter (single-link) let's you connect your Mini DisplayPort video source (such as any of your MacBook® or Microsoft® Surface™ Pro devices with mDP) to a DVI-D display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort capable monitor.

Unlike passive video adapters, this Mini DisplayPort to DVI adapter offers an active conversion for use with any Mini DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).

Supporting resolutions up to 1920x1200, this compact device provides a simple solution for adapting PC or Mac® Mini-DisplayPort output for DVI monitors, televisions or projectors.

The Mini DP to DVI adapter is compatible with Intel® Thunderbolt™, when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

Product Type

Video Adapter
Technical Information

Connector Type on First End

Mini DisplayPort 1.1 Digital Audio/Video - Male

Connector Gender on First End

Male

Connector on First End Details

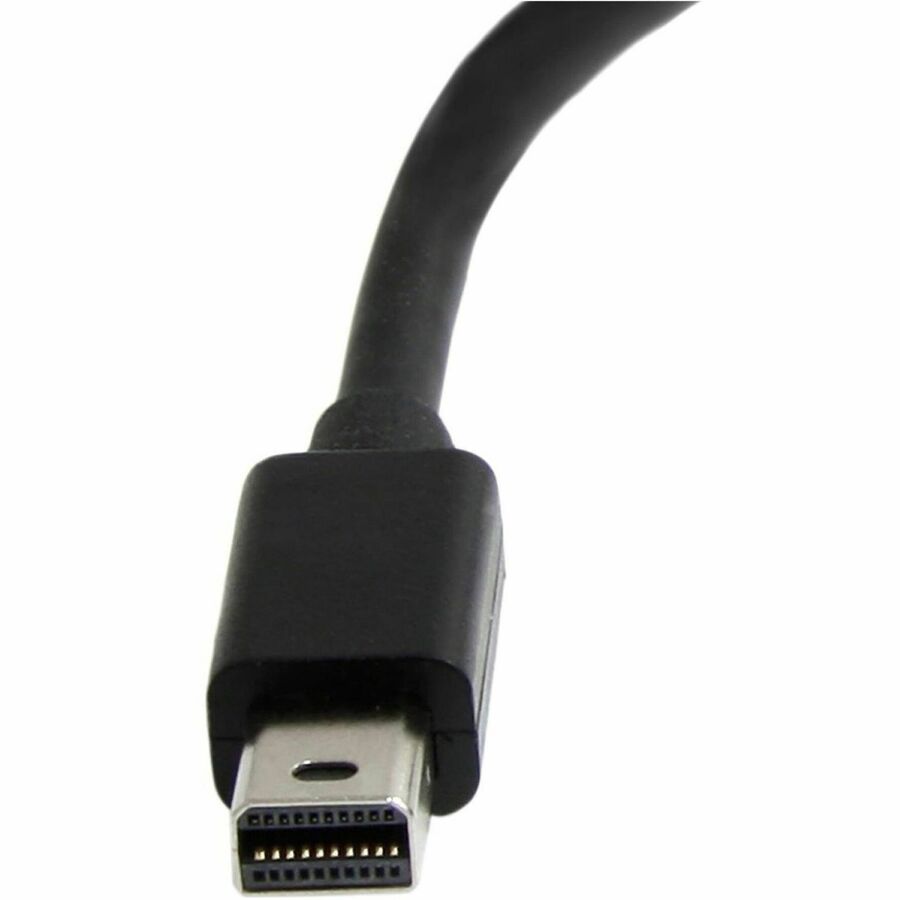

1 x 20-pin Mini DisplayPort 1.1 Digital Audio/Video - Male

Connector Type on Second End

DVI-D Digital Video - Female

Connector Gender on Second End

Female

Connector on Second End Details

1 x 25-pin DVI-D Digital Video - Female

Features

  • Active
  • Halogen Free
  • HDCP 1.3
  • Extended Display Identification Data (EDID)

Cable Length

4.72"
Physical Characteristics

Product Color

Black

Weight (Approximate)

1.34 oz
Miscellaneous

Certifications & Standards

  • CE
  • FCC

Country of Origin

China

Environmentally Friendly

Yes

Environmental Compliance

  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
