StarTech.com 6ft RS422/485 USB Serial Adapter w/ COM Retention

Name: StarTech.com 6ft RS422/485 USB Serial Adapter w/ COM Retention
Brand: STARTECH
SKU: BH4682
Price: 75.31 USD
Availability: InStock

STARTECH

PCN#

BH4682

MFG#

ICUSB422

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$75.31

Extended & Accidental Damage Product Replacement Plan Available Details

1-Year $22.99

2-Year $29.99

Estimated Shipment:

Product Highlights:

Straight
Through USB to RS422/485 adapter
Small form factor and USB powered
Simple install / operation with COM port retention; Compatible with Windows, macOS and Linux
6ft (1.8m); FTDI FT232RL Chipset; 921.6 Kbps Max Baud Rate; TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 1 lbs.

StarTech 6ft (1.8m) 1-Port Professional RS422/485 USB Serial Cable Adapter with COM Retention, USB to RS422 Adapter - TAA

Overview

Tech Specs

Specifications

Manufacturer	StarTech.com
Manufacturer Part Number	ICUSB422
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	6ft RS422/485 USB Serial Adapter with COM Retention

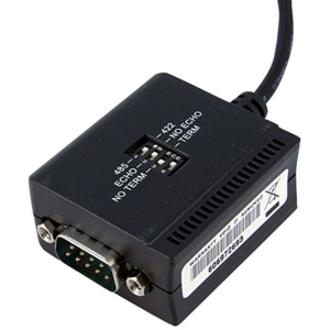

Marketing Information	The ICUSB422 6ft Professional RS422/485 USB Serial Cable Adapter with COM Port Retention lets you connect RS422 or RS485 serial devices to your USB-enabled computer. The adapter features a 9-pin (DB9) male serial connector as well as dipswitch controls for easy port configuration, and requires minimal software. The serial adapter is USB-powered, eliminating the aggravation of requiring an external power adapter. With COM port retention, assigned port settings are saved, so you can disconnect and reconnect the adapter with virtually no configuration required on the host computer. The ICUSB422 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Packaged Quantity	1 Each
Product Type	Data Transfer Adapter

Technical Information

Connector Type on First End	DB-9 RS-422 Serial - Male
Connector Gender on First End	Male
Connector on First End Details	1 x 9-pin DB-9 RS-422 Serial - Male
Connector Type on Second End	USB 1.1 Type A - Female
Connector Gender on Second End	Female
Connector on Second End Details	1 x USB 1.1 Type A - Female
Cable Length	6 ft

Physical Characteristics

Color Family	Black
Product Color	Black
Weight (Approximate)	3.53 oz

Miscellaneous

Package Contents	6ft RS422/485 USB Serial Adapter with COM Retention 1 x Driver CD 1 x Instruction Manual
Operating System Compatibility	Windows CE 4.2 Windows CE 5.0 Windows CE 6.0 Windows XP Embedded Windows 98 Second Edition Windows 2000 Server Windows XP Windows Vista Windows 7 Windows 8 Windows 8.1 Windows 10 Windows 11 Windows Server 2003 Windows Server 2008 R2 Windows Server 2012 Windows Server 2012 R2 Windows Server 2016 Windows Server 2019 Windows Server 2022 Mac OS X 10.6 Snow Leopard macOS Catalina 10.15 macOS Big Sur 11.0 macOS Monterey 12.0 macOS Ventura 13.0 Linux Kernel 3.0.x+ LTS
Additional Information	Operating System(s): Windows 8 / 7 / Vista / XP (32/64-bit) Windows 2000 Windows CE (4.2+) Windows Server 2008 R2 Windows Server 2003 (32/64-bit) Mac OS v.9.x, v.10.x (Tested up to v.10.8) Linux
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Certification	EU RoHS
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Waste Electrical and Electronic Equipment Directive (WEEE)
End of Life Manual Availability	Yes
EU RoHS Declaration URL	https://media.startech.com/cms/pdfs/icusb422_rohs.pdf
REACH Declaration URL	https://media.startech.com/cms/pdfs/icusb422_rohs.pdf
REACH free of SVHC	Yes
WEEE Statement	https://media.startech.com/cms/pdfs/icusb422_weee.pdf

Warranty

Limited Warranty

2 Year
