StarTech.com USB to RS232/RS485/RS422 8 Port Serial Hub Adapter - Industrial Metal USB 2.0 to DB9 Serial Converter - Din Rail Mountable

Add extra COM ports to your laptop or desktop computer, quickly and easily. This USB to RS232/422/485 serial adapter lets you connect to your serial devices through an external USB port.

Supports multiple serial protocols

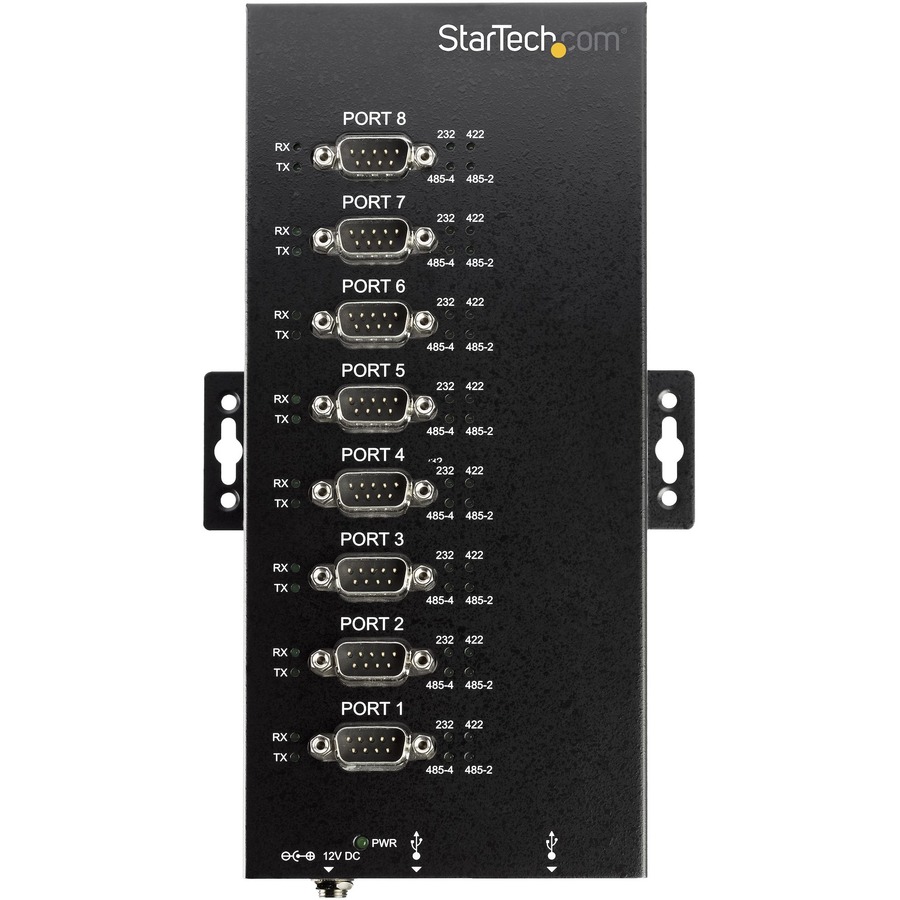

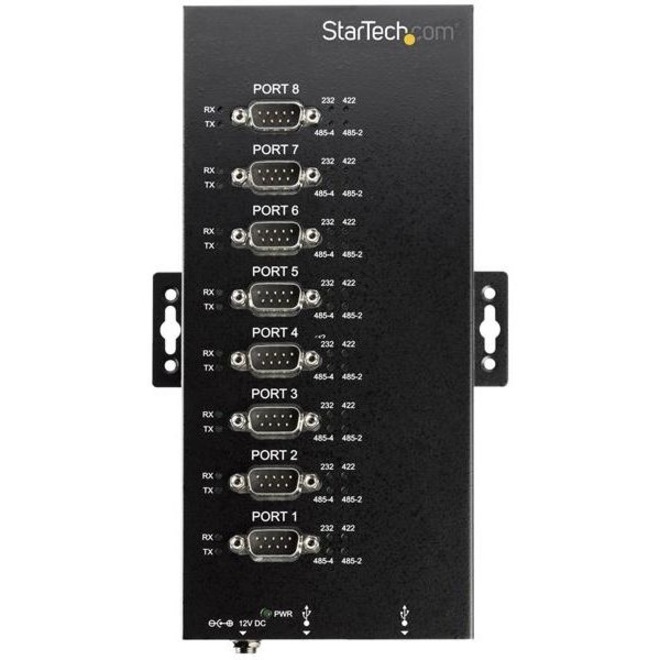

The versatile serial adapter converts a single USB port into eight RS232/RS422/RS485 serial ports, enabling you to connect, monitor, and control a wide range of serial devices, such as sensors, barcode scanners, and LED signage. It supports four operating modes, including RS232, RS422, 4-wire and 2-wire RS485.

Ideal for harsh environments

With its rugged IP30-rated metal hub housing, the serial adapter is built to meet the extreme demands of harsh and mission-critical environments. It provides 15 kV ESD protection, which helps to reduce downtime in industrial environments where communications lines are more prone to noise emissions or sudden spikes in voltage.

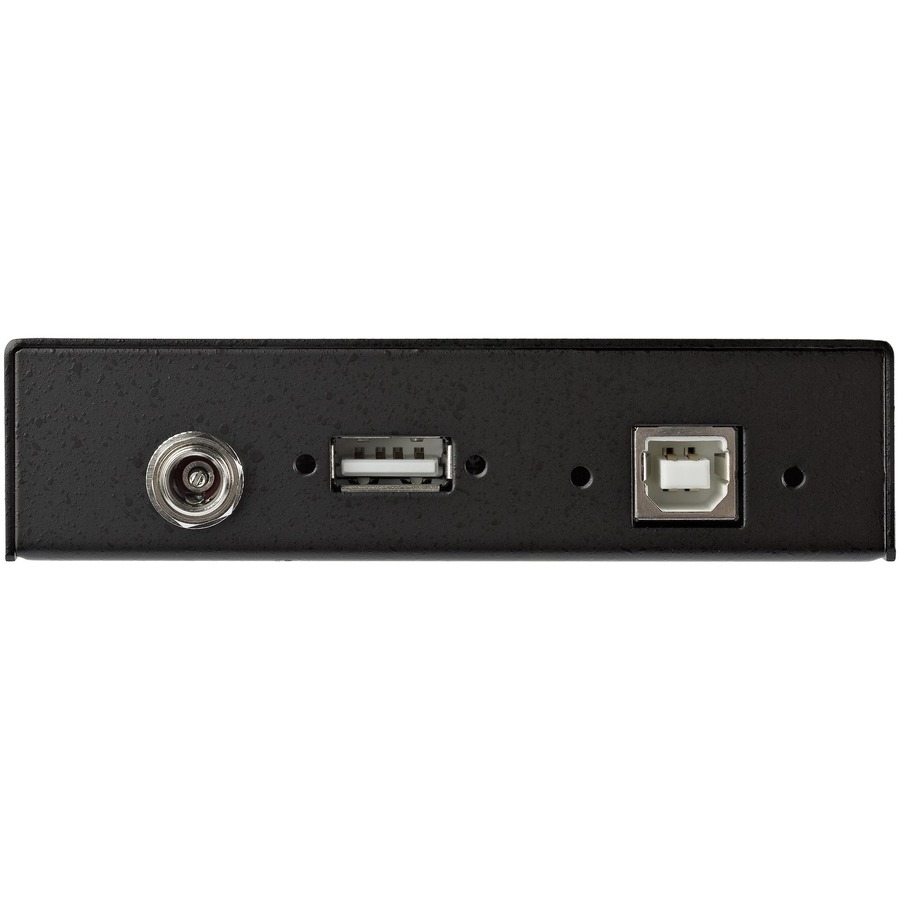

The serial adapter offers flexible mounting options, with a built-in wall-mounting bracket and included DIN rail mounting kit. It also features a screw-locking host connection plus a screw-locking USB-B connector on the included USB cable, to prevent accidental disconnections.

Fast data transfers

The serial adapter is equipped with high-speed UARTs, providing fast data rates of up to 921Kbps in RS232/422/485operating modes.

The ICUSB234858I is backed by a StarTech.com 2-year warranty and free lifetime technical support.

• PC
• Linux

• USB Serial Hub

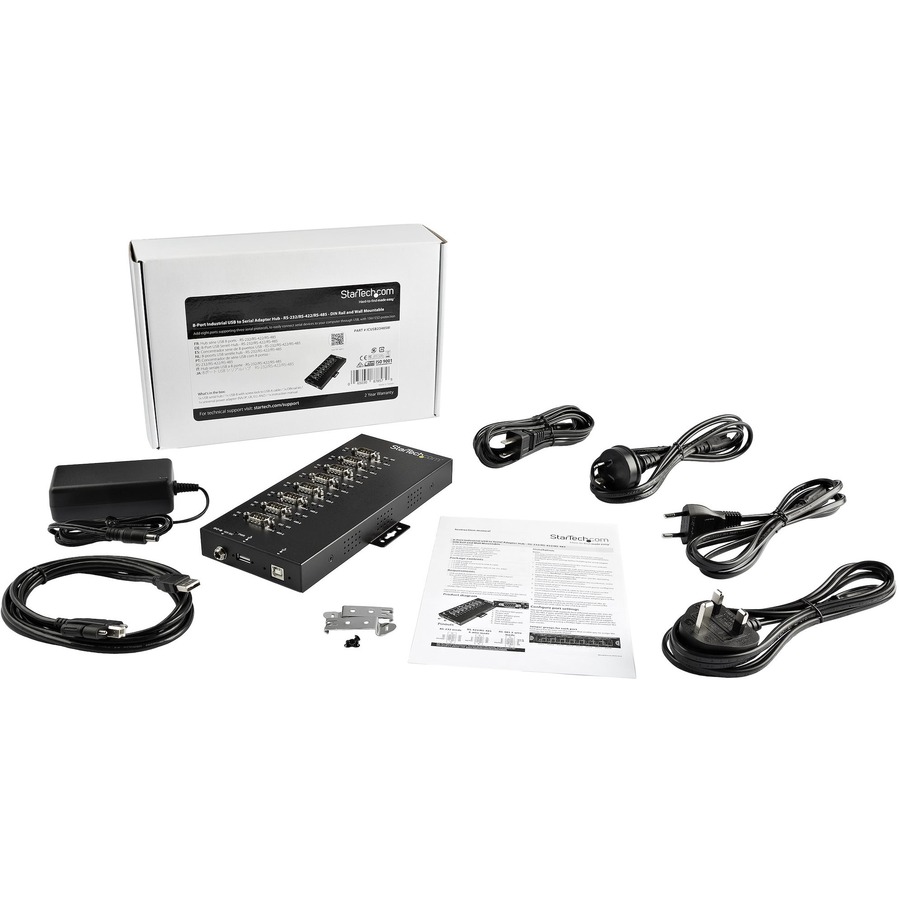

• 1 x USBxB with Screw Lock to USBxA Cable
• 1 x DIN Rail Kit
• 1 x Universal Power Adapter (NA/JP, UK, EU, ANZ)
• 1 x Instruction Manual

OS Compatibility:

• Windows® 7, 8, 8.1, 10, 11
• Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019, 2022
• macOS 10.9 to 10.15, 11.0, 12.0, 13.0
• Linux 2.4.x and up  - LTS Versions only

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
