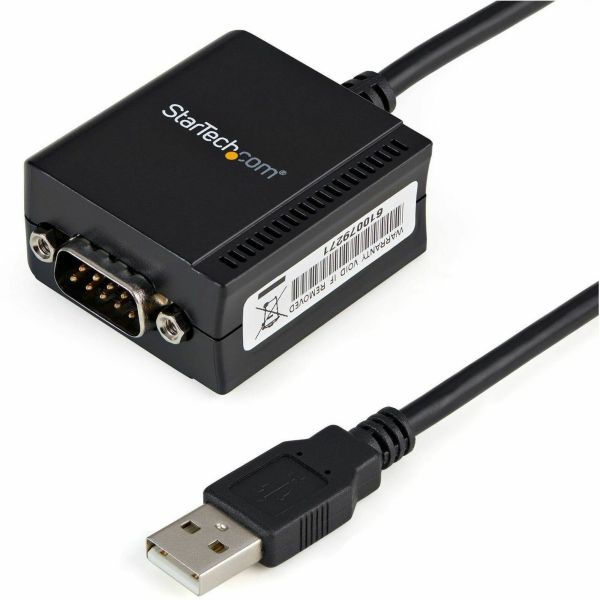

StarTech.com 1 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention

by
STARTECH
PCN#
GV8937
MFG#
ICUSB2321F
$38.41
cps

Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • USB to serial RS232 adapter
  • FTDI chipset, making it highly customizable and compatible
  • Small form factor, serial RS232 converter is USB powered

Show more

Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 1 lbs.
StarTech 6ft (1.8m) 1-Port FTDI USB to Serial RS232 Adapter Cable with COM Retention, USB to RS232 Adapter - TAA
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

ICUSB2321F

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

1 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention

Marketing Information

The ICUSB2321F 1-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into an RS232 serial DB9 port to connect, monitor and control your serial devices.

This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The ICUSB2321F uses the FTDI chipset which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.

Compatibility with a broad list of Operating Systems including Windows®, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Packaged Quantity

1 Each

Product Type

Data Transfer Adapter
Technical Information

Connector Type on First End

DB-9 RS-232 Serial - Male

Connector Gender on First End

Male

Connector on First End Details

1 x 9-pin DB-9 RS-232 Serial - Male

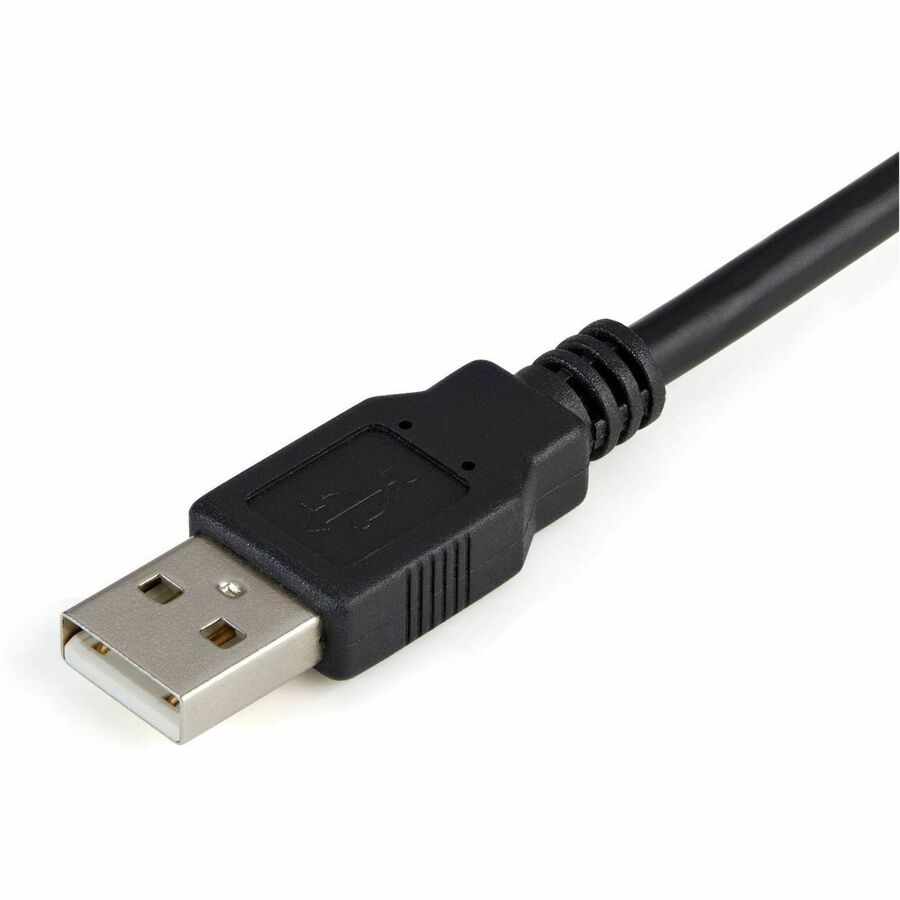

Connector Type on Second End

USB 2.0 Type A - Male

Connector Gender on Second End

Male

Connector on Second End Details

1 x USB 2.0 Type A - Male

Cable Length

6 ft
Physical Characteristics

Color Family

Black

Product Color

Black

Product Material

Plastic

Weight (Approximate)

3.17 oz
Miscellaneous

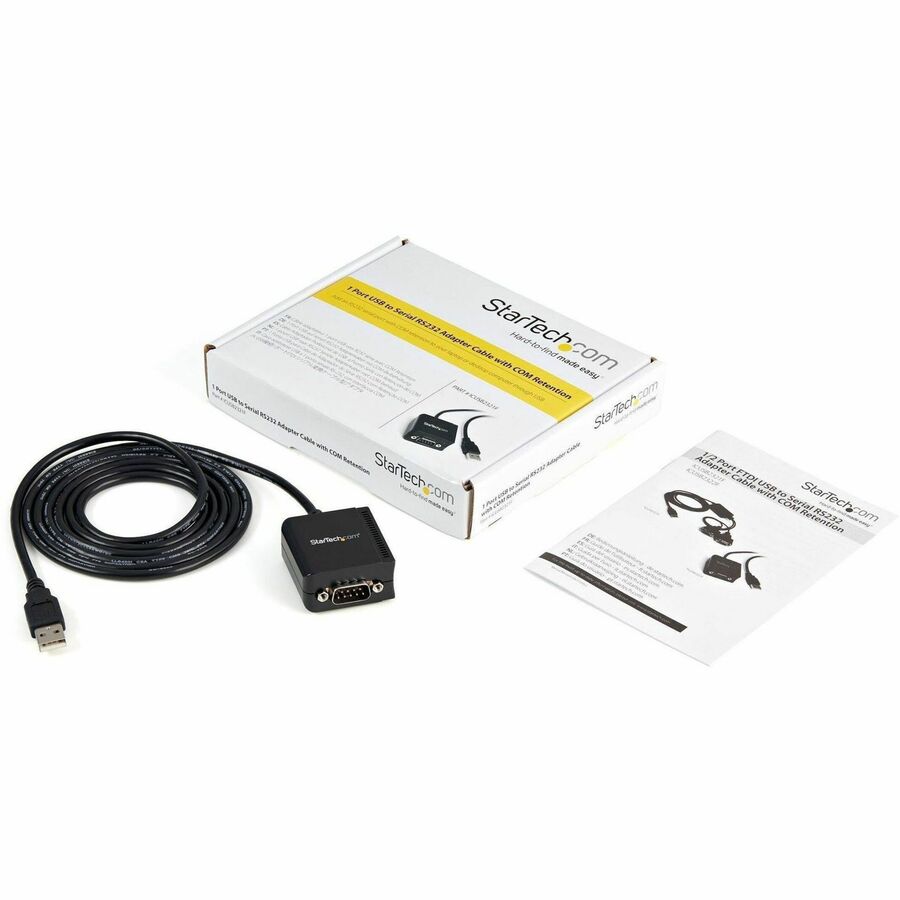

Package Contents

  • 1 Port FTDI USB to Serial RS232 Adapter Cable with COM Retention
  • 1 x Driver CD
  • 1 x Instruction Manual

Operating System Compatibility

  • Windows CE 4.2
  • Windows CE 5.0
  • Windows CE 6.0
  • Windows XP Embedded
  • Windows 98 Second Edition
  • Windows 2000 Server
  • Windows XP
  • Windows Vista
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 10
  • Windows 11
  • Windows Server 2003
  • Windows Server 2008 R2
  • Windows Server 2012
  • Windows Server 2012 R2
  • Windows Server 2016
  • Windows Server 2019
  • Windows Server 2022
  • Mac OS X 10.6 Snow Leopard
  • macOS Catalina 10.15
  • macOS Big Sur 11.0
  • macOS Monterey 12.0
  • macOS Ventura 13.0
  • Linux Kernel 3.0.x+ LTS

Additional Information

OS Compatibility:
  • Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
  • Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
  • Mac OS® 10.6 to 10.14
  • Linux 2.4.x to 4.11.x LTS Versions only

Certifications & Standards

FCC

Country of Origin

Taiwan

TAA Compliant

Yes

Environmentally Friendly

Yes

Environmental Certification

EU RoHS

Environmental Compliance

  • Restriction of Hazardous Substances (RoHS) 2
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Waste Electrical and Electronic Equipment Directive (WEEE)

End of Life Manual Availability

Yes

EU RoHS Declaration URL

https://media.startech.com/cms/pdfs/icusb2321f_rohs.pdf

REACH Declaration URL

https://media.startech.com/cms/pdfs/icusb2321f_rohs.pdf

REACH free of SVHC

Yes

WEEE Statement

https://media.startech.com/cms/pdfs/icusb2321f_weee.pdf
Warranty

Limited Warranty

2 Year
