StarTech.com Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection

Name: StarTech.com Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection
Brand: STARTECH
SKU: TG1520
Price: 84.36 USD
Availability: InStock

STARTECH

PCN#

TG1520

MFG#

IC232485S

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$84.36

Extended & Accidental Damage Product Replacement Plan Available Details

1-Year $22.99

2-Year $29.99

Free Shipping

Estimated Shipment:

Product Highlights:

Convert an RS232 data signal to either RS485 or RS422 with this wall
mountable, ESD
protected adapter
Industrial RS232 to RS422/485 Serial Port Converter w/ 15KV ESD Protection
RS232 to RS485 Serial Converter
RS232 RS422 Adapter
RS232/422/485

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 1 lbs.

StarTech.com Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection

Overview

Tech Specs

Specifications

Manufacturer	StarTech.com
Manufacturer Part Number	IC232485S
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection

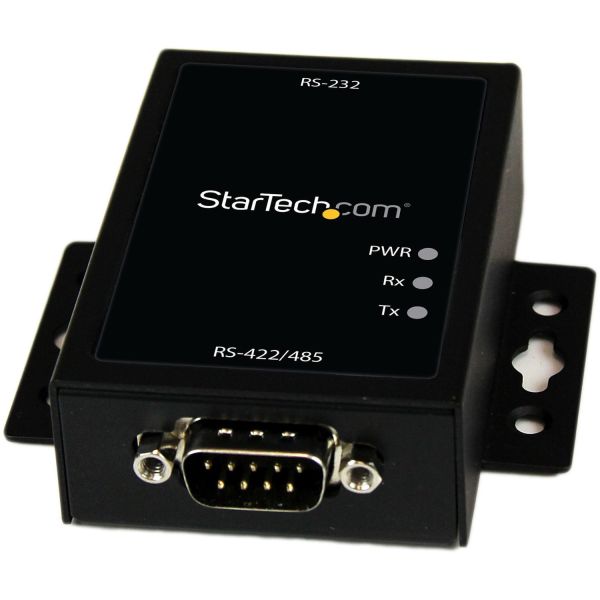

Marketing Information	The IC232485S Industrial RS232 to RS-422/485 Serial Converter is a bi-directional adapter that lets you adapt an RS232 data signal to either RS485 (2 or 4-wire) or RS422 and vice-versa, with support for baud rates up to 921.6 Kbps. Ideal for industrial environments, the serial port converter provides 15KV ESD protection on all signal pins to protect costly and often sensitive control equipment against electrical damage. The serial converter also features a sturdy wall-mountable metal housing with Power, Tx and Rx LED indicators for simple status monitoring. The adapter supports auto baud rate detection as well as RS-422 and RS485 mode detection, with an integrated dip switch for manual mode selection if needed, and supports connection distances of up to 4000ft (1200m). Backed by a 2-year StarTech.com warranty and free lifetime technical support.
Packaged Quantity	1
Product Type	Device Server

Wireless Specifications

Wireless LAN	No
ISM Band	No
UNII Band	No

Interfaces/Ports

Network (RJ-45)	No
Phone Line (RJ-11)	No
Network (RJ-11)	No
USB	No
Serial Port	Yes
Parallel Port	No
Centronics Port	No
PoE (RJ-45) Port	No
Number of Serial Ports	2

Power Description

Input Voltage

5 V DC

Physical Characteristics

Product Color	Black
Form Factor	Wall Mountable
Height	0.9"
Width	2.3"
Depth	4.6"
Weight (Approximate)	5 oz

Miscellaneous

Package Contents	Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection 1 x Universal Power Adapter (NA/EU/UK) 1 x Instruction Manual
Certifications & Standards	CE FCC
Environmentally Friendly	Yes
Country of Origin	China

Warranty

Limited Warranty

2 Year
