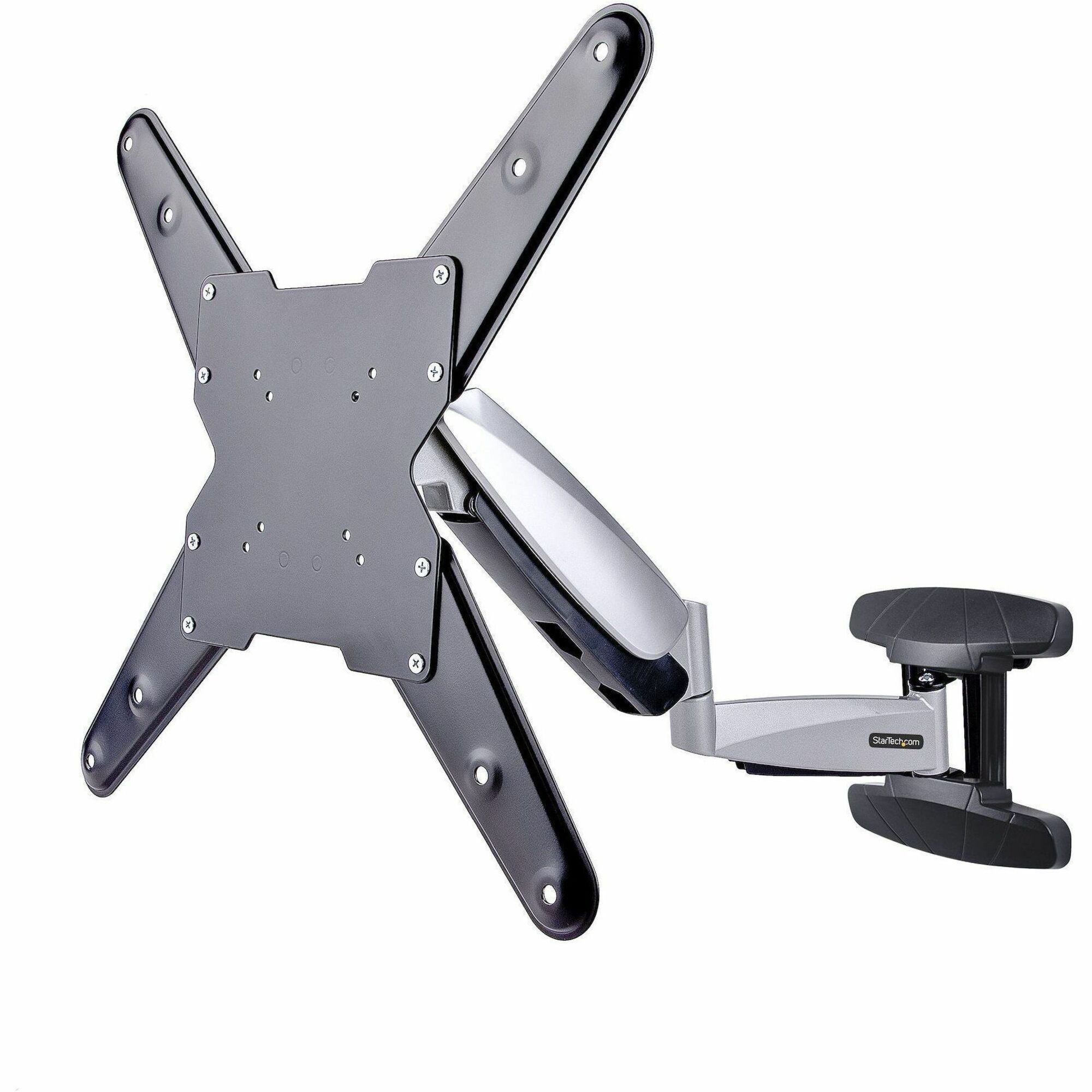

StarTech.com VESA TV Wall Mount, Adjustable Full Motion TV Wall Mount For 23"-55" Displays, Extendable/Tilting/Swivel TV Wall Mount

Versatile TV Mounting

Securely mount a flat or curved-screen TV or digital signage in a convenient location for viewing by visitors, clients, and employees. This TV wall mount is ideal for lobbies, boardrooms, and manufacturing facilities. The lateral range of 3.54 ft (1.08m) is ideal for corner mounting. The jointed arm folds on itself and creates a slim profile from the wall of just 2.2in (5.8cm) for limited space installations. The minimum TV weight is 17.6lb (8kg). M5/M6/M8 Screws of various lengths and an assortment of washers and spacers enhance TV mounting compatibility. Mount into wood-stud or concrete walls, using the included hardware.

Supported VESA mounting patterns: 75x75,100x100, 200x100, 200x200, 300x300, 400x200, and 400x400.

Full-Motion Adjustment

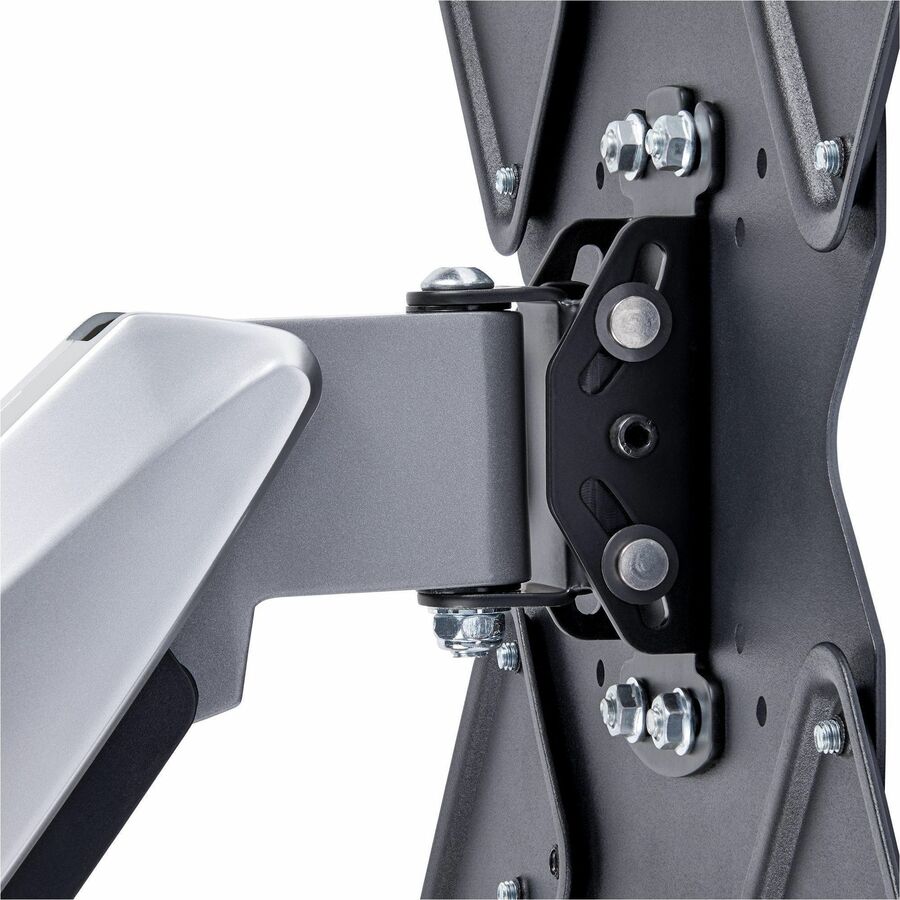

The VESA plate swivels +90 / -90 degrees, tilts +8 / -15 degrees, and rotates +3 / -3 degrees. Customize the viewing experience and comfort with these full-motion capabilities. The one-touch spring-assisted mechanism facilitates effortless height adjustments, with a range of up to 12.6in (32cm).

The arm assembly extends up to 23.4 in (59.5 cm) from the wall to accommodate different viewing positions.

Durable Construction

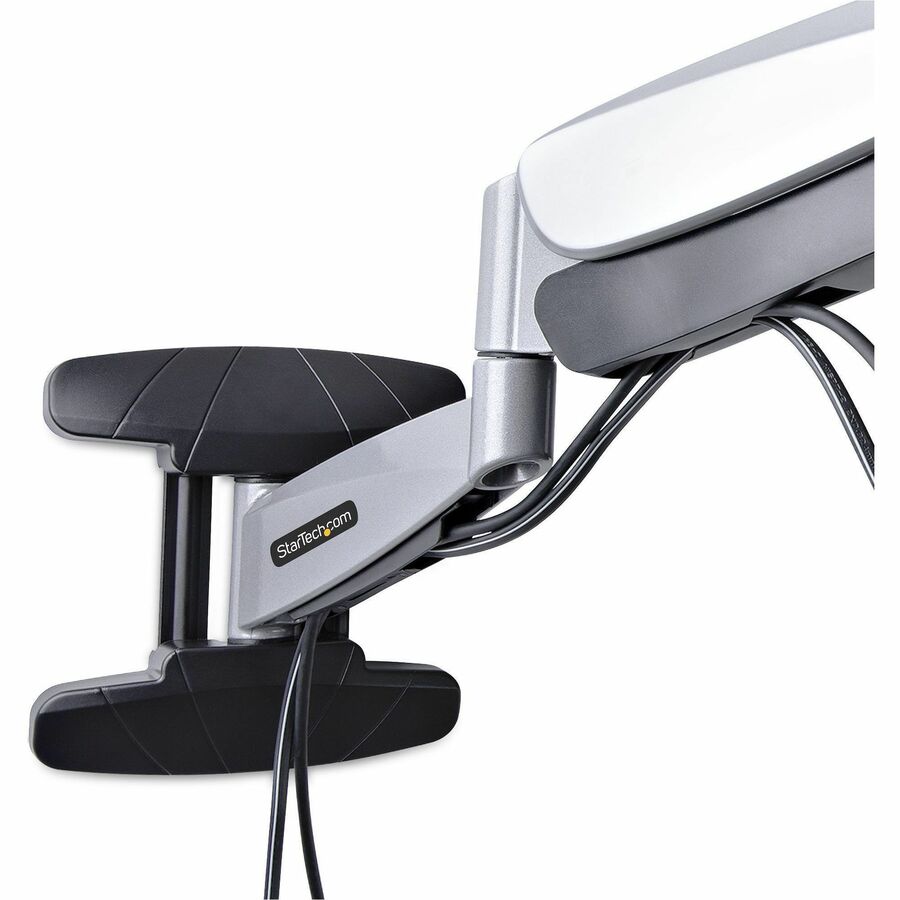

The robust steel and aluminum design safely and securely supports the TV. The arm assembly features built-in cable management and a wall mount cover for a an organized and visually appealing installation.

The height adjustable TV wall mount is backed for two years, including free lifetime 24/5 multi-lingual technical assistance."

• TV
• Flat Panel Display
• Curved Screen Display

• +/- 90° Swivel
• +/- 3° Rotation
• Tool-less Adjustment
• Cable Management
• Full Motion
• Durable
• Articulating
• 180° Swivel
• Adjustable
• 8°/-15° Tilt

• Black
• Silver

• 75 x 75
• 100 x 100
• 200 x 100
• 200 x 200
• 400 x 200
• 400 x 400
• 300 x 300

• Steel
• Aluminum

• 1 x Arm Assembly
• 2 x Decorative Covers
• 2 x VESA Extension Plates, LH
• 2 x VESA Extension Plates, RH
• 8 x VESA Extension Plate Screws
• 1 x Wrench
• 1 x 4mm Hex Key
• 1 x 6mm Hex Key
• 1 x Bubble Level
• 4 x M5x14mm Screws
• 4 x M6x14mm Screws
• 4 x M6x30mm Screws
• 4 x M8x30mm Screws
• 4 x M8x50mm Screws
• 4 x Display Washers, Small
• 4 x DiapLay Washers, Large
• 8 x Short Spacers
• 8 x Tall Spacers
• 5 x Wall Mounting Screws
• 5 x Concrete Anchors
• 5 x Wall Mounting Washers
• 1 x Manual

• Wall
• Lobby
• Board Room
