StarTech.com 1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km

Name: StarTech.com 1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km
Brand: STARTECH
SKU: PG5603
Price: 377.25 USD
Availability: InStock

STARTECH

PCN#

PG5603

MFG#

ET1000S40LC2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$377.25

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40km over Single Mode LC fiber
fiber converter
ethernet media converter
fibre converter
gigabit media converter
1000base
sx

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 2 lbs.

StarTech 1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km, TAA

Overview

Tech Specs

Specifications

Manufacturer	StarTech.com
Manufacturer Part Number	ET1000S40LC2
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km
Marketing Information	The ET1000S40LC2 1000 Mbps Gigabit Single-Mode Fiber Media Converter (LC, 40 km) enables you to extend a Gigabit Ethernet network over single-mode fiber, at distances up to 40km (25 miles). A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required. For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U). Backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer
Packaged Quantity	1 Each
Product Type	Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports	2
Network (RJ-45)	Yes
DVI	No
USB	No
Parallel Port	No
Digital Audio	No
Digital Audio/Video	No
Management Port	No
Number of LC Ports	1
LC Port Type	Duplex
Number of Network (RJ-45) Ports	1

Media & Performance

Media Type Supported	Twisted Pair Optical Fiber
Fiber Mode Supported	Single-mode
Fiber Optic Cable Wavelength	1310 nm
Maximum Distance Supported	40 km

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Technology	1000Base-T 1000Base-SX/LX

Power Description

Power Source	AC Adapter
Input Voltage	12 V DC
Power Consumption	4 W
Plug/Connector Type	Type M

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Desktop Rack-mountable
Height	0.9"
Width	3.4"
Depth	6.1"
Weight (Approximate)	14.40 oz

Miscellaneous

Package Contents	1000 Mbps Gigabit Single Mode Fiber Media Converter LC 40 km 1 x Universal Power Adapter 1 x Grounding Screw 1 x Instruction Manual

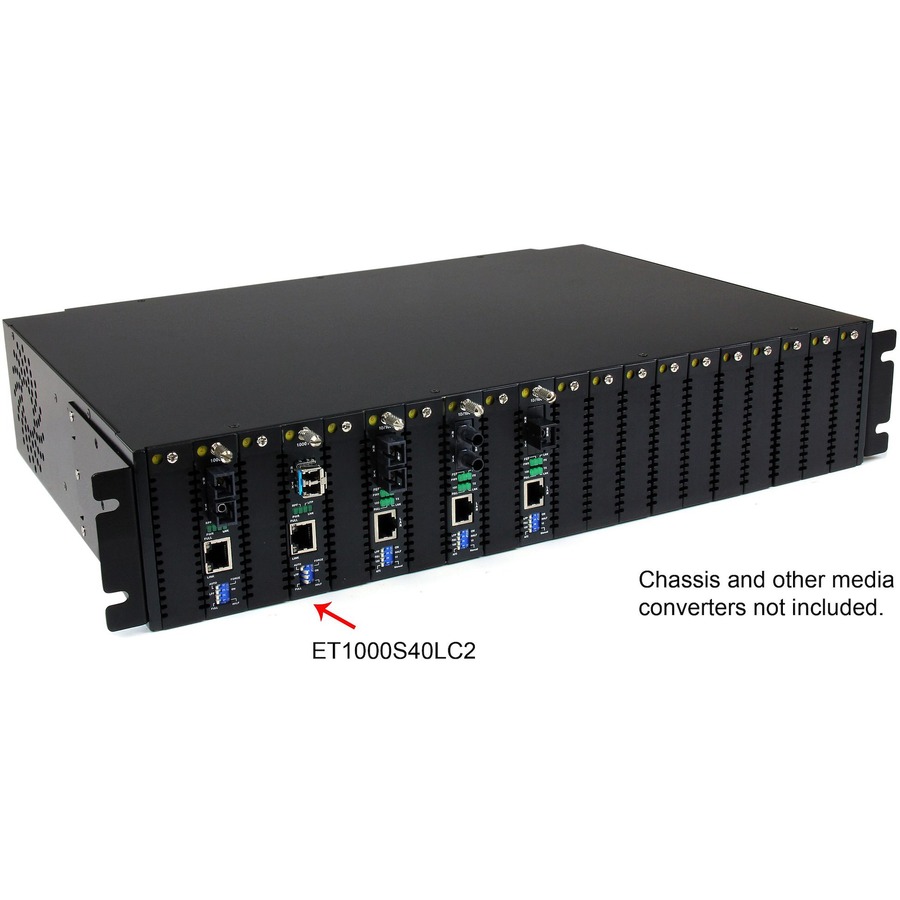

Compatibility	ETCHS2U Rackmount Chassis
Certifications & Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab FC FCC
Environmentally Friendly	Yes
Environmental Certification	EU RoHS
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin	Taiwan
TAA Compliant	Yes
End of Life Manual Availability	Yes
EU RoHS Declaration URL	https://media.startech.com/cms/pdfs/et1000s40lc2_rohs.pdf
REACH Declaration URL	https://media.startech.com/cms/pdfs/et1000s40lc2_rohs.pdf
REACH free of SVHC	Yes
WEEE Statement	https://media.startech.com/cms/pdfs/et1000s40lc2_weee.pdf

Warranty

Limited Warranty

2 Year
