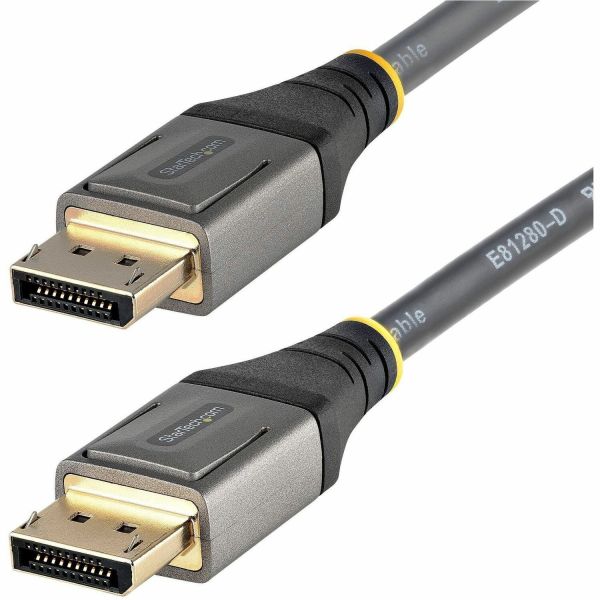

StarTech.com 10ft (3m) VESA Certified DisplayPort 1.4 Cable, 8K 60Hz HDR10, UHD 4K 120Hz Video, DP to DP Monitor Cord, DP 1.4 Cable, M/M

by
STARTECH
PCN#
9KZ912
MFG#
DP14VMM3M
$35.20
cps

Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 9.8ft/3m VESA Certified DisplayPort 1.4 cable; 8K 60Hz/4K 120Hz video/32.4Gbps/HDR10/32Ch Audio
  • Monitor cord with 28 AWG/Al
  • Mylar Foil w/Braid

Show more

Product Condition: New and Factory Fresh
Limited WarrantyLifetime
Shipping Weight: 1 lbs.
StarTech.com 10ft (3m) VESA Certified DisplayPort 1.4 Cable, 8K 60Hz HDR10, UHD 4K 120Hz Video, DP to DP Monitor Cord, DP 1.4 Cable, M/M
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

DP14VMM3M

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

Displayport 1.4 8K Cable

Marketing Information

This DisplayPort 1.4 cable connects your DisplayPort™ laptop or desktop computer to an ultra-high definition 8K monitor, TV or projector. It supports resolutions up to 8K (7680 x 4320) at 60Hz.

The DisplayPort monitor cable provides the essential connection to support the next generation of ultra-high definition video.

This cable is VESA® to ensure full compliance and efficient operation of the higher link rate of HBR3. It has been tested to meet all DP 1.4 specifications to ensure quality and reliability.

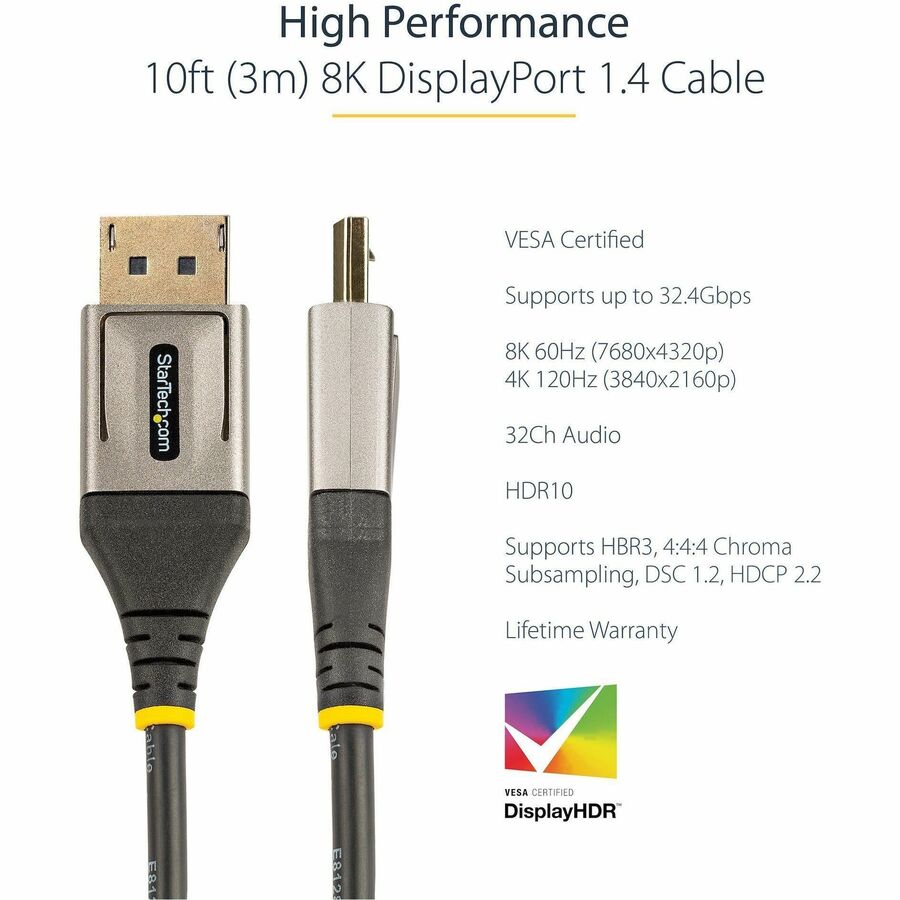

The Superior Performance of DisplayPort 1.4

This 8K DisplayPort cable supports all DP 1.4 features:

  • High Bit Rate 3 (HBR3) Bandwidths of 32.4 Gbps supporting the latest in industry standards
  • High Dynamic Range (HDR10) for higher contrast ratio and vivid colors
  • Multi-Stream Transport (MST) for daisy-chaining multiple monitors
  • Display Stream Compression 1.2 (DSC) for maximum resolution output
  • Forward Error Correction to manage data transmission errors
  • High-Bandwidth Digital Content Protection (HDCP 2.2) for a secure connection between source and display
  • 32 Uncompressed Digital Audio Channels

Cable Key Features

Aluminum-mylar foil with braided shielding improve EMI protection
Long lasting flexible TPE jacket & strain relief (TPE is non-toxic & halogen free for environmental sustainability)

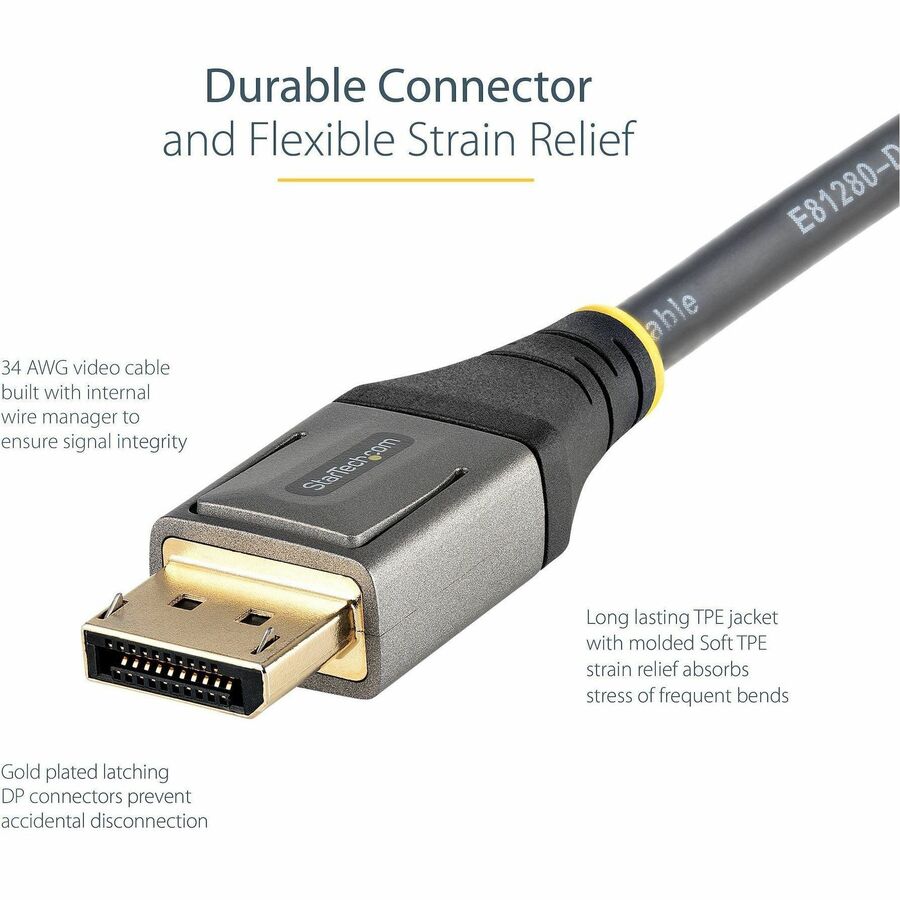

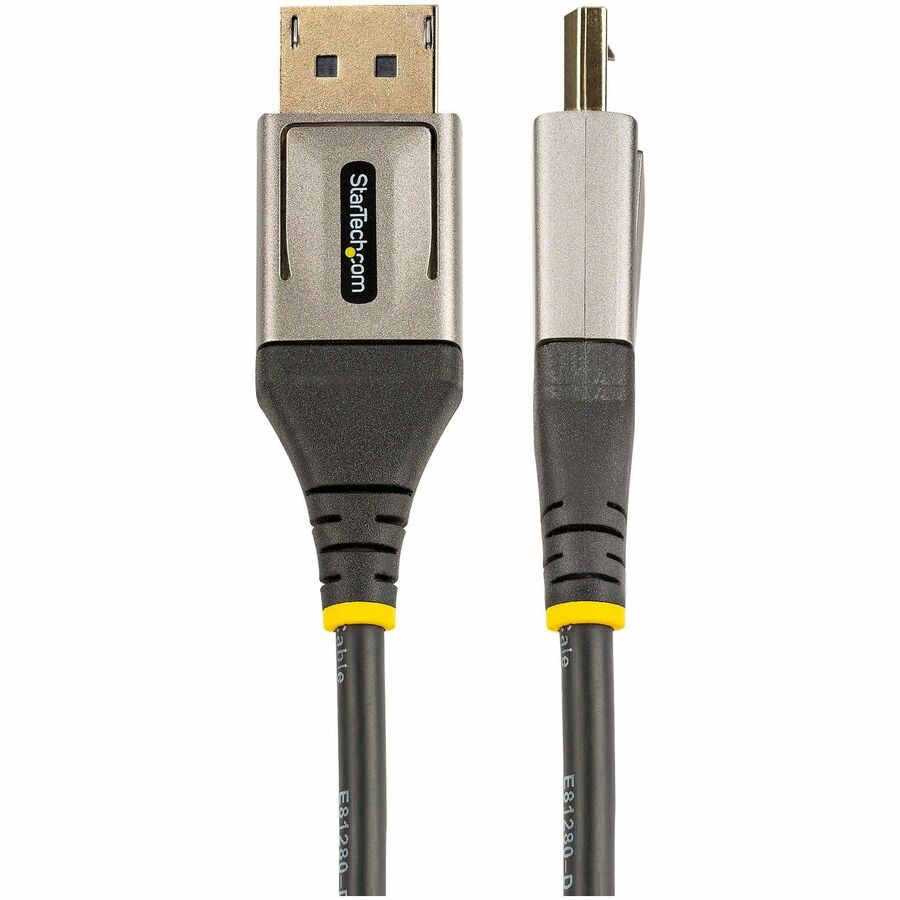

Connector Key Features

Die-cast aluminium sub-structure shielding improves signal integrity & prevents signal degradation
Corrosion-free gold-plated connectors ensure premium video quality & enhanced reliability

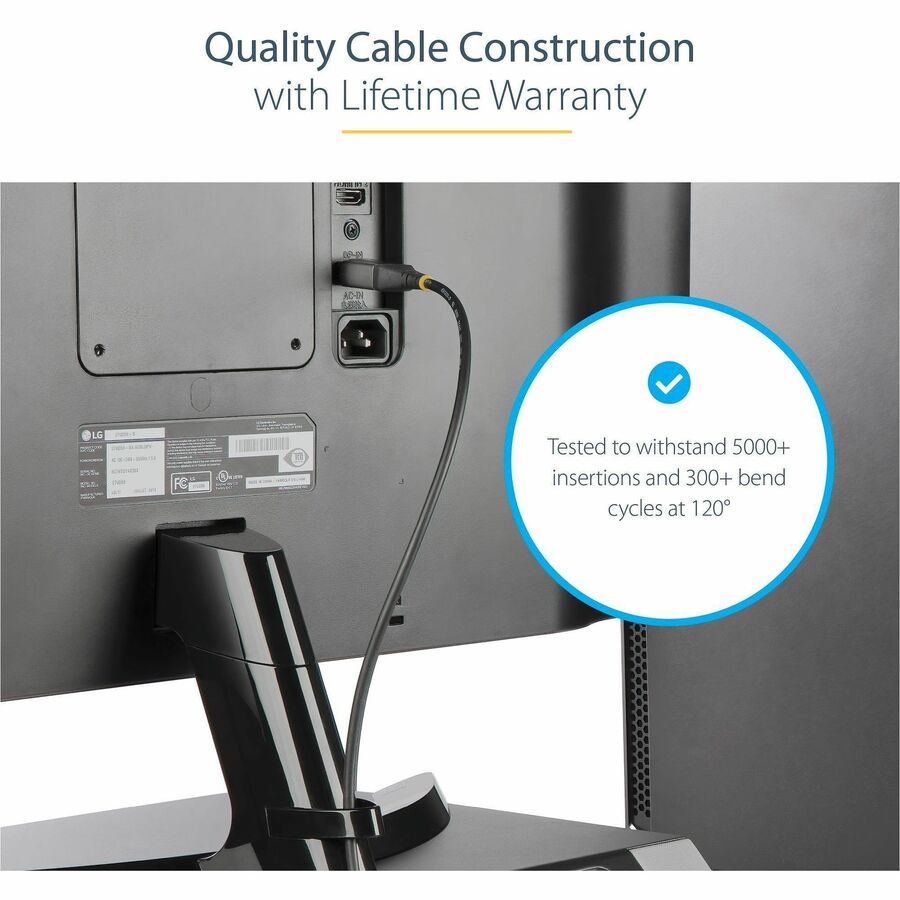

Tested to withstand 10,000+ insertions

8K: Enabling Business Continuity

8K has a resolution of 7680 x 4320 and is also known as 4320p and Ultra High Definition (UHD). Suitable for digital signage and other commercial displays that require the highest available resolution. This cable is backward compatible with 4K and 5K displays making it the perfect peripheral to start futureproofing your cabling infrastructure.

Comprehensive Product Testing & Expert Technical Support

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have a broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.

DP14VMM3M is backed by a StarTech.com lifetime warranty.

Packaged Quantity

1

Product Type

Video Cable
Technical Information

Cable Type

DisplayPort

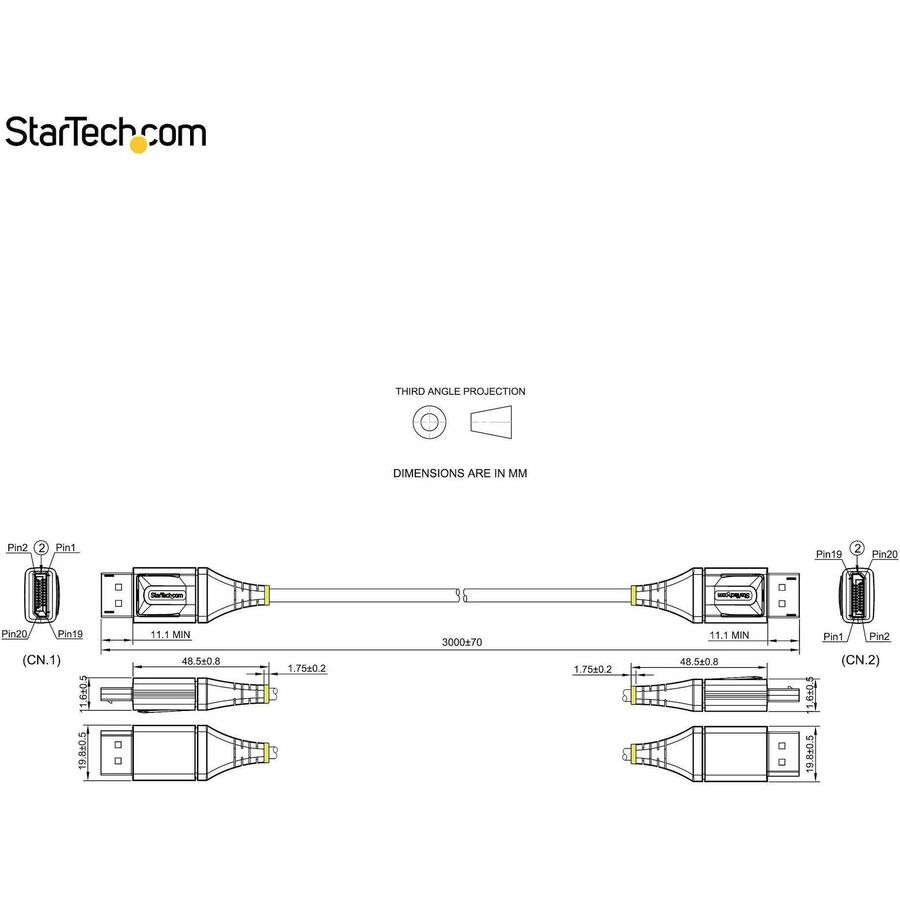

Cable Length

9.84 ft

Connector Type on First End

DisplayPort 1.4 Digital Audio/Video - Male

Connector Gender on First End

Male

Connector on First End Details

1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male

Connector Type on Second End

DisplayPort 1.4 Digital Audio/Video - Male

Connector Gender on Second End

Male

Connector on Second End Details

1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male

Connector Plating

Gold

Shielding

Yes

Device Supported

  • Audio/Video Device
  • Monitor
  • Workstation
  • Notebook
  • Desktop Computer
  • TV
  • Projector
  • Digital Signage Player
  • Graphics Card

American Wire Gauge

28 AWG

Data Transfer Rate

32.4 Gbit/s

Supported Resolution

7680 x 4320

Features

  • HDR Support
  • Multi-Stream Transport (MST) Support
  • EMI Protection
  • Latching Connector
  • Molded
  • Strain Relief
  • Stress Resistant
  • Bendable
  • Halogen Free
  • Display Stream Compression (DSC) 1.2
  • Forward Error Correction (FEC) Support
  • HDCP 2.2
  • Flexible
  • Corrosion-free
  • Passive
Physical Characteristics

Color Family

Dual Color

Product Color

  • Black
  • Gray

Jacket Material

Thermoplastic Elastomer (TPE)
Miscellaneous

Compatibility

Radeon Vega Frontier/Pro WX Series Graphic Cards:
  • 2100
  • 3100
  • 5100
  • 7100
  • W5500
  • Pro Duo 2000
Nvidia Quadrop Graphic Cards:
  • GP100
  • GV100
  • RTX 4000
Dell XPS 11th Gen Laptops
HP Z2 G8 Tower Workstation

Environmentally Friendly

Yes
Warranty

Limited Warranty

Lifetime
