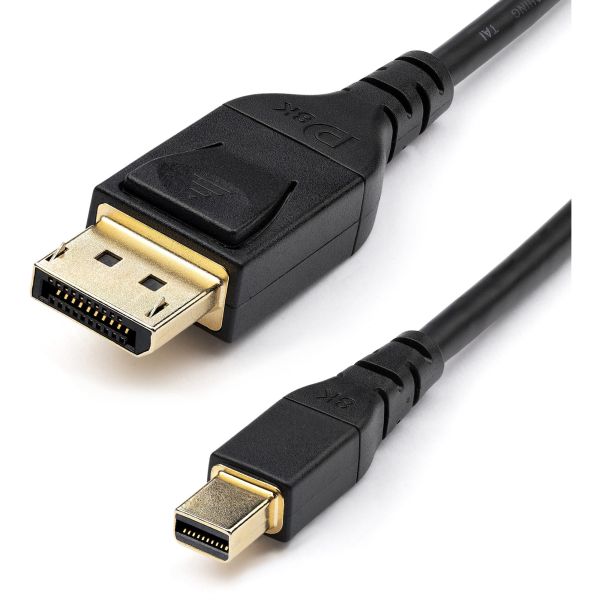

StarTech.com 6ft 2m VESA Certified Mini DisplayPort to DisplayPort 1.4 Cable, 8K 60Hz HBR3 HDR, Super UHD 4K 120Hz, mDP to DP Slim Cord

by
STARTECH
PCN#
9CY472
MFG#
DP14MDPMM2MB
$27.44
cps

Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 6.6ft VESA Certified mini DP to DisplayPort 1.4 cable | 8K 60Hz (7680x4320) or 4K 120Hz w/DSC 1.2 | HDR HBR3 HDCP 2.2 | 32ch audio
  • Strain relief absorbs bend stress | Slim 34 AWG cable
  • Works w/ mDP 1.2/Thunderbolt 2 hosts

Show more

Product Condition: New and Factory Fresh
Limited WarrantyLifetime
Shipping Weight: 1 lbs.
StarTech.com 6ft 2m VESA Certified Mini DisplayPort to DisplayPort 1.4 Cable, 8K 60Hz HBR3 HDR, Super UHD 4K 120Hz, mDP to DP Slim Cord
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

DP14MDPMM2MB

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

Mini Displayport to Displayport Cable

Marketing Information

This 2 meter VESA Certified Mini DisplayPort to DisplayPort v1.4 cable features a mDP male connector on one end, and a DP male latching connector on the other, allowing you to connect any Mini DisplayPort-enabled laptop or workstation to an 8K TV, monitor or projector that uses a standard DisplayPort connection.

Astonishing Picture Quality This mDP to DP 1.4 cable supports high resolutions of up to 8K (7680 x 4320p) at 60Hz or 4K (3840 x 2160) at 120Hz with a maximum HBR3 bandwidth of 32.4 Gbps and ensures that digitally protected content is displayed properly, with both HDCP 2.2 and DPCP capability. The adapter cable also supports:

  • Multi-Stream Transport (MST) for daisy chaining multiple monitors.
  • Display Stream Compression (DSC) v1.2 transport that enables up to 3:1 compression ratio.
  • HDR meta transport, which offers a flexible metadata packet transport to support future dynamic HDR standards.
  • Expanded audio transport, which covers capabilities such as 32 uncompressed audio channels, 1536kHz sample rate.
  • Forward Error Correction (FEC), which overlays the DSC 1.2 transport, addresses the transport error resiliency needed for compressed video transport to external displays.

Ultimate Compatibility This Mini DisplayPort to DisplayPort adapter is compatible with several systems, including your PC, Mac and Microsoft Surface devices with mDP. For ultimate convenience, this Mini DisplayPort cable works with computers that are equipped with Thunderbolt 2 ports, enabling you to connect your DP compatible displays to your mDP source. In addition, this DP1.4 adapter cable supports a wide selection of mDP1.4-equipped graphics cards such as:

  • Radeon™ VII, SSG, WX x100, Pro and FirePro™ series.
  • Nvidia Quadro P series.

Built to Last This Mini DisplayPort to DisplayPort v1.4 adapter cable is designed with gold-plated latching DisplayPort connectors that prevent accidental disconnection, making it a great accessory for office or boardroom applications.

Having 34 AWG conductors and 4.5mm outer diameter, this slim cable offers both flexibility and ease of connection.

The DP14MDPMM2MB is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Product Type

Video Cable
Technical Information

Cable Type

DisplayPort/Mini DisplayPort

Cable Length

6.56 ft

Connector Type on First End

DisplayPort 1.4 Digital Audio/Video - Male

Connector Gender on First End

Male

Connector on First End Details

1 x 20-pin DisplayPort 1.4 Digital Audio/Video - Male

Connector Type on Second End

Mini DisplayPort 1.2 Digital Audio/Video - Male

Connector Gender on Second End

Male

Connector on Second End Details

1 x 20-pin Mini DisplayPort 1.2 Digital Audio/Video - Male

Connector Plating

Gold

Shielding

Yes

Device Supported

  • Audio/Video Device
  • Notebook
  • Workstation
  • TV
  • Monitor
  • Projector
  • PC
  • MAC
  • Computer
  • Graphics Card

American Wire Gauge

34 AWG

Data Transfer Rate

32.4 Gbit/s

Supported Resolution

7680 x 4320

Features

  • Display Stream Compression (DSC) 1.2
  • HDCP 2.2
  • Strain Relief
  • Bend Resistant
  • Stress Resistant
  • Latching Connector
  • DPCP
  • Multi-Stream Transport (MST) Support
  • Forward Error Correction (FEC) Support
  • EMI Protection
  • Tarnish Resistant
Physical Characteristics

Product Color

Black

Jacket Material

Polyvinyl Chloride (PVC)
Miscellaneous

Compatibility

Nvidia Quadro Graphic Cards:
  • P620
  • P600
  • P400
AMD Graphic Cards:
  • Radeon Pro VII
  • Radeon Pro SSG
  • Radeon Pro WX9100
  • Radeon Pro WX4100
  • Radeon Pro WX3200
  • Radeon Pro WX3100
  • Radeon Pro WX2100
  • Radeon Pro W5700
  • Radeon Pro W5500
  • FirePro W9100
  • FirePro 900
  • FirePro 600
  • FirePro 4100

Country of Origin

China
Warranty

Limited Warranty

Lifetime
