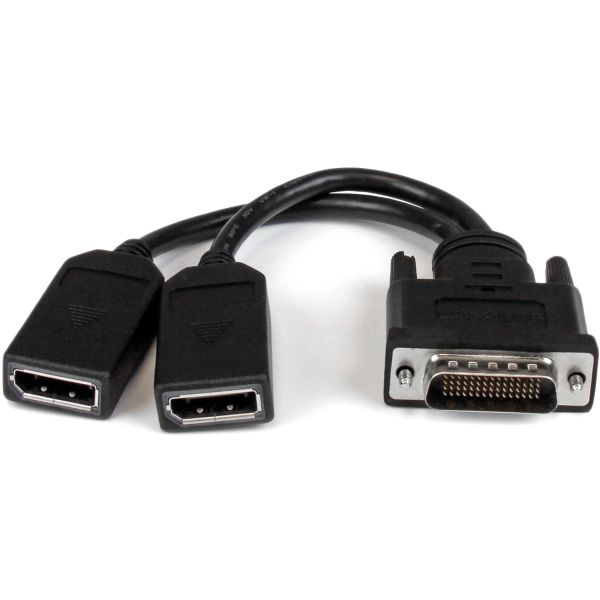

StarTech.com 8" DMS-59 to Dual DisplayPort Adapter Cable, 4K x 2K, DMS 59 pin (M) to 2x DP 1.2 (F) Splitter Y Cable, LFH to 2x DP Monitors

Name: StarTech.com 8" DMS-59 to Dual DisplayPort Adapter Cable, 4K x 2K, DMS 59 pin (M) to 2x DP 1.2 (F) Splitter Y Cable, LFH to 2x DP Monitors
Brand: STARTECH
SKU: YB4112
Price: 27.65 USD
Availability: InStock

STARTECH

PCN#

YB4112

MFG#

DMSDPDP1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$27.65

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $9.99

1-Year $7.99

Estimated Shipment:

Product Highlights:

7.8in DMS
59 to Dual DisplayPort adapter; 4K x 2K (3840x2160p 60Hz)/21.6Gbps/HBR2
Y
cable to split the video signal from DMS/LFH 59/LFH 60 graphics card to 2x DP monitors/displays
DMS 59 to DP cable works w/ ATI Radeon X1300/NVIDIA Quadro NVS 440

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

StarTech.com 8" DMS-59 to Dual DisplayPort Adapter Cable, 4K x 2K, DMS 59 pin (M) to 2x DP 1.2 (F) Splitter Y Cable, LFH to 2x DP Monitors

Overview

Tech Specs

Specifications

Manufacturer	StarTech.com
Manufacturer Part Number	DMSDPDP1
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	8in LFH 59 Male to Dual Female DisplayPort DMS 59 Cable
Marketing Information	The DMSDPDP1 DMS-59 to Dual DisplayPort Cable allows you to split the video from a single LHF graphics card on to two DisplayPort (DP) monitors. The DMS to DP Y cable supports high resolutions of up to 4k x 2k (3840 x 2160) with a maximum HBR2 bandwidth of 21.6 Gbps and is compatible with DMS / LFH 59 or DMS / LFH 60 graphics cards such as Matrox, NVIDIA®; PNY, ATI and HP. Backed by our Lifetime Warranty, the DMSDPDP1 is designed and constructed for maximum durability - making it a reliable and cost-effective replacement for damaged or misplaced DMS to 2x DisplayPort cables. More from the Manufacturer
Packaged Quantity	1 Each
Product Type	Video Cable

Technical Information

Cable Type	DMS-59/DisplayPort
Cable Characteristic	Splitter Cable
Cable Length	8"

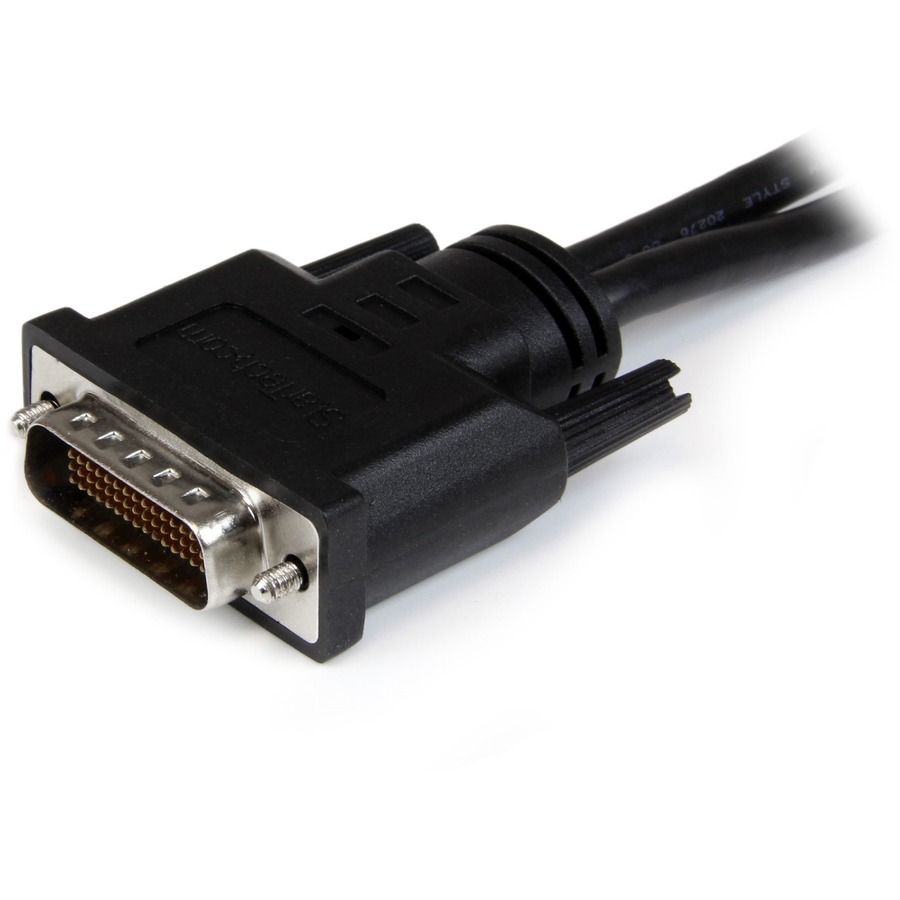

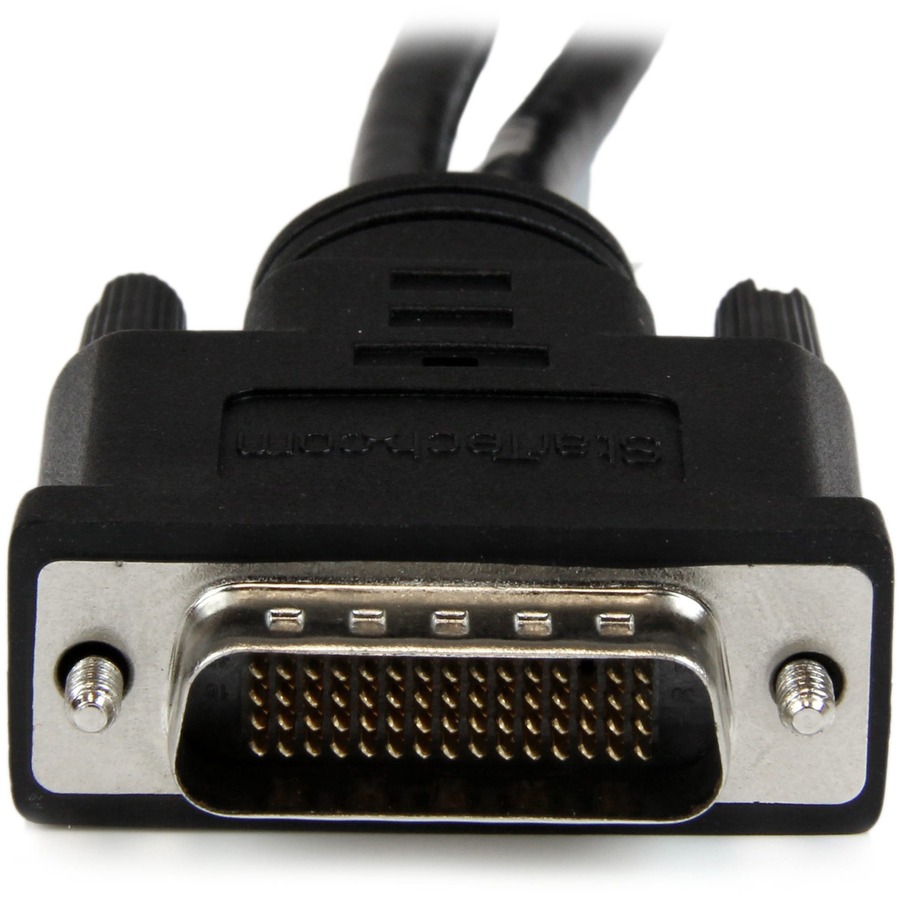

Connector Type on First End	DMS-59 Video - Male
Connector Gender on First End	Male
Connector on First End Details	1 x 59-pin DMS-59 Video - Male

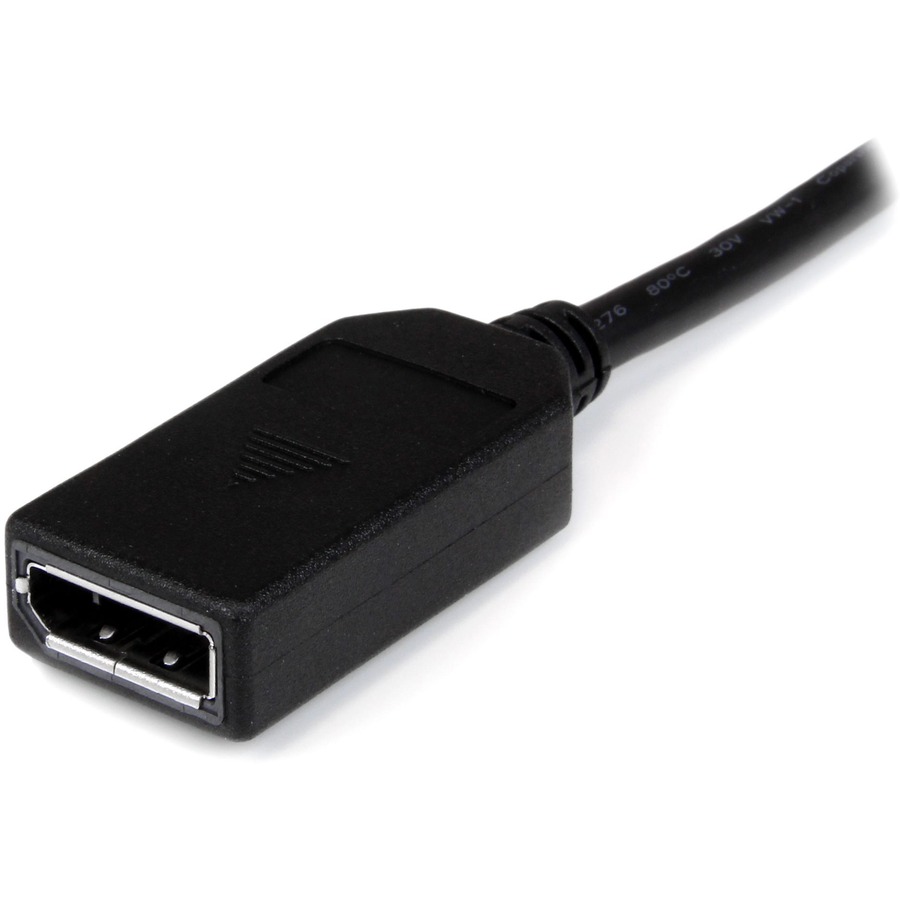

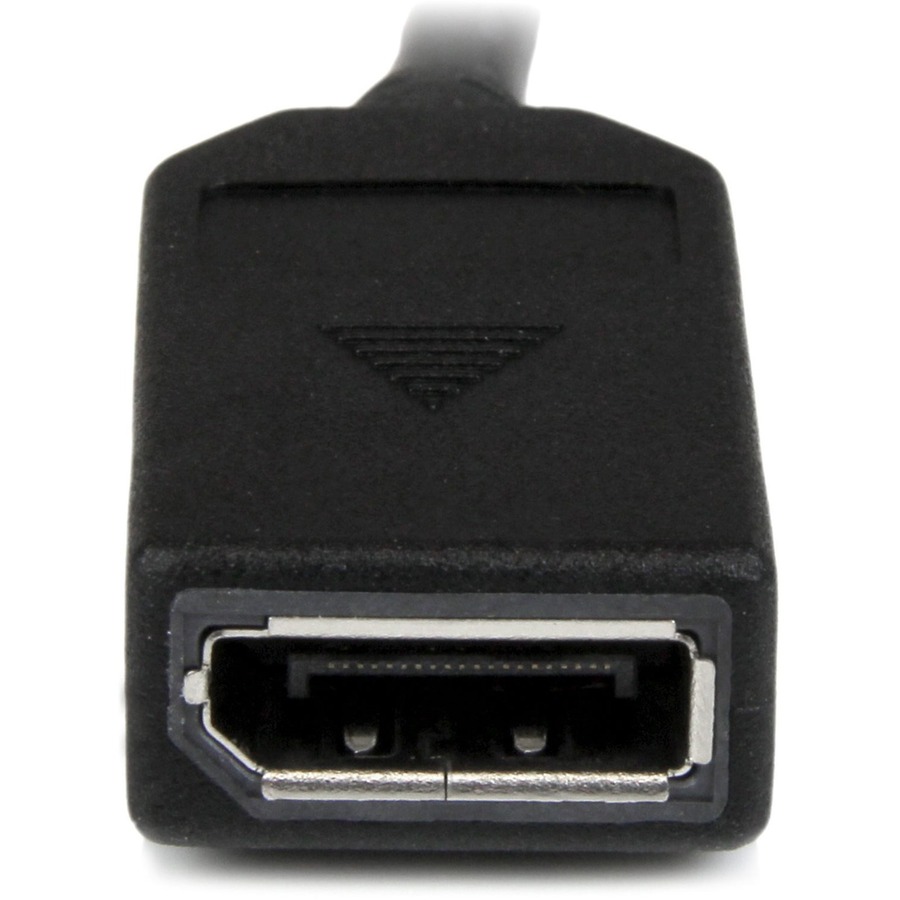

Connector Type on Second End	DisplayPort 1.2 Digital Audio/Video - Female
Connector Gender on Second End	Female
Connector on Second End Details	2 x 20-pin DisplayPort 1.2 Digital Audio/Video - Female
Connector Plating	Nickel
Conductor	Copper
Shielding	Yes
Device Supported	Audio/Video Device Monitor Graphics Card Tablet MacBook Pro MacBook Air
American Wire Gauge	32 AWG
Data Transfer Rate	21.6 Gbit/s
Supported Resolution	3840 x 2400
Features	Molded Strain Relief Flexible Fray Resistant Damage Resistant EMI Protection Multi-Stream Transport (MST) Support

Physical Characteristics

Color Family	Black
Product Color	Black
Jacket Material	Polyvinyl Chloride (PVC)
Weight (Approximate)	0.17 lb
Shipping Height	0.67"
Shipping Width	5.71"
Shipping Weight (Approximate)	3.04 oz

Miscellaneous

Compatibility	AMD Fire ProW9100/8100, NVS 810/510 Graphic Card Microsoft- Surface Pro 1-6
Environmentally Friendly	Yes
Environmental Certification	EU RoHS
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Waste Electrical and Electronic Equipment Directive (WEEE)
REACH free of SVHC	Yes
REACH Declaration URL	https://media.startech.com/cms/pdfs/dmsdpdp1_rohs.pdf
EU RoHS Declaration URL	https://media.startech.com/cms/pdfs/dmsdpdp1_rohs.pdf
End of Life Manual Availability	Yes
WEEE Statement	https://media.startech.com/cms/pdfs/dmsdpdp1_weee.pdf
Country of Origin	China

Warranty

Limited Warranty

Lifetime
