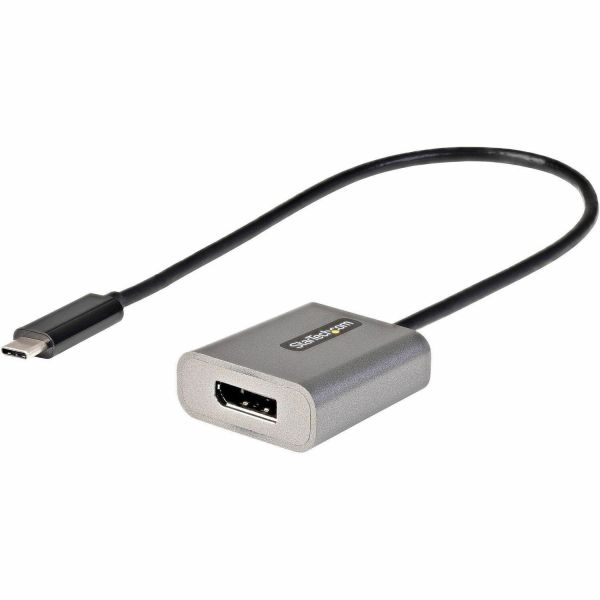

USB C to DisplayPort Adapter, 8K/4K 60Hz USB-C to DisplayPort 1.4 Adapter, DSC, USB Type-C to DP Video Converter, w/12" Cable

by
STARTECH
PCN#
9KX660
MFG#
CDP2DPEC
$23.85
cps

Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 1 x 24
  • pin Type C USB Male
  • 1 x 20

Show more

Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 1 lbs.
USB C to DisplayPort Adapter, 8K/4K 60Hz USB-C to DisplayPort 1.4 Adapter, DSC, USB Type-C to DP Video Converter, w/12" Cable
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

CDP2DPEC

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

USB-C to DisplayPort Adapter

Marketing Information

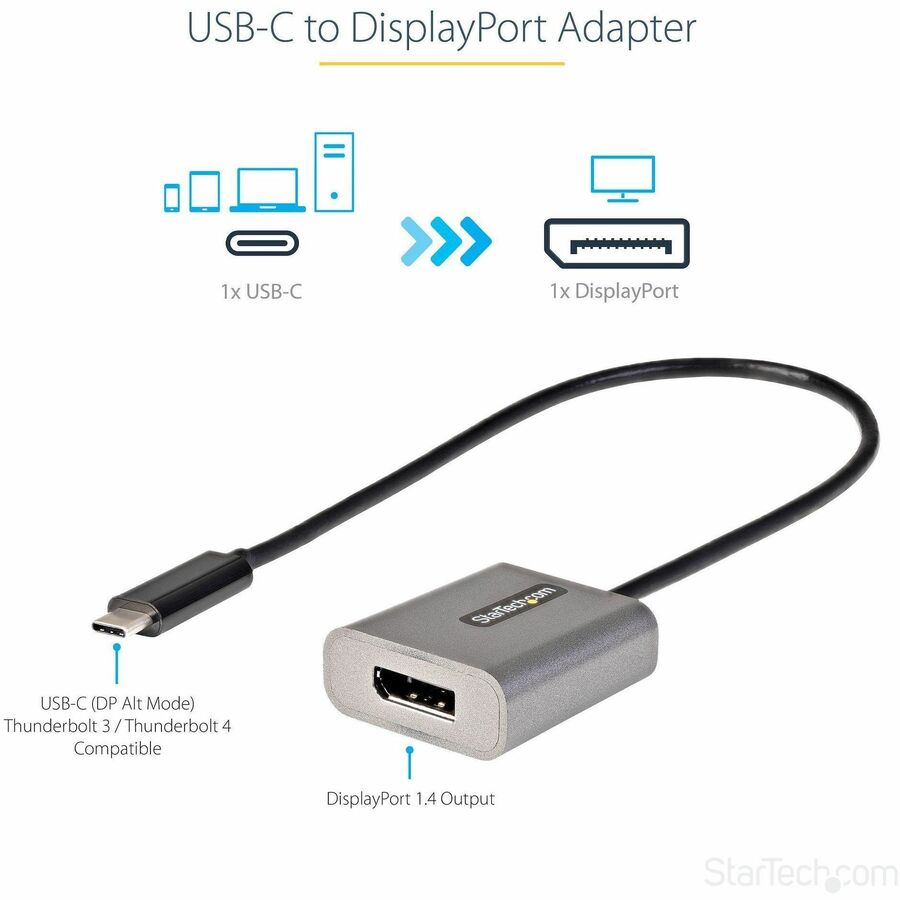

This USB-C™ to DisplayPort™ adapter enables you to output DP video and audio from the USB Type-C™ port on your laptop, tablet, smartphone or other USB C device.

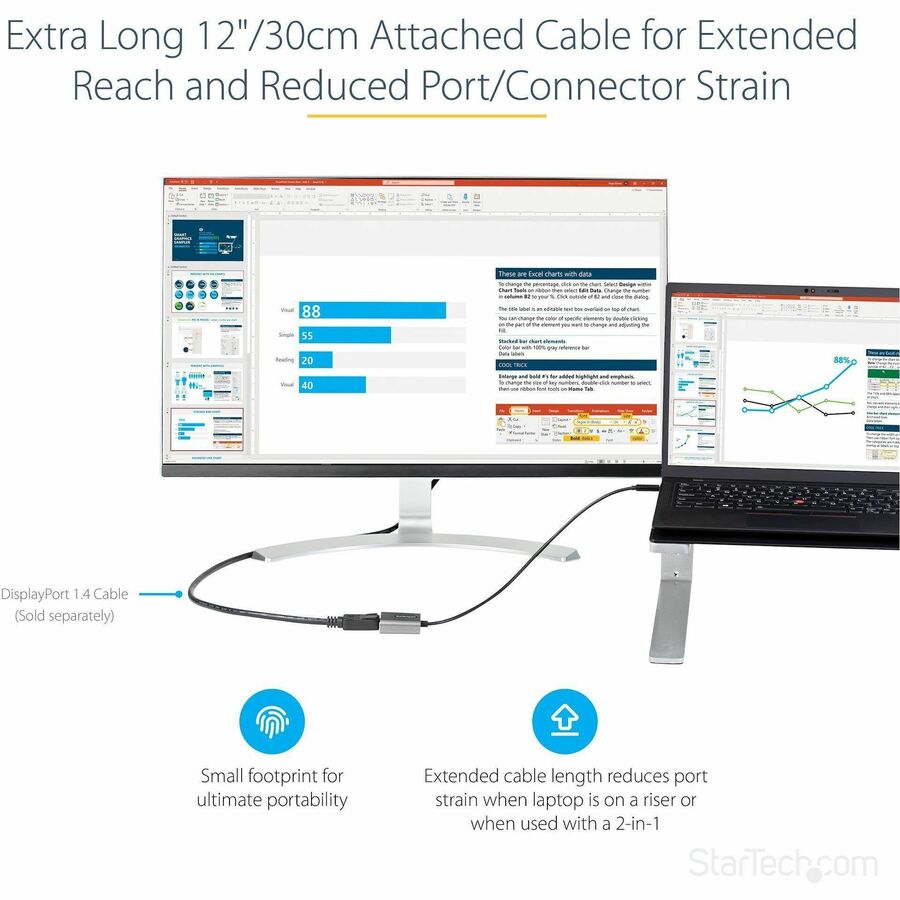

Extended Cable Length

This USB C adapter is equipped with an extra-long 12"" (30cm) attached cable, providing an extended reach to reduce port and connector strain on 2-in-1 devices or laptops on risers stands.

Ultra HD 4K & 8K Resolution

The adapter lets you harness the video capabilities that are built into your computer's USB Type-C connection, to deliver the astonishing quality of UHD to your 4K 60Hz display. This makes it easier for you to multitask while working on the most resource-demanding applications imaginable.

With this adapter, you can also achieve an output resolution of up to 7680x4320 at 60Hz (with a laptop supporting DP 1.4 and DSC) or 7680x4320 at 30Hz (without DSC), which is perfect for performing high-resolution tasks such as viewing 8K video. Plus, the DP 1.4 adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications while future-proofing for 8K implementation.

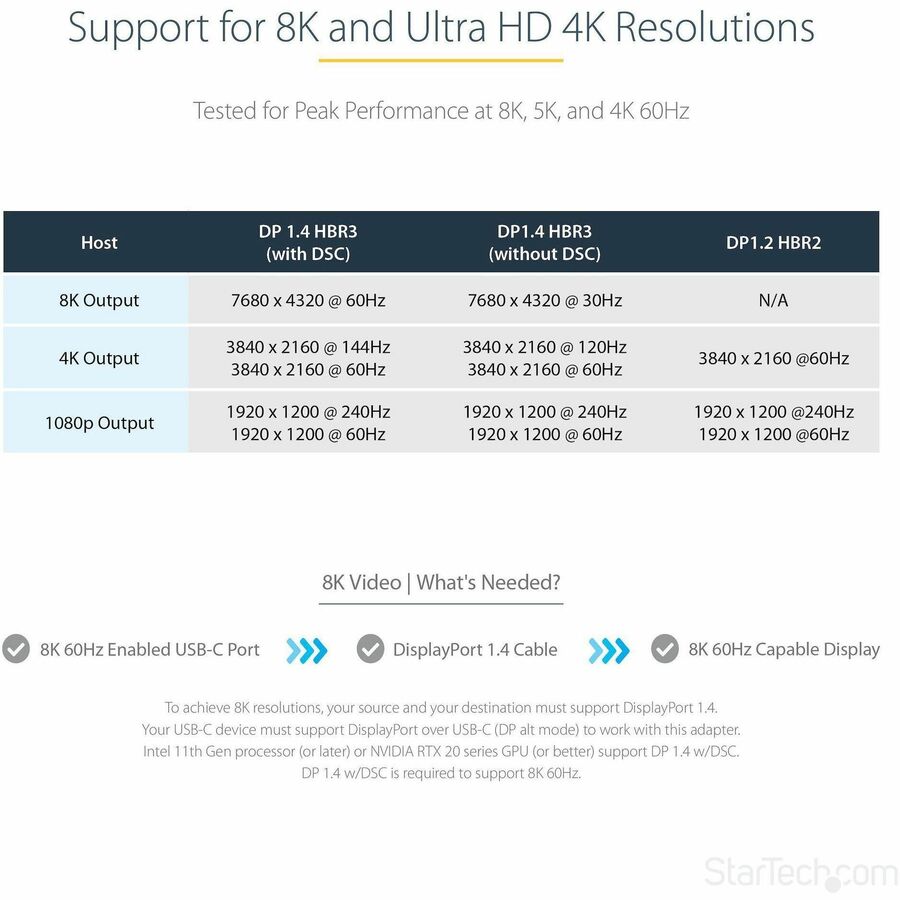

Host DP 1.4 HBR3 (with DSC) DP 1.4 HBR3 (without DSC) DP 1.2 HBR2 8K Output 7680x4320 @ 60Hz 7680x4320 @ 30Hz N/A 4K Output 3840x2160 @ 60Hz 3840x2160 @ 60Hz 3480x2160 @ 60Hz 1080p Output 1920x1200 @ 60Hz 1920x1200 @ 60Hz 1920x1200 @ 60Hz

Ultimate Portability

This USB Type-C video adapter is highly portable with a small footprint and lightweight design that's easy to tuck into your laptop bag while commuting between your home, office or traveling for business.

The CDP2DPEC is backed by a 3-year StarTech.com warranty and free lifetime technical support.

Notes:

  • To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4

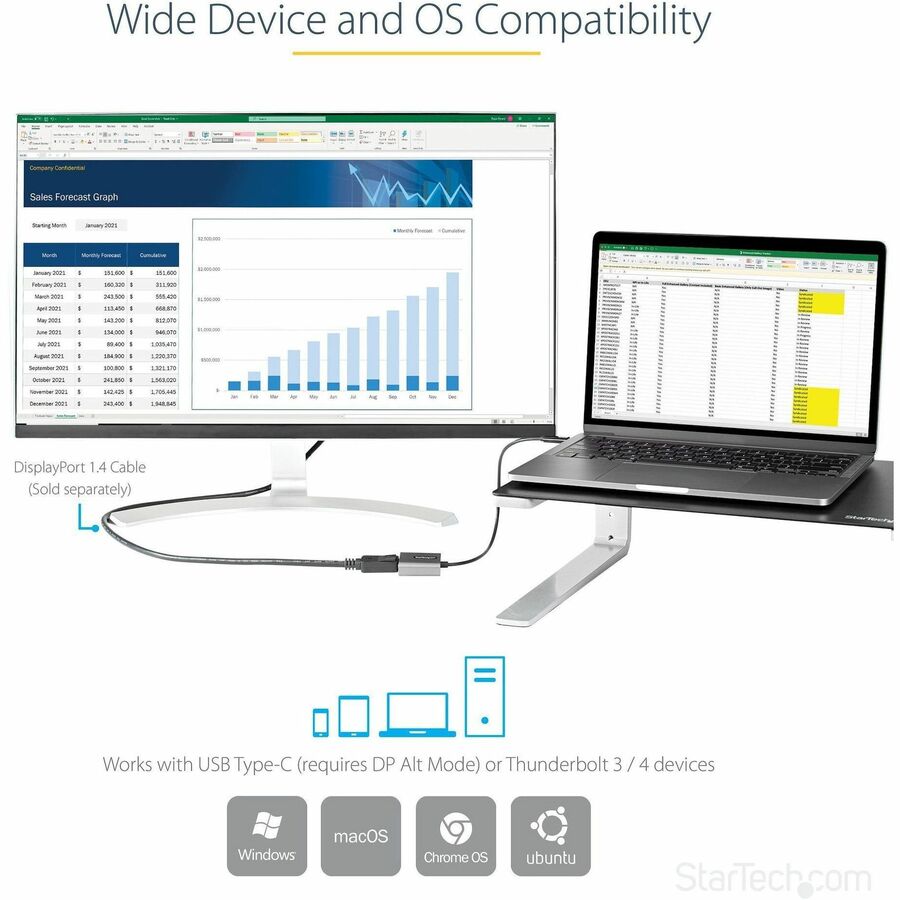

  • Your USB-C device must support DisplayPort over USB-C (DP alt mode) to work with this adapter

Product Type

A/V Adapter
Technical Information

Adapter Type

DisplayPort/USB-C

Connector Type on First End

USB Type C - Male

Connector Gender on First End

Male

Connector on First End Details

1 x 24-pin Type C USB Male

Connector Type on Second End

DisplayPort 1.4 Digital Audio/Video - Female

Connector Gender on Second End

Female

Connector on Second End Details

1 x 20-pin DisplayPort DisplayPort 1.4 Digital Audio/Video Female

Maximum Resolution Supported

7680 x 4320

Features

  • Display Stream Compression (DSC)
  • HDCP 2.2
  • HDCP 1.4

Cable Length

1.02 ft

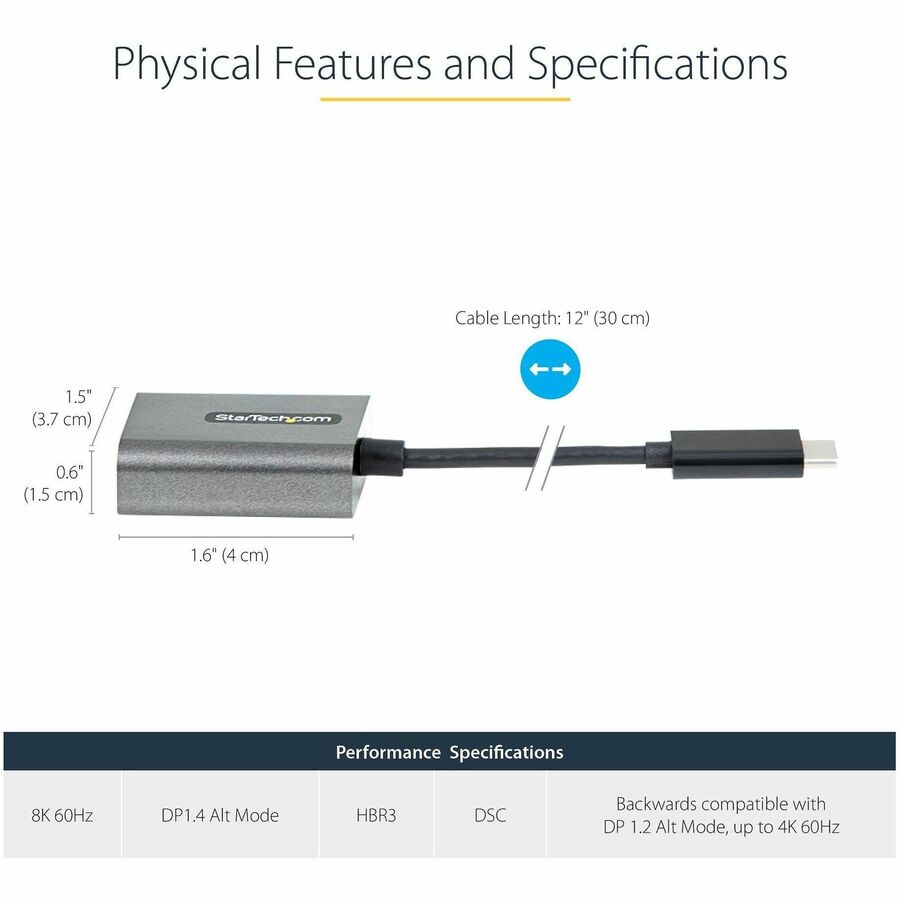

Physical Characteristics

Product Color

Gray

Product Material

Plastic

Height

0.6"

Width

1.5"

Weight (Approximate)

0.90 oz
Miscellaneous

Country of Origin

Vietnam
Warranty

Limited Warranty

3 Year
