StarTech.com 2U 19" 2-Post Network Rack Shelf 20in Deep Center Mount Cantilever Tray Rackmount for AV/Data Equipment 75lb Capacity

Name: StarTech.com 2U 19" 2-Post Network Rack Shelf 20in Deep Center Mount Cantilever Tray Rackmount for AV/Data Equipment 75lb Capacity
Brand: STARTECH
SKU: 7TN843
Price: 93.3 USD
Availability: InStock

STARTECH

PCN#

7TN843

MFG#

CABSHF2POST2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$93.30

Extended & Accidental Damage Product Replacement Plan Available Details

1-Year $22.99

2-Year $29.99

Free Shipping

Estimated Shipment:

Product Highlights:

2U 19in 2 Post network rack shelf/rackmount cantilever tray 20 in deep
Centre Mount
Universal fit in EIA 30 data/AV racks
w/mounting HW
Heavy
duty
Easy to install Durable SPCC commercial cold
rolled steel 75lb capacity Lifetime warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 13 lbs.

StarTech.com 2U 19" 2-Post Network Rack Shelf 20in Deep Center Mount Cantilever Tray Rackmount for AV/Data Equipment 75lb Capacity

Overview

Tech Specs

Specifications

Manufacturer	StarTech.com
Manufacturer Part Number	CABSHF2POST2
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Model	CABSHF2POST2
Product Name	2U Server Rack Shelf - 2 Post - Center Mount - Solid

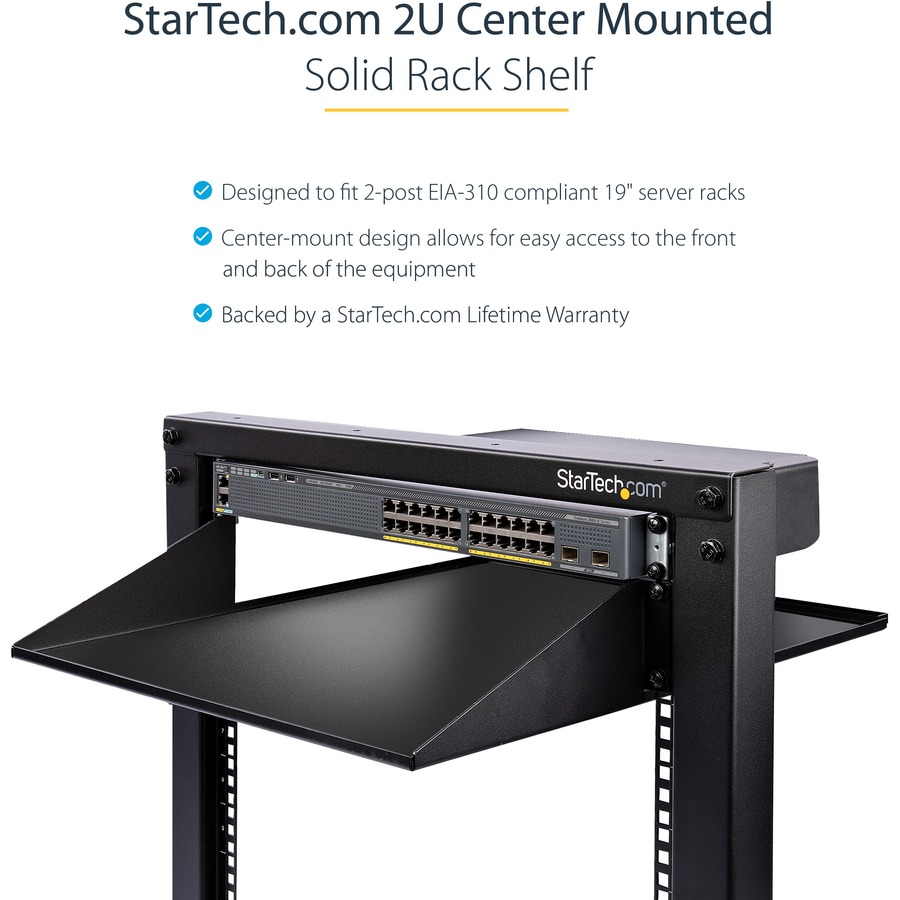

Marketing Information	The 2 post server rack shelf allows you to add a high capacity mid-mount fixed shelf to almost any standard 2 post server rack. EIA 310 Compliant Our 2U rack shelf is EIA 310 compliant meaning it can fit most standard 19" 2 post racks. The included mounting brackets can be adjusted to accommodate different post depths, making this center mount rack shelf a universal solution for 2 post rack storage. Solid Steel Construction Constructed using SPCC commercial grade cold-rolled steel, this durable 2 post network rack shelf can hold up to 75 lb. (34 kg) of equipment - a perfect solution for storing non-rackmount equipment, tools, peripherals or accessories in your rack to keep them readily accessible. The Choice of IT Pros Since 1985 StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales. Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
Product Type	Rack Shelf

Technical Information

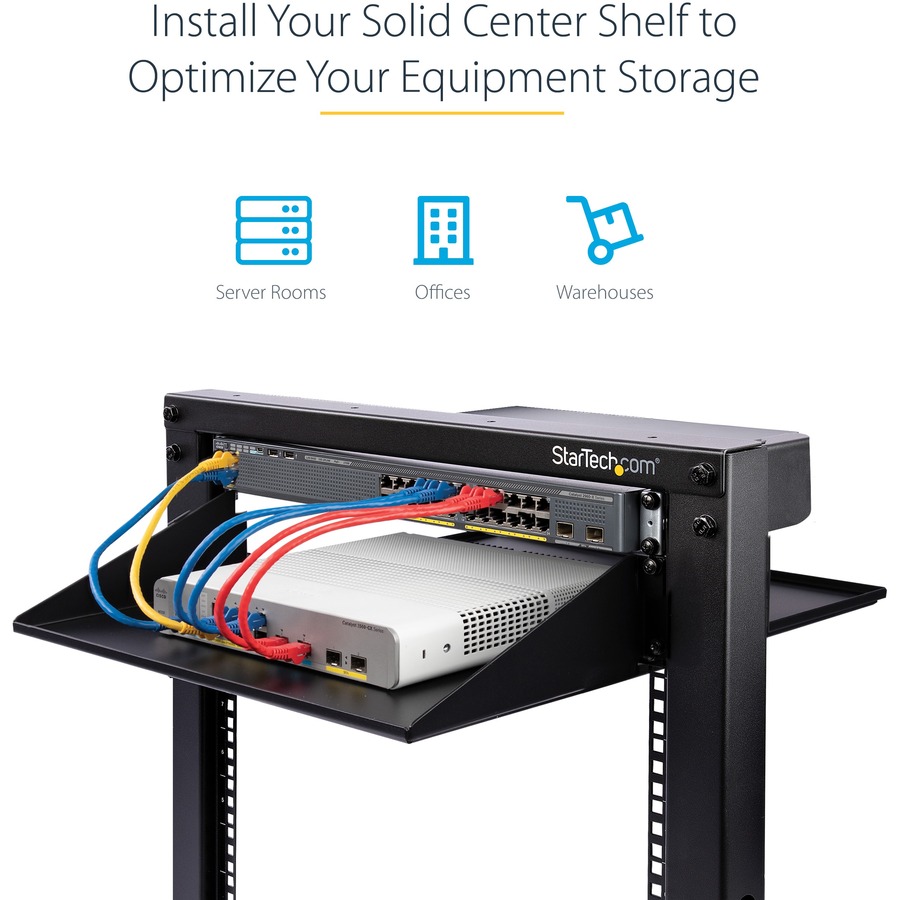

Application/Usage

LAN Switch
Patch Panel
Server

Physical Characteristics

Form Factor	Rack-mountable
Product Color	Black
Product Material	SPCC
Static/Stationary Weight Capacity	74.96 lb

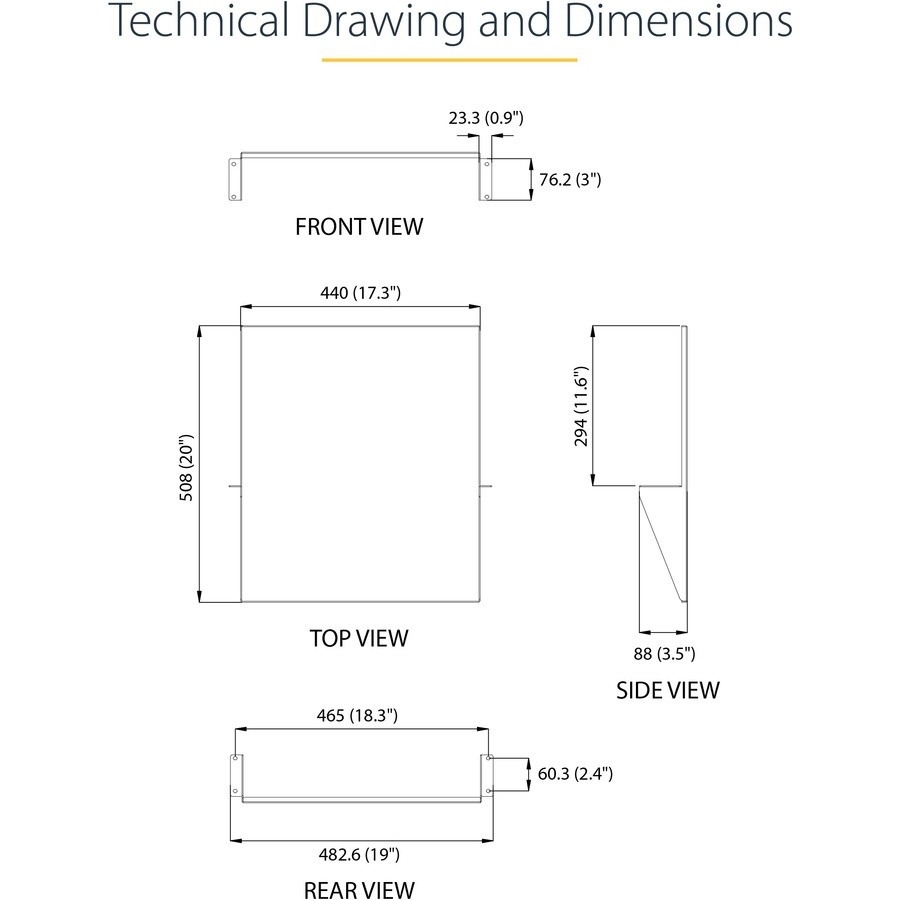

Height	3.5"
Width	19"
Length	20"
Rack Height	2U
Rack Width	19"

Miscellaneous

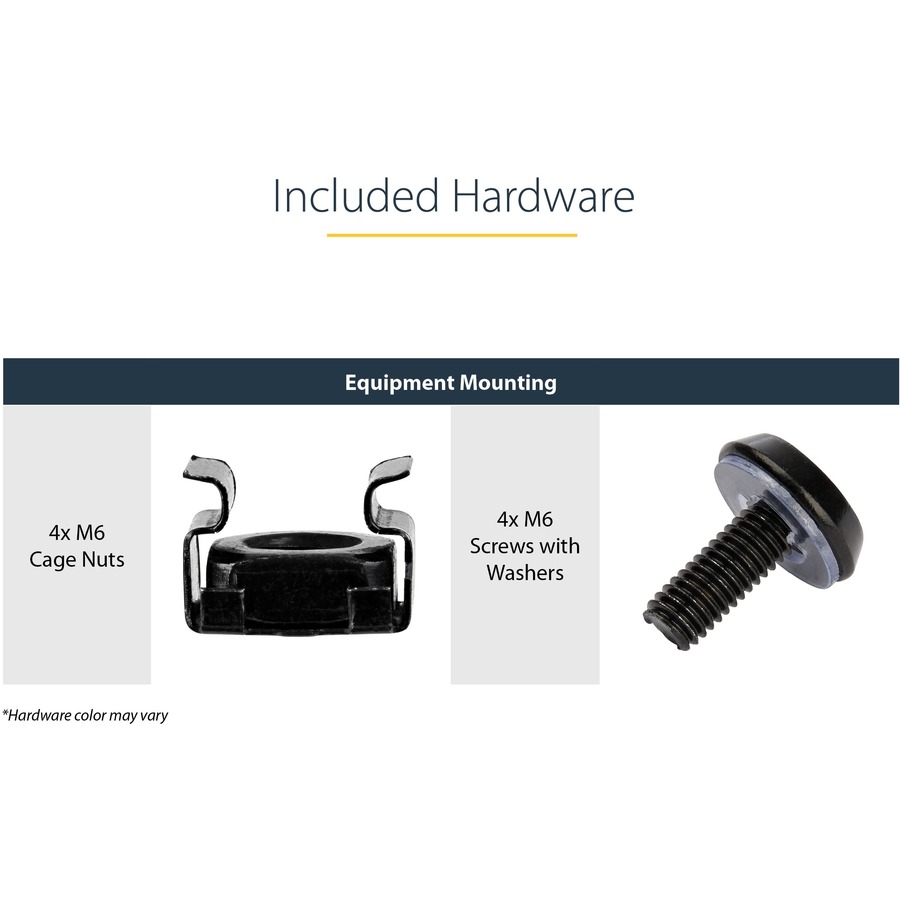

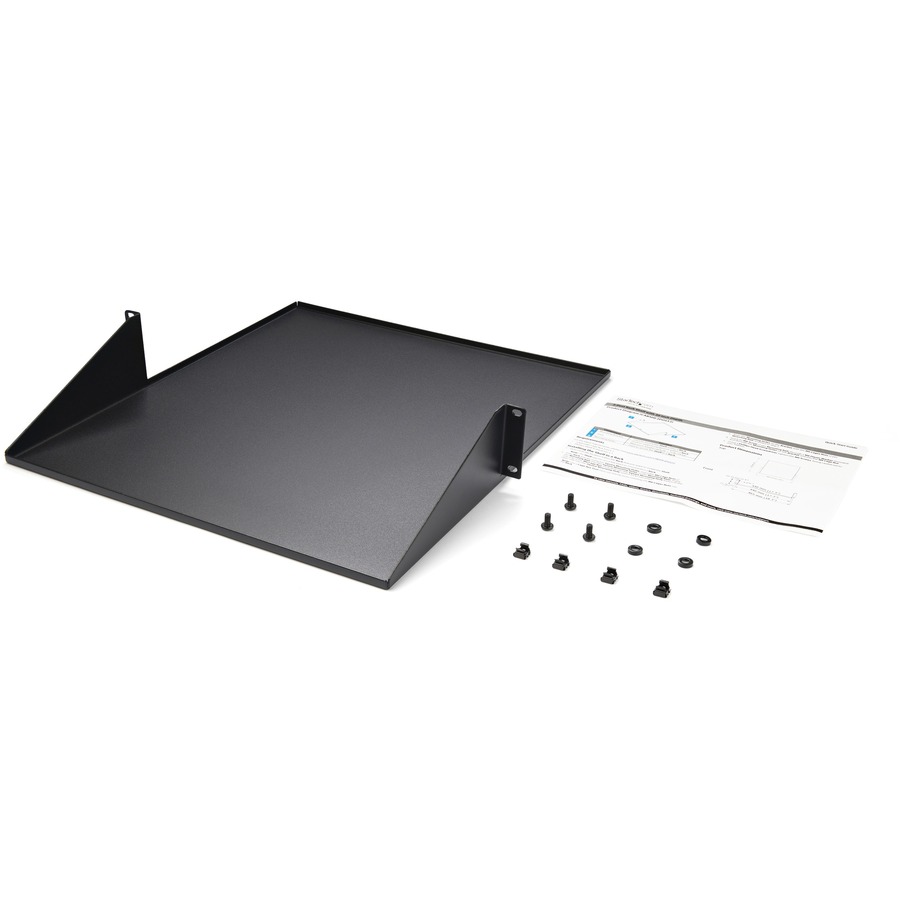

Package Contents	1 x Rack Shelf 4 x M6 Screws 4 x M6 Cage Nuts 4 x M6 Plastic Cup Washers
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty

Lifetime
