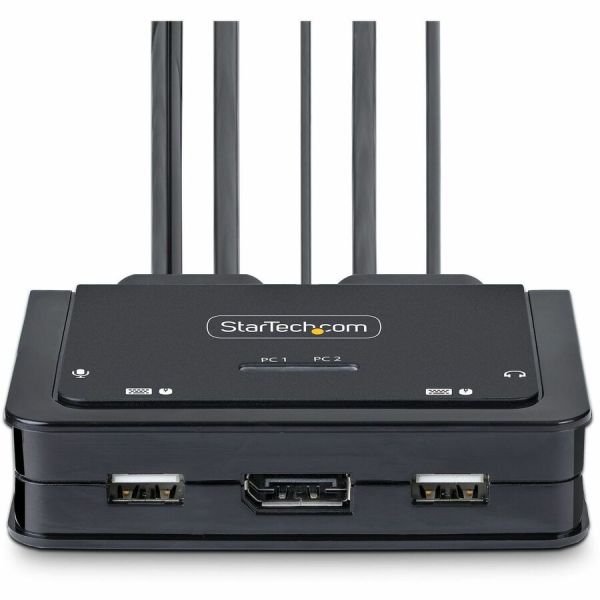

StarTech.com 2-Port Hybrid USB-C DisplayPort Cable KVM Switch, 4K 60Hz, Compact KVM with 6ft/1.8m USB-A & 4ft/1.2m USB-C Integrated Cables

by
STARTECH
PCN#
12NQ39
MFG#
C2-D46-UAC-CBL-KVM
$141.77
cps

Extended & Accidental Damage Product Replacement Plan Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 2
  • Port Hybrid Cable KVM Switch enables switching of a mouse, keyboard, and a 4K 60Hz DisplayPort display between a USB
  • A/DP desktop and a USB

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 2 lbs.
StarTech.com 2-Port Hybrid USB-C DisplayPort Cable KVM Switch, 4K 60Hz, Compact KVM with 6ft/1.8m USB-A & 4ft/1.2m USB-C Integrated Cables
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

C2D46UACCBLKVM

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

KVM Switchbox

Marketing Information

This Hybrid KVM Switch enables users to switch between a USB Type-A and DisplayPort-enabled desktop and a USB Type-C (DP Alt-Mode) enabled laptop, to share a keyboard, mouse, audio input/output devices, and a single 4K 60Hz DisplayPort monitor.

Hassle-Free Setup

The KVM switch is bus powered and features built-in DisplayPort, USB-A, USB-C, and 3.5mm Audio Input/Output cables. This ensures compatibility and performance between the KVM switch, monitors, and peripherals - without the need to select and purchase the cables required for those connections.

Compatibility

The 2-port KVM switch is compatible with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM works with all hardware platforms including Intel, AMD, and Apple M1/M2. The USB-C host port works with USB-C, USB4, Thunderbolt 3, and Thunderbolt 4 laptops. If the desktop does not have a 4-position 3.5mm port the included 3.5mm Headset Adapter ensures compatibility out of the box.

Intuitive Control

The KVM switch offers two options to switch between hosts - a remote push button or hotkey commands, using the downloadable software. The remote push button includes a 1.5m cable for optimal placement in the setup. Independent audio switching can be achieved through the software, utilizing keyboard shortcuts (i.e., hotkeys), ensuring uninterrupted audio when switching between host devices.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

  • Advanced Windows Layout Utility: Setup and save custom windows layouts.
  • MAC Address Pass-Through Utility: Improve network security.
  • USB Event Monitoring Utility: Track and log connected USB devices.
  • Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.

Packaged Quantity

1

Product Type

KVM Switchbox
Technical Information

Number of Computers Supported

2

Number of Local Users Supported

1

Device Type

Desktop KVM

Features

  • LED Indicator
  • Bus Powered
Video

Graphic Mode

4K

Maximum Video Resolution

3840 x 2160
Interfaces/Ports

USB

Yes

USB 2.0

Yes

DisplayPort

Yes

Number of USB Ports

4

Number of DisplayPorts

2
Environmental Conditions

Maximum Operating Temperature

104°F (40°C)
Physical Characteristics

Form Factor

Desktop

Height

0.9"

Width

3.1"

Depth

3.7"

Weight (Approximate)

13.40 oz
Miscellaneous

Compatibility

  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows 10
  • Windows 11
  • macOS Sierra
  • macOS High Sierra
  • macOS Mojave
  • macOS Catalina
  • macOS BigSr
  • macOS Monterey
  • macOS 10.12
  • macOS 10.15
  • macOS 11
  • macOS 12
  • Chrome OS
