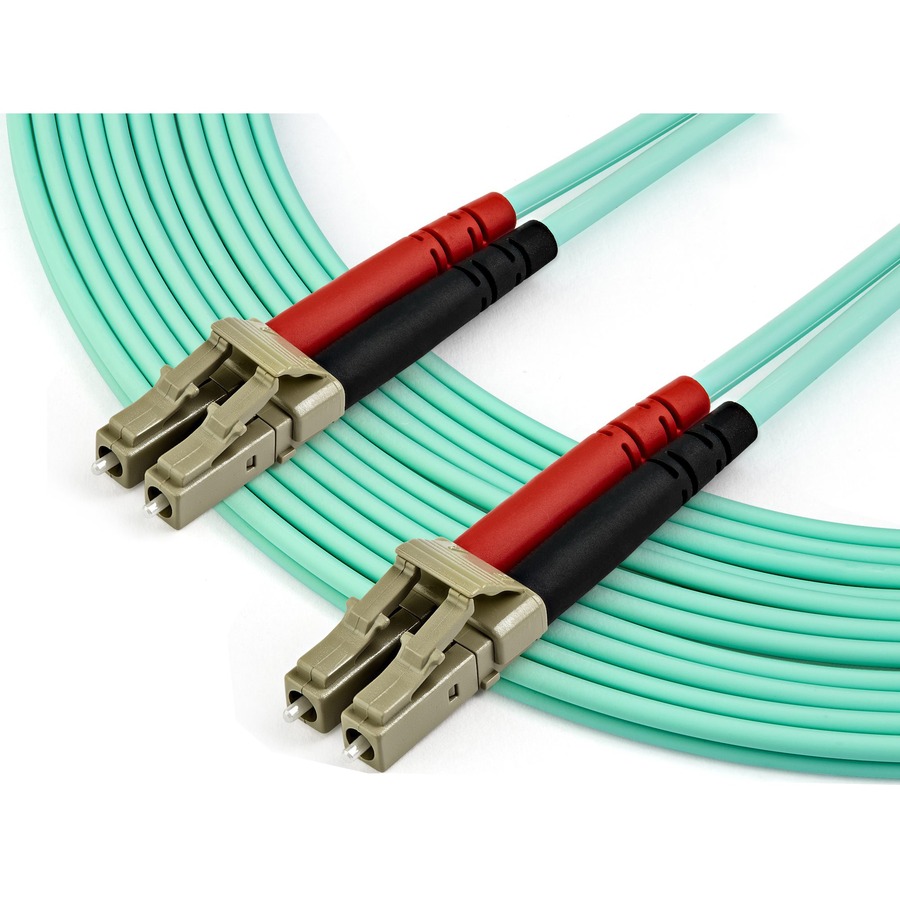

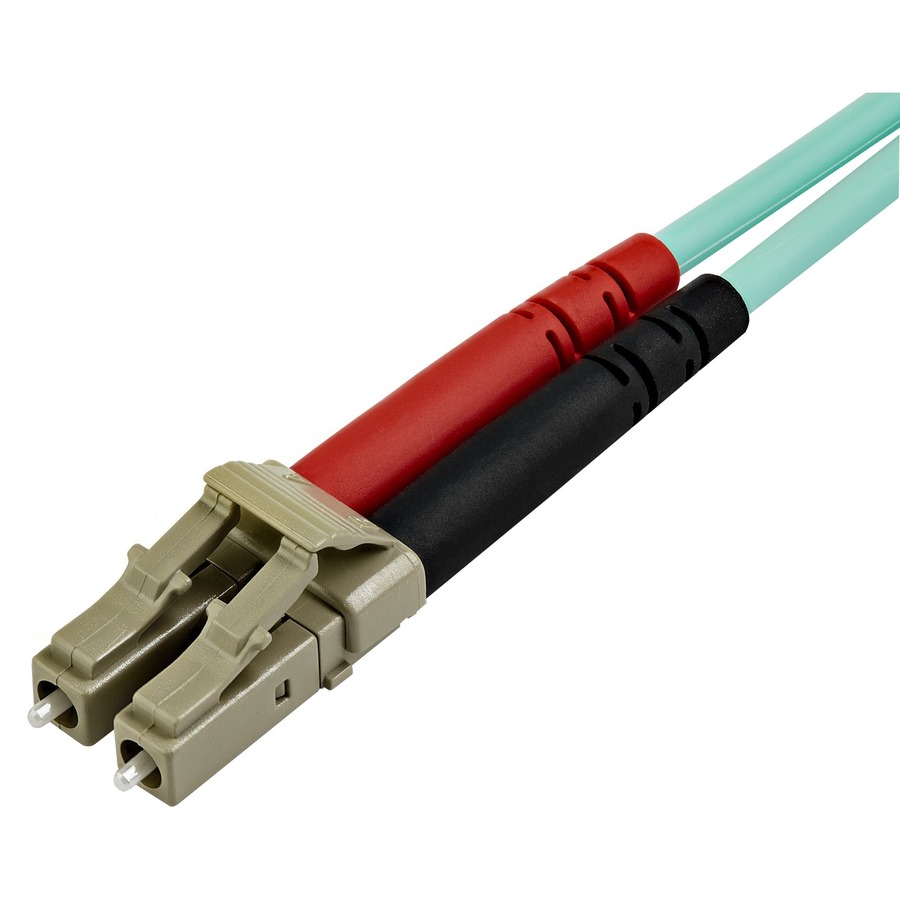

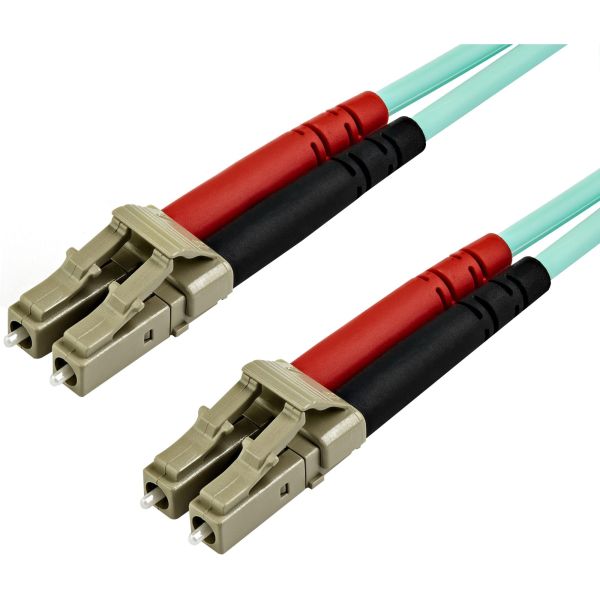

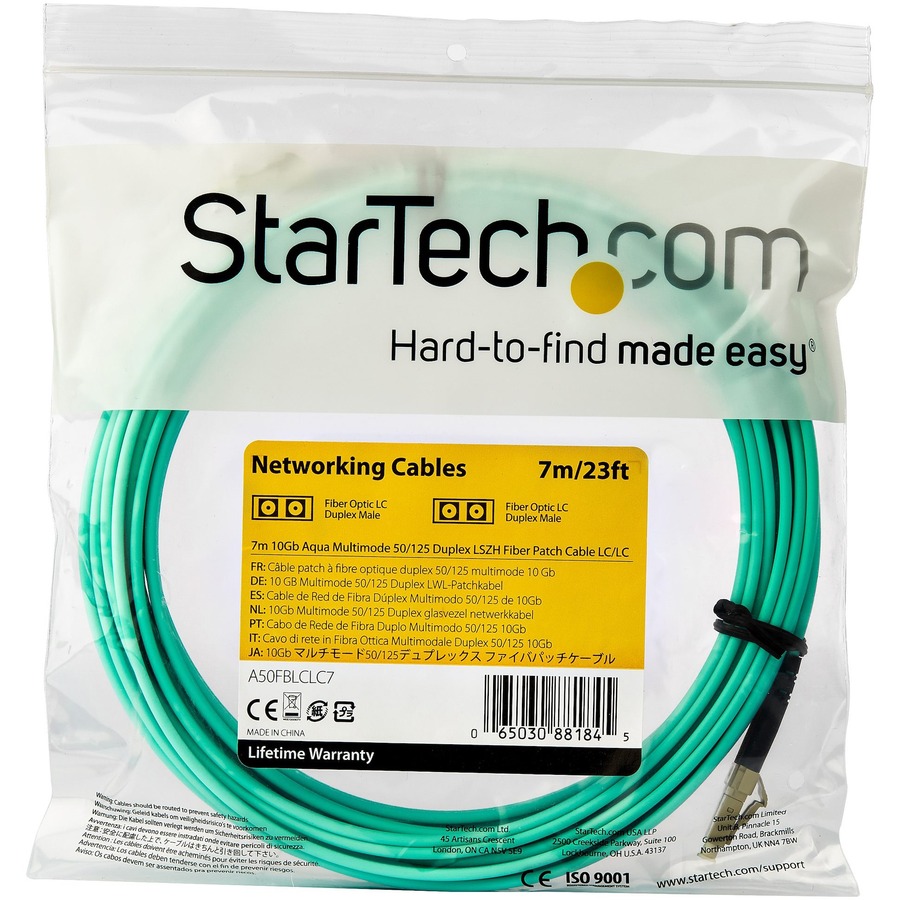

StarTech.com 7m (22ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex Zipcord Fiber, 100Gbps, LOMMF, LSZH Fiber Patch Cord

by
STARTECH
PCN#
6TQ541
MFG#
A50FBLCLC7
$37.39
cps

Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 7m (22ft) OM3 Multimode LC/LC
  • UPC Fiber Cable; 1/10/40/100 Gbps Full Duplex; 50/125um Core w/ Aramid Sheath; Bandwidth: 2000MHz·km at 850nm w/ VCSEL source; Outer Diameter: 2.9mm; Jacket Material: LSZH; Temp Range:
  • 20 to 60°C (

Show more

Product Condition: New and Factory Fresh
Limited WarrantyLifetime
Shipping Weight: 1 lbs.
StarTech.com 7m (22ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125 Zipcord, 100G, LSZH Fiber Jumper Cord
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

A50FBLCLC7

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

Fiber Optic Duplex Patch Network Cable

Marketing Information

This OM3 LC to LC Multimode Duplex Fiber Optic Patch cable features 50/125 micron fiber and supports high-bandwidth data transmission over a 10 Gigabit Ethernet connection.

Built for Performance

With laser-optimized multimode fiber (LOMMF), the patch cable is ideal for connecting 850 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. The high-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications.

Reliable Connection

Each OM3 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.

High-Quality Construction

Housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, this fiber-optic cable ensures minimal smoke, toxicity and corrosion when exposed to high sources of heat, or in the event of a fire. It's the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

A50FBLCLC7 is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Packaged Quantity

1 Each

Product Type

Network Cable
Technical Information

Cable Type

Fiber Optic

Cable Characteristic

Patch Cable

Fiber Optic Mode

Multi-mode

Fiber Optic Cable Core/Cladding Specification

50/125 µm

Cable Length

22.97 ft

Connector Type on First End

LC Network - Male

Connector Gender on First End

Male

Connector on First End Details

2 x LC Network - Male

Connector Type on Second End

LC Network - Male

Connector Gender on Second End

Male

Connector on Second End Details

2 x LC Network - Male

Device Supported

Network Device

Data Transfer Rate

10 Gbit/s

Features

  • Halogen Free
  • Flame Retardant
  • Corrosion Resistant
Physical Characteristics

Color Family

Green

Product Color

Aqua

Shipping Height

0.59"

Shipping Width

8.66"

Shipping Weight (Approximate)

3.36 oz
Miscellaneous

Environmentally Friendly

Yes

Environmental Certification

EU RoHS

Environmental Compliance

  • Restriction of Hazardous Substances (RoHS) 2
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Waste Electrical and Electronic Equipment Directive (WEEE)

REACH free of SVHC

Yes

REACH Declaration URL

https://media.startech.com/cms/pdfs/a50fblclc7_rohs.pdf

EU RoHS Declaration URL

https://media.startech.com/cms/pdfs/a50fblclc7_rohs.pdf

End of Life Manual Availability

Yes

WEEE Statement

https://media.startech.com/cms/pdfs/a50fblclc7_weee.pdf

Country of Origin

China
Warranty

Limited Warranty

Lifetime
