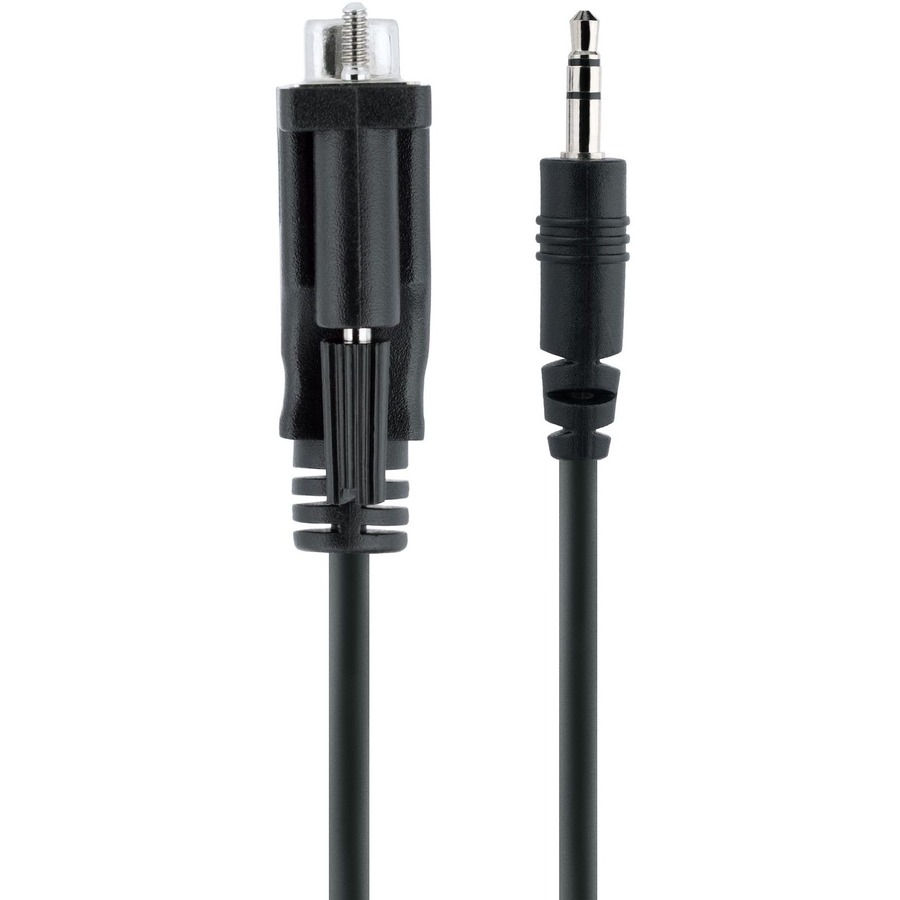

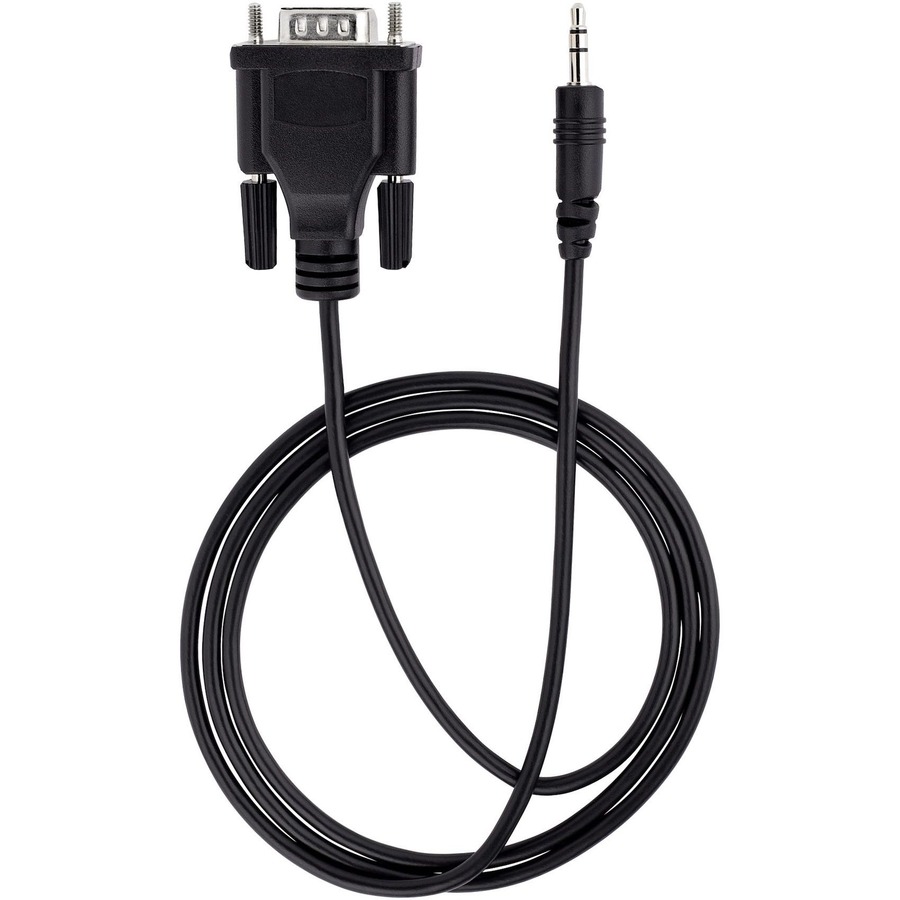

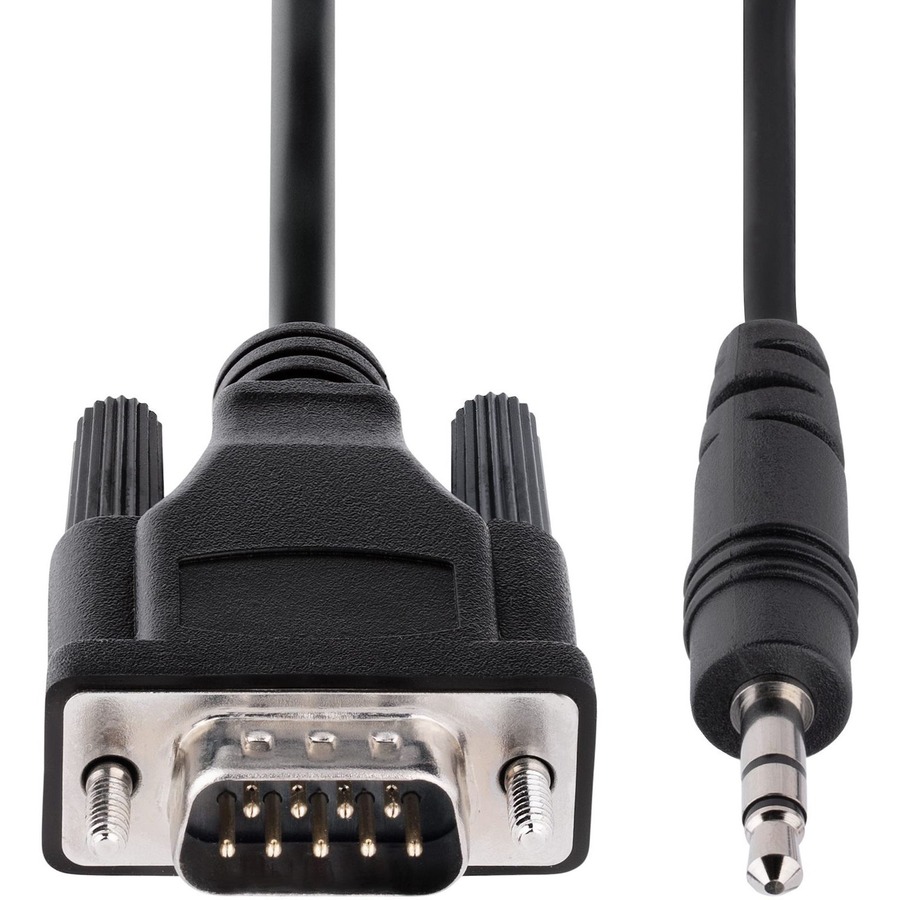

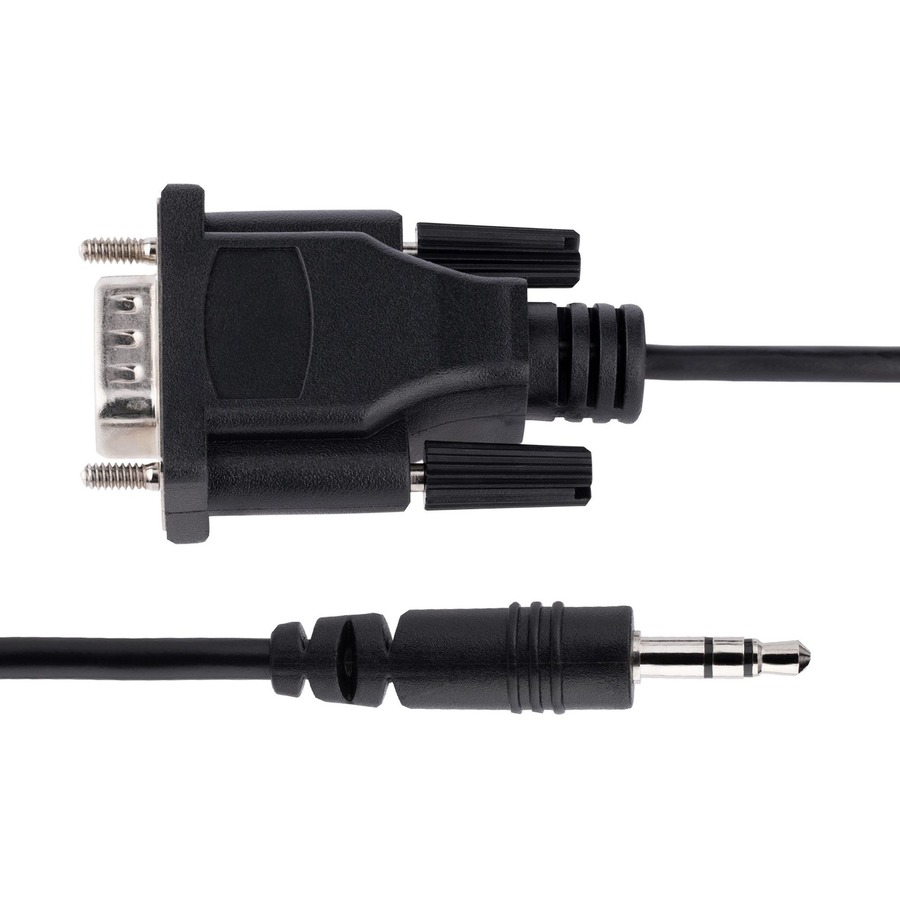

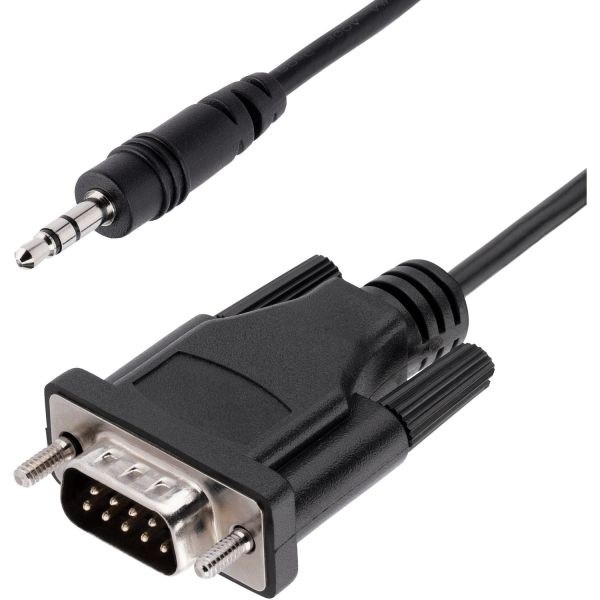

StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm for Calibrating via Audio Jack

Name: StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm for Calibrating via Audio Jack
Brand: STARTECH
SKU: 08RX69
Price: 17.45 USD
Availability: InStock

STARTECH

PCN#

08RX69

MFG#

9M351M-RS232-CABLE

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$17.45

Extended & Accidental Damage Product Replacement Plan Available Details

1-Year $5.99

2-Year $7.99

Estimated Shipment:

Product Highlights:

3ft/1m male DB9 to 3.5 mm serial control cable configure serial devices with a 3.5mm audio jack; High quality 28 AWG copper wires with Al
Mylar cable shielding; Works with computers that are equipped with a DB9 9pin serial ports to configure displays

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

StarTech.com 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm for Calibrating via Audio Jack

Overview

Tech Specs

Specifications

Manufacturer	StarTech.com
Manufacturer Part Number	9M351MRS232CABLE
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	DB9 to 3.5mm RS232 Serial Cable
Marketing Information	This serial cable features male DB-9 and 3.5mm connectors. It enables remote serial RS232 calibration of TVs, projectors, and digital signage devices that feature a 3.5mm audio jack. High Quality Construction The aluminum-mylar cable shielding and metal shell connectors mitigate EMI. The molded PVC connectors with strain reliefs and PVC cable jacket prevent damage caused by strain and/or abrasion. Secure the DB-9 connector by tightening the integrated thumbscrews. These connector screw locks prevent accidental disconnection which could lead to data loss/corruption DB9 Serial to 3.5mm Pinout DB9 Pin 3 to 3.5mm Tip DB9 Pin 2 to 3.5mm Ring DB9 Pin 5 to 3.5mm Sleeve This product is backed for life, including free lifetime 24/5 multi-lingual technical assistance.
Packaged Quantity	1
Product Type	Data Transfer Cable

Technical Information

Cable Length	3.28 ft
Connector Type on First End	Mini-phone Stereo Audio - Male
Connector on First End Details	1 x Mini-phone Stereo Audio - Male
Connector Type on Second End	DB-9 RS-232 Serial - Male
Connector Gender on Second End	Male
Connector on Second End Details	1 x 9-pin DB-9 RS-232 Serial - Male
Connector Plating	Nickel
Shielding	Yes
Device Supported	Projector Digital Signage TV Audio Device Computer
American Wire Gauge	28 AWG
Features	EMI Protection Molded Strain Relief Damage Resistant Strain Resistant Abrasion Resistant Screw Lock Bendable

Physical Characteristics

Product Color	Black
Product Material	Metal
Connector Material	Polyvinyl Chloride (PVC)
Shielding Material	Aluminum Mylar
Jacket Material	Polyvinyl Chloride (PVC)
Material Details	metal - shell

Miscellaneous

Environmentally Friendly	Yes
Country of Origin	China

Warranty

Limited Warranty

Lifetime
