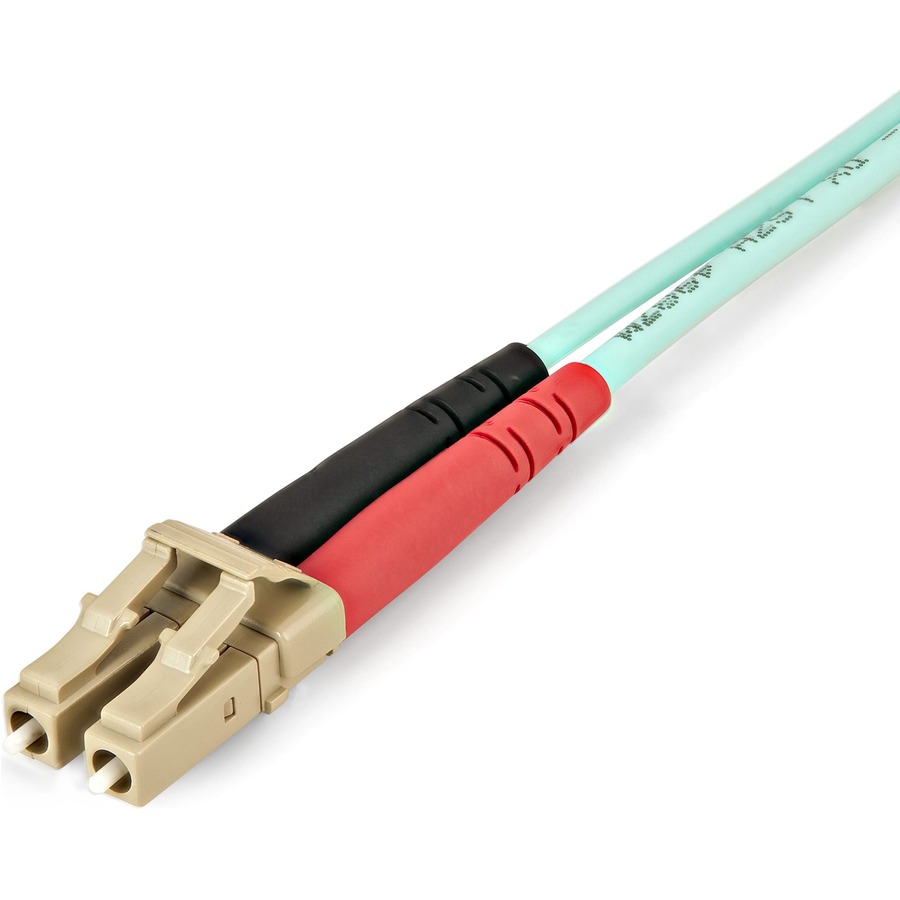

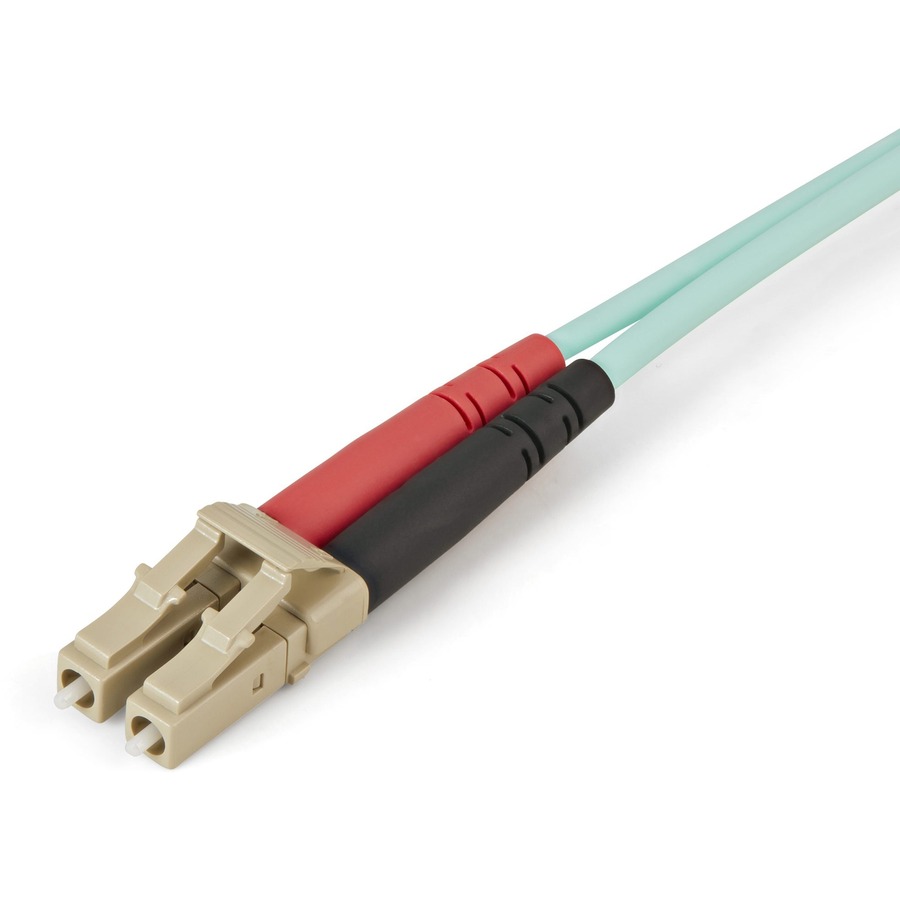

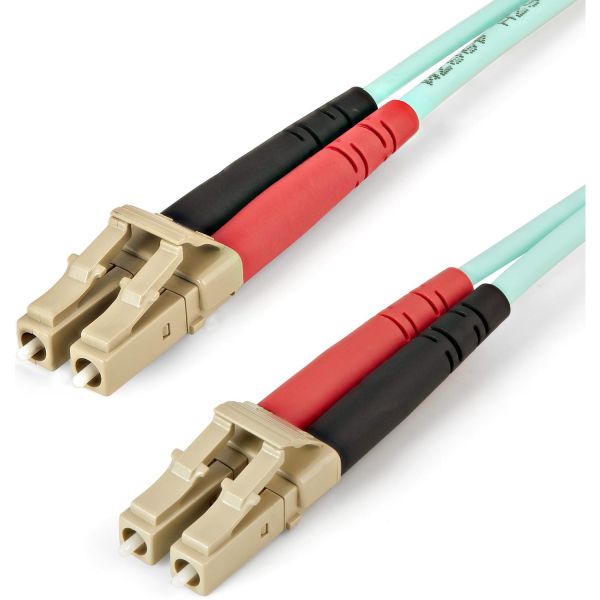

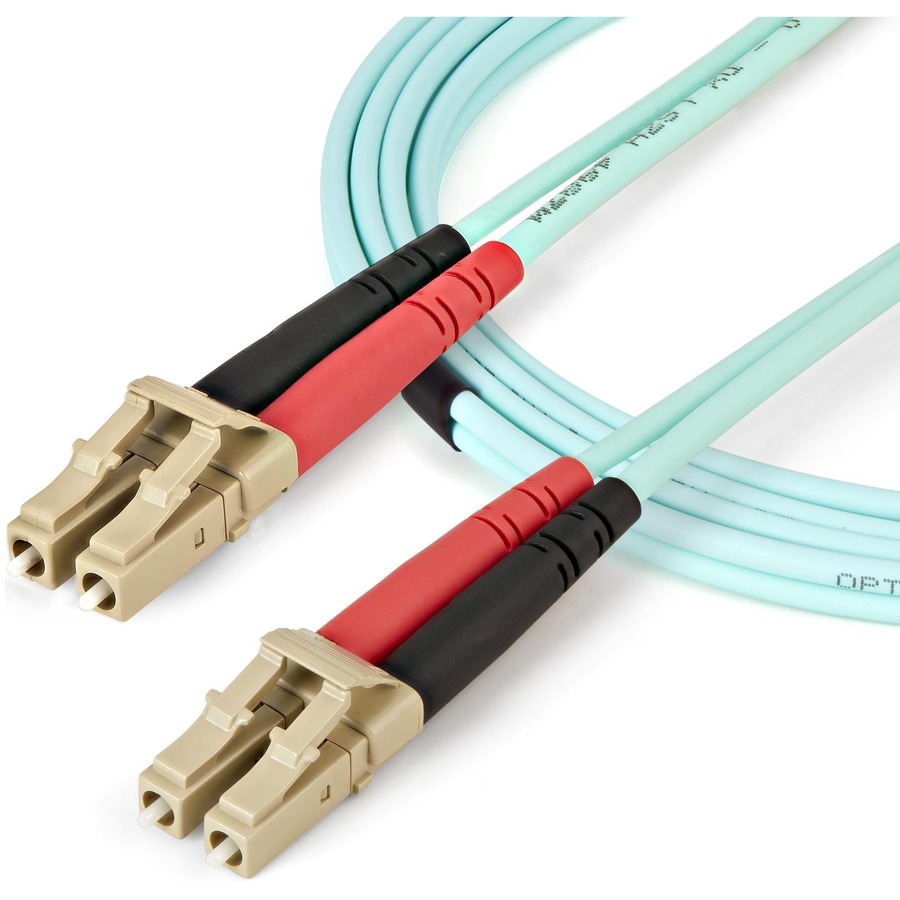

StarTech.com 2m (6ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125m LOMMF/VCSEL Zipcord Fiber, 100G, LSZH Fiber Patch Cord

Name: StarTech.com 2m (6ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125m LOMMF/VCSEL Zipcord Fiber, 100G, LSZH Fiber Patch Cord
Brand: STARTECH
SKU: 9Y3812
Price: 23.54 USD
Availability: InStock

STARTECH

PCN#

9Y3812

MFG#

450FBLCLC2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$23.54

Extended & Accidental Damage Product Replacement Plan Available Details

2-Year $9.99

1-Year $7.99

Estimated Shipment:

Product Highlights:

2m (6.6ft) OM4 Multimode LC/LC
UPC Fiber Cable; 1/10/40/100 Gbps Full Duplex; 50/125µm Core w/ Aramid Sheath; Bandwidth: 2000MHz·km at 850nm w/ VCSEL source; Outer Diameter: 2.9mm; Jacket Material: LSZH; Temp Range:
20 to 60°C (
4 to 140°F)

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

StarTech.com 2m (6ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm LOMMF/VCSEL Zipcord Fiber, 100G, LSZH Fiber Patch Cord

Overview

Tech Specs

Specifications

Manufacturer	StarTech.com
Manufacturer Part Number	450FBLCLC2
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	Fiber Optic Duplex Patch Network Cable
Marketing Information	This fiber optic cable lets you connect 40GBase-SR4, 100GBase-SR10, SFP plus and QSFP plus transceivers in 40 and 100 Gigabit networks. The OM4 Duplex Multimode Fiber Optic Cable with LC connectors supports Vertical Cavity Surface Emitting Laser (VCSEL) and LED light sources. It is backward-compatible with your existing 50/125 equipment. Fiber cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat in the event of a fire. Compatible with 850nm VCSEL source, the network cable is ideal for use in industrial settings, central offices and schools as well as residential settings where building codes are a consideration. Laser-optimized multimode fiber is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and reliability.
Packaged Quantity	1
Product Type	Network Cable

Technical Information

Cable Type	Fiber Optic
Cable Characteristic	Patch Cable
Fiber Optic Mode	Multi-mode
Core/Cladding Diameter	50/125 µm
Cable Length	6.56 ft
Connector Type on First End	LC Network - Male
Connector Gender on First End	Male
Connector on First End Details	2 x LC Network - Male
Connector Type on Second End	LC Network - Male
Connector Gender on Second End	Male
Connector on Second End Details	2 x LC Network - Male
Jacket Type	LSZH
Device Supported	Network Device Transceiver
Data Transfer Rate	100 Gbit/s
Features	Halogen Free Flame Retardant Corrosion Resistant

Physical Characteristics

Product Color	Aqua
Weight (Approximate)	0.07 lb

Miscellaneous

Country of Origin

China

Warranty

Limited Warranty

Lifetime
