3FT USB4 CABLE USB-IF CERTIFIED 8K60/240W PD 3.1/40GBPS USB TYPE-C

by
STARTECH
PCN#
KY5957
MFG#
1M-40G-USB4-CABLE
$27.59
cps

Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 3.3ft/1m USB
  • IF Certified USB4 cable supports 40Gbps, DisplayPort 1.4 video w/ DSC up to 8K 60Hz, and 240W PD 3.1 charging; Certified E
  • marker firmware for reliability; Ideal for USB

Show more

Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 1 lbs.
StarTech.com 1m (3.3ft) USB4 Cable, USB-IF Certified USB-C Cable, 40 Gbps, 240W PD 3.1, 8K 60Hz, Compatible w/Thunderbolt/USB 3.2 Ports
Tech Specs
Specifications

Manufacturer

StarTech.com

Manufacturer Part Number

1M-40G-USB4-CABLE

Manufacturer Website Address

http://www.startech.com

Brand Name

StarTech.com

Product Name

USB4 Audio/Video Data Transfer Cable

Marketing Information

Connect reliably to USB Type-C® (USB4), Thunderbolt™, and PCIe-enabled devices, delivering up to 40Gbps, 8K/4K video, and 240W of Power Delivery. The connector markings enable quick visual identification, distinguishing this USB4 cable from other similar-looking or unmarked USB-C cables. Eliminate guesswork and always choose the appropriate cable to support full USB4 capabilities.

240W Extended Power Range

The USB4 Charger Cord supports up to 240W of Extended Power Range (EPR) Power Delivery 3.1. It is ideal for high performance USB-C laptops requiring extra power, such as 16in MacBook Pro M3 Pro/M3 Max. Connect the cable from the laptop to a USB-C wall charger or compatible docking station.

Establish Fast and Stable Power/Data Connections

This USB4 Type-C cable is USB-IF certified for guaranteed USB-C compatibility. It reliably delivers consistent transfer rates and power output. It facilitates 40Gbps data transfer to external USB-C-enabled external storage devices or serves as a single-cable connection from a USB-C dock to a laptop.

This cable has undergone rigorous USB-IF compliance testing to meet USB4 specifications. This includes electrical and mechanical standards which ensure a reliable, high-quality cable for USB-C devices. StarTech.com's cables are designed to meet the technical requirements of wide variety of applications. Our in-house specialists subject our products to multiple rounds of comprehensive testing for interoperability and reliability with the latest devices.

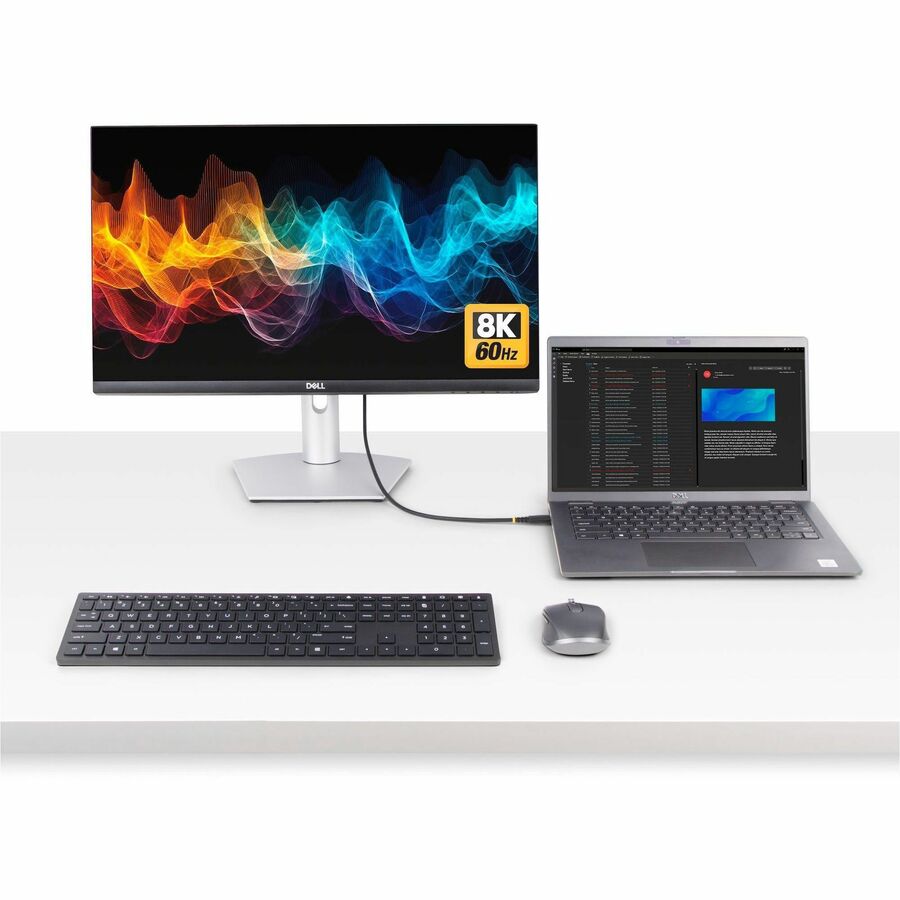

Experience 8K Video with DisplayPort 1.4 Alt Mode

The USB4 cable supports up to 8K 60Hz video over DisplayPort 1.4 Alt Mode with DSC, HDR, and HBR3, and is compatible with 4K 60Hz and lower resolutions.

Packaged Quantity

1

Product Type

AV/Data Transfer Cable
Technical Information

Cable Type

USB4

Cable Length

3.28 ft

Connector Type on First End

USB4 Thunderbolt 4 Type C - Male

Connector Gender on First End

Male

Connector on First End Details

1 x USB4 Thunderbolt 4 Type C - Male

Connector Type on Second End

USB4 Thunderbolt 4 Type C - Male

Connector Gender on Second End

Male

Connector on Second End Details

1 x USB4 Thunderbolt 4 Type C - Male

Connector Plating

Nickel

Shielding

Yes

Device Supported

  • USB Device
  • Notebook
  • MacBook Pro
  • Docking Station
  • Monitor
  • Mobile Device
  • Audio/Video Device
  • Dock

American Wire Gauge

30/34 AWG

Data Transfer Rate

40 Gbit/s

Supported Resolution

7680 x 4320

Features

  • Power Delivery 3.1
  • E-marker Chip
  • Display Stream Compression (DSC)
  • Strain Relief
  • Durable
  • EMI Protection
  • Flexible
  • Halogen Free
  • DisplayPort Alternate (ALT) Mode
  • HDR Support
  • High Bit Rate 3 (HBR3)
  • Passive
  • Braided
Physical Characteristics

Color Family

Black

Product Color

Black

Product Material

  • Santoprene
  • TPE Rubber

Shielding Material

  • Mylar
  • Aluminum
  • Mylar Foil

Jacket Material

Thermoplastic Elastomer (TPE)

Weight (Approximate)

0.10 lb
Miscellaneous

Compatibility

Apple:

  • MacBook Pro M3 Pro
  • MacBook Pro M3 Max

StarTech:

  • TB4CDOCK
  • TB3CDK2DH
  • TB3DK2DHV
  • TB310G2
Warranty

Limited Warranty

2 Year
