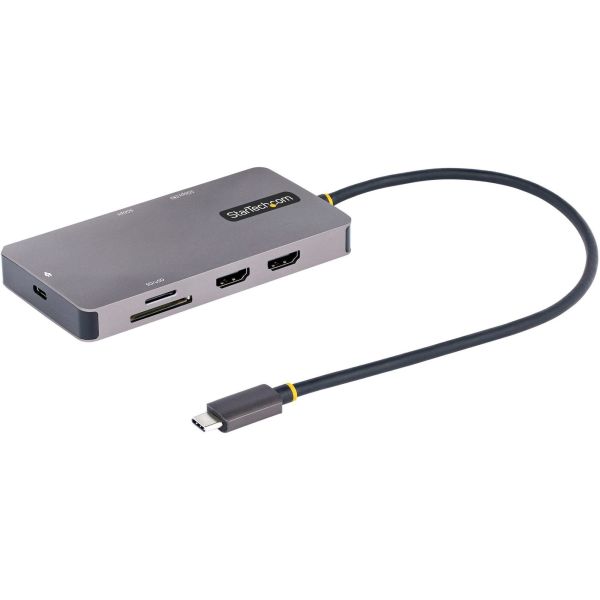

StarTech.com USB C Multiport Adapter, Dual HDMI, 4K 60Hz, 2x 5Gbps USB-A Hub, 100W Power Delivery, GbE, SD/MicroSD, USB C Mini Dock

Name: StarTech.com USB C Multiport Adapter, Dual HDMI, 4K 60Hz, 2x 5Gbps USB-A Hub, 100W Power Delivery, GbE, SD/MicroSD, USB C Mini Dock
Brand: STARTECH
SKU: 04QT07
Price: 84.65 USD
Availability: InStock

STARTECH

PCN#

04QT07

MFG#

120B-USBC-MULTIPORT

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$84.65

Extended & Accidental Damage Product Replacement Plan Available Details

1-Year $22.99

2-Year $29.99

Free Shipping

Estimated Shipment:

Product Highlights:

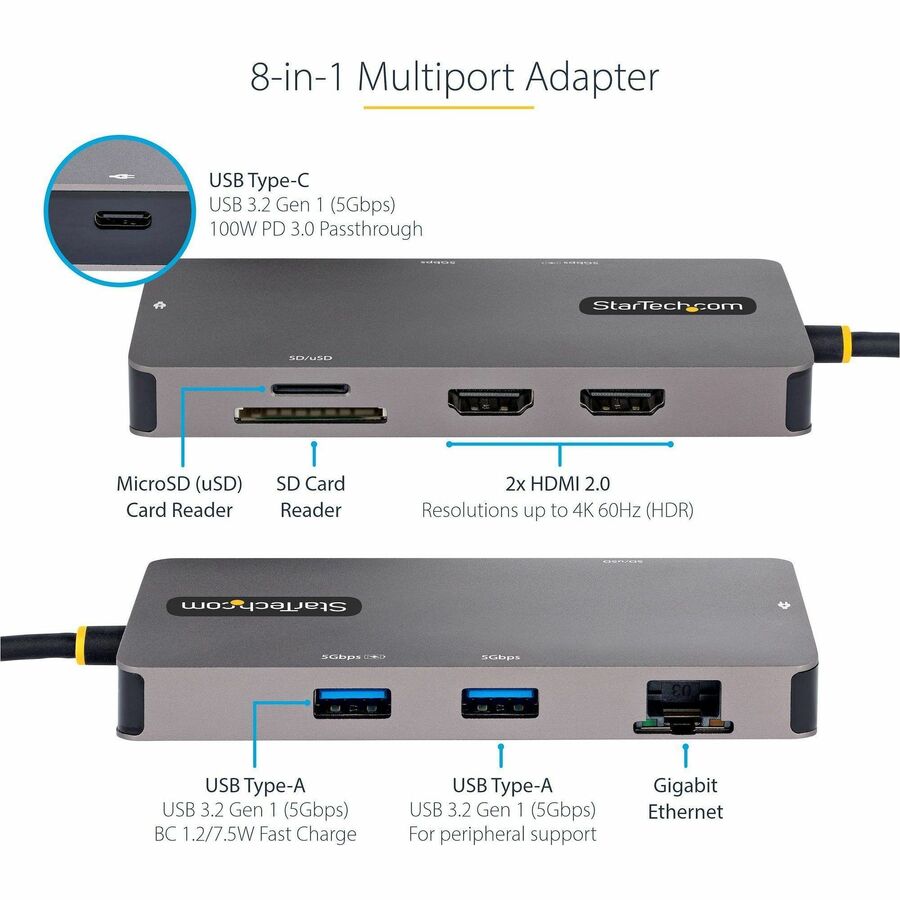

USB C Multiport Adapter w/dual 4K60Hz HDMI 2.0b HDR video via DP 1.4/DSC, MST (4K60 GPU dependent)
Alternative to DK30C2DHAGPD
Mini Dock w/2x USB
A 3.2/3.1 5Gbps hub (1x BC 1.2) | 100W PD pass
through or laptop bus powered
12in Type
C cable

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

StarTech.com USB C Multiport Adapter, Dual HDMI, 4K 60Hz, 2x 5Gbps USB-A Hub, 100W Power Delivery, GbE, SD/MicroSD, USB C Mini Dock

Overview

Tech Specs

Specifications

Manufacturer	StarTech.com
Manufacturer Part Number	120B-USBC-MULTIPORT
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	Docking Station

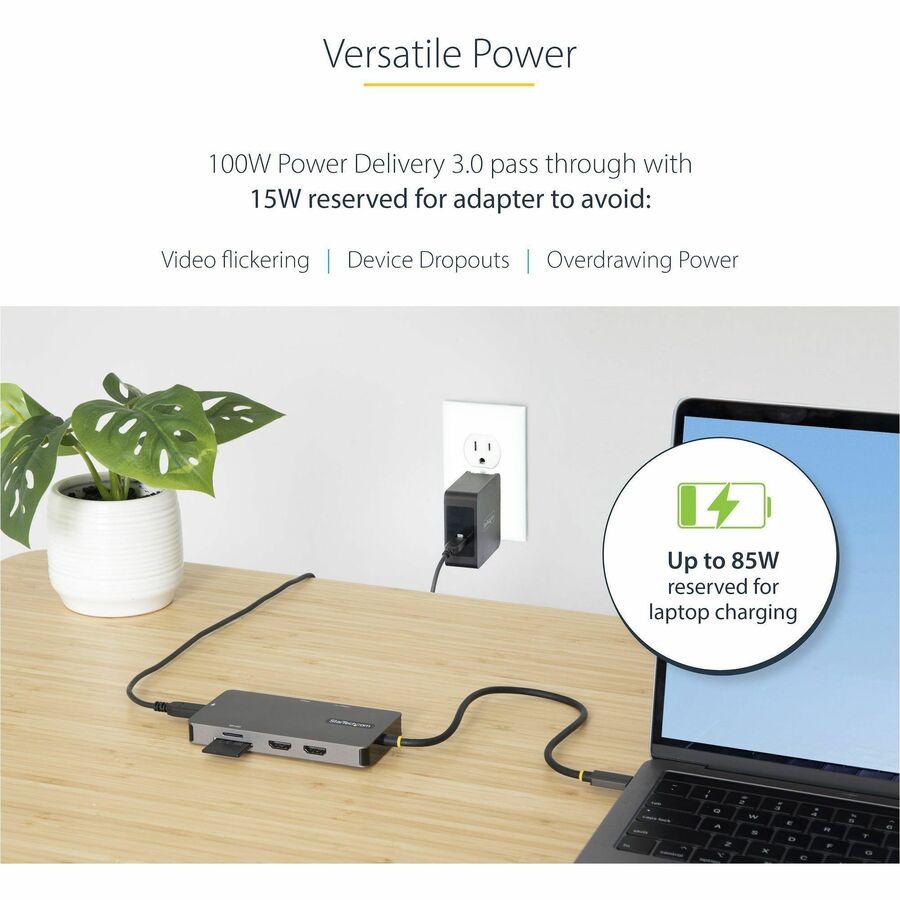

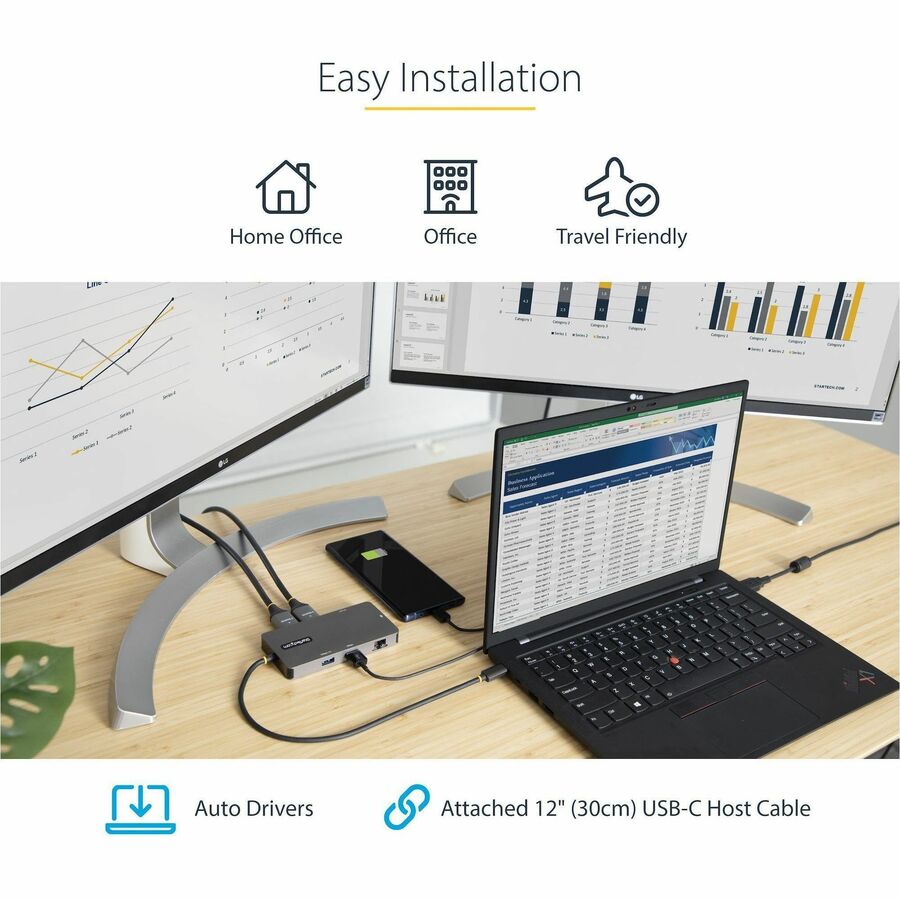

Marketing Information	This USB Type-C Multiport Adapter with DP 1.4 Alternative Mode, DSC and MST, supports dual-HDMI® (HDR) video with resolutions of up to 4K 60Hz uncompressed video. The mini travel dock turns your Dell XPS, Lenovo X1 Carbon, HP Elite/ProBook, or other USB-C laptop into a workstation, anywhere you go. The USB-C docking station provides dual HDMI outputs, a 2-port USB 3.2 Gen 1 Type-A (5Gbps) Hub including a BC 1.2 port to power and charge a USB peripheral, SD and MicroSD card readers, and a Gigabit Ethernet port, all through one connection to your laptop's USB-C or Thunderbolt 3/4™ port. In addition, it offers advanced charging through USB Power Delivery (PD) 3.0 pass-through via an integrated 12-inch (30 cm) USB-C host cable, for more set up flexibility. High-Performance Dual-HDMI Video via MST The compact docking station connects your laptop to two HDMI monitors, creating a powerful workstation. It supports DP 1.4 Alt Mode with DSC and MST, for uncompressed video performance up to dual 4K (3840 x 2160p) at 60Hz, depending upon your host computer. The dock also supports the use of ultrawide monitors. Video performance, such as resolution and refresh rate across both monitors, is dependent upon your host computer and its video controller. A source device with support for DisplayPort 1.4, paired with DSC and DP 1.4 enabled HDMI displays, are required to achieve dual 4K 60Hz. Please review the specifications of your computer and displays, to determine expected video performance. StarTech.com performs rigorous performance benchmarks with all major computer models. The video performance results of our testing are listed below: Dual Display Host Computer Model Monitor #1 Maximum Resolution Monitor #2 Maximum Resolution Lenovo X1 Carbon G9 3840x2160@60Hz 3840x2160@60Hz HP EliteBook 850 G8 3840x2160@60Hz 3840x2160@30Hz Dell XPS 9310 2560x1600@60Hz 2560x1600@60Hz Single Display Host Computer Model Monitor Maximum Resolution Dell XPS 9310 3840x2160@60Hz Lenovo X1C G9 3840x2160@60Hz HP EliteBook 850 3840x2160@60Hz HP ProBook 450 G8 3840x2160@60Hz Surface Laptop 3 3840x2160@60Hz Dell G5 SE (AMD) 3840x2160@60Hz Connect Your Devices The USB-C to USB 3.2 Gen 1 (5Gbps) hub provides two USB-A ports for connecting your USB devices. Multiple Use Cases A versatile dock solution for use at your office desk, home office, hotel desk, or in the boardroom. It's portable enough to be carried in your bag / backpack for mobile use. The USB-C dock can operate with bus-power alone, or with a USB-C power adapter connected to the pass-through port - for full laptop and peripheral charging. The lightweight docking station features a built-in 12 in (30 cm) USB-C host cable.
Packaged Quantity	1
Product Type	Docking Station

Technical Information

Connectivity Technology	Wired
Device Supported	Notebook/Tablet PC
Memory Card Reader	Yes
Memory Card Supported	SD microSD SDXC SDHC
Number of Displays Supported	2
Screen Mode Supported	4K
Supported Resolutions	3840 x 2160

Network & Communication

Ethernet Technology

Gigabit Ethernet

Interfaces/Ports

Host Interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Number of USB 3.2 Gen 1 Type-A Ports	1
Number of USB Type-A Ports	2
Number of USB Type-C Ports	2
USB Type-C	Yes
USB Type-C Detail	1 - USB Type-C (24 pin) USB Power
Network (RJ-45)	Yes
Number of RJ-45 Ports	1
Number of HDMI Outputs	2
HDMI	Yes
HDMI Version	2.0

Software

Operating System Supported

Windows
ChromeOS

Power Description

Maximum Power Supply Wattage

100 W

Physical Characteristics

Product Color	Space Gray
Form Factor	Portable

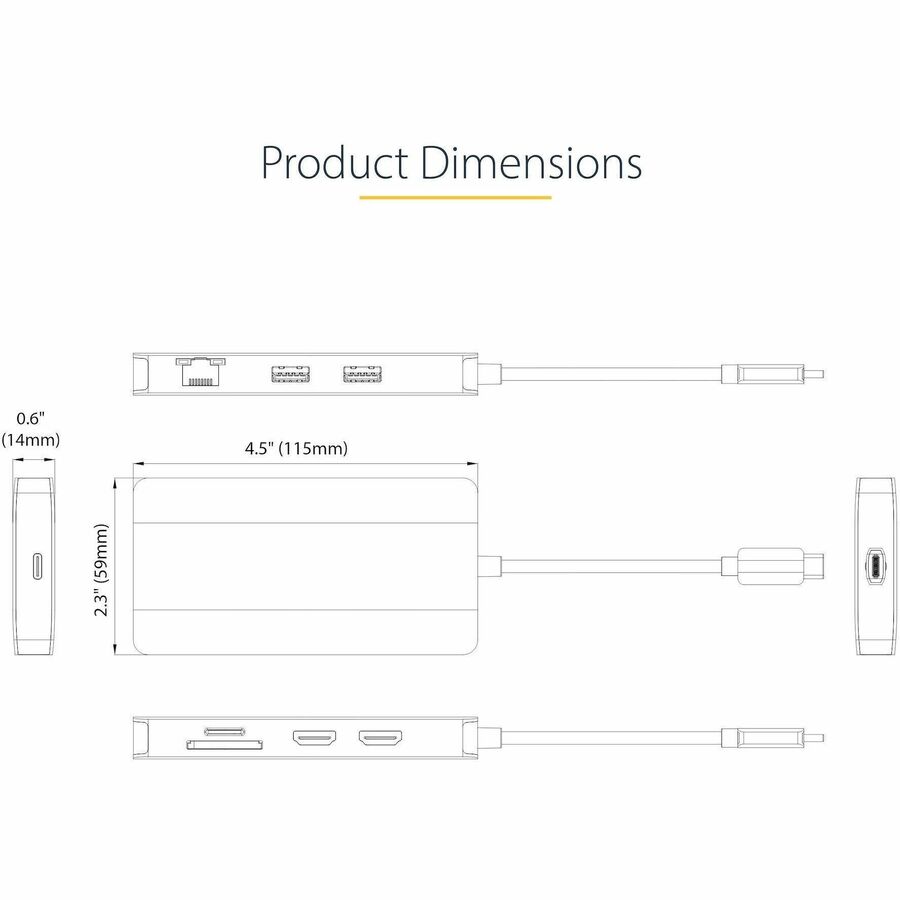

Height	0.60"
Width	5.70"
Weight (Approximate)	5.80 oz

Miscellaneous

Package Contents	Docking Station 1 x Quick-Start Guide

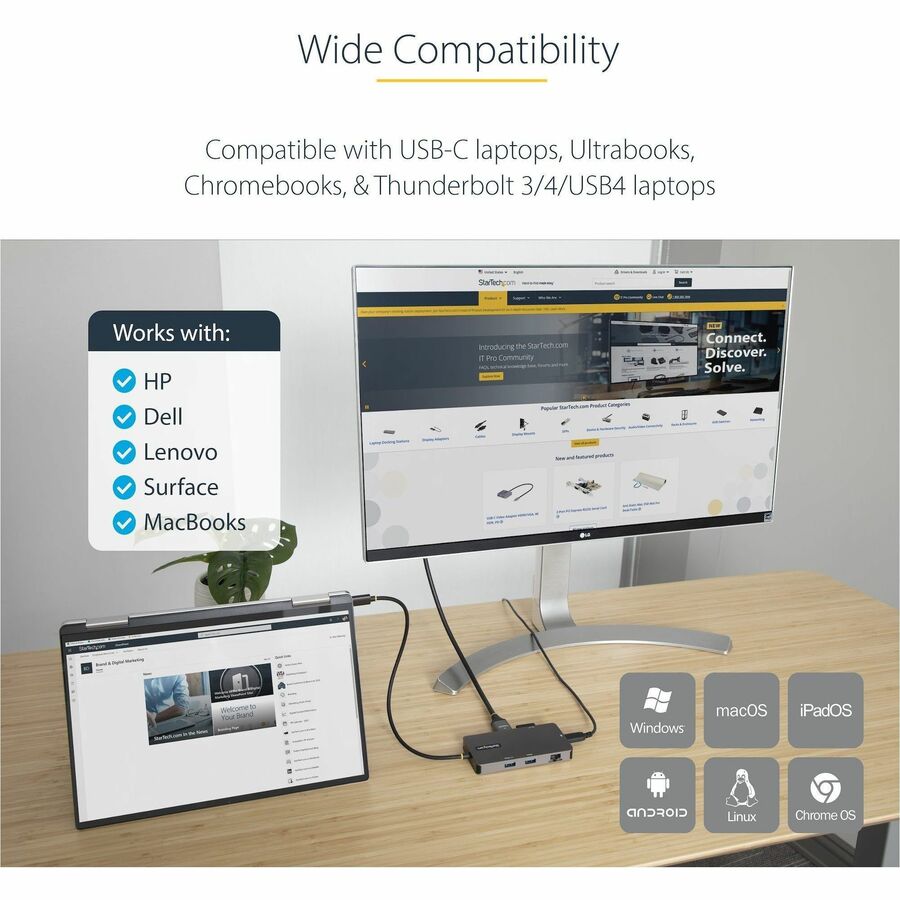

Compatibility	Compatible Products: Dell XPS Lenovo X1 Carbon HP Elite HP ProBook Microsoft Surface Laptop 3 Microsoft Surface Up Microsoft Surface Pro 7 Microsoft Surface up
Brand Compatibility	Dell Lenovo HP Microsoft
Environmentally Friendly	Yes
Country of Origin	Vietnam

Warranty

Limited Warranty

3 Year
