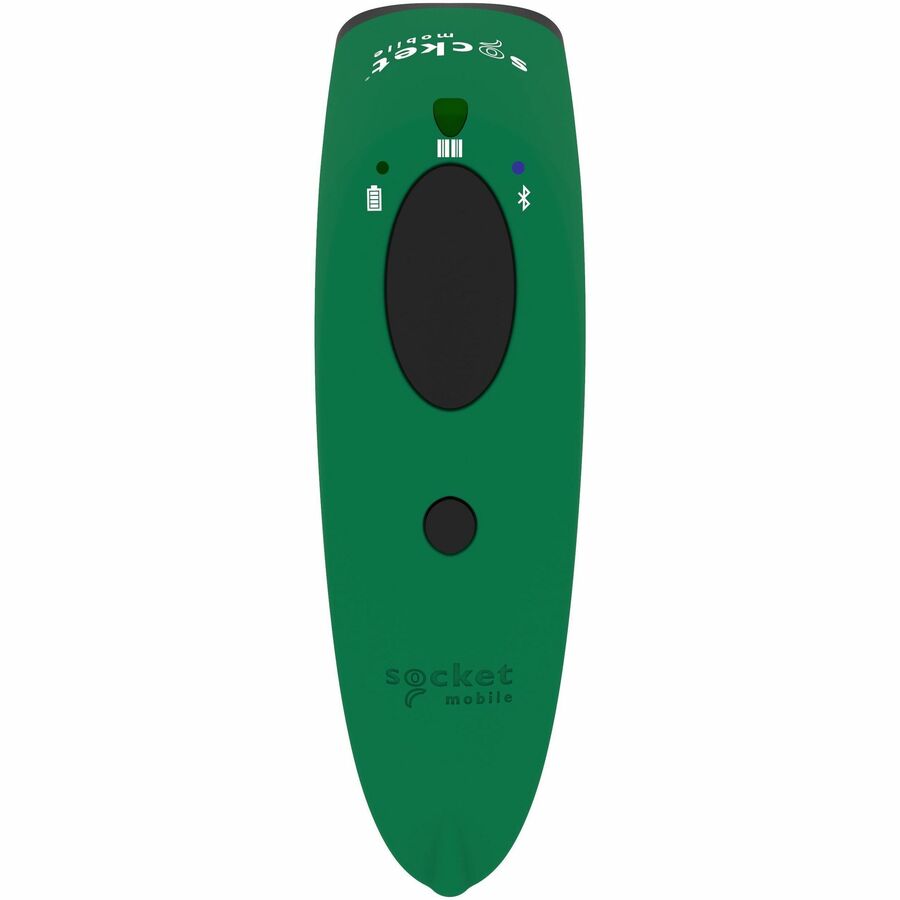

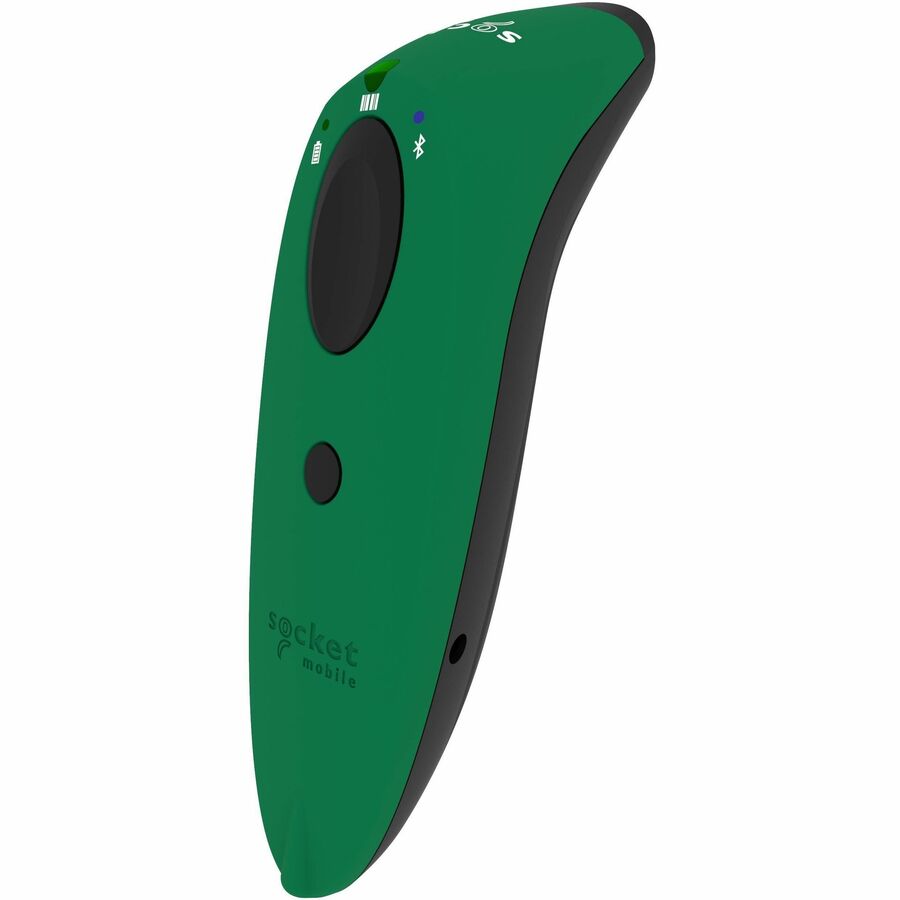

Socket Mobile SocketScan S720, Linear Barcode Plus QR Code Reader, Green & White Dock

by
SOCKET MOBILE
PCN#
07WU48
MFG#
CX3994-3051
$265.55
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Wireless Connectivity
  • 14.96" Scan Distance
  • 1D, 2D

Show more

Product Condition: New and Factory Fresh
Limited Warranty1 YearAdditional Warranty Informationoptional extended warranty available.
Shipping Weight: 2 lbs.
Socket Mobile SocketScan S720, Linear Barcode Plus QR Code Reader, Green & White Dock
Tech Specs
Specifications

Manufacturer

Socket Mobile, Inc

Manufacturer Part Number

CX3994-3051

Manufacturer Website Address

http://www.socketmobile.com

Brand Name

Socket Mobile

Product Line

SocketScan

Product Model

S720

Product Name

SocketScan S720, Linear Barcode Plus QR Code Reader, Green & White Dock

Marketing Information

Linear Barcode Plus QR Code Reader

The SocketScan S720 is a Bluetooth Barcode Scanner that reads 1D and 2D barcodes on paper and screen. It's lightweight, ergonomically designed and comes with long-lasting batteries. Great for everyday general-purpose scanning, the S720 2D barcode reader scans popular 2D barcodes such as PDF417, QR Codes and Data Matrix. It is exceptionally easy to use, with intuitive notifications for battery level, Bluetooth connection, and scanning status.

The S720 is wireless, providing increased mobility and productivity, helping reduce human error. 2D barcodes offer the next step in versatility, functionality, and efficiency that cannot be achieved with linear 1D barcodes. Using 2D barcodes with an effective barcode reader gives your business an accurate and easy way to track inventory and assets, scan products, digital IDs and/or credentials from mobile wallets. Designed for the budget-conscious business, the S720 is a great everyday general-purpose 2D barcode reader that scans the most popularly used 2D barcodes such as PDF417, QR Codes and Data Matrix.

Product Type

Barcode Scanner Kit
Technical Information

Connectivity Technology

Wireless

Scanning Capability

  • 1D
  • 2D

Barcode Symbology Supported

1D Symbologies: Codabar, Code 39, Code 93, Code 128, EAN-13, EAN-8, Interleaved 2 of 5, ISBT 128, UPC A, UPC E1, Chinese 2 of 5, Codabar, Code 11, Code 16KCode 39, Code 93, Code 128, Discrete 2 of 5, EAN-13, EAN-8, GS1 Databar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, MSI Plessey, UPC A, UPC E1, Standard 2 of 5, UK Plessey

2D Symbologies: Data Matrix, Micro QR Code, PDF417, QR Code, Aztec, Data Matrix, Han Xin, Micro PDF417, Micro QR Code, PDF417, QR Code

Light Source

LED

Image Sensor Type

Linear

Scanning Distance

14.96"

Field of View (Horizontal)

45°

Field of View (Vertical)

34°

Maximum Ambient Light

100000 lux

Drop Specification

4 ft. drop to linoleum

Minimum Print Contrast

25%

Maximum Element Resolution (Code 39)

5 mil

Maximum Element Resolution (DataMatrix)

10 mil

Image Sensor Resolution

1280 x 960
Network & Communication

Bluetooth

Yes
Battery Information

Battery Included

Yes

Battery Chemistry

Nickel Metal Hydride (NiMH)

Battery Capacity

2000 mAh

Battery Weight

1.92 oz

Maximum Battery Run Time

16 Hour

Maximum Battery Recharge Time

6 Hour
Environmental Conditions

Operating Temperature

32°F (0°C) to 113°F (45°C)

Storage Temperature

-40°F (-40°C) to 158°F (70°C)

Humidity (Non-condensing)

95%
Physical Characteristics

Form Factor

Handheld

Product Color

Green

Weight (Approximate)

4.13 oz
Miscellaneous

Package Contents

  • SocketScan S720, Linear Barcode Plus QR Code Reader, Green
  • White Dock
  • Wrist strap

Application/Usage

  • Ticketing
  • Asset Tracking
  • Transportation
  • Delivery
  • Loyalty Program
  • Inventory
  • Hospitality

Platform Supported

  • PC
  • Mac
  • iOS
  • Android

Country of Origin

United States

Environmentally Friendly

Yes

Environmental Compliance

  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty

Limited Warranty

1 Year

Additional Warranty Information

optional extended warranty available.
