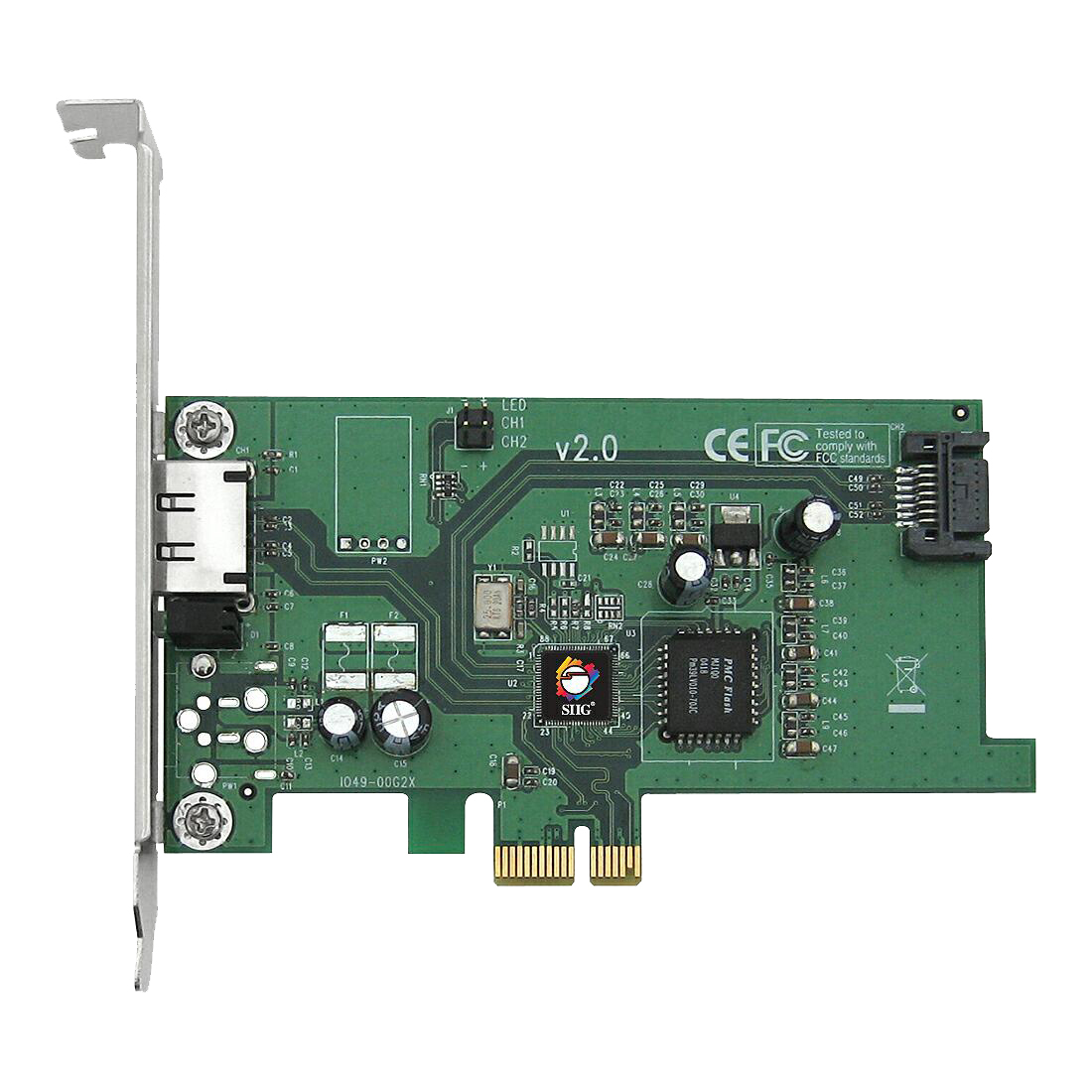

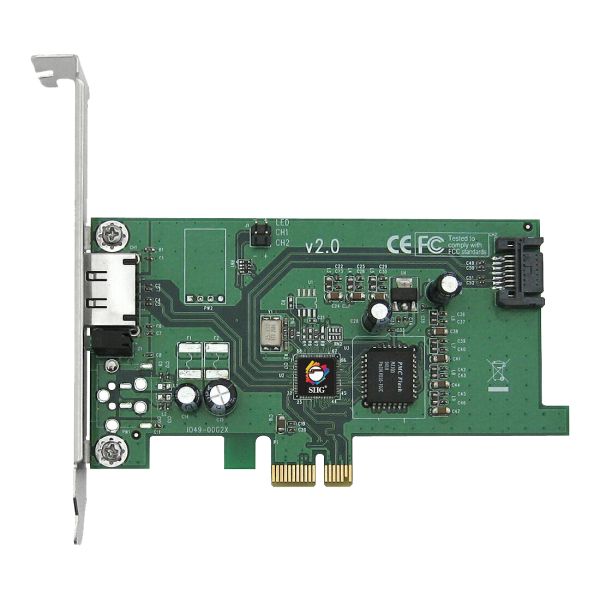

SIIG eSATA II PCIe i/e Adaptor

SIIG's eSATA II PCIe i/e controller card is designed to add two SATA channels (one internal and one external) for connecting up to two additional SATA hard disk drives. The eSATA II PCIe i/e controller card features the latest eSATA connector, delivers data transfer rates of up to 3.0Gb/s, and supports 48-bit LBA for drives with capacity larger than 137GB. Additional features include independent command fetch, scatter/gather, command execution, Native Command Queuing (NCQ), Non-zero offsets NCQ, Out-of-order data delivery NCQ, and hard disk hot-plugging ensure fast and reliable data transfers.

The eSATA II PCIe i/e controller card comes with the included spare low profile bracket for installing into either standard height or low profile system chassis. It is fully compatible with a wide variety of Windows operating systems and is backed by SIIG's limited lifetime warranty.

• eSATA II PCIe i/e Adaptor
• Spare enhanced low profile bracket
• Serial ATA cable
• Serial ATA power cable
• Driver CD
• User's manual

• Compliant with PCI Express Base Specification Revision 1.0a
• Compliant with Serial ATA 1.0a specification with support for complement of SATA II optional features
• Compliant with eSATA (external SATA) connector specification
• Installs in any available PCI Express slot and supports data transfer rates up to 3.0Gbps (300MBps)
• Supports 48-bit LBA for drives with capacity larger than 137GB
• Integrated Serial ATA Link and PHY logic
• Supports two independent Serial ATA channels
• Supports Native Command Queuing (NCQ), Non-zero offsets NCQ, and Out-of-order data delivery NCQ
• Independent command fetch, scatter/gather, and command execution
