SIIG 8x8 HDMI 4K60Hz Matrix Switcher with LCD - 18Gbps- Downscaling- EDID Management - ARC- Audio Embedded/Extraction

Name: SIIG 8x8 HDMI 4K60Hz Matrix Switcher with LCD - 18Gbps- Downscaling- EDID Management - ARC- Audio Embedded/Extraction
Brand: SIIG
SKU: 14NW12
Price: 742.24 USD
Availability: InStock

SIIG

PCN#

14NW12

MFG#

CE-MX0011-S1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$742.24

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

8x8 HDMI Matrix Switcher with LCD allows you to select and switch between any of the 8 HDMI source devices to display on any of the 8 HDMI displays simultaneously
4K60Hz 18Gbps
HDCP 2.2
HDR 10
Downscaling
EDID Management
ARC
Analog Audio Embedded and HDMI Audio Extraction
Multiple Control Methods
Metal housing
2 year warranty

Product Condition: New and Factory Fresh

Limited Warranty2 Year

Shipping Weight: 9 lbs.

SIIG 8x8 HDMI 4K60Hz Matrix Switcher with LCD - 18Gbps- Downscaling- EDID Management - ARC- Audio Embedded/Extraction

Overview

Tech Specs

Specifications

Manufacturer	SIIG, Inc
Manufacturer Part Number	CEMX0011S1
Manufacturer Website Address	http://www.siig.com
Brand Name	SIIG
Product Model	CE-MX0011-S1
Product Name	8x8 HDMI 4K60Hz Matrix Switcher
Marketing Information	Allows up to 8 HDMI source devices to be independently switched to 8 HDMI monitors, HDTVs or projectors, the eight output signals can be different or the same at the same time. Each HDMI output has independent analog audio outputs and coaxial S/PDIF port Supports HDMI resolution up to 4K@60Hz YUV 4:4:4, HDR 10 and HDCP 2.2/1.4, Bandwidth up to 18Gbps and support 3D, HLG, Dolby Vision Supports HDMI downscaling from 4K@60Hz to 1080p@60Hz Supports analog audio embedded and HDMI audio extraction Built-in 8 analog audio inputs, 8 analog audio outputs and 8 S/PDIF (Coaxial) audio outputs, analog audio for PCM 2.0, S/PDIF (Coaxial) audio up to PCM 5.1, Dolby Digital, DTS; HDMI for PCM 2.0 to 7.1/16 to 24bit, Dolby / DTS / Dolby Atmos / DTS-HD Support HDMI ARC on Coaxial only and EDID management Controllable via front-panel button, IR remote, RS-232, IP and Web GUI, firmware upgrade via RS-232 interface LCD screen shows real-time I/O connection status, The Ethernet port supports Telnet, UDP, HTTP and TCP/IP
Product Type	Video Switchbox

Technical Information

Number of Input Devices Supported	8
Device Supported	TV Display
Number of Displays Supported	8
Refresh Rate	60 Hz

Video

Graphics Modes	4K
Maximum Video Resolution	3840 x 2160
Scan Format	1080p

Interfaces/Ports

HDMI In	Yes
HDMI Out	Yes
Connectivity (RJ-45)	Yes
Number of Connectivity (RJ-45) Ports	1
Number of HDMI Inputs	8
Number of HDMI Outputs	8

Power Description

Frequency

50 Hz
60 Hz

Physical Characteristics

Height	1.7"
Width	19"
Depth	8.7"
Weight (Approximate)	6.16 lb

Miscellaneous

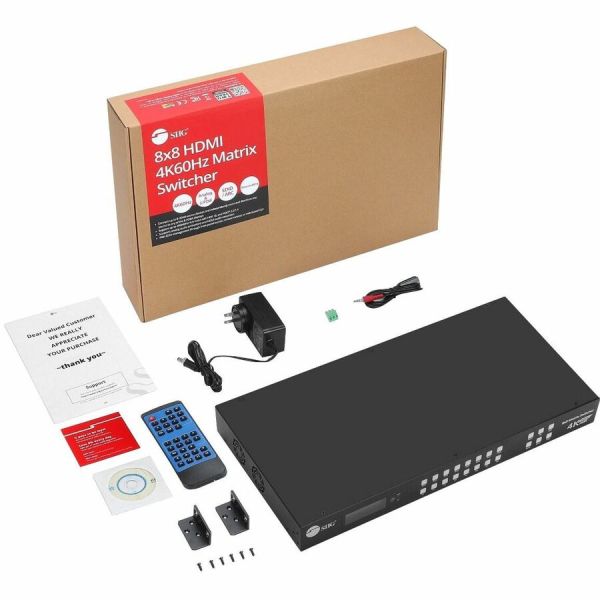

Package Contents	8x8 HDMI 4K60Hz Matrix Switcher Mounting Kit, 2x Mounting Ears with 6 Screws IR Remote Control IR RX cable Power Adapter DC 12V/3A 3-pin Terminal Block CD for Control Software and User Manual User Manual
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Country of Origin	China

Warranty

Limited Warranty

2 Year
