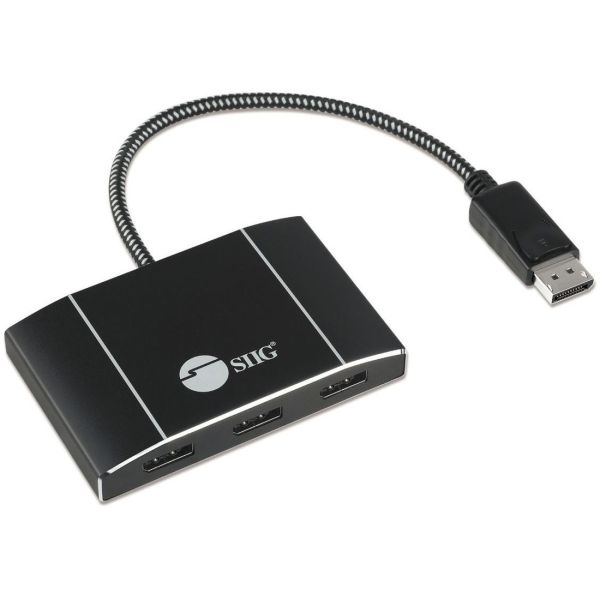

SIIG 8K 1x3 DisplayPort 1.4 to DisplayPort MST Hub Splitter

• Connect up to three DisplayPort displays to single DisplayPort 1.4 output with Multi-Stream Transport (MST) technology to boost your productivity

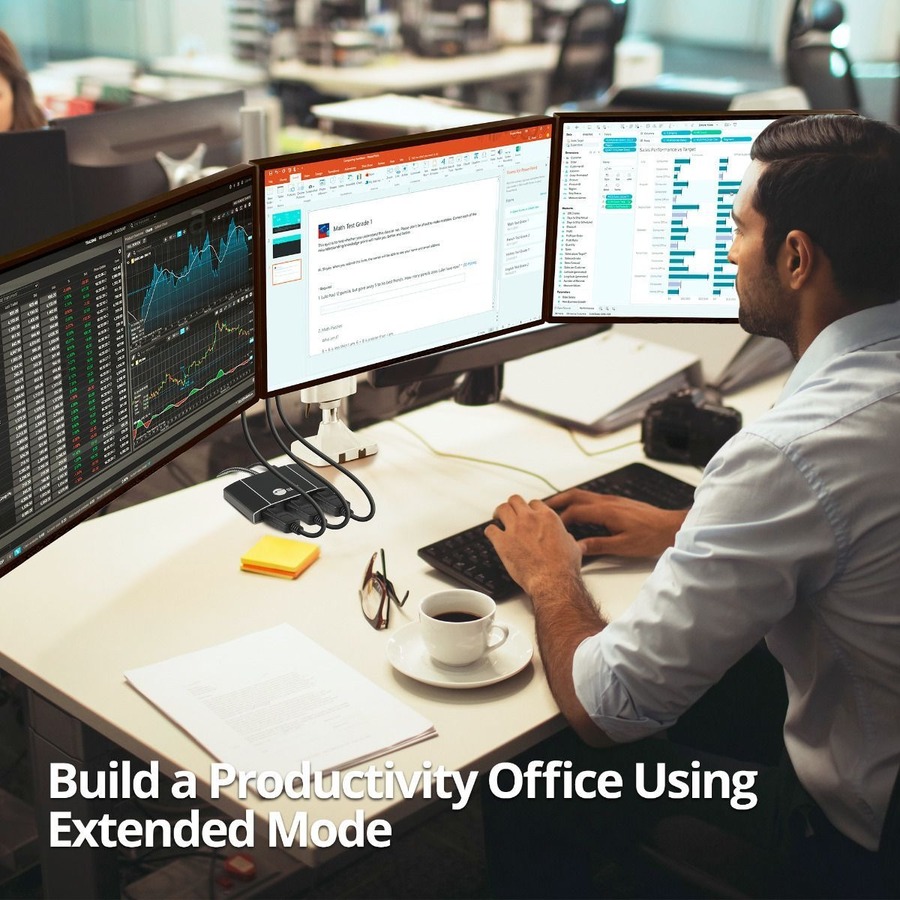

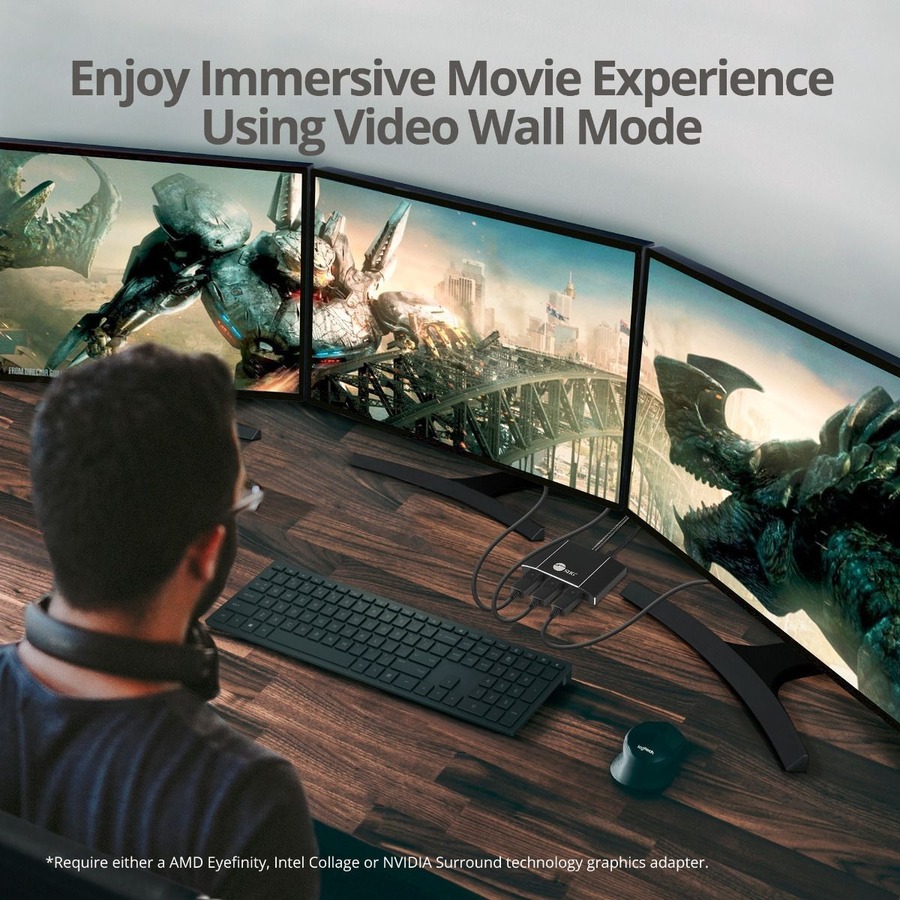

• Provides multiple display modes such as Mirror mode same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode which combines multiple monitors to use as one large display
  Note: Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter

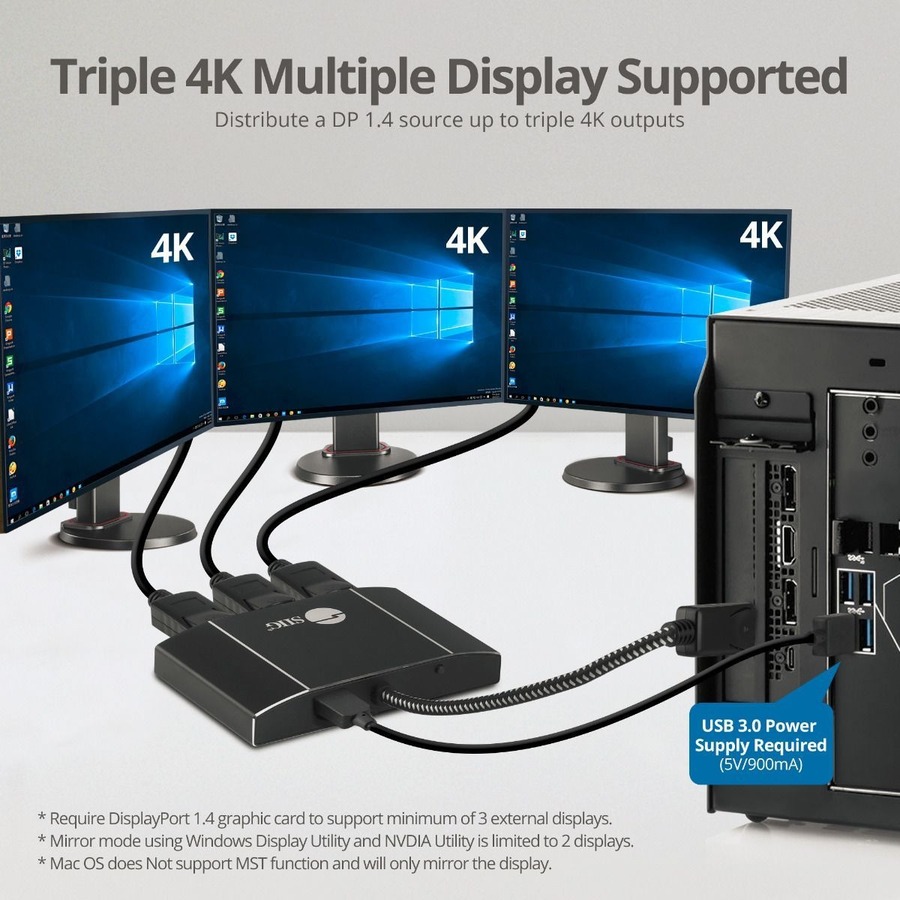

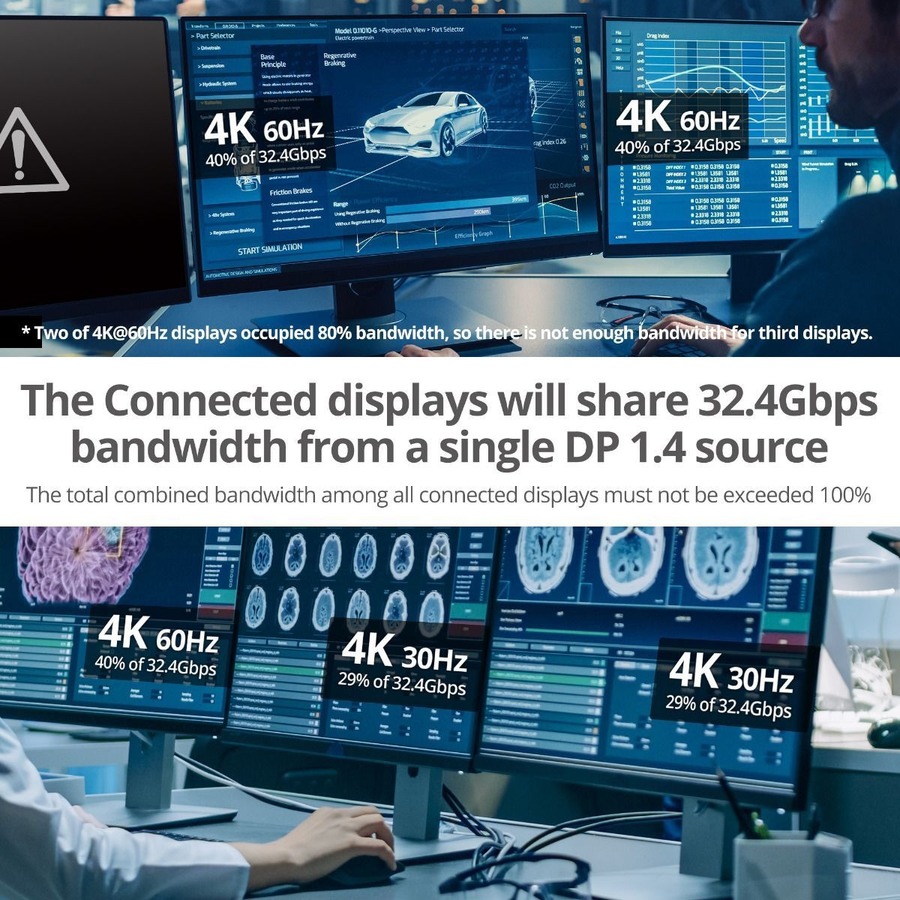

• Total Bandwidth 32.4Gbps (max): Supports one UHD 8K (7680 x 4320)@30Hz display, two 4K@60Hz displays, three or four 4K (3840x2160)@30Hz or less displays. Other resolution combinations which are less than or equal to 4K@30Hz will work also. For example, three 2K, three 1080p, 4K+2K+1080p, etc.
  Note: The total combined bandwidth among all connected displays must NOT exceed the total maximum bandwidth
• Compatible with DisplayPort 1.4 with MST graphics cards with AMD Eyefinity, Intel Collage or NVIDIA Surround technology
• Supports 4K HDR and HDCP 2.2

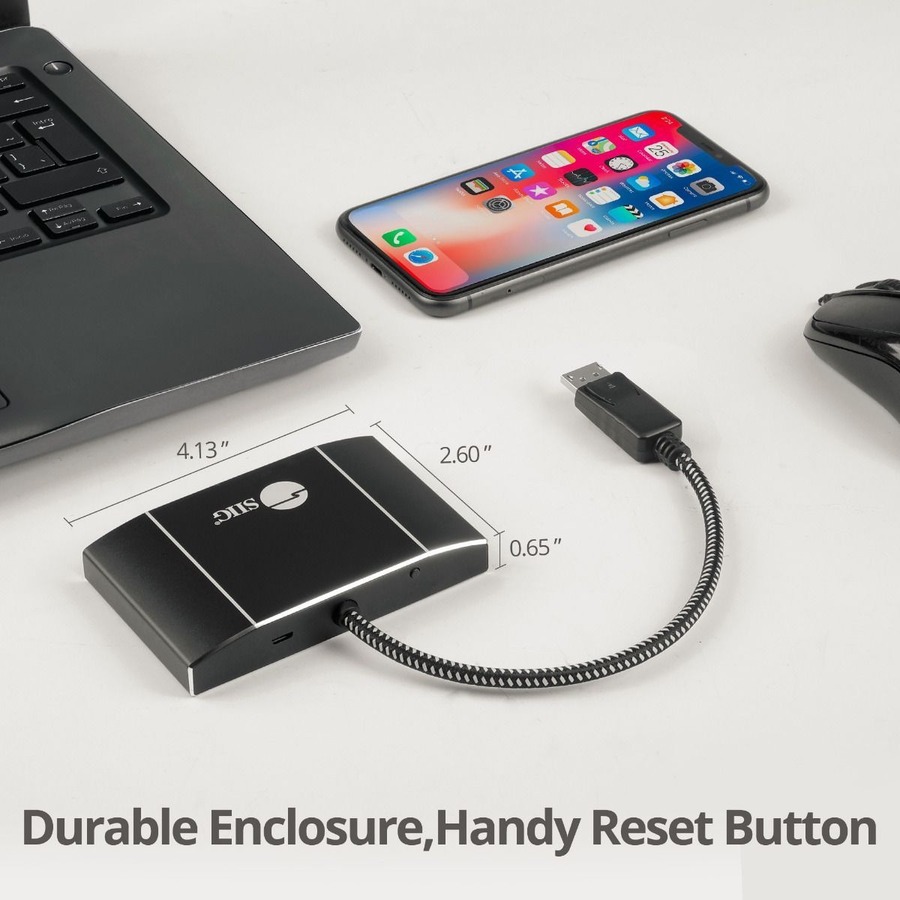

• Reset button allows re-detection of all the displays if any of the displays are not detected
• Plug-n-play, trouble-free set up without complicated hardware or driver installation
• High quality aluminum housing decreases surrounding electro magnetic interference and provides optimal video quality
  Note: Replaces CE-DP0D12-S1

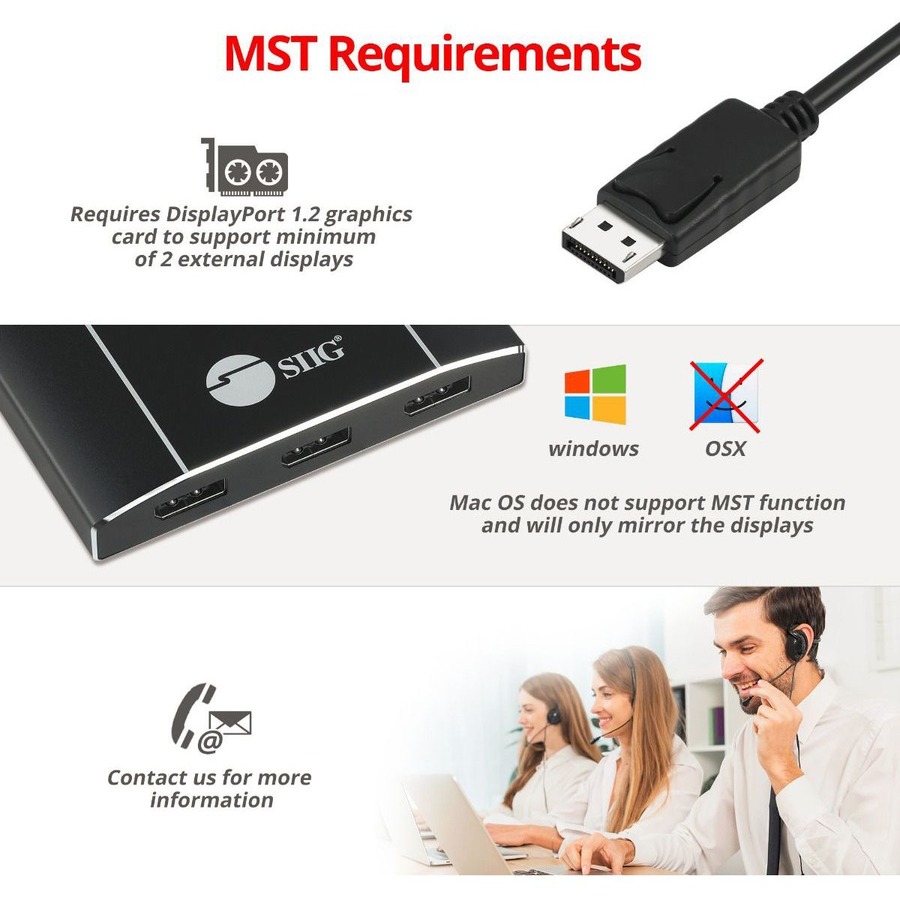

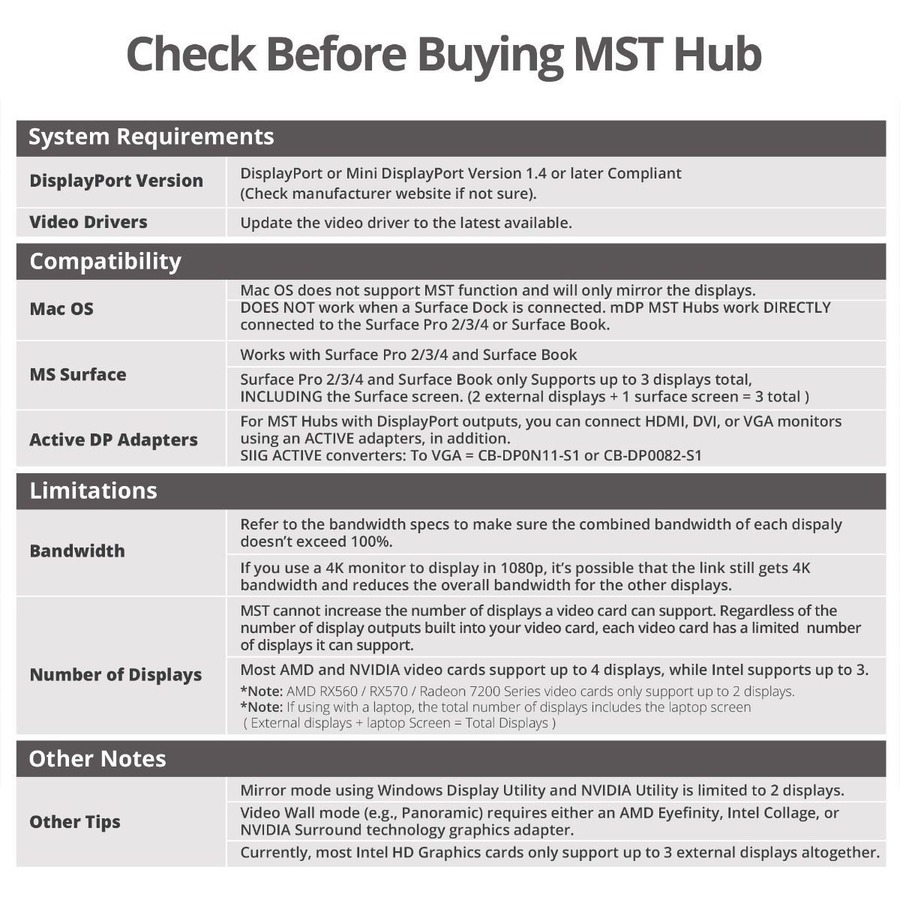

  Compatibility Notes:
  - Requires either AMD Eyfinity or Intel Collage or NVIDIA Surround technology graphics adapter for Video Wall mode
  - Requires a DisplayPort 1.4 graphics card to support minimum of 3 external displays
  - Mirror mode using Windows Display Uility and NVIDIA Utility is limited to 2 displays

• DisplayPort 1.4 Digital Audio/Video - Female
• Micro USB - Female

• 3 x 20-pin DisplayPort 1.4 Digital Audio/Video - Female
• 1 x 5-pin Micro USB - Female

• Monitor
• Graphics Card
• Desktop Computer
• Notebook
• Tablet
• Audio/Video Device

• Multi-Stream Transport (MST) Support
• HDR Support
• HDCP 2.2
• Plug & Play
• EMI Protection
• Display Stream Compression (DSC)
• Mirror Display Mode
• Extended Display Mode
• Eyefinity Technology

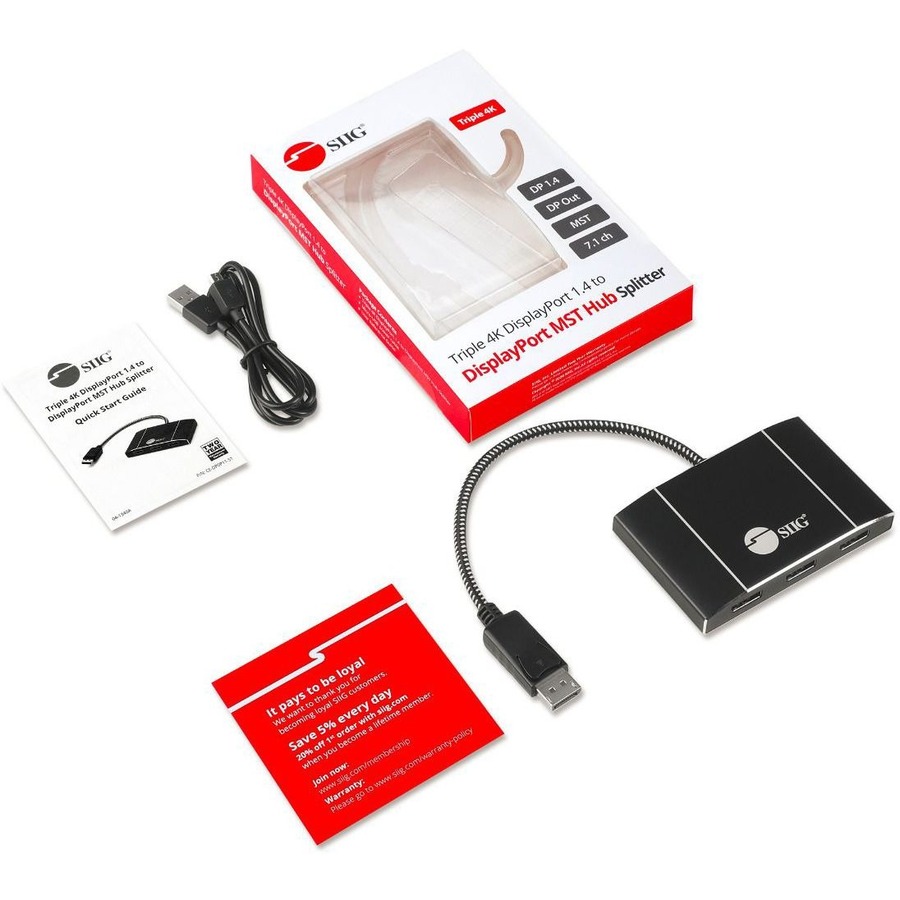

• 1x3 Triple 4K DisplayPort 1.4 to DisplayPort MST Hub Splitter
• Micro-USB power cable
• Quick Start Guide

Microsoft Surface Book

Microsoft Tablet:

• Surface Pro 2
• Surface Pro 3
• Surface Pro 4

AMD Graphics Card:

• RX560
• RX570
• Radeon 7200 Series
