SIIG HDMI to DisplayPort 1.2 4K 60Hz Converter Adapter

by
SIIG
PCN#
8PW074
MFG#
CB-H21811-S1
$35.70
cps

Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • NOT a Bi
  • Directional Adapter
  • Compliant with HDMI 2.0a & HDCP 2.2
Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 1 lbs.
SIIG HDMI to DisplayPort 1.2 4K 60Hz Converter Adapter
Tech Specs
Specifications

Manufacturer

SIIG, Inc

Manufacturer Part Number

CB-H21811-S1

Manufacturer Website Address

http://www.siig.com

Brand Name

SIIG

Product Name

HDMI To DisplayPort 1.2 4K 60Hz Converter Adapter

Marketing Information

Easily add a DisplayPort 1.2 display to your HDMI compatible computer, Laptop, notebook, game console, etc...

Features

  • Easily converts an HDMI output into a DisplayPort video output allowing you to add a DisplayPort display

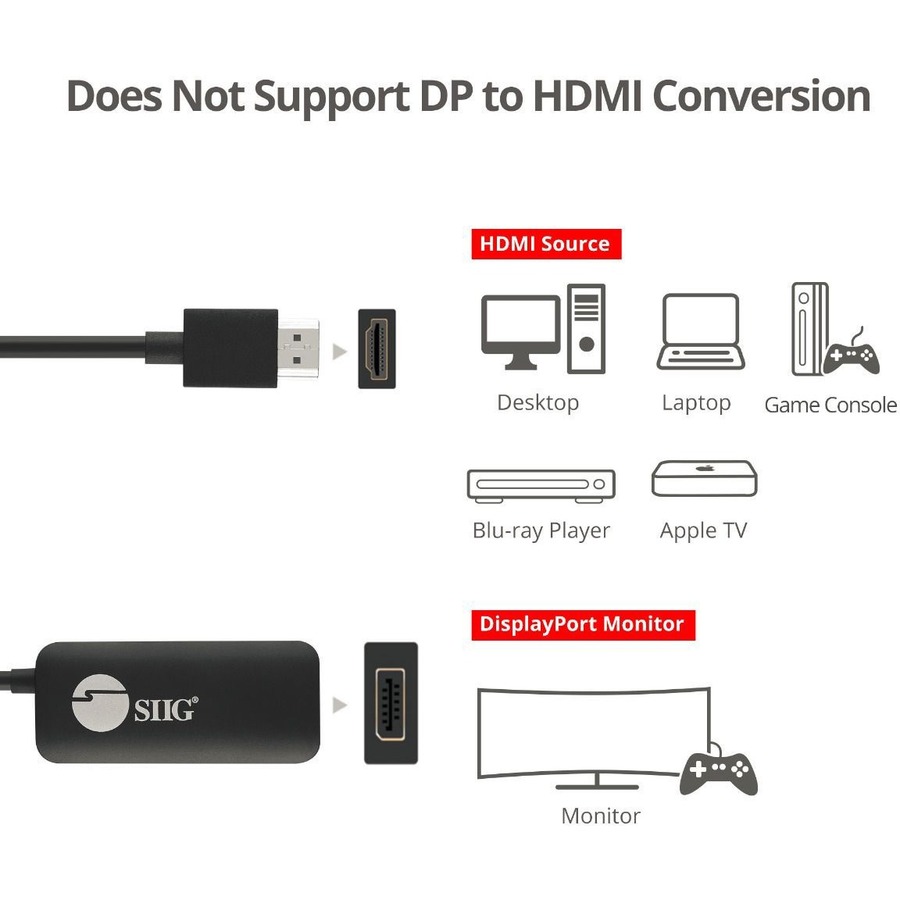

    Note: This is NOT a bi-directional adapter. Does not work for DisplayPort to HDMI 2.0 conversion
  • Compliant with DisplayPort 1.2 specification for 1.62, 2.7Gbps and 5.4Gbps video bandwidth

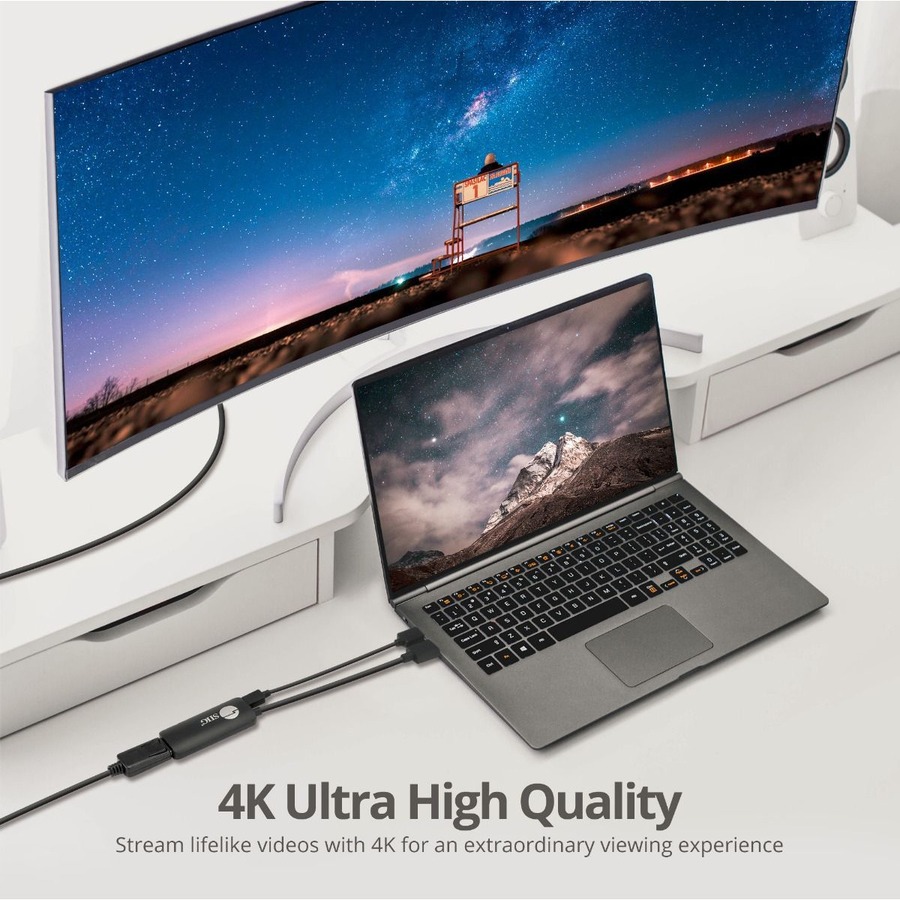

  • Supports up to 3840x2160@60Hz YUV 4:4:4 8-bit / HDR and 1920x1080@60/120/144Hz high resolutions
    Note: 4K@60 YUV 4:2:0 video sources will display in 4K@30Hz resolution. Does Not support 4K@60Hz YUV 4:2:0 10bit HDR
  • Active HDMI to DisplayPort 1.2 converter lets you connect an HDMI enabled video source, such as Laptop, PC, desktop, Nintendo Switch, Xbox one, PS4 Pro, video game console...etc, to DisplayPort 1.2 displays
  • Compliant with HDMI 2.0a, HDCP 2.2
  • Supports 2-ch stereo audio

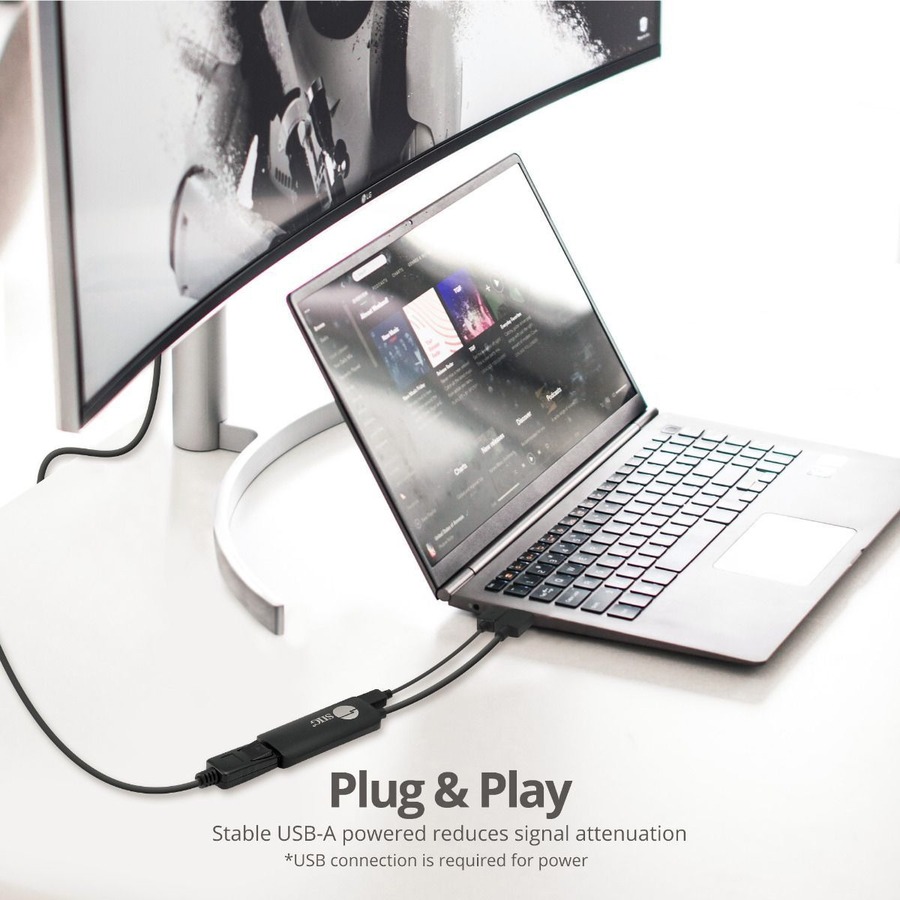

  • The included Micro USB Power cable connects to either an available USB port on your source device or a USB wall charger to power the HDMI to DisplayPort converter
  • USB-Powered, Plug and play, no software required

Product Type

A/V Adapter
Technical Information

Adapter Type

DisplayPort/HDMI/Micro USB

Connector Type on First End

HDMI 2.0a Type A Digital Audio/Video - Male

Connector on First End Details

1 x 19-pin HDMI (Type A) HDMI 2.0a Digital Audio/Video Male

Connector Type on Second End

  • DisplayPort 1.2 Digital Audio/Video - Female
  • Micro USB - Female

Connector on Second End Details

  • 1 x 20-pin DisplayPort DisplayPort 1.2 Digital Audio/Video Female
  • 1 x 5-pin Micro USB Female

Maximum Resolution Supported

1920 x 1080

Features

  • Active
  • HDCP 2.2
  • Plug and Play
Physical Characteristics

Product Color

Black

Product Material

ABS

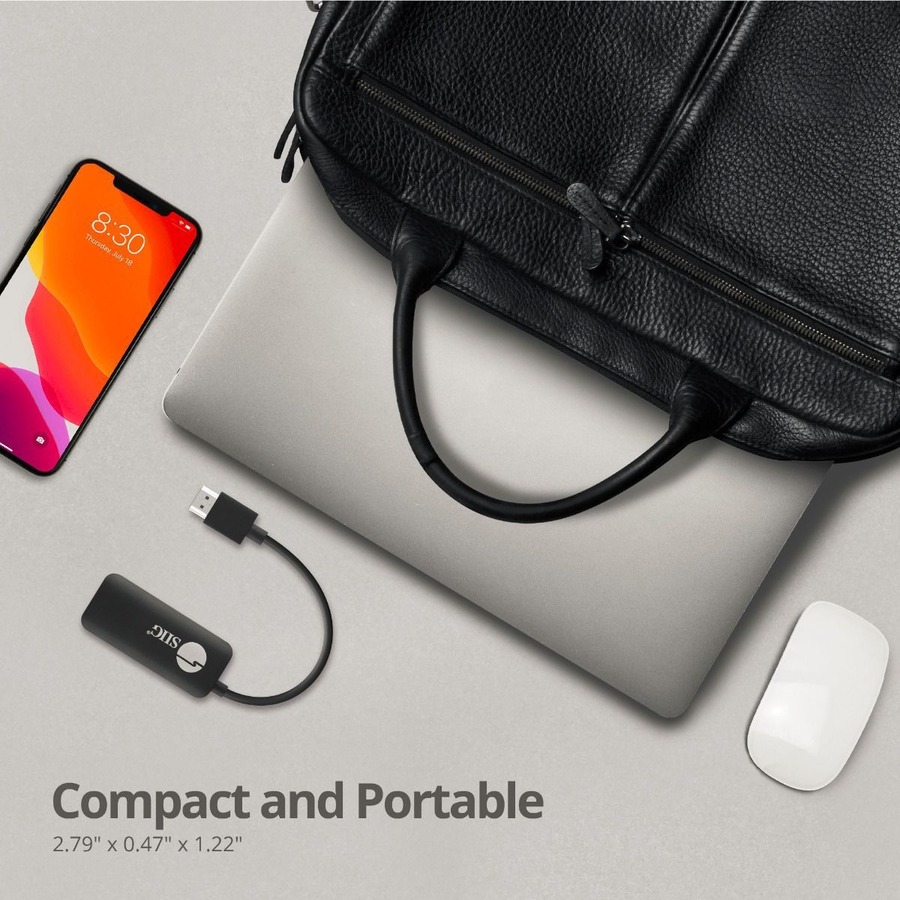

Height

0.5"

Width

2.8"

Depth

1.2"

Weight (Approximate)

1.12 oz
Miscellaneous

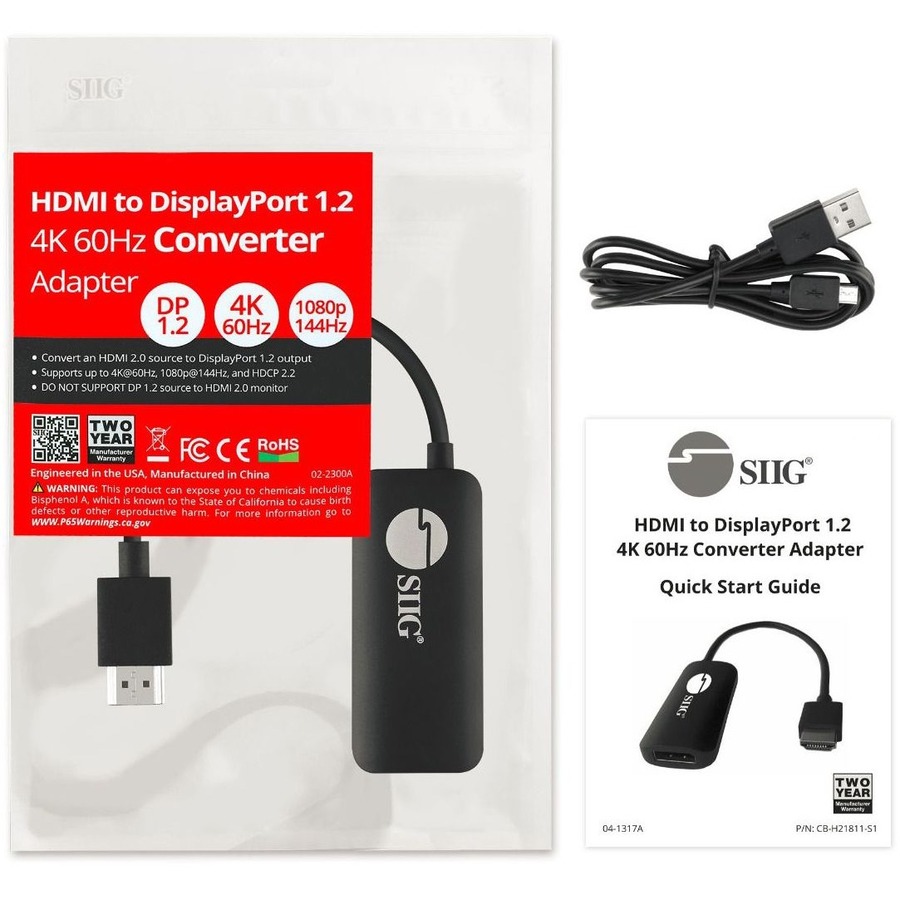

Package Contents

  • HDMI To DisplayPort 1.2 4K 60Hz Converter Adapter
  • USB A To Micro B Power Cable
  • Quick Start Guide

Country of Origin

China

Environmentally Friendly

Yes
Warranty

Limited Warranty

2 Year
