XR60 5G ROUTER DUAL ETHERNET WI-FIINCLUDES 5-YEAR AIRLINK COMPLE

Name: XR60 5G ROUTER DUAL ETHERNET WI-FIINCLUDES 5-YEAR AIRLINK COMPLE
Brand: SIERRA WIRELESS
SKU: JN6471
Price: 1360.47 USD
Availability: InStock

SIERRA WIRELESS

PCN#

JN6471

MFG#

1105159

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,360.47

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

5G
HSPA+
Dual Band
2.40 GHz ISM Band
5 GHz UNII Band
150 MB/s Wireless Speed
1 x Network Port
1 x Broadband Port
USB
5 Gigabit Ethernet
VPN Supported
DIN Rail Mountable

Product Condition: New and Factory Fresh

Limited Warranty5 Year

Shipping Weight: 1 lbs.

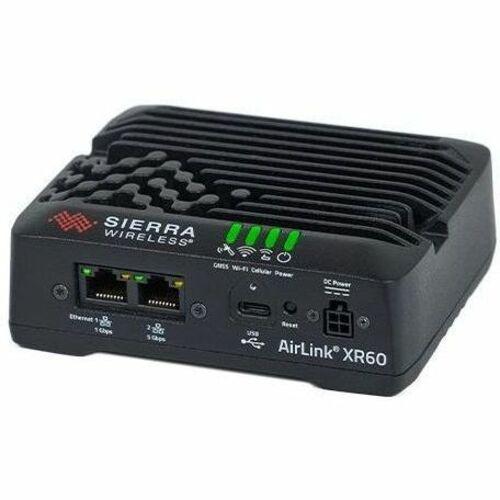

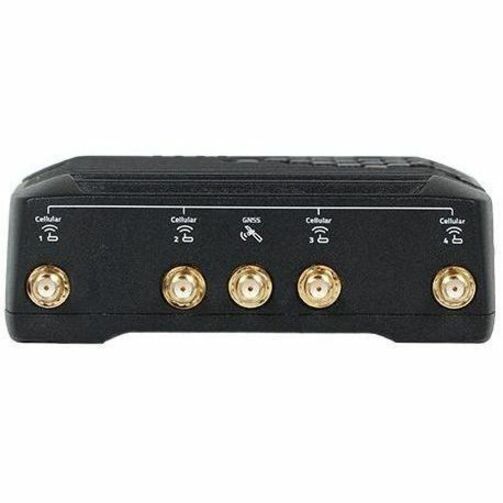

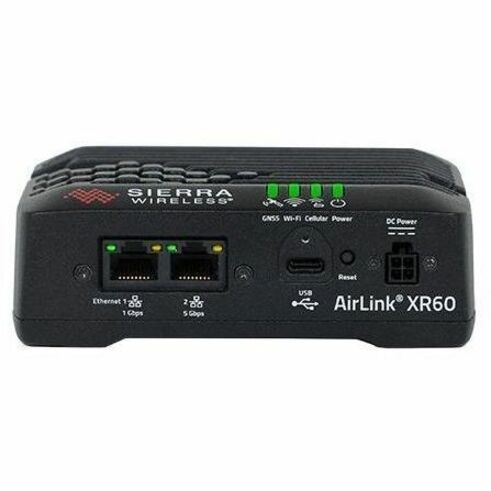

Sierra Wireless AirLink XR60 Wi-Fi 6 IEEE 802.11ax 2 SIM Ethernet Modem/Wireless Router

Overview

Tech Specs

Specifications

Manufacturer	Sierra Wireless
Manufacturer Part Number	1105159
Manufacturer Website Address	http://www.sierrawireless.com
Brand Name	Sierra Wireless
Product Line	AirLink
Product Model	XR60
Product Name	AirLink XR60 Modem/Wireless Router
Marketing Information	The ultra-compact and highly ruggedized AirLink® XR60 delivers high performance 5G and Wi-Fi 6 connectivity to space-limited and harsh environments - from tight industrial enclosures to fast-moving vehicles. With advanced networking capabilities, private network support and edge computing capabilities, the XR60 future proofs your connectivity and accelerates your digital transformation. 5G 2×2 MIMO Wi-Fi 6 (Optional) Single Serial / Single Ethernet (1 Gbps) or Dual Ethernet (1 Gbps + 5 Gbps) Dual-Band GNSS IP64 Rated AirLink OS with AirLink Complete
Product Type	Modem/Wireless Router

Technical Information

Wi-Fi Generation	Wi-Fi 6
Network Band	Dual Band
MU-MIMO Technology	Yes
Processor Type	Cortex A53
Processor Core	Quad-core (4 Core)
Standard Memory	1.20 GB

Wireless Specifications

Broadband Transmission Technology	Ethernet
Wireless LAN Standard	IEEE 802.11ax
ISM Band	Yes
UNII Band	Yes
ISM Maximum Frequency	2.40 GHz
UNII Maximum Frequency	5 GHz
Cellular Generation	5G
Cellular Data Connectivity Technology	HSPA+
Total Wireless Transmission Speed	150 MB/s
Encryption Standard	WPA2-PSK WPA3-Personal WPA2-ENT AES (128-bit) AES (192-bit) AES (256-bit) SHA-384 SHA-256 SHA-512
Firewall Type	NAT

Interfaces/Ports

Total Number of Network Ports	2
Number of Network (RJ-45) Ports	1
USB	Yes
Number of Broadband (RJ-45) Ports	1
USB Standard	USB 3.2 (Gen 1)

Network & Communication

Ethernet Technology	5 Gigabit Ethernet
VPN Supported	Yes
Multi-SIM Supported	Yes
Number of SIM Card Supported	2
SIM Size Supported	Nano

Storage

Flash Memory Capacity

1.70 GB

Physical Characteristics

Form Factor	DIN Rail Mountable
Height	1.5"
Width	4.6"
Depth	3.9"
Weight (Approximate)	1.15 lb

Miscellaneous

Package Contents	AirLink XR60 Modem/Wireless Router DC Power Cable Quick Start Guide AirLink Complete Leaflet
Certifications & Standards	ECEE Certification Bodies Scheme (CB Scheme) E-Mark (UN ECE Regulation 10.05) ISO7637-2 SAE J1455 (Shock, Vibration, Electrical) EN50155/EN45545 (Rolling Stock) FCC IC/ISED PTCRB GCF CE RED RCM
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2 Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty

5 Year
