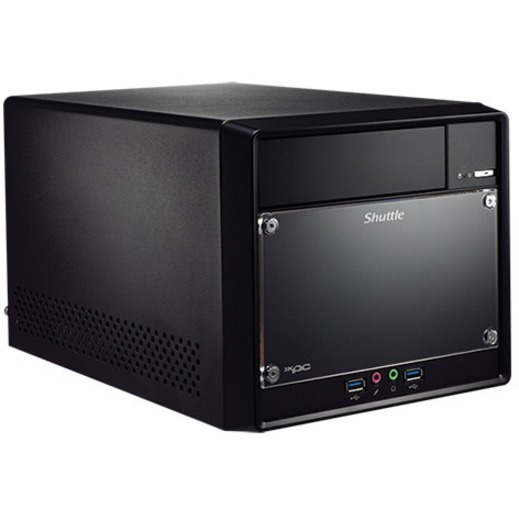

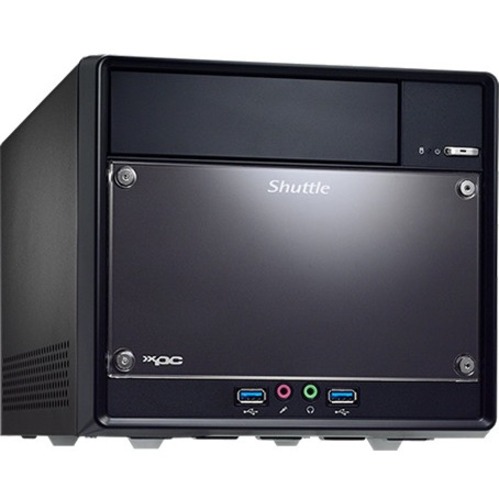

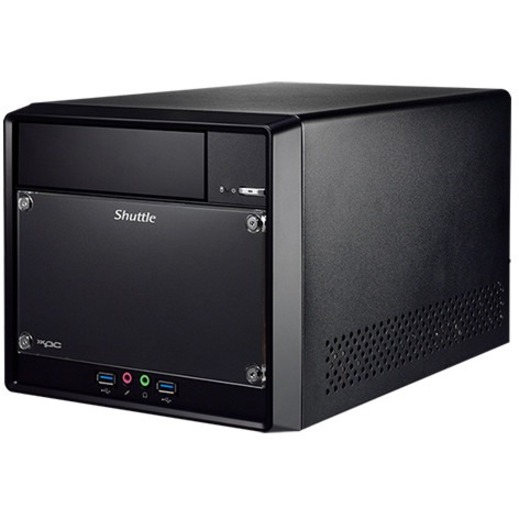

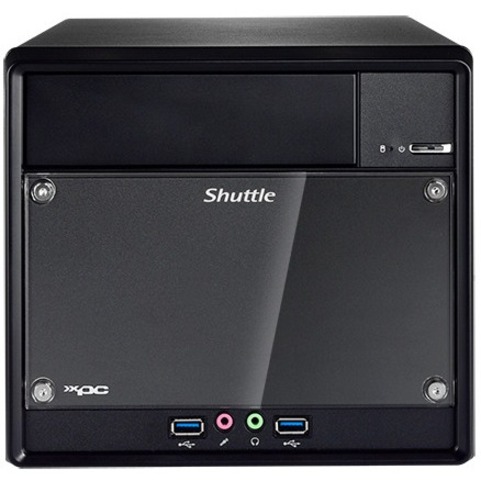

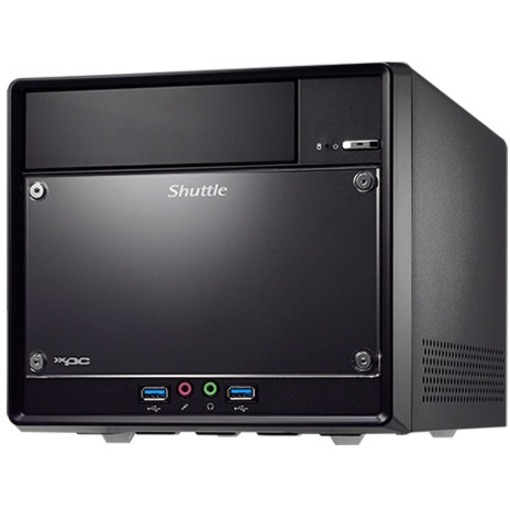

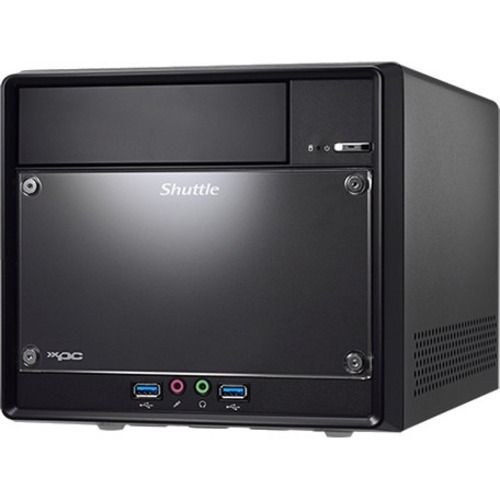

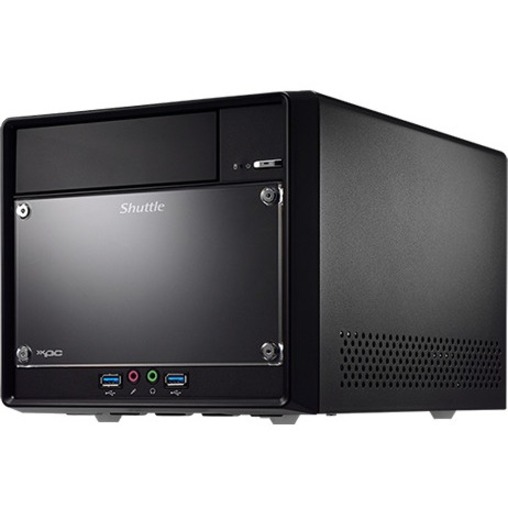

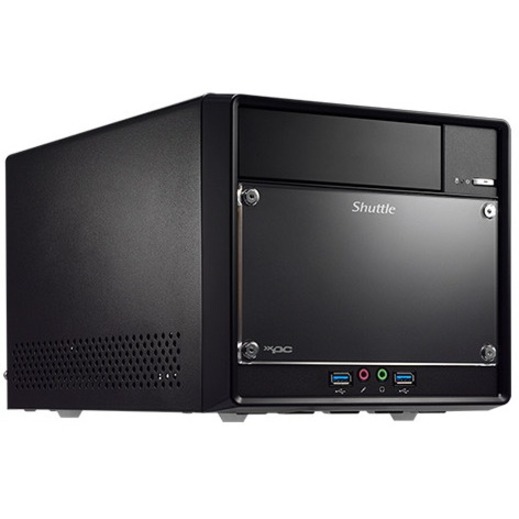

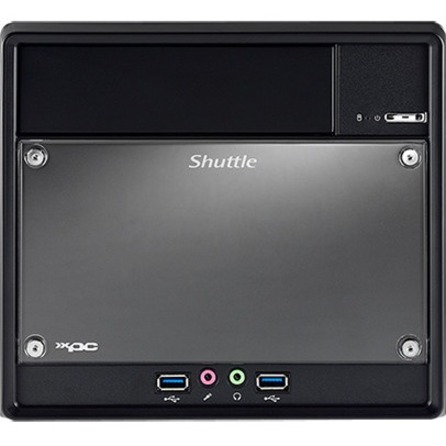

Shuttle XPC cube SH510R4 Barebone System - Socket LGA-1200 - 1 x Processor Support

Name: Shuttle XPC cube SH510R4 Barebone System - Socket LGA-1200 - 1 x Processor Support
Brand: SHUTTLE COMPUTER
SKU: 02BW94
Price: 347.36 USD
Availability: InStock

SHUTTLE COMPUTER

PCN#

02BW94

MFG#

SH510R4

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$347.36

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Intel H510 Chip
64 GB DDR4 SDRAM DDR4
3200/PC4
25600 Maximum RAM Support
2.0 Total Memory Slots
Serial ATA/600 Controller
Intel UHD Graphics Graphic(s)
2 3.5" Bay(s)
3 SATA Interface(s)
Processor Support (Core i9, Core i7, Core i5, Core i3, Pentium Gold, Celeron)
Gigabit Ethernet
Windows 10, Windows 11, Linux Supported Operating System
4 USB 3.2 Gen 1 Port(s)
300 W

Product Condition: New and Factory Fresh

Shipping Weight: 12 lbs.

Shuttle XPC cube SH510R4 Barebone System - Socket LGA-1200 - 1 x Processor Support

Overview

Tech Specs

Specifications

Manufacturer	Shuttle, Inc
Manufacturer Part Number	SH510R4
Manufacturer Website Address	http://www.us.shuttle.com
Brand Name	Shuttle
Product Line	XPC cube
Product Model	SH510R4
Product Name	BAREBONE XPC cube SH510R4
Marketing Information	ENTRY-LEVEL PLATFORM FOR INTEL' S 10 TH /11 TH -GEN. CPU S The Shuttle XPC cube Barebone SH510R4 supports the 10th and 11th generation of Intel Core desktop processors for socket LGA1200, up to 64 GB DDR4-3200 memory, two 4K displays at 60 Hz via DisplayPort and HDMI 2.0, high-performance M.2 SSDs and up to four USB 3.2 devices. The SH510R4 can be expanded with a high-performance graphics card for demanding applications while the second PCIe-X1-slot can be used for other expansion cards. WLAN and COM port can be additionally installed as well. The SH510R4 comes with a built-in 80 PLUS power supply and Shuttle's I.C.E. heatpipe cooling which means it is en- ergy-efficient and ready for long-term operation. For a personal look and feel, the front panel can be customised by adding individual designs.
Product Type	Barebone System

Processor

Number of Processors Supported	1
Processor Socket	Socket LGA-1200
Processor Supported	Core i9 Core i7 Core i5 Core i3 Pentium Gold Celeron

Chipset

Chipset Manufacturer	Intel
Chipset Model	H510

Memory

Maximum Memory Supported	64 GB
Memory Technology	DDR4 SDRAM
Memory Standard	DDR4-3200/PC4-25600
Total Number of Memory Slots	2.0

Storage

Supported Storage Drive Interfaces

Serial ATA III

Controllers

Controller Type

Serial ATA/600

Display & Graphics

Graphics Controller Manufacturer	Intel
Graphics Controller Model	UHD Graphics
Graphics Memory Technology	DDR4 SDRAM
Graphics Memory Accessibility	Shared

Network & Communication

Ethernet Technology

Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	3
Number of External 5.25" Bays	1
Number of 3.5" Bays	2
Total Number of Expansion Slots	2.0
Number of PCI Express x8 Slots	1

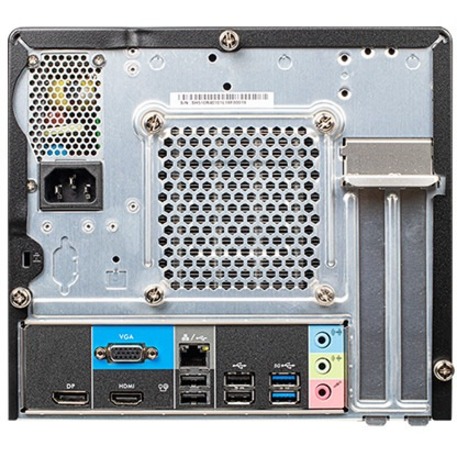

Interfaces/Ports

HDMI (Rear)	Yes
Total Number of USB Ports	9
Number of USB 3.2 Gen 1 Ports	4
Number of Onboard USB 2.0 Ports	1
Number of SATA Interfaces	3
Number of VGA Ports	1

Operating System

Operating System Supported

Windows 10
Windows 11
Linux

Power Description

Input Voltage	120 V AC 230 V AC
Maximum Power Supply Wattage	300 W

Physical Characteristics

Color Family	Black
Product Color	Black Aluminum
Height	7.5"
Width	8.5"
Depth	13"
Weight (Approximate)	7.50 lb

Miscellaneous

Energy Star

Yes
