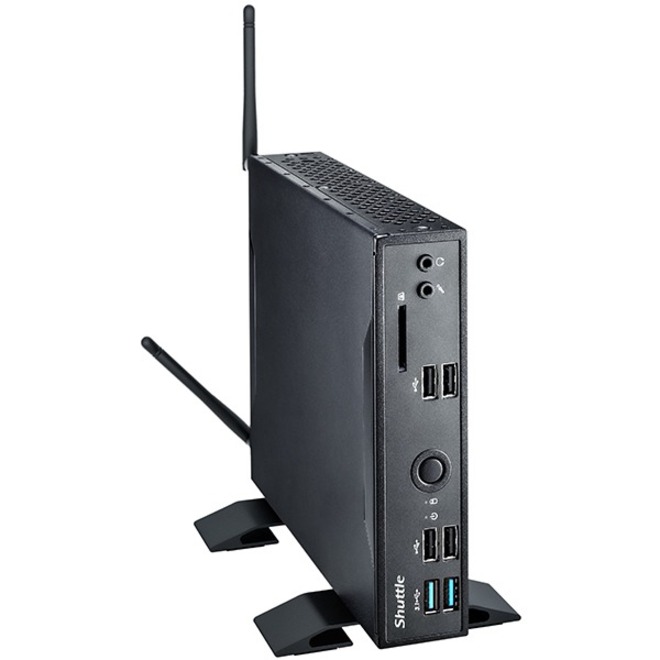

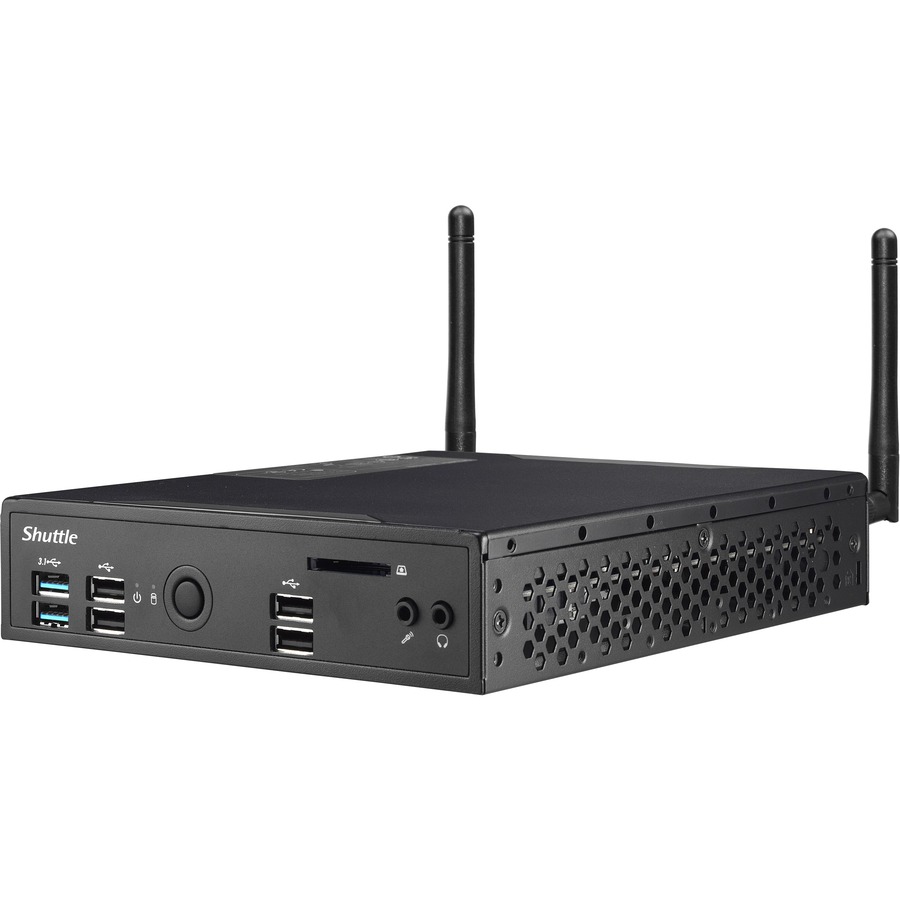

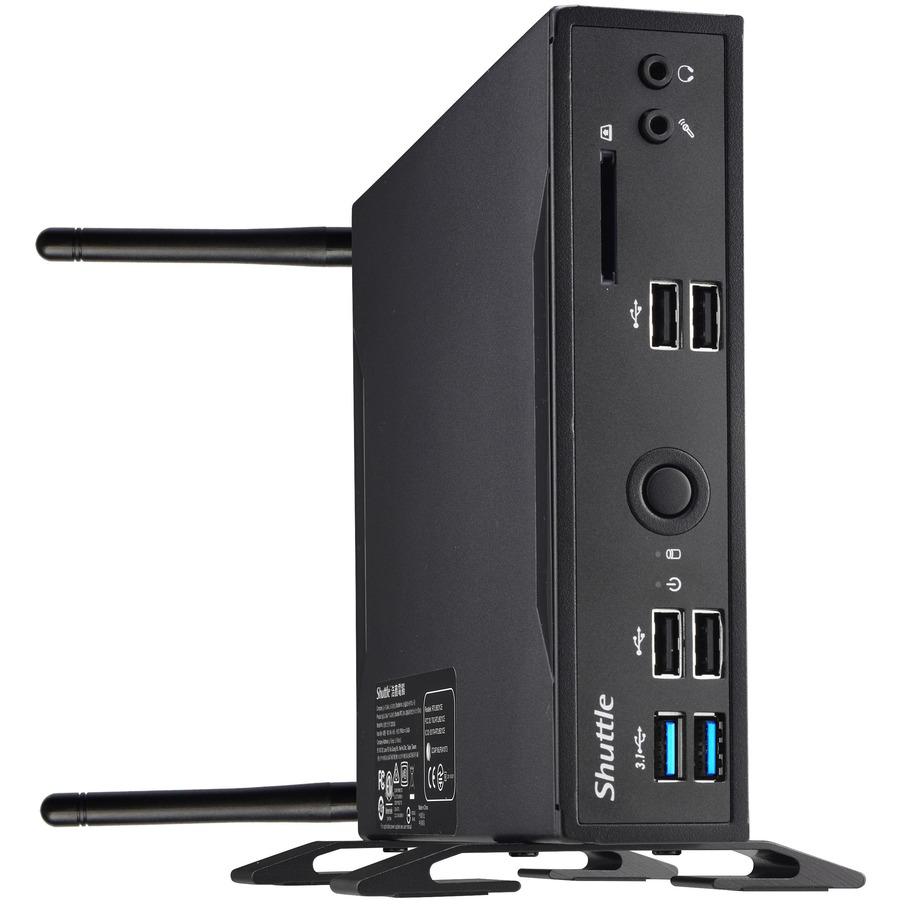

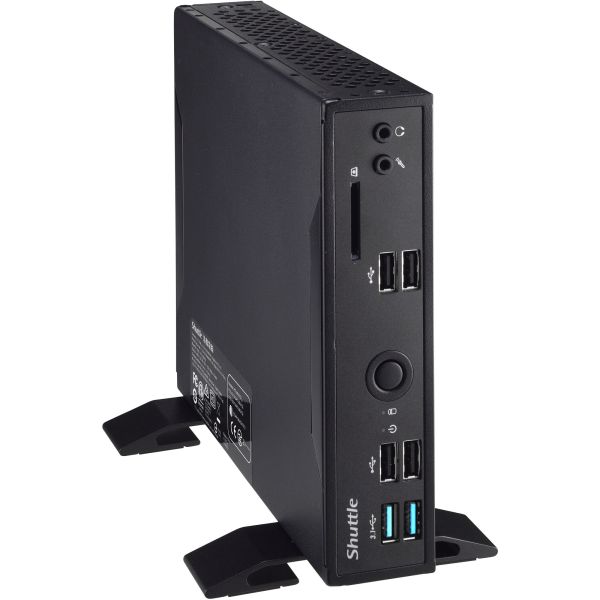

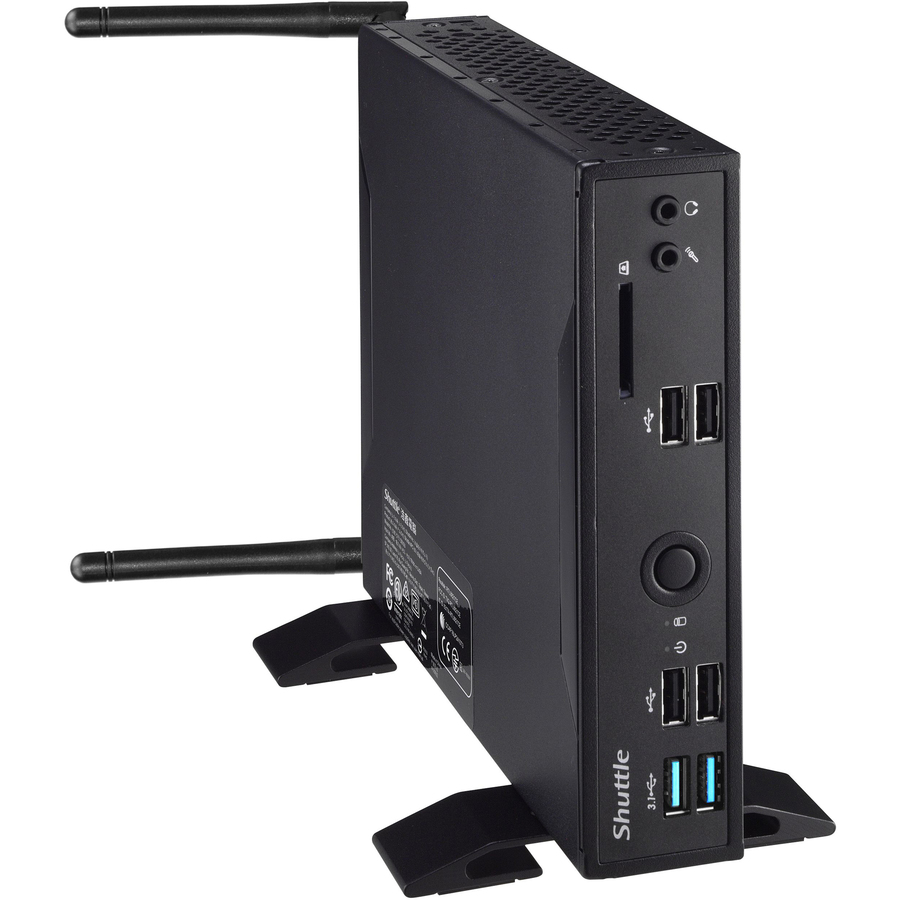

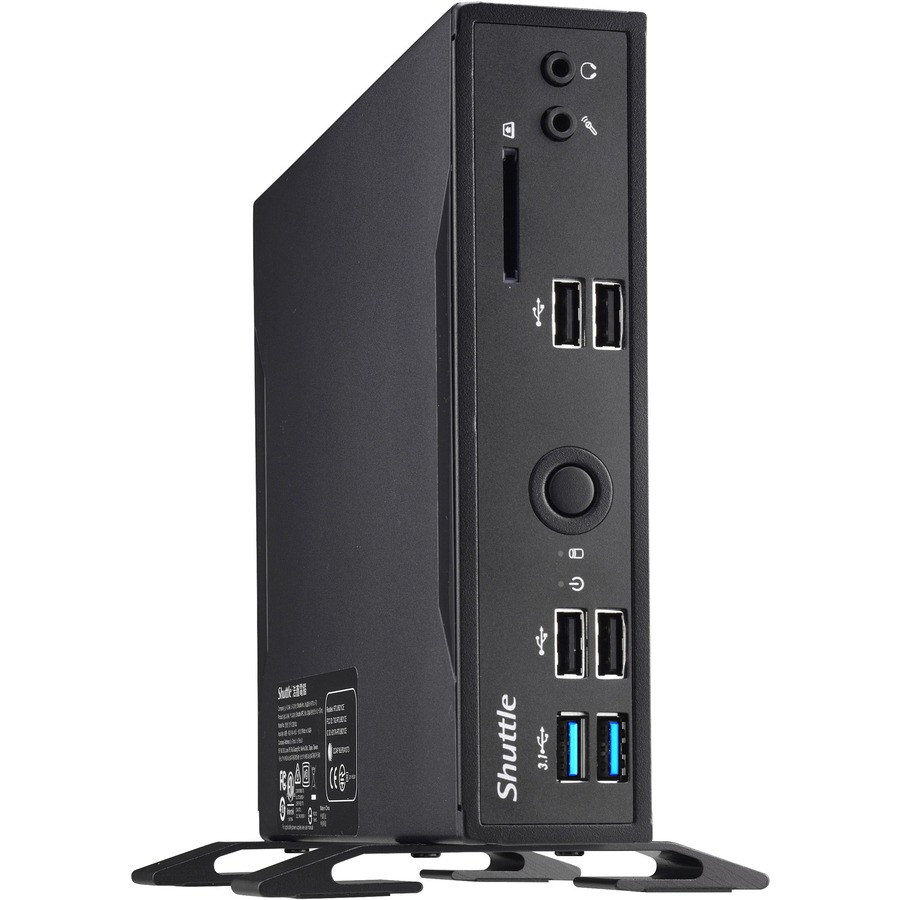

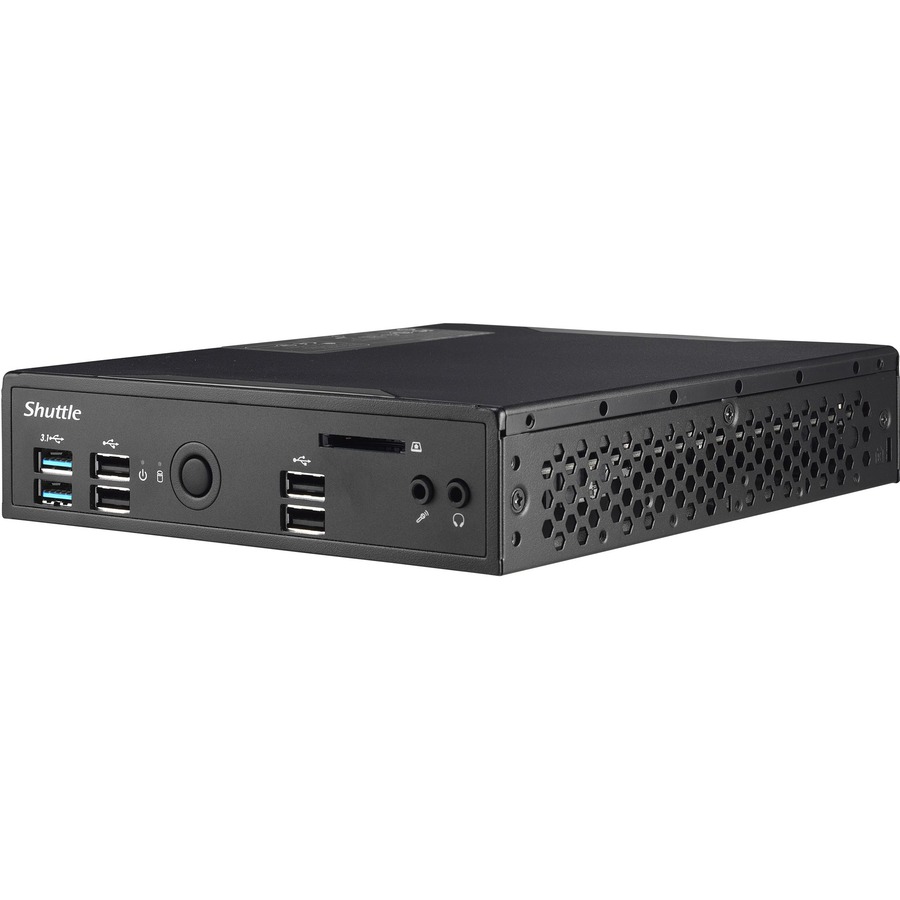

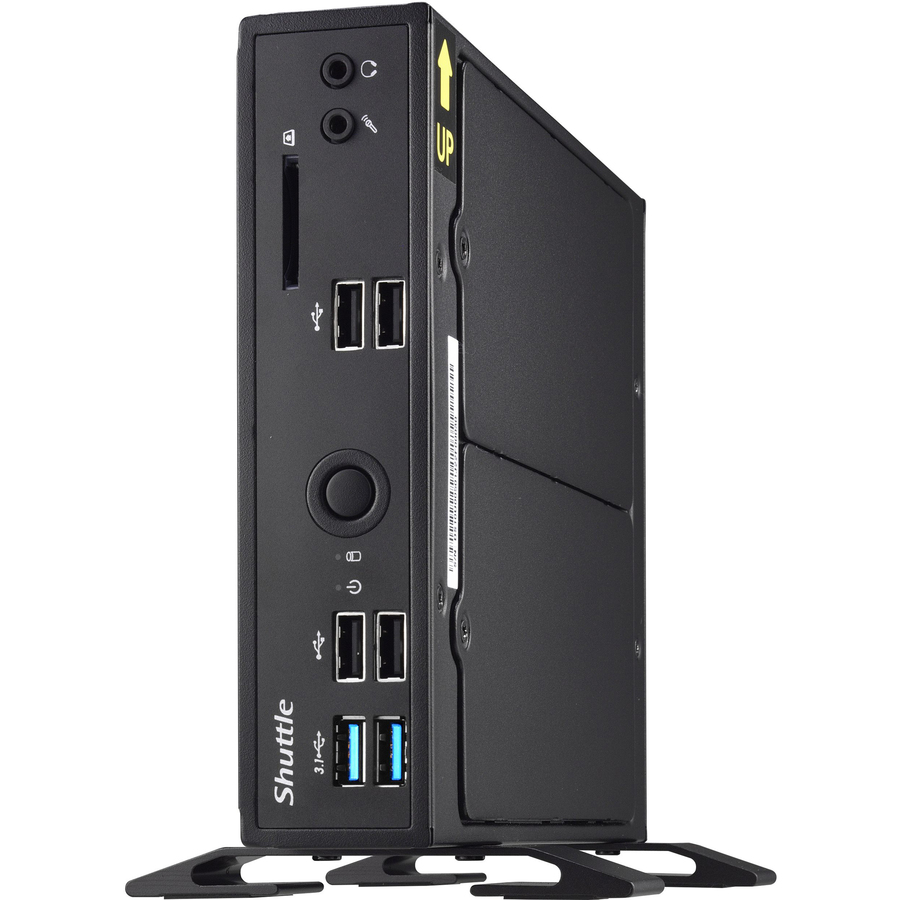

Shuttle XPC slim DS10U Barebone System - Slim PC - Intel Celeron 4205U 1.80 GHz

by
SHUTTLE COMPUTER
PCN#
6KH337
MFG#
DS10U
$354.35
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 32 GB DDR4 SDRAM Maximum RAM Support
  • 2.0 Total Memory Slots
  • Intel UHD graphics 610 Graphic(s)65 W
Product Condition: New and Factory Fresh
Shipping Weight: 7 lbs.
Shuttle XPC slim DS10U Barebone System - Slim PC - Intel Celeron 4205U 1.80 GHz
Tech Specs
Specifications

Manufacturer

Shuttle, Inc

Manufacturer Part Number

DS10U

Manufacturer Website Address

http://www.us.shuttle.com

Brand Name

Shuttle

Product Line

XPC slim

Product Model

DS10U

Product Name

XPC slim DS10U Barebone System

Marketing Information

Fanless Slim PC with a Whiskey-Lake-U processor in industrial design

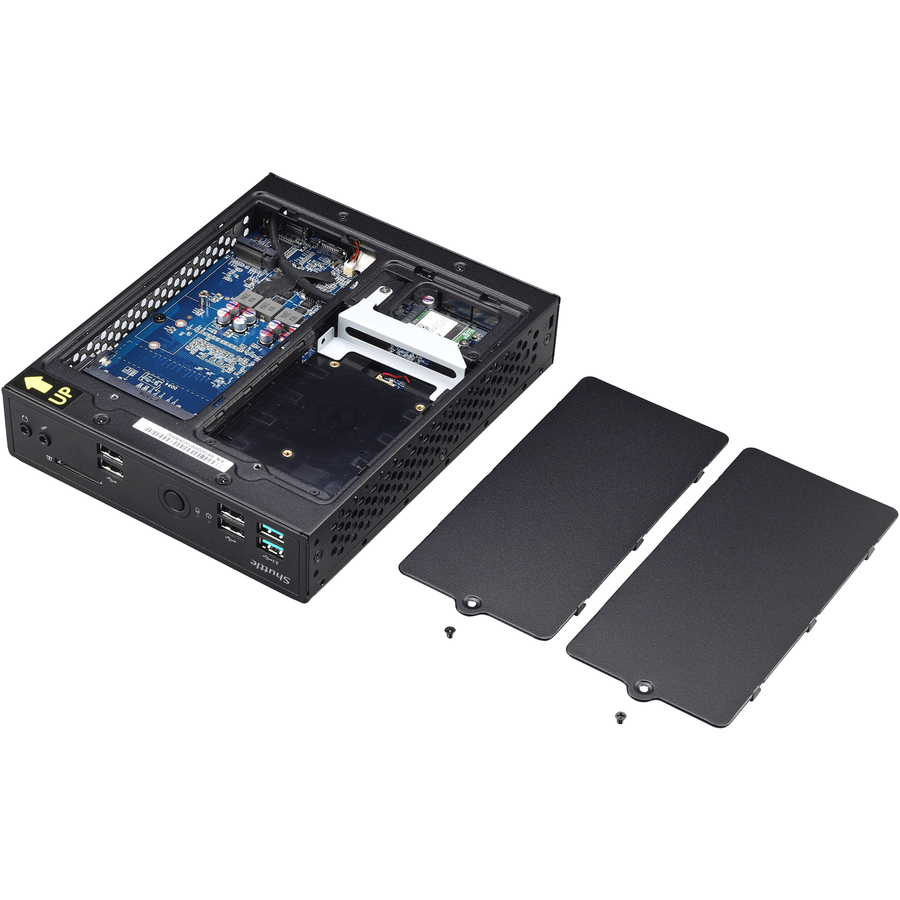

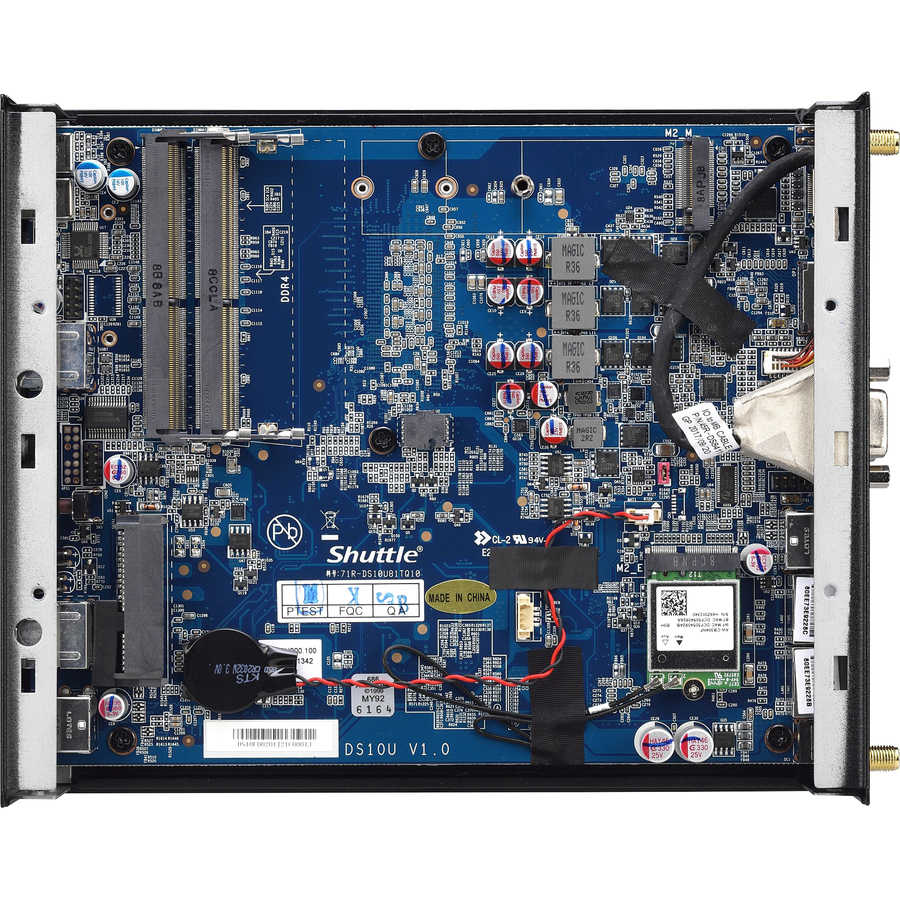

The DS10U-series is a fanless slim PC with a robust 1.3-litre metal chassis and exceptional connectivity. It supports two digital video outputs for UHD/4K displays and one traditional D-Sub/VGA connector. The built-in Intel "Whiskey-Lake-U" processor provides ample performance for playback of 2160p/60 videos. Installation of components goes straight forward, as there is plenty of interior space for two memory modules, one 2.5" drive and an M.2-2280 SSD card. Optionally, an LTE module can be fitted in the 2,5" bay using the WWN03 accessory. Thanks to its passive cooling, the system is virtually maintenance-free and is approved for 24/7 nonstop operation. It is big on performance, yet extremely energy-efficient. The Shuttle XPC slim Barebone DS10U series is an ideal platform for professional applications such as digital signage, POS, Kiosk, Thin Client, Office PC and Multimedia.

Product Type

Barebone System
Processor

Processor Manufacturer

Intel

Processor Type

Celeron

Processor Model

4205U

Processor Speed

1.80 GHz
Memory

Maximum Memory Supported

32 GB

Memory Technology

DDR4 SDRAM

Total Number of Memory Slots

2.0
Display & Graphics

Graphics Controller Manufacturer

Intel

Graphics Controller Model

UHD graphics 610

Graphics Memory Technology

DDR4 SDRAM

Graphics Memory Accessibility

Shared
Network & Communication

Wireless LAN

Yes

Bluetooth

Yes

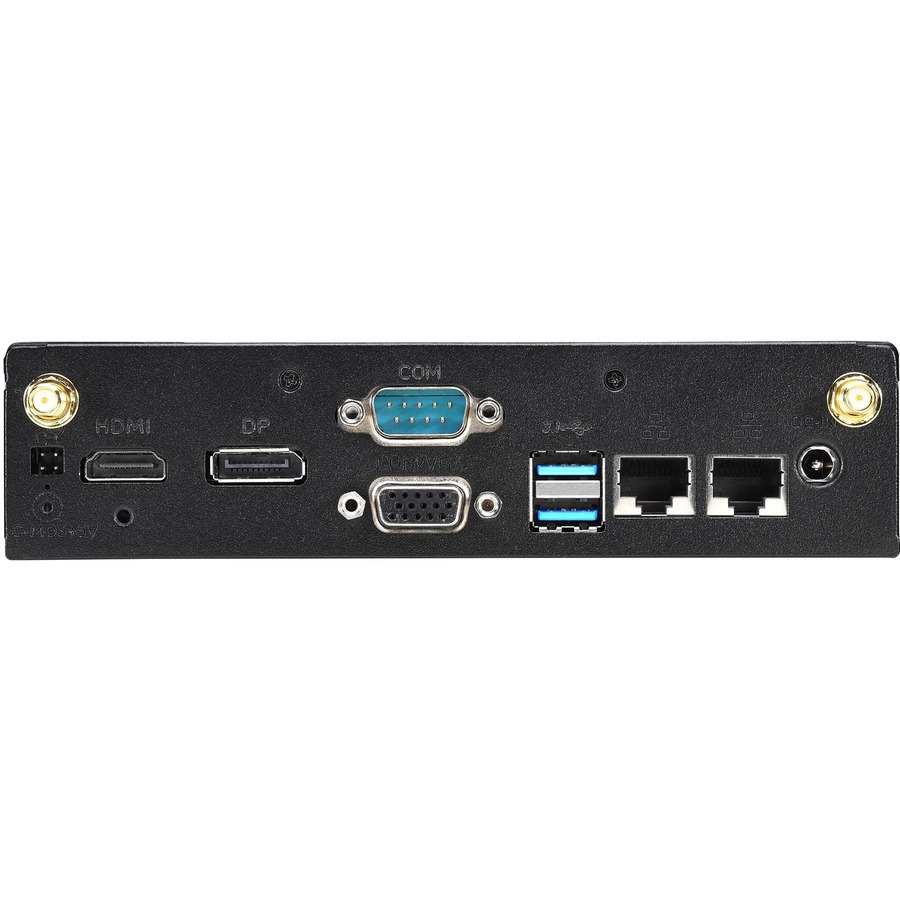

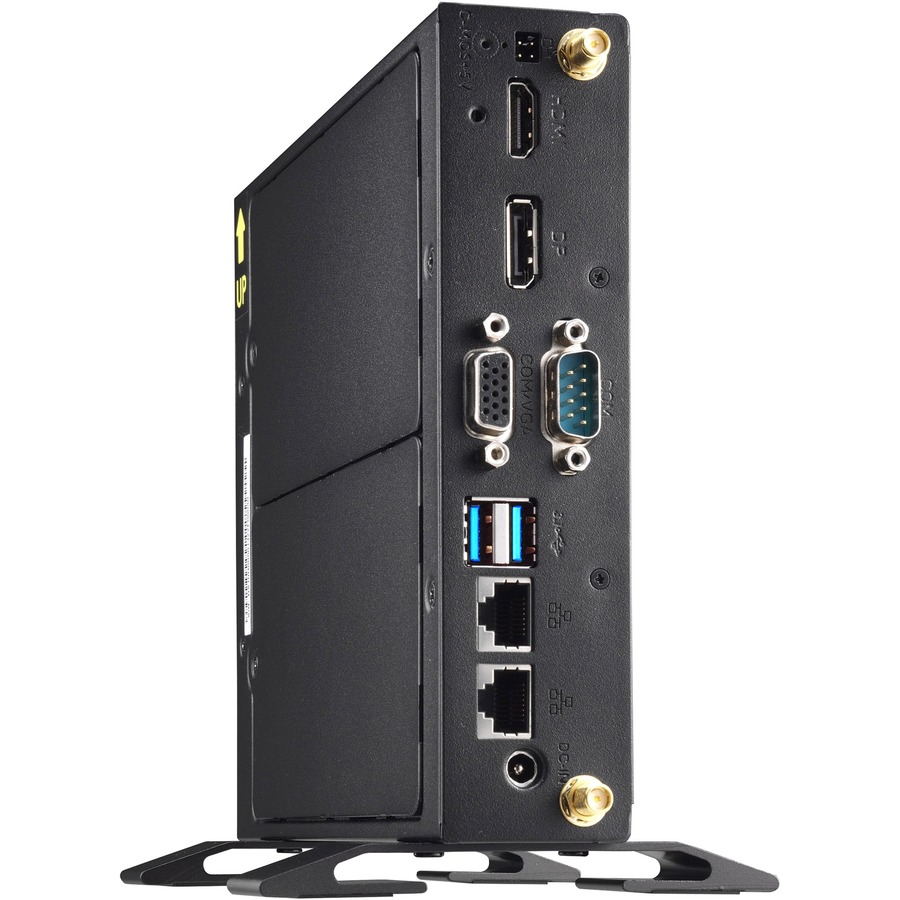

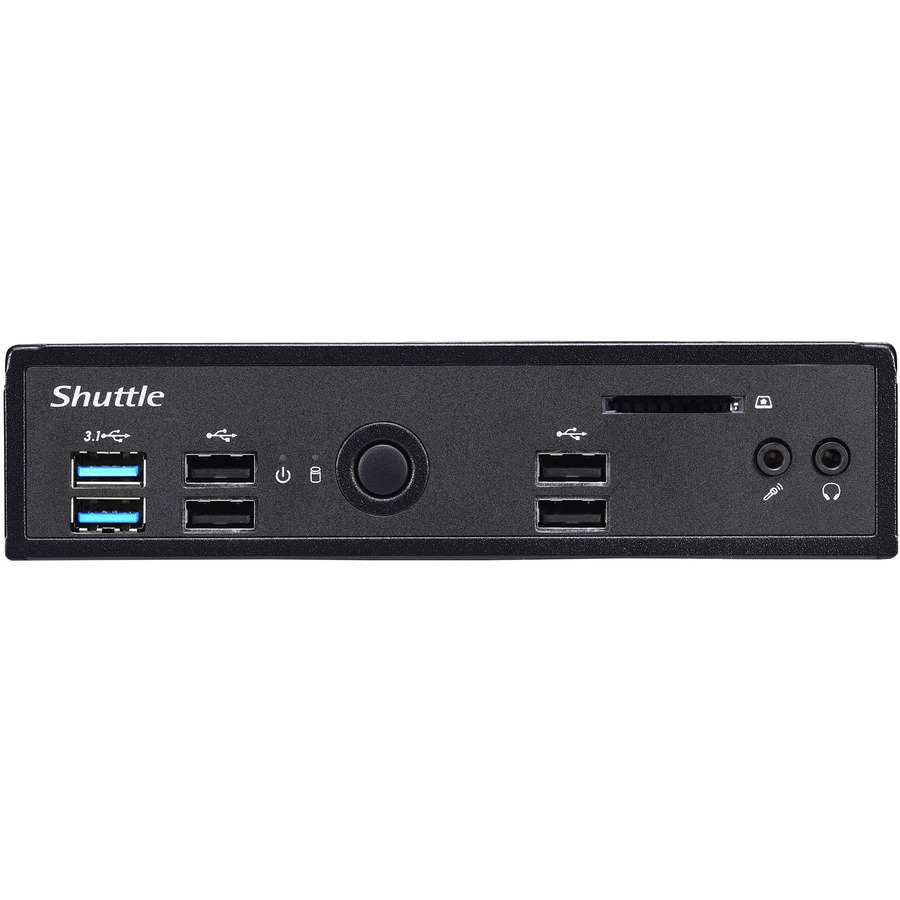

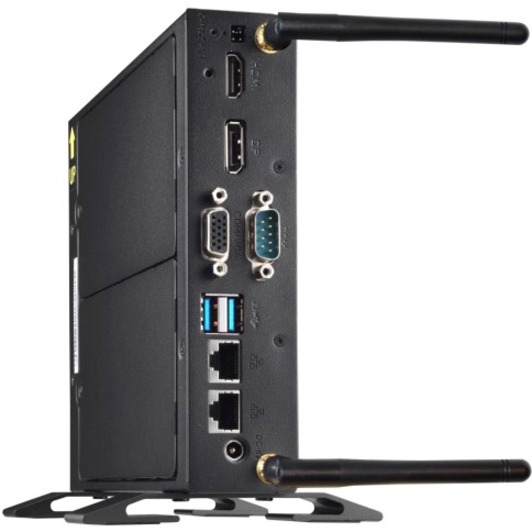

Interfaces/Ports

HDMI (Rear)

Yes

Total Number of USB Ports

8

Number of USB 2.0 Ports (Front)

4

Number of USB 3.1 Gen 1 Ports (Front)

2

Number of USB 3.1 Gen 1 Ports (Rear)

2

VGA (Rear)

Yes

Number of DisplayPort Outputs (Rear)

1

DisplayPort (Rear)

Yes
Power Description

Maximum Power Supply Wattage

65 W
Physical Characteristics

Color Family

Black

Product Color

Black Steel

Form Factor

Slim PC

VESA Mount Standard

75 x 100

Height

1.6"

Width

6.5"

Depth

7.9"

Weight (Approximate)

3.31 lb
Miscellaneous

Features

Security Slot

Energy Star

Yes

Country of Origin

China
