SWITCHED POPS PRO3X WITH PIPS,0U,3PH,400V,18XC13 AND 18CX,16A 60309 3P+N+PE.

Name: SWITCHED POPS PRO3X WITH PIPS,0U,3PH,400V,18XC13 AND 18CX,16A 60309 3P+N+PE.
Brand: SERVER TECHNOLOGY
SKU: 9426BD
Price: 2856.57 USD
Availability: OutOfStock

SERVER TECHNOLOGY

PCN#

9426BD

MFG#

C3WG36RL-4NJE2MT2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Estimated Shipment:

Product Highlights:

Switched
IEC 60309 3P+N+E
18 x IEC 60320 C13, 18 x CX
400 V AC, 230 V AC
Branch Circuit, Circuit Protection, Fuse
Network (RJ
45)
0U
Button Mount

Product Condition: New and Factory Fresh

Shipping Weight: 30 lbs.

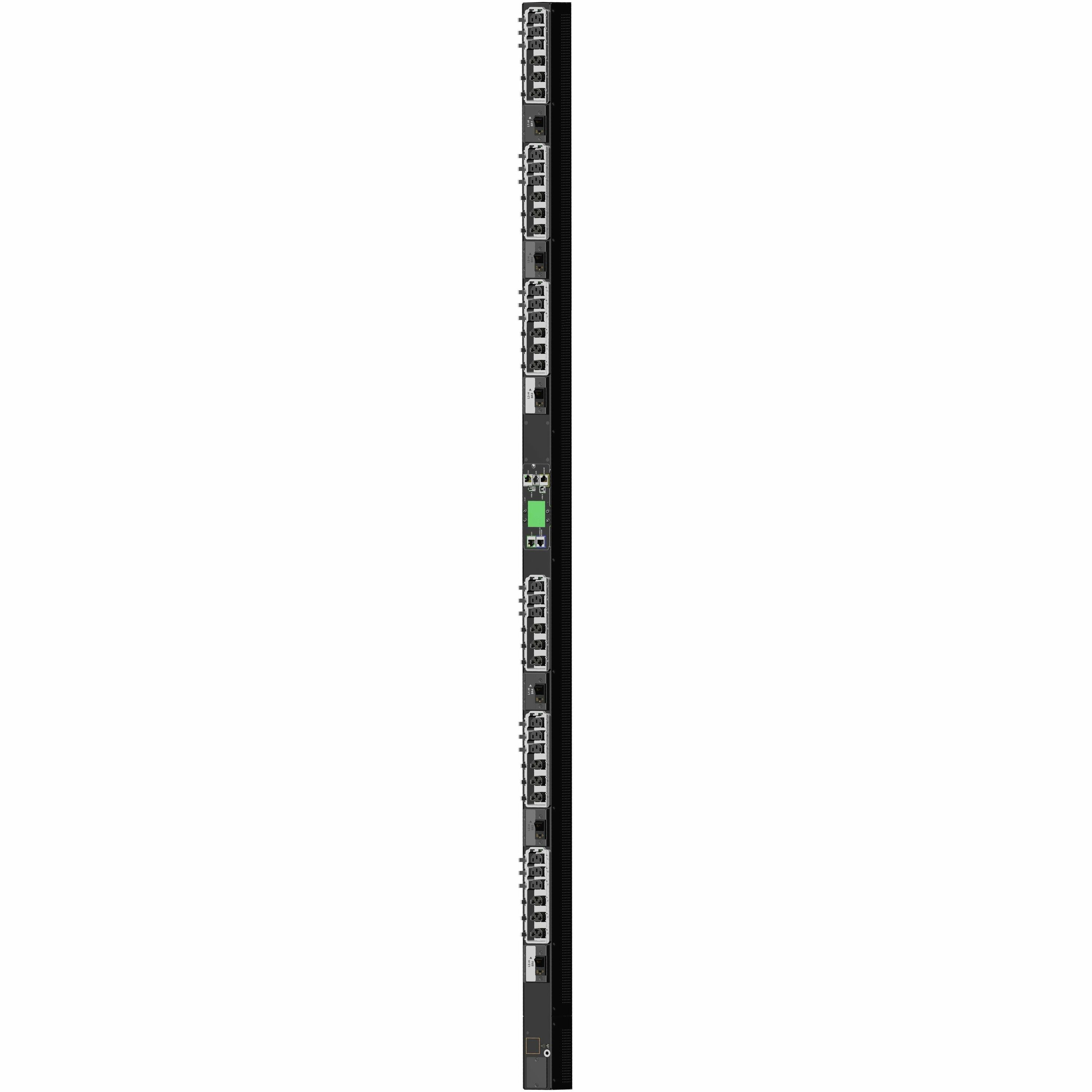

Server Technology PRO3X 36-Outlets PDU

Overview

Tech Specs

Specifications

Manufacturer	Legrand Group
Manufacturer Part Number	C3WG36RL-4NJE2MT2
Manufacturer Website Address	http://www.legrand.us
Brand Name	Server Technology
Product Line	PRO3X
Product Name	PRO3X 36-Outlets PDU
Marketing Information	This all new Server Technology PRO3X Switched PDU features RamLock HDOT outlets running with the Xerus Technology Platform's state of the art network interface module. Server Technology's unique RamLock, a self-locking, elbow-catch mechanismto prevent accidental cord disconnects on standard power cords. The PDU features HDOT outlets which are dedicated C13 outlets, while the other HDOT Cx outlets can be treated as either a C13 or C19 outlet. This innovative PDU combines input power and branch current monitoring, and outlet control and supports Legrand plug-and-play sensor types like temperature, humidity, water, dry contact closure, airflow, air pressure differential, and more.
Product Type	PDU

Technical Information

PDU Type	Switched
Phase	Three Phase
Plug/Connector Type	IEC 60309 3P+N+E
Receptacle Type	IEC 60320 C13 CX
Receptacle Detail	18 x IEC 60320 C13 18 x CX
Protection Type	Branch Circuit Circuit Protection Fuse
Locking Receptacles	RamLock Locking Outlet
Features	Multi-color LCD
Load Capacity (Watt)	11 kW

Power Description

Input Voltage	400 V AC 230 V AC
Output Voltage	230 V AC
Input Current	16 A
Input Frequency	60 Hz
Circuit Breaker	Yes

Management

Remote Outlet Switching

Yes

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Mount Type	Button Mount
Rack Height	0U
Height	70"
Width	2.2"
Depth	2.5"

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Storage Temperature	-22°F (-30°C)
Maximum Storage Temperature	176°F (80°C)

Miscellaneous

Application/Usage

Data Center
