ICX 7550 36-PORT 10/100/1000/2500 MBPS 802.3BT POE, 12-PORT 100/1000/2500/50000/

Name: ICX 7550 36-PORT 10/100/1000/2500 MBPS 802.3BT POE, 12-PORT 100/1000/2500/50000/
Brand: RUCKUS WIRELESS
SKU: 6151AF
Price: 6929.96 USD
Availability: InStock

RUCKUS WIRELESS

PCN#

6151AF

MFG#

ICX7550-48ZP

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$6,929.96

Extended & Accidental Damage Protection Plans Available Details

3-Year $493.99

2-Year $376.99

Free Shipping

Estimated Shipment:

Product Highlights:

48 Ports
Manageable
10 Gigabit Ethernet, 2.5 Gigabit Ethernet, 100 Gigabit Ethernet
100GBase
X, 2.5GBase
T, 10GBase
T
3 Layer Supported
Modular
139.70 W Power Consumption
1526 W PoE Budget
Twisted Pair, Optical Fiber
PoE Ports
Black
1U High
Rack
mountable, Desktop, DIN Rail Mountable
Lifetime Limited Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 8 lbs.

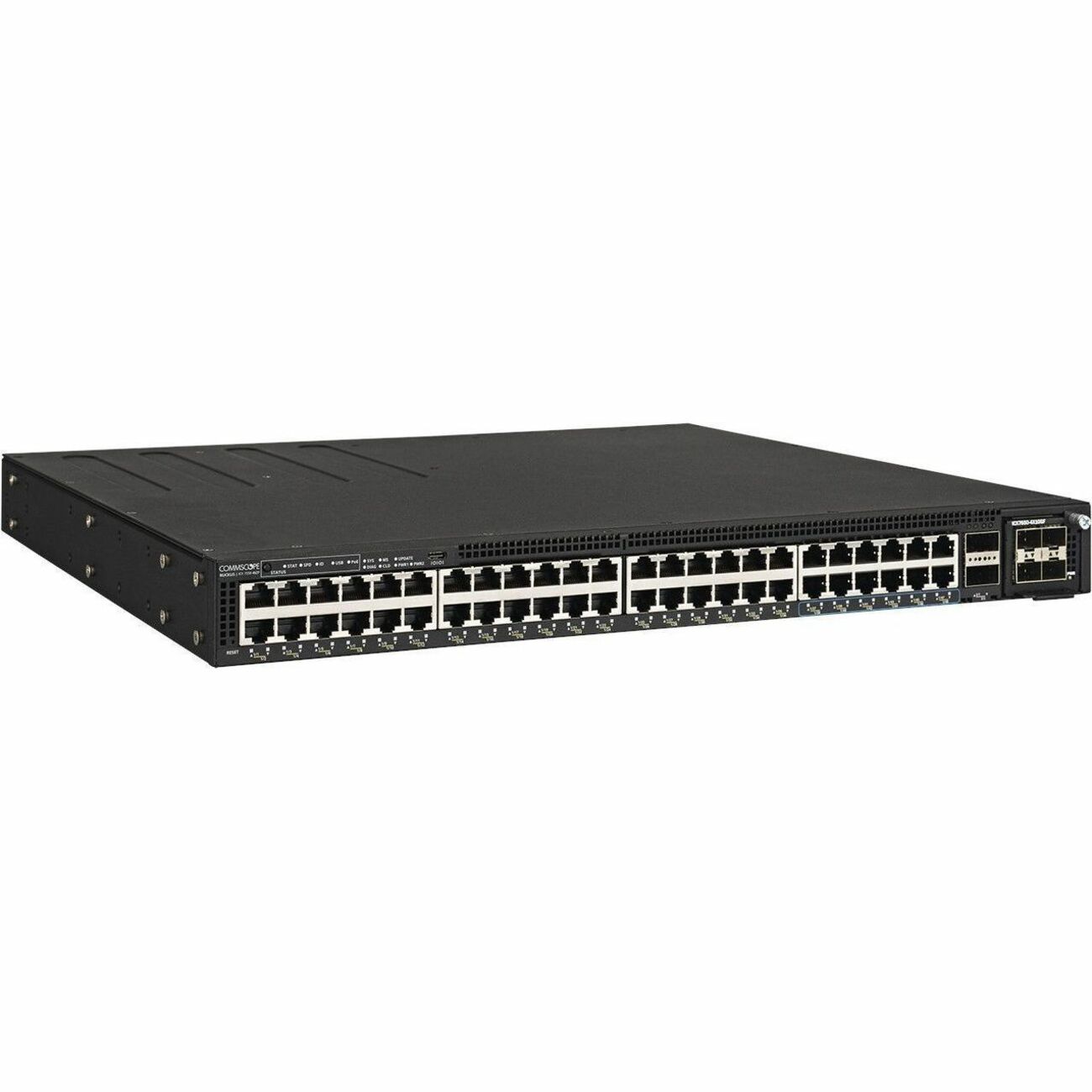

RUCKUS 7550-48ZP Ethernet Switch

Overview

Tech Specs

Benefits | Maximum flexibility with gigabit/multigabit access and 1G/10G aggregation covers a broad range of deployment scenarios | Optimized for Wi-Fi 6 deployments and beyond

Up to 12x 1/2.5/5/10G Multigigabit Ethernet ports
Up to 36x 1/2.5G Multigigabit Ethernet ports

Power next generation PoE devices

PoE+/802.3bt 60W/90W per port
Up to 1900W PoE budget with two power supplies

40 GbE and 100 GbE uplinks/stacking for maximum performance and future-proofing

Up to 2x 100 GbE uplink
Up to 2x 100 Gbps stacking ports and 1x 100GbE uplink

Advanced L3 routing delivers design flexibility

IPv4 and IPv6
RIP, BGP, OSPF, VRRP, PIM, PBR, VRF

Security and data privacy

MACsec 128-bit and 256-bit data encryption ensures compliance and data confidentiality

Broad range of unified management options for maximum flexibility

On Premises
SmartZone
Cloud Based
RUCKUS Cloud
Controllerless
RUCKUS Unleashed

Redundant, load-sharing power supplies enhance availabilityThe RUCKUS® ICX® 7550 series of mid-range stackable switches are purpose-built to provide wired connectivity at the edge of the network for the latest generation Wi-Fi 6 Access-Points. With high density multigigabit Ethernet ports and the latest 802.11bt 90W PoE power, the ICX 7550 delivers the performance, flexibility, and scalability required for the most demanding campus deployment scenarios.The ICX 7550 comes in 8 different models that can all be seamlessly stacked together to cover a broad range of deployment scenarios including gigabit or multigigabit network edge and 1/10 gigabit fiber for network aggregation or fiber to the room as well a smart building network edge with a class leading 1900W PoE budget and up to 90W of power delivery per port.Packaged Quantity1Product TypeEthernet SwitchTechnical InformationFeatures

In-Service Software Upgrade (ISSU)
Access Control List
Energy Efficient
LED Signage

Interfaces/PortsTotal Number of Network Ports48Uplink PortYesModularYesStack PortYesNetwork (RJ-45)YesPort/Expansion Slot Details

36 x 2.5 Gigabit Ethernet PoE++
12 x 10 Gigabit Ethernet PoE++
2 x 100 Gigabit Ethernet Uplink

Media & PerformanceMedia Type Supported

Twisted Pair
Optical Fiber

Ethernet Technology

10 Gigabit Ethernet
2.5 Gigabit Ethernet
100 Gigabit Ethernet

Network Technology

100GBase-X
2.5GBase-T
10GBase-T

I/O ExpansionsTotal Number of Expansion Slots2Expansion Slot TypeQSFP28Network & CommunicationLayer Supported3Networking Standards

IEEE 802.3az
IEEE 802.1p
IEEE 802.1x
IEEE 802.1s
IEEE 802.1ab
IEEE 802.1D
IEEE 802.1w (RSTP)
IEEE 802.3
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3ae
IEEE 802.3bz
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.1Q
IEEE 802.1br
IEEE 802.3bt
IEEE 802.3at
IEEE 802.3af

Management & ProtocolsManageableYesReliabilityMTBF213665 HourPower DescriptionPoE (RJ-45) PortYesPoE Budget1526 WInput Voltage

120 V AC
230 V AC

Frequency

50 Hz
60 Hz

Power SourceAC/DCRedundant Power Supply SupportedYesNumber of Power Supplies Supported2Power Consumption139.70 WPlug/Connector TypeC14Physical CharacteristicsColor FamilyBlackProduct ColorBlackCompatible Rack Unit1UForm Factor

Rack-mountable
Desktop
DIN Rail Mountable

Height1.7"Width17.3"Depth16"Weight (Approximate)16.23 lbMiscellaneousApplication/Usage

Network
Enterprise

Certifications & Standards

FCC Class A (Part 15)
EN 55022/CISPR-22 Class A
VCCI Class A
ICES-003 Electromagnetic Emission
AS/NZS 55022
EN 61000- 3-2 Power Line Harmonics
EN 61000-3-3 Voltage Fluctuation and Flicker
EN 61000-6-3 Emission Standard (supersedes
EN 50081-1)
CAN/CSA-C22.2 NO. 60950-1-07
UL 60950-1 Second Edition
IEC 60950-1 Second Edition
EN 60950-1
2006 Safety of Information Technology Equipment
EN 60825-1 Safety of Laser Products-Part 1
EN 60825-2 Safety of Laser Products-Part 2
EN 61000-6-1 Generic Immunity and Susceptibility (supersedes EN 50082-1)
EN 55024 Immunity Characteristics (supersedes
EN 61000-4-2 ESD)
EN 61000-4-3 Radiated, Radio Frequency, Electromagnetic Field
EN 61000-4-4 Electrical Fast Transient
EN 61000-4-5 Surge
EN 61000-4-6 Conducted Disturbances Induced by Radio-Frequency Fields
EN 61000-4-8 Power Frequency
EN 61000-4-11 Voltage Dips and Sags
IEC 68-2-36, IEC 68-2-6
IEC 68-2-27, IEC 68-2-32

Environmental Compliance

Restriction of Hazardous Substances (RoHS) 6
Waste Electrical and Electronic Equipment Directive (WEEE)

WarrantyLimited WarrantyLifetime
