ICX 7550 48-PORT 10/100/1000 MBPS WITH 2-PORTS 40 GBPS UPLINK/STACK QSFP+, MODU

Name: ICX 7550 48-PORT 10/100/1000 MBPS WITH 2-PORTS 40 GBPS UPLINK/STACK QSFP+, MODU
Brand: RUCKUS WIRELESS
SKU: 6034AF
Price: 5905.09 USD
Availability: InStock

RUCKUS WIRELESS

PCN#

6034AF

MFG#

ICX7550-48-E2

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$5,905.09

Extended & Accidental Damage Protection Plans Available Details

3-Year $471.99

2-Year $354.99

Free Shipping

Estimated Shipment:

Product Highlights:

48 Ports
Manageable
40 Gigabit Ethernet, Gigabit Ethernet
40GBase
X, 10/100/1000Base
T
3 Layer Supported
Modular
142.70 W Power Consumption
Optical Fiber, Twisted Pair
Black
Rack
mountable

Product Condition: New and Factory Fresh

Shipping Weight: 10 lbs.

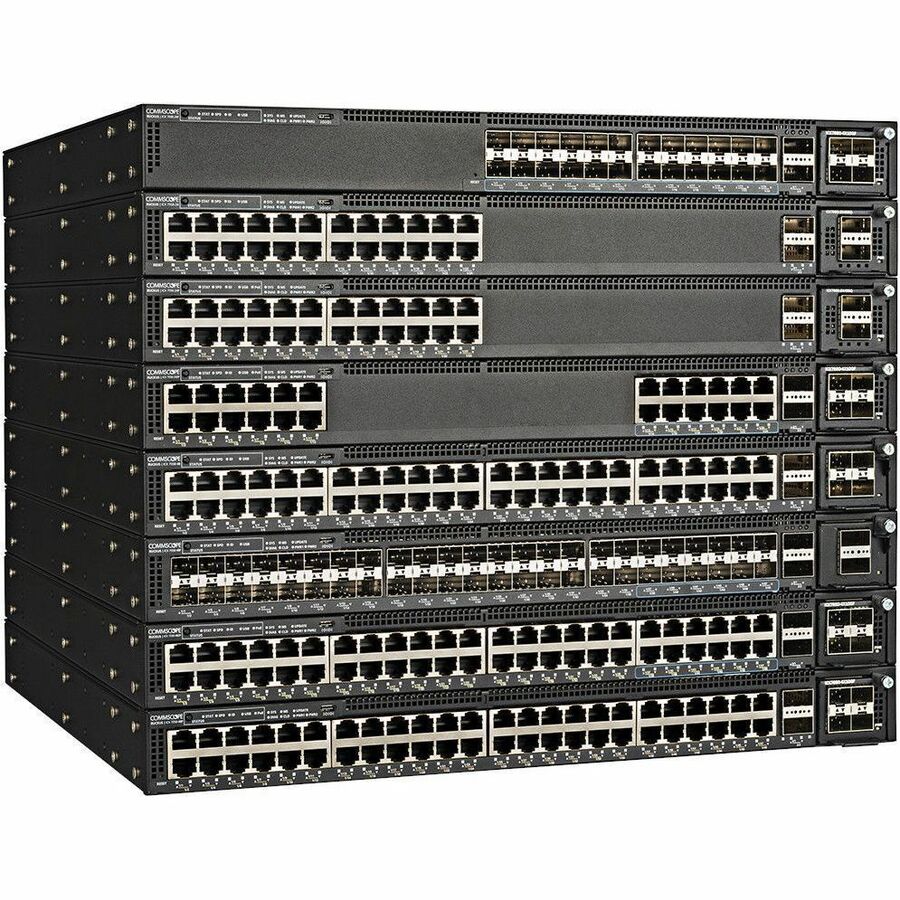

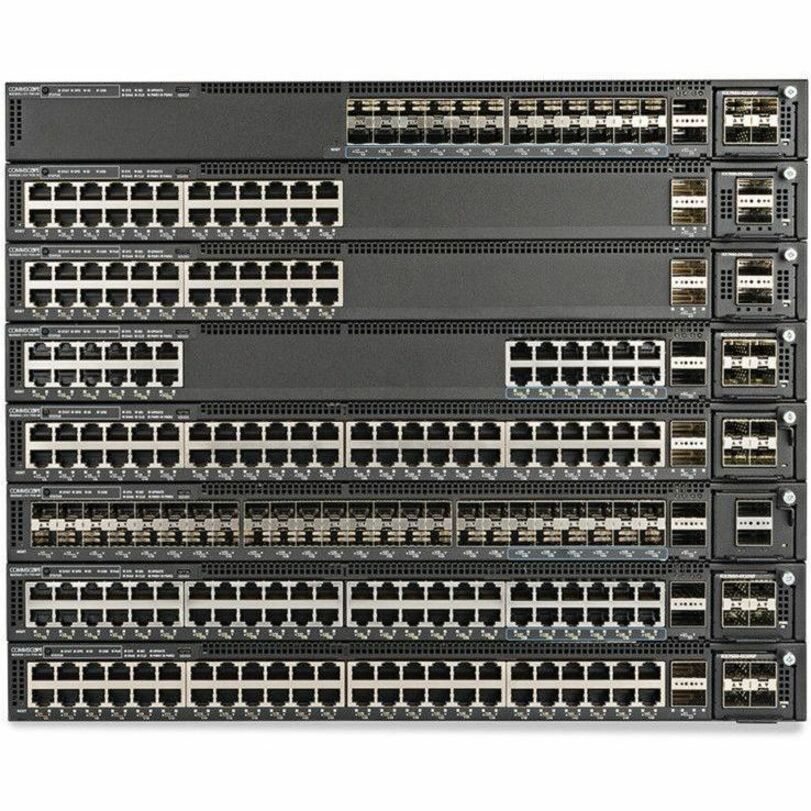

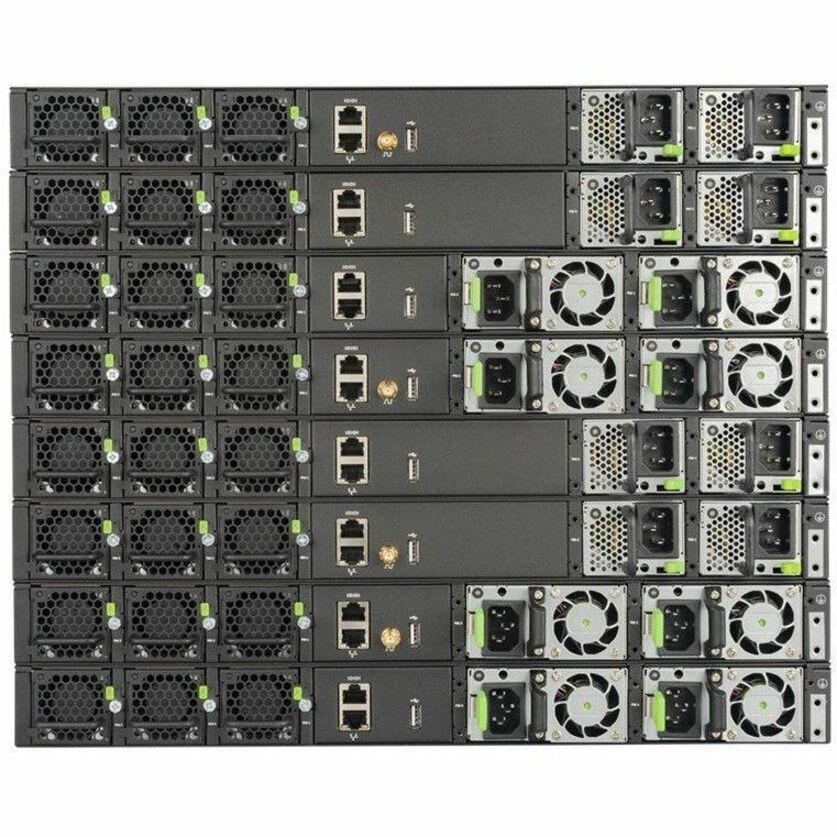

CommScope ICX7550-48-E2 Ethernet Switch

Overview

Tech Specs

Specifications

Manufacturer	CommScope, Inc
Manufacturer Part Number	ICX7550-48-E2
Manufacturer Website Address	http://www.commscope.com
Brand Name	CommScope
Product Series	ICX 7550
Product Model	ICX7550-48-E2
Product Name	ICX7550-48-E2 Ethernet Switch
Product Type	Ethernet Switch

Technical Information

Features	Hot-swappable Energy Efficient
High Availability Supported	Yes

Interfaces/Ports

Total Number of Network Ports	48
Uplink Port	Yes
Modular	Yes
Stack Port	Yes
Network (RJ-45)	Yes
Port/Expansion Slot Details	2 x Gigabit Ethernet QSFP+ Expanison Slot 1 x USB Port 1 x RJ-45 Serial Console Port 1 x USB Type-C Console Port 48 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port

Media & Performance

Media Type Supported	Optical Fiber Twisted Pair
Ethernet Technology	40 Gigabit Ethernet Gigabit Ethernet
Network Technology	40GBase-X 10/100/1000Base-T
Maximum Data Transfer Rate	5 GB/s

I/O Expansions

Total Number of Expansion Slots	2
Expansion Slot Type	QSFP+

Network & Communication

Layer Supported	3
Networking Standards	IEEE 802.3az IEEE 802.3ae IEEE 802.3ab IEEE802.3af IEEE 802.1ab IEEE 802.1p IEEE 802.3bt IEEE 802.1D IEEE 802.1x IEEE 802.3bz IEEE 802.3x IEEE 802.1ae IEEE 802.1Q IEEE 802.1w IEEE 802.3u IEEE 802.1s IEEE 802.3z IEEE 802.3ba IEEE 802.3 IEEE 802.3at

Management & Protocols

Manageable

Yes

Reliability

MTBF	612791 Hour

Power Description

Input Voltage	120 V AC 230 V AC
Frequency	60 Hz 50 Hz
Power Source	Power Supply
Redundant Power Supply Supported	Yes
Number of Power Supplies Supported	2
Number of Power Supplies Installed	2
Power Consumption	142.70 W
Plug/Connector Type	C14

Physical Characteristics

Color Family	Black
Product Color	Black
Form Factor	Rack-mountable
Height	1.7"
Width	17.3"
Depth	16"
Weight (Approximate)	13.89 lb

Miscellaneous

Application/Usage

Network
IoT Devices
Wireless Access Point
Enterprise
Campus
VoIP Phone
Laptop
Printer
