ICX 7550 24-PORT 10/100/1000 MBPS 802.3AT POE+ WITH 2-PORTS 40 GBPS UPLINK/STACK

Name: ICX 7550 24-PORT 10/100/1000 MBPS 802.3AT POE+ WITH 2-PORTS 40 GBPS UPLINK/STACK
Brand: RUCKUS WIRELESS
SKU: 6044AF
Price: 4681 USD
Availability: InStock

RUCKUS WIRELESS

PCN#

6044AF

MFG#

ICX7550-24P

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$4,681.00

Extended & Accidental Damage Protection Plans Available Details

2-Year $331.99

3-Year $446.99

Free Shipping

Estimated Shipment:

Product Highlights:

24 Ports
Manageable
Gigabit Ethernet, 40 Gigabit Ethernet
40GBase
X, 10/100/1000Base
T
3 Layer Supported
Modular
1123.70 W Power Consumption
1900 W PoE Budget
Optical Fiber, Twisted Pair
PoE Ports
Rack
mountable

Product Condition: New and Factory Fresh

Shipping Weight: 8 lbs.

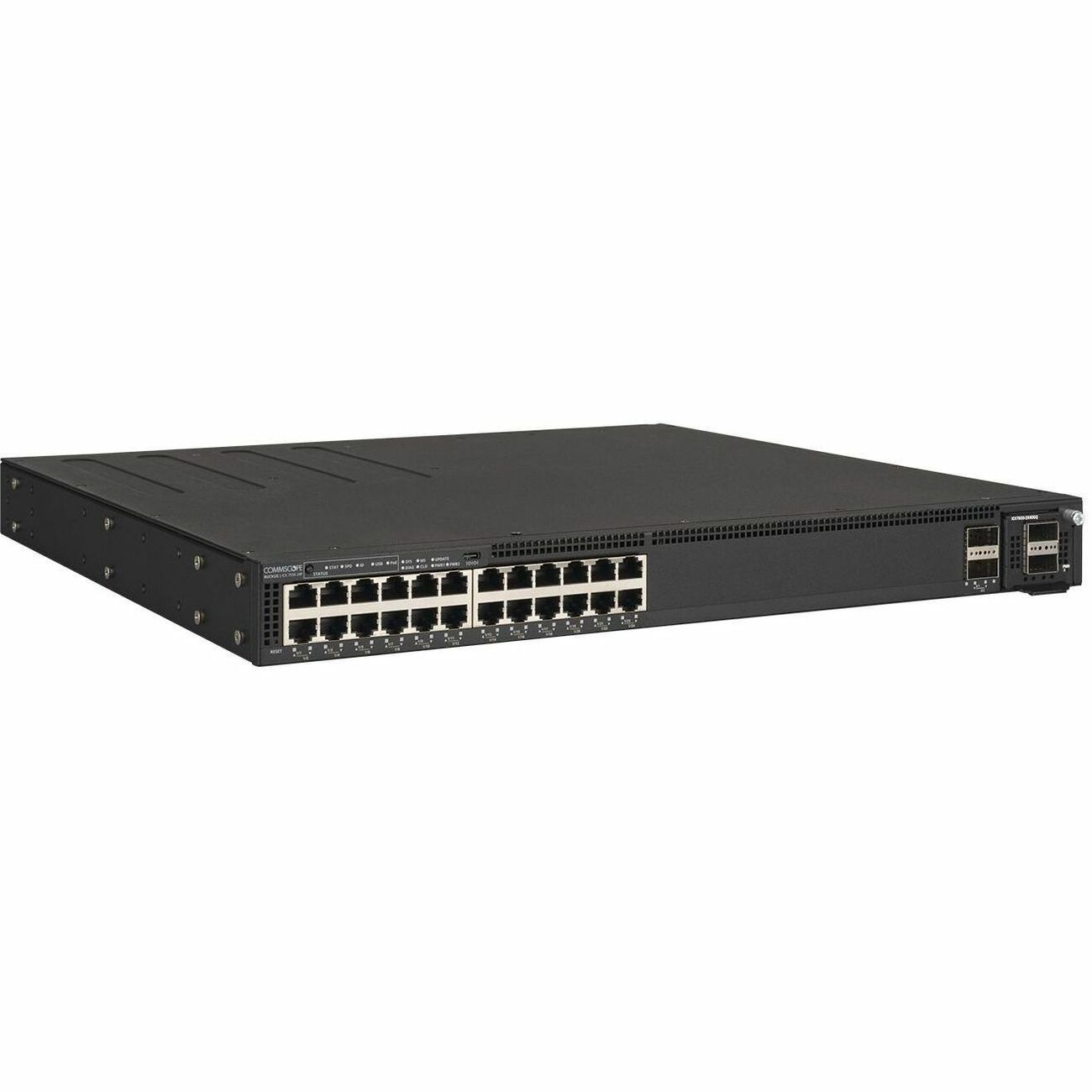

RUCKUS ICX7550-24P Ethernet Switch

Overview

Tech Specs

Multigigabit Network EdgeThe RUCKUS ICX 7550 multigigabit models come in 24- and 48-port offering class leading multigigabit port density with a mix of 2.5G and 2.5/5/10G ports delivering the ultimate solution for Wi-Fi 6 access points Ethernet connectivity today while providing plenty of future proofing for deploying future generations of Wi-Fi APs. Gigabit Ethernet AccessTo complete the solution, The ICX 7550 Series includes four Gigabit Ethernet models, two with PoE support and two without. These models come in 24- and 48-port versions and can stack with the rest of the ICX 7550 series to offer traditional Gigabit ethernet connectivity for legacy Wi-Fi access points, VoIP phones, printers, laptop and desktop computers. 1/10 GbE Fiber AggregationThe RUCKUS ICX 7550 fiber models come in 24- and 48-port versions with a mix of 1G and 10G SFP/SFP+ ports offering class leading port density as an entry level 10G aggregation solution for small to mid-size networks. The 24 ports model offers 24x 10GbE ports while the 48 ports offers 36x 1GbE and 12 10GbE SFP/SFP+ ports. For maximum flexibility at the aggregation layer, the ICX 7550 support a broad range of L2/L3 protocols such as RIP, OSFP and BGP. Support for latest generation PoE standardsLatest generation of Wi-Fi access points comes with greater power requirements to support additional IoT radios and scale to a larger number of users. The ICX 7550 Multigigabit models all support 802.3bt with up to 90W power delivery per port as well as a class-leading 1900W PoE budget with two power supplies to maximize the supported number of powered devices. These PoE capabilities make the ICX 7550 ideally suited to provide connectivity and power delivery to the latest generation of smart buildings with PoE powered lighting and LED signage.Product TypeEthernet SwitchTechnical InformationFeatures

Zero-Touch Provisioning (ZTP)
Hot-swappable
Energy Efficient
In-Service Software Upgrade (ISSU)
DHCP Snooping
Access Control List

High Availability SupportedYesInterfaces/PortsTotal Number of Network Ports24Uplink PortYesModularYesStack PortYesPort/Expansion Slot Details

24 x Gigabit Ethernet PoE+
2 x 40 Gigabit Ethernet QSFP+ Expansion Slot

Media & PerformanceMedia Type Supported

Optical Fiber
Twisted Pair

Ethernet Technology

Gigabit Ethernet
40 Gigabit Ethernet

Network Technology

40GBase-X
10/100/1000Base-T

I/O ExpansionsTotal Number of Expansion Slots2Expansion Slot TypeQSFP+Network & CommunicationLayer Supported3Networking Standards

IEEE 802.1ab
IEEE 802.1D
IEEE 802.1p
IEEE 802.1s
IEEE 802.1w
IEEE 802.1x
IEEE 802.3
IEEE 802.3ab
IEEE 802.3ae
IEEE 802.3af
IEEE 802.3at
IEEE 802.3bt
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.3bz
IEEE 802.3ba
IEEE 802.1ae
IEEE 802.3az
IEEE 802.1Q

Management & ProtocolsManageableYesData Link Protocols

HTTP
HTTPS

ReliabilityMTBF319662 HourPower DescriptionPoE (RJ-45) PortYesPoE Budget1900 WInput Voltage

120 V AC
230 V AC
40 V DC
60 V DC

Frequency

50 Hz
60 Hz

Power Source

Power Supply
AC/DC
PoE+

Redundant Power Supply SupportedYesPower Consumption1123.70 WPlug/Connector TypeC14Physical CharacteristicsForm FactorRack-mountableHeight1.7"Width17.3"Depth16"Weight (Approximate)14.86 lbMiscellaneousApplication/Usage

Enterprise
Campus
Network
Wireless Access Point
Printer
Laptop
VoIP Phone
Desktop
Security
