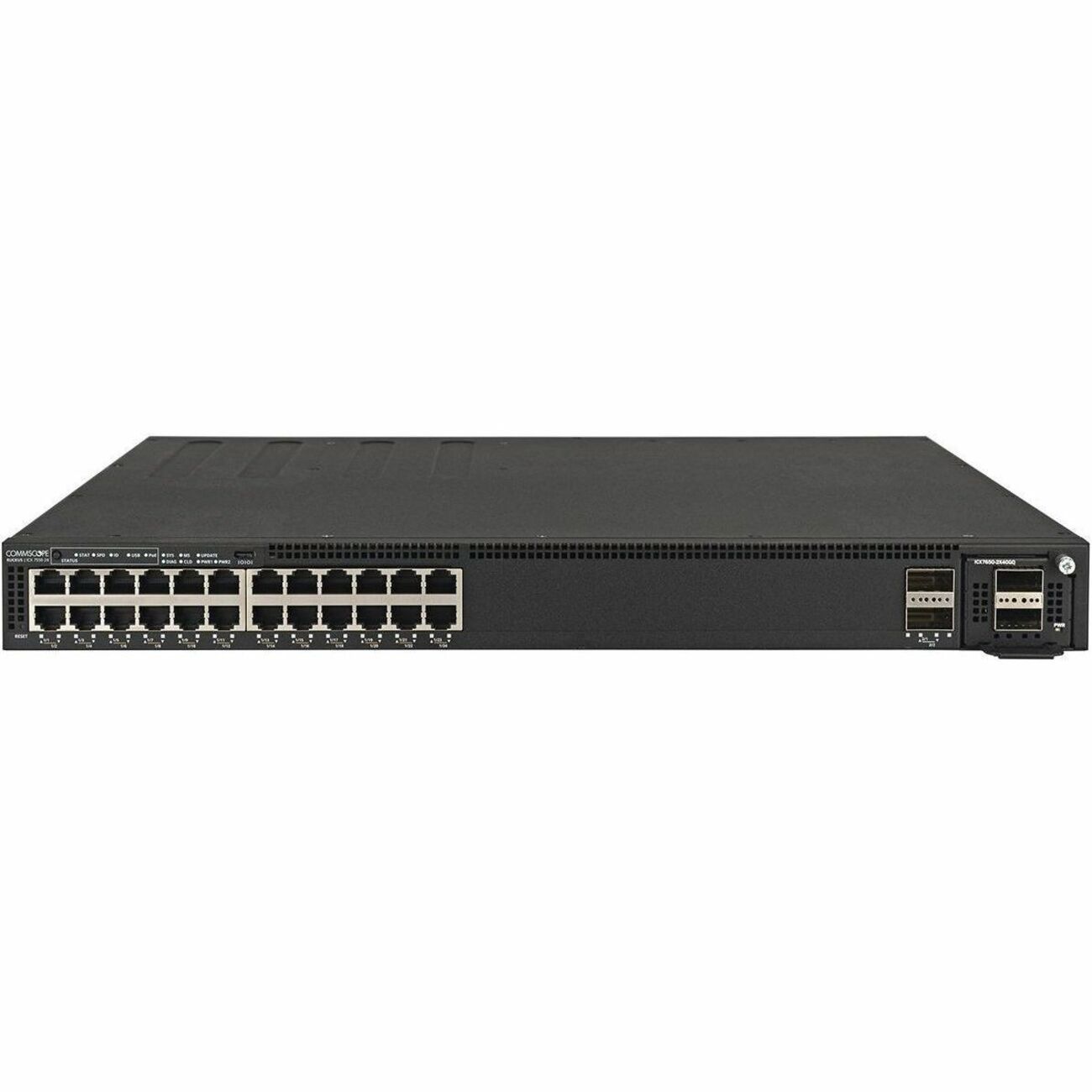

ICX 7550 24-PORT 10/100/1000 MBPS WITH 2-PORTS 40 GBPS UPLINK/STACK QSFP+, MODUL

Name: ICX 7550 24-PORT 10/100/1000 MBPS WITH 2-PORTS 40 GBPS UPLINK/STACK QSFP+, MODUL
Brand: RUCKUS WIRELESS
SKU: 6052AF
Price: 3154.11 USD
Availability: InStock

RUCKUS WIRELESS

PCN#

6052AF

MFG#

ICX7550-24

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$3,154.11

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Free Shipping

Estimated Shipment:

Product Highlights:

24 Ports
Manageable
Gigabit Ethernet, 40 Gigabit Ethernet
10/100/1000Base
T, 40GBase
X
4 Layer Supported
Modular
53.20 W Power Consumption
Twisted Pair, Optical Fiber
Rack
mountable
Lifetime Limited Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 8 lbs.

RUCKUS ICX 7550 Mid-range Enterprise-class Stackable Access/aggregation Switch

Overview

Tech Specs

Benefits Maximum flexibility with gigabit/multigabit access and 1G/10G aggregation covers a broad range of deployment scenarios Optimized for Wi-Fi 6 deployments and beyond

Up to 12x 1/2.5/5/10G Multigigabit Ethernet ports
Up to 36x 1/2.5G Multigigabit Ethernet ports

Power next generation PoE devices

PoE+/802.3bt 60W/90W per port
Up to 1900W PoE budget with two power supplies

40 GbE and 100 GbE uplinks/stacking for maximum performance and future-proofing

Up to 2x 100 GbE uplink
Up to 2x 100 Gbps stacking ports and 1x 100GbE uplink

Advanced L3 routing delivers design flexibility

IPv4 and IPv6
RIP, BGP, OSPF, VRRP, PIM, PBR, VRF

Security and data privacy

MACsec 128-bit and 256-bit data encryption ensures compliance and data confidentiality

Broad range of unified management options for maximum flexibility

On Premises
SmartZone
Cloud Based
RUCKUS Cloud
Controllerless
RUCKUS Unleashed

Redundant, load-sharing power supplies enhance availabilityThe RUCKUS® ICX® 7550 series of mid-range stackable switches are purpose-built to provide wired connectivity at the edge of the network for the latest generation Wi-Fi 6 Access-Points. With high density multigigabit Ethernet ports and the latest 802.11bt 90W PoE power, the ICX 7550 delivers the performance, flexibility, and scalability required for the most demanding campus deployment scenarios.Product TypeEthernet SwitchTechnical InformationFeatures

In-Service Software Upgrade (ISSU)
Hot-swappable
DHCP Snooping
Access Control List
Energy Efficient

High Availability SupportedYesInterfaces/PortsTotal Number of Network Ports24Uplink PortYesModularYesStack PortYesNetwork (RJ-45)YesPort/Expansion Slot Details

24 x Gigabit Ethernet Network
2 x 40 Gigabit Ethernet Expansion Slot

Media & PerformanceMedia Type Supported

Twisted Pair
Optical Fiber

Ethernet Technology

Gigabit Ethernet
40 Gigabit Ethernet

Network Technology

10/100/1000Base-T
40GBase-X

I/O ExpansionsTotal Number of Expansion Slots2Expansion Slot TypeQSFP+Network & CommunicationLayer Supported4Networking Standards

IEEE 802.1ab
IEEE 802.1D
IEEE 802.1p
IEEE 802.1s
IEEE 802.1w
IEEE 802.1x
IEEE 802.3
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.1AX
IEEE 802.3ae
IEEE 802.3bz
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.1Q
IEEE 802.1br
IEEE 802.3az
IEEE 802.3bt
IEEE 802.3ba
IEEE 802.1ae

Management & ProtocolsManageableYesData Link Protocols

HTTP
HTTPS

ReliabilityMTBF717487 HourPower DescriptionInput Voltage

120 V AC
230 V AC

Frequency

50 Hz
60 Hz

Power SourcePower SupplyRedundant Power Supply SupportedYesNumber of Power Supplies Supported2Power Consumption53.20 WPlug/Connector TypeC14Physical CharacteristicsForm FactorRack-mountableHeight1.7"Width17.3"Depth16"Weight (Approximate)13.47 lbMiscellaneousApplication/Usage

Network
Enterprise
Campus
Small Business
Wireless Access Point
IoT Radio
VoIP Phone
Printer
Laptop
PC

Certifications & Standards

FCC Class A (Part 15)
EN 55022/CISPR-22 Class A
VCCI Class A
ICES-003 Electromagnetic Emission
AS/NZS 5502
EN 61000-3-2 Power Line Harmonics
EN 61000-3-3 Voltage Fluctuation and Flicker
EN 61000-6-3 Emission Standard
CAN/CSA-C22.2 NO. 60950-1-07
UL 60950-1
IEC60950-1
EN 60950-1
2006 Safety of Information Technology Equipment
EN 60825-1 Safety of Laser Products
EN 61000-6-1 Generic Immunity and Susceptibility
EN 55024 Immunity Characteristics
EN 61000-4-3 Radiated, Radio Frequency, Electromagnetic Field
EN 61000-4-4 Electrical Fast Transient
EN 61000-4-5 Surge
EN 61000-4-6 Conducted Disturbances Induced by Radio-Frequency Fields
EN 61000-4-8 Power Frequency Magnetic Field
EN 61000-4-11 Voltage Dips and Sags

Environmental Compliance

Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS) 6

WarrantyLimited WarrantyLifetime
