THUNDERBOLT DOCKING STATION THUNDERCONNECT RD12 4 QUAD DISPLAY

Name: THUNDERBOLT DOCKING STATION THUNDERCONNECT RD12 4 QUAD DISPLAY
Brand: ROCSTOR
SKU: NJ2071
Price: 264.18 USD
Availability: InStock

ROCSTOR

PCN#

NJ2071

MFG#

Y10P036-S1

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$264.18

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

for Mouse, Notebook, Mobile Workstation, Keyboard, Headset, Desktop PC
Charging Capability
Memory Card Reader
SD, TransFlash
150 W
Thunderbolt 4
4 Displays Supported
8K @ 30Hz, 4K @ 60Hz, 4K @30Hz, 4K, 8K, Full HD
7680 x 4320, 3840 x 2160, 1920 x 1080
4 x USB Ports
3 x USB Type
A Ports
USB Type
A
1 x USB Type
C Ports
USB Type
C
1 x RJ
45 Ports
Network (RJ
45)
HDMI
DisplayPort
Audio Line Out
Thunderbolt
2 x Thunderbolt 4 Ports
Wired

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

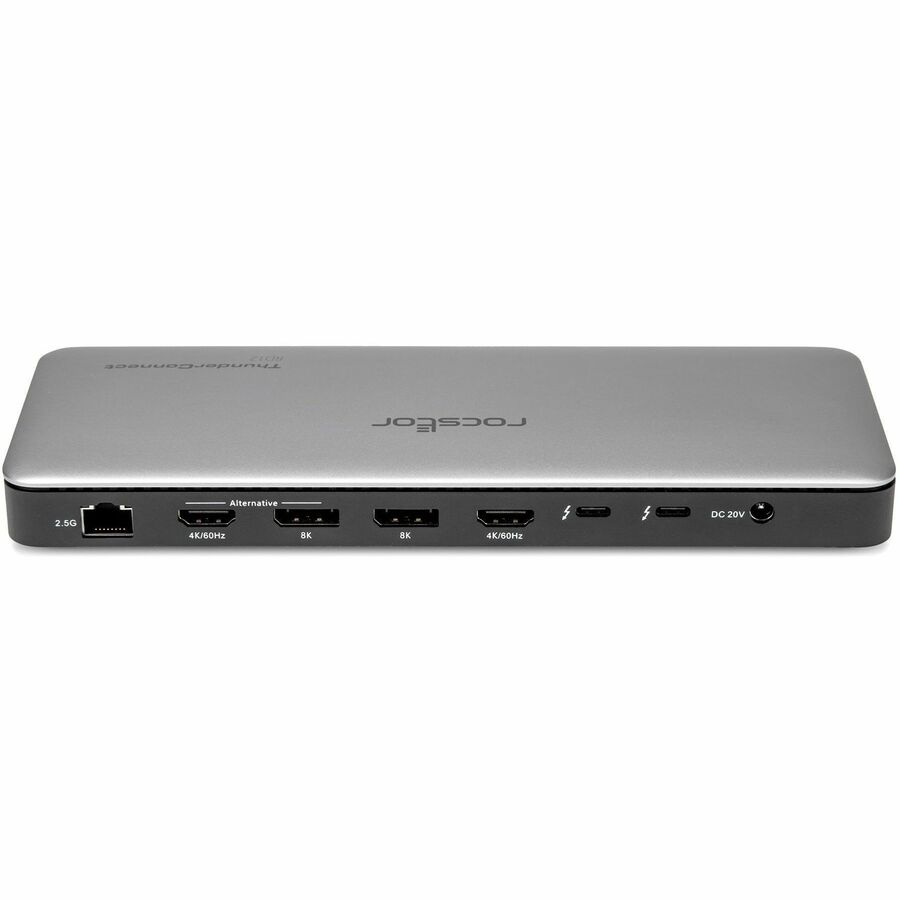

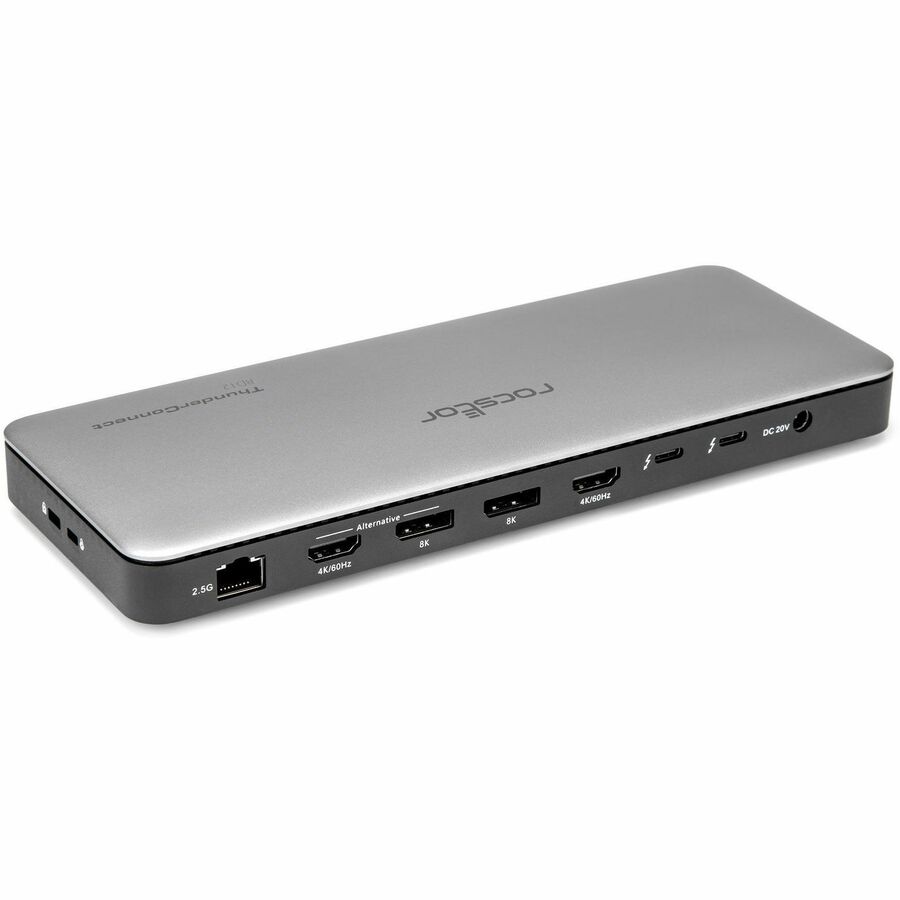

Rocstor ThunderConnect RD12 Thunderbolt 4 Multi-Display Docking Station - Locking Slots

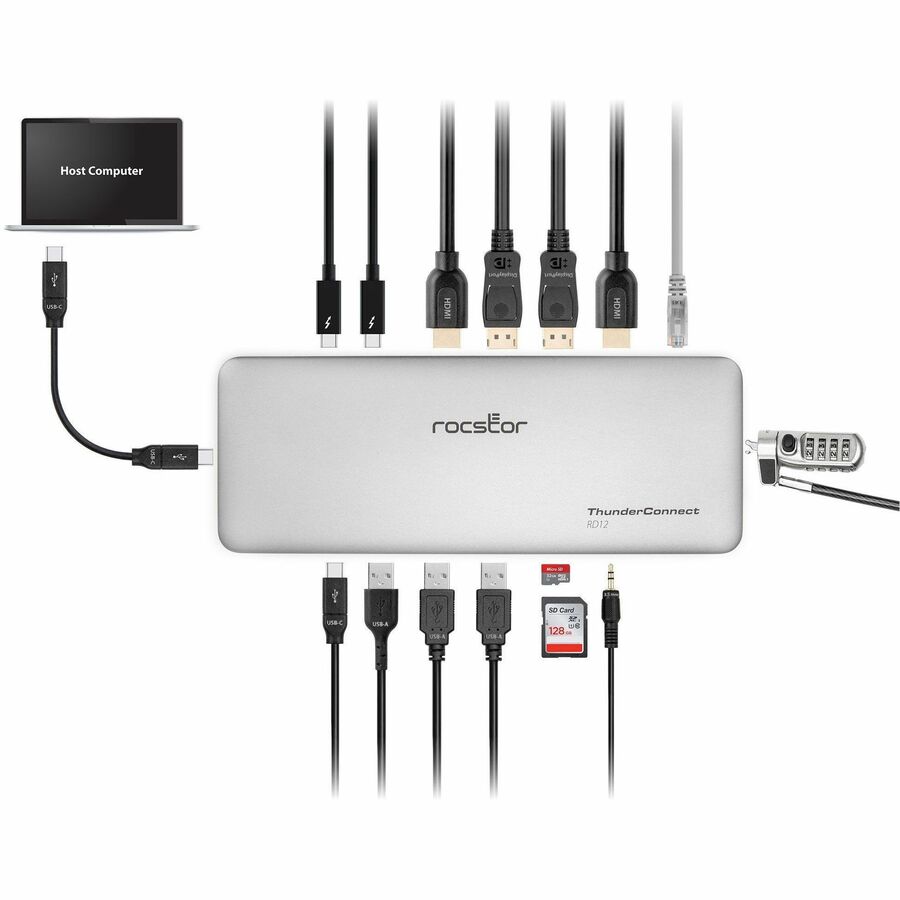

The Rocstor ThunderConnect RD12 Thunderbolt 4 Multi-Display Docking Station - Locking Slots - Power Adapter is a cutting-edge solution designed to elevate your productivity and streamline your workspace. The Thunderbolt 4 port enables cascading Thunderbolt devices up to 6 levels, supporting one 8K monitor or two 4K/60Hz monitors. Additionally, it allows for connecting three displays simultaneously, achieving triple displays output (max 4K/60Hz*2 + 4K/30Hz) with distinct images when paired with TBT4/USB4 Windows PCs.. Whether you're working on detailed graphics, complex spreadsheets, or immersive gaming, the RD12 provides stunning visuals and seamless multitasking capabilities, making it an essential tool for professionals and enthusiasts alike.

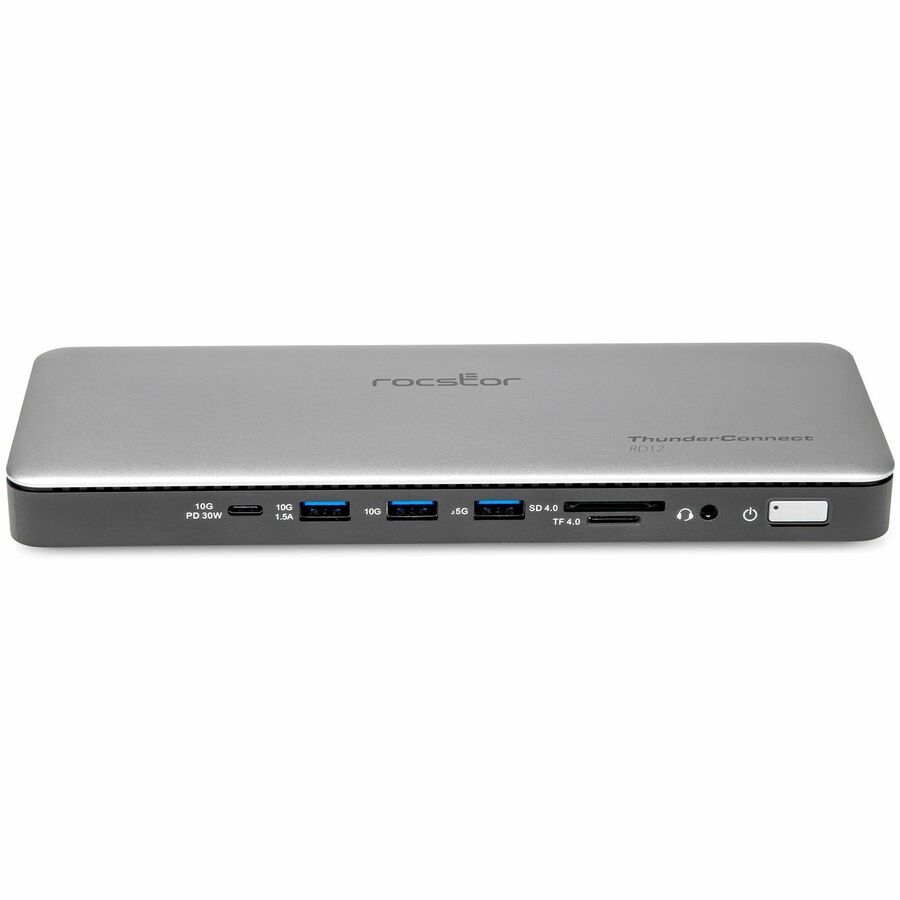

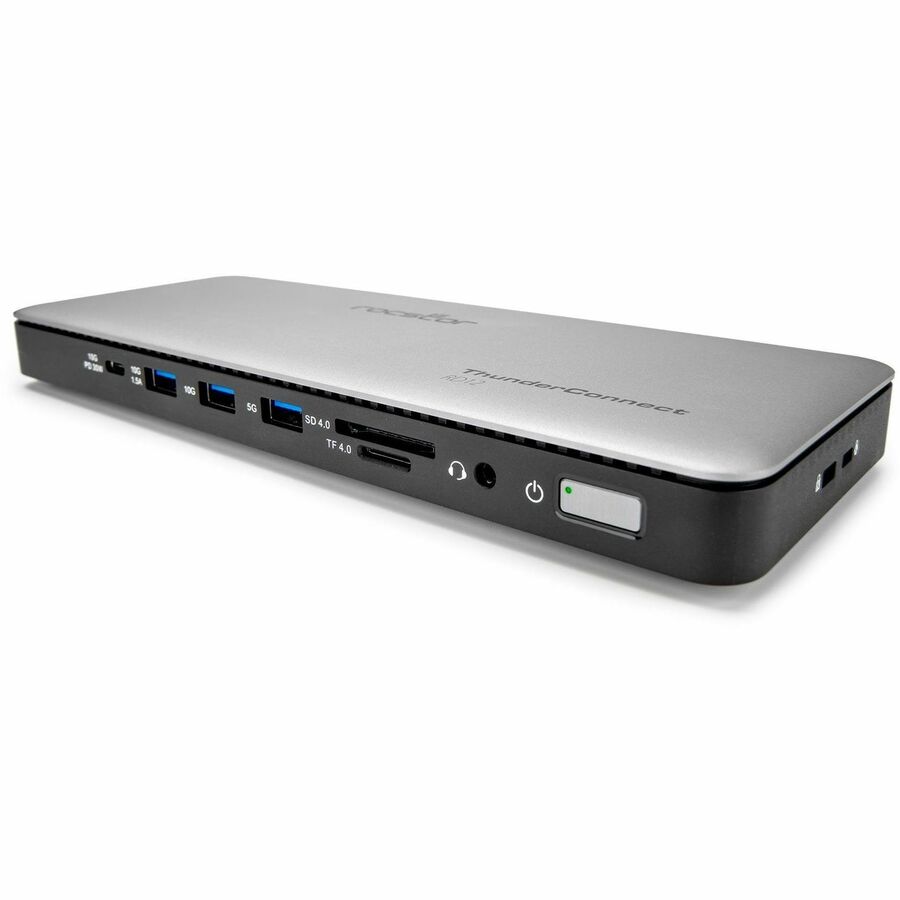

Equipped with the latest Thunderbolt 4 technology, the RD12 ensures lightning-fast data transfer speeds up to 40Gbps, making it ideal for transferring large files quickly and efficiently. Additionally, the dock includes five USB ports (one USB-C Gen2 with 100W PD, two USB 3.2 Type-A 10Gbps, and one USB Type-A 3.2 5Gbps), providing ample connectivity options for all your peripherals, from external drives to keyboards and mice.

One of the standout features of the Rocstor ThunderConnect RD12 is its smart charging capability. The USB-C PD port supports up to 100W power delivery, ensuring your laptop and other devices remain charged even during intensive use. The docking station intelligently distributes power based on the requirements of connected devices, maximizing efficiency and preventing power wastage. Additionally, the 2.5Gb Ethernet port offers reliable and high-speed internet connectivity, crucial for video conferencing, online gaming, and data-intensive tasks.

Designed for both Windows and MacOS users, including compatibility with Apple M1, M2, and M3 processors, the RD12 is Thunderbolt-certified to guarantee reliable performance across various platforms. The compact design, combined with robust functionality, makes this docking station perfect for both office setups and mobile workstations. With additional features like an SD4.0/TF 4.0 card reader, 3.5mm audio jack, and security lock options, the Rocstor ThunderConnect RD12 is the ultimate docking solution for those who demand versatility, performance, and convenience. Backed by Rocstor 3-year limited warranty and lifetime free technical support.

Packaged Quantity

Product Type

Docking StationTechnical Information

Connectivity Technology

Wired

Charging Capability

Yes

Device Supported

MouseNotebookMobile WorkstationKeyboardHeadsetDesktop PC

Memory Card Reader

Yes

Memory Card Supported

SDTransFlash

Features

Security LockPower Delivery Pass-through

Management Features

Wake-on-LAN

Number of Displays Supported

Screen Mode Supported

8K @ 30Hz4K @ 60Hz4K @30Hz4K8KFull HD

Supported Resolutions

7680 x 43203840 x 21601920 x 1080

Maximum Data Transfer Rate

5 GB/s

Security Slot Type

Kensington Security SlotNetwork & Communication

Ethernet Technology

2.5 Gigabit EthernetInterfaces/Ports

Host Interface

Thunderbolt 4

Audio Line Out

Yes

Total Number of USB Ports

Number of USB Type-A Ports

Number of USB Type-C Ports

USB Type-A

Yes

USB Type-C

Yes

USB Type-C Detail

1 x USB-C(10G or PD 30W output)

Network (RJ-45)

Yes

Number of RJ-45 Ports

Number of DisplayPort Outputs

DisplayPort

Yes

Number of HDMI Outputs

HDMI

Yes

Thunderbolt

Yes

Thunderbolt Ports Quantity

Number of Thunderbolt 4 Ports

USB Power Delivery

100WSoftware

Operating System Supported

Windows 10Windows 11Windows 8AndroidChromeOSiPadOSmacOS 14Mac OS X 13.0 VenturaMac OS X 12.0 MontereyMac OS X 11.0 Big SurMac OS X 10.15 CatalinaMac OS X 10.14 MojaveMac OS X 10.13 High SierraPower Description

Maximum Power Supply Wattage

150 W

Power Source Type

Power AdapterPhysical Characteristics

Form Factor

Portable

Height

0.87"

Width

3.35"

Weight (Approximate)

14.46 ozMiscellaneous

Package Contents

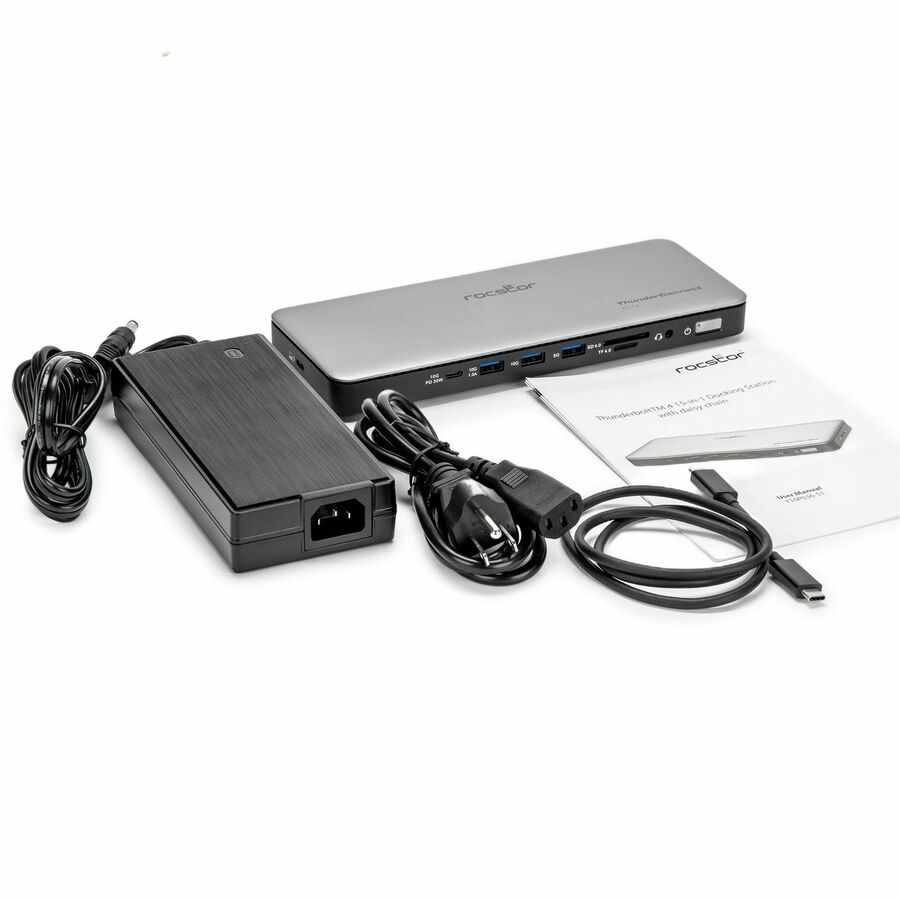

ThunderConnect RD12 Thunderbolt 4 Multi-Display Docking Station - Locking Slots - Power Adapter1 x User Manual1 x 150W DC Power Adapter1 x Thunderbolt 4 M/M Cable

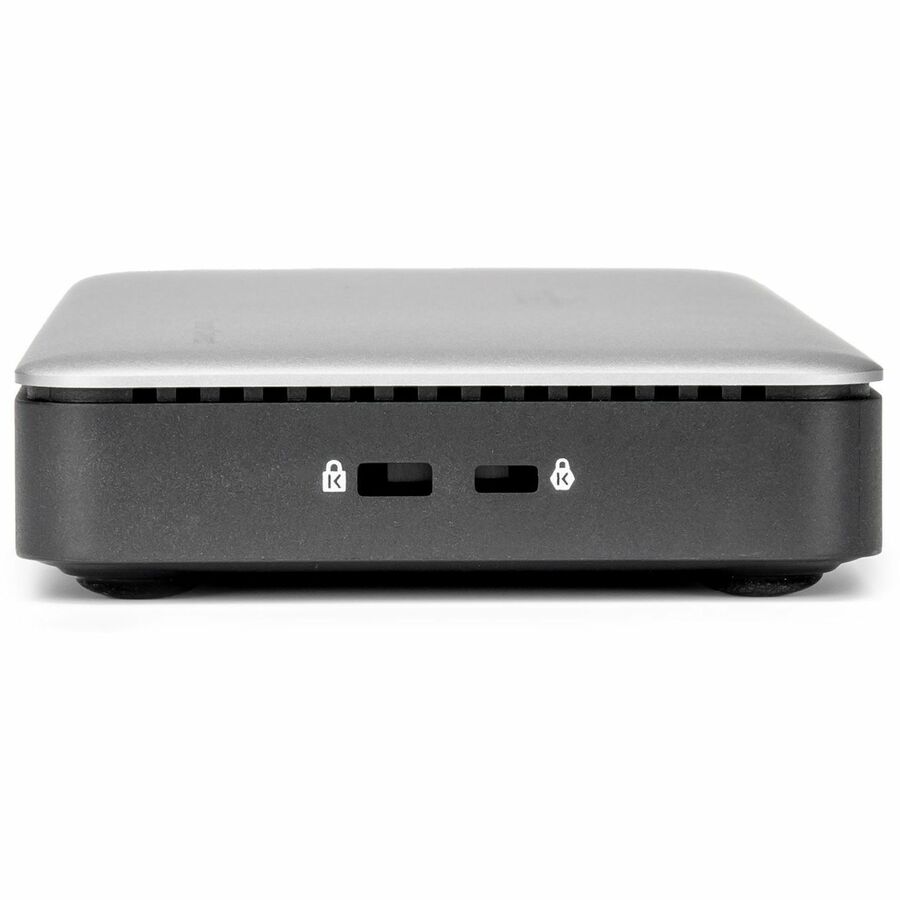

Kensington Security Slot

Yes

Compatibility

Overview

Compatible Devices

ChromebookDell XPS LaptopsApple MacBookMicrosoft Surface TabletMicrosoft Surface NotebookUSB-C LaptopsUSB-C TabletsUSB4 LaptopsThunderbolt 3 LaptopsThunderbolt 4 LaptopsBrand CompatibilityAppleDellMicrosoftEnvironmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE)Country of OriginVietnamWarrantyLimited Warranty3 YearProduct TypeDocking StationTechnical InformationConnectivity TechnologyWiredCharging CapabilityYesDevice SupportedMouseNotebookMobile WorkstationKeyboardHeadsetDesktop PCMemory Card ReaderYesMemory Card SupportedSDTransFlashFeaturesSecurity LockPower Delivery Pass-throughManagement FeaturesWake-on-LANNumber of Displays Supported4Screen Mode Supported8K @ 30Hz4K @ 60Hz4K @30Hz4K8KFull HDSupported Resolutions7680 x 43203840 x 21601920 x 1080Maximum Data Transfer Rate5 GB/sSecurity Slot TypeKensington Security SlotNetwork & CommunicationEthernet Technology2.5 Gigabit EthernetInterfaces/PortsHost InterfaceThunderbolt 4Audio Line OutYesTotal Number of USB Ports4Number of USB Type-A Ports3Number of USB Type-C Ports1USB Type-AYesUSB Type-CYesUSB Type-C Detail1 x USB-C(10G or PD 30W output)Network (RJ-45)YesNumber of RJ-45 Ports1Number of DisplayPort Outputs2DisplayPortYesNumber of HDMI Outputs2HDMIYesThunderboltYesThunderbolt Ports Quantity2Number of Thunderbolt 4 Ports2USB Power Delivery100WSoftwareOperating System SupportedWindows 10Windows 11Windows 8AndroidChromeOSiPadOSmacOS 14Mac OS X 13.0 VenturaMac OS X 12.0 MontereyMac OS X 11.0 Big SurMac OS X 10.15 CatalinaMac OS X 10.14 MojaveMac OS X 10.13 High SierraPower DescriptionMaximum Power Supply Wattage150 WPower Source TypePower AdapterPhysical CharacteristicsForm FactorPortableHeight0.87"Width3.35"Weight (Approximate)14.46 ozMiscellaneousPackage ContentsThunderConnect RD12 Thunderbolt 4 Multi-Display Docking Station - Locking Slots - Power Adapter1 x User Manual1 x 150W DC Power Adapter1 x Thunderbolt 4 M/M CableKensington Security SlotYesCompatibility
