KVM SWITCH 2X1 8K/4K 1.4 BIKVM SWITCH1.6FT

by
ROCSTOR
PCN#
NJ2141
MFG#
Y10A336-B1
$37.75
cps

Extended & Accidental Damage Product Replacement Plan Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 4K, 8K
  • 7680 x 4320
  • 3 x DisplayPort
Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 1 lbs.
Rocstor Premium DisplayPort1.4 Bi-directional Switcher for 8K
Tech Specs
Specifications

Manufacturer

Rocstor

Manufacturer Part Number

Y10A336B1

Manufacturer Website Address

http://www.rocstor.com

Brand Name

Rocstor

Product Name

Premium DisplayPort1.4 Bi-directional Switcher for 8K

Marketing Information

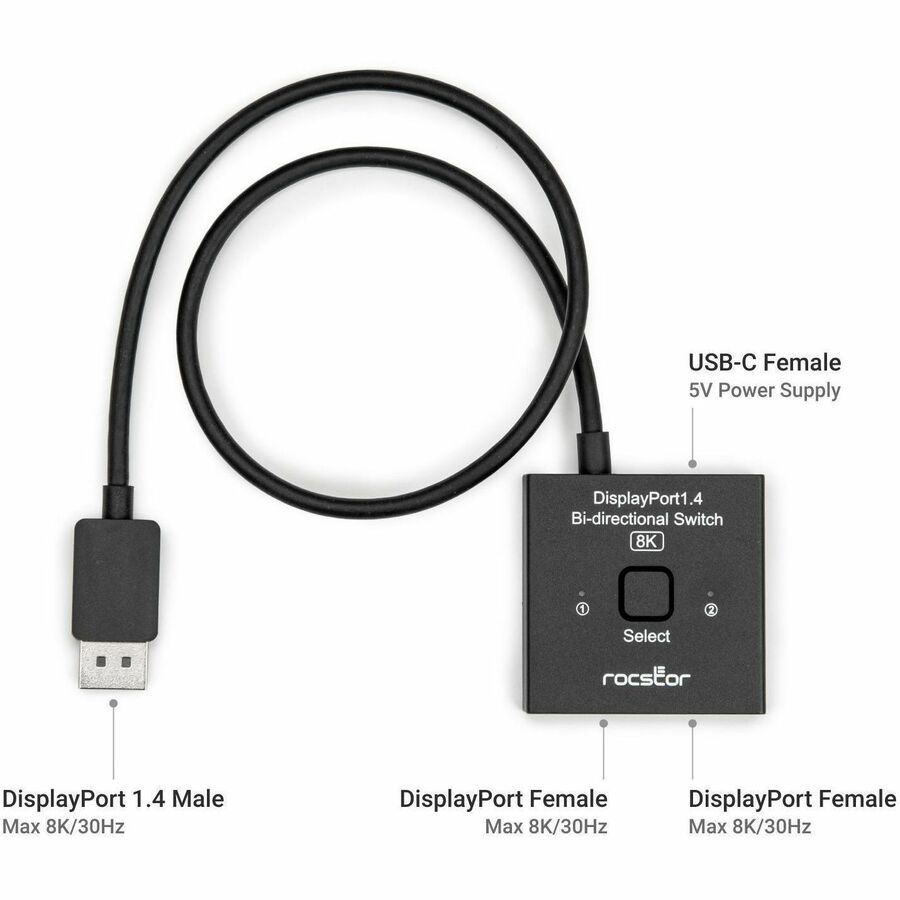

Rocstor's DisplayPort 1.4 2-in-1 Bi-directional Switcher is designed for seamless 8K resolution switching. This versatile device allows you to switch between two sources to one display or one source to two displays effortlessly by pressing the switch button. Equipped with a 50cm fixed DP cable (pigtail), it not only reduces costs but also simplifies the setup process for users. The switcher supports high-definition video across various resolutions, including up to 8K, and handles digital audio efficiently. Power can be supplied through the DP male connector, with an optional Type-C female port available as a backup power supply to deliver 5V power when needed.

This premium 2x1 DisplayPort 1.4 Bi-Directional KVM Switch offers robust functionality, making it an ideal solution for high-resolution displays and multiple source management. Whether you need to toggle between two video sources or switch one source to two different displays, this switcher provides the flexibility and reliability required for seamless connectivity. Backed by Rocstor 2-year limited warranty and lifetime free technical support.

Packaged Quantity

1

Product Type

KVM Switchbox
Technical Information

Connectivity Technology

Wired

Features

LED Indicator
Video

Graphic Mode

  • 4K
  • 8K

Maximum Video Resolution

7680 x 4320
Interfaces/Ports

DisplayPort

Yes

Number of DisplayPorts

3
Environmental Conditions

Minimum Operating Temperature

32°F (0°C)

Maximum Operating Temperature

113°F (45°C)
Physical Characteristics

Height

0.5"

Width

2.1"

Length

2.10"

Weight (Approximate)

2.20 oz
Miscellaneous

Package Contents

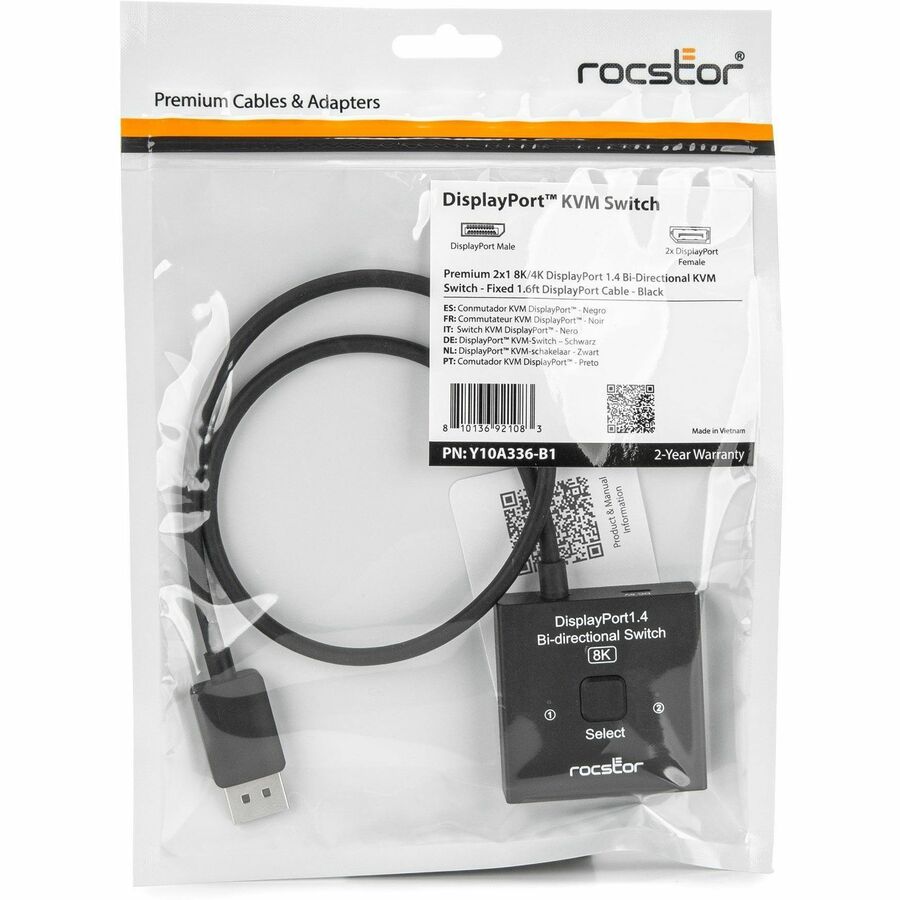

  • Premium DisplayPort1.4 Bi-directional Switcher for 8K
  • 1 x User Manual

Environmentally Friendly

Yes

Country of Origin

Vietnam
Warranty

Limited Warranty

2 Year
