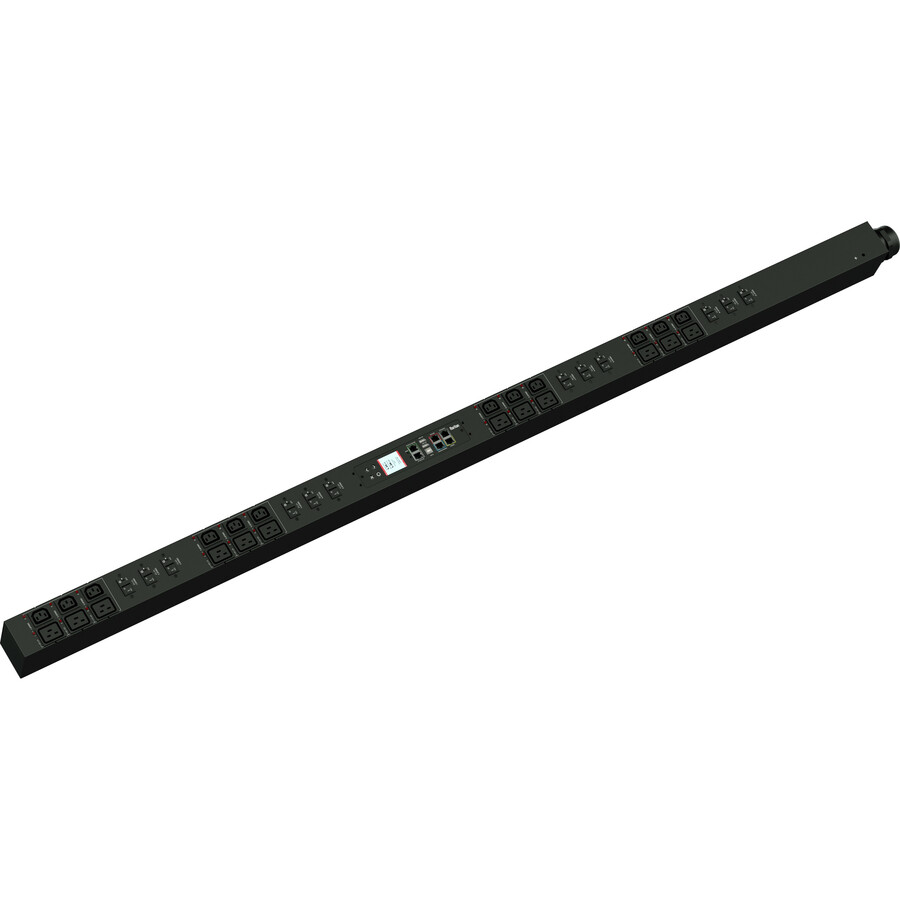

Raritan PX3-4213U-V2 24-Outlet PDU

by
RARITAN
PCN#
8R9040
MFG#
PX3-4213U-V2
$4,057.31
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Monitored
  • IEC 60309 3P+E 9H 100A
  • 12 x IEC 60320 C19, 12 x IEC 60320 C13

Show more

Product Condition: New and Factory Fresh
Limited Warranty2 Year
Shipping Weight: 46 lbs.
Raritan PX3-4213U-V2 24-Outlet PDU
Tech Specs
Specifications

Manufacturer

Legrand Group

Manufacturer Part Number

PX3-4213U-V2

Manufacturer Website Address

http://www.legrand.us

Brand Name

Raritan

Product Series

PX

Product Model

PX3-4213U-V2

Product Name

PX3-4213U-V2 24-Outlet PDU

Marketing Information

The PX Intelligent Rack PDU series provides reliable power distribution for IT equipment cabinets. It offers metering at the inlet, outlet, and PDU circuit breaker level. There are over 600 off-the-shelf models available, dozens of which are in stock and ready to ship. Support for 120 to 400V: single or three-phase. Form factors from Zero to 3U. Plus environmental monitoring support.

Product Type

PDU
Technical Information

PDU Type

Monitored

Phase

Three Phase

Plug/Connector Type

IEC 60309 3P+E 9H 100A

Receptacle Type

  • IEC 60320 C19
  • IEC 60320 C13

Receptacle Detail

  • 12 x IEC 60320 C19
  • 12 x IEC 60320 C13

Protection Type

  • Overload Protection
  • Overcurrent Protection
Power Description

Input Voltage

230 V AC

Input Voltage Range

208 V AC - 240 V AC

Output Voltage

230 V AC

Power Rating (VA)

28.80 kVA

Input Current

100 A
Management

Management

Protocols:
  • HTML
  • JSON-RPC
  • SSH
  • Telnet
  • MODBUS/TCP
  • SNMPv3
  • TFTP
  • DHCP/PXE
  • SSH(CLI)
Interfaces/Ports

Network (RJ-45)

Yes
Physical Characteristics

Mounting Orientation

Vertical

Mount Type

Rack-mountable

Rack Height

0U

Height

70.1"

Width

2.8"

Depth

3.1"

Weight (Approximate)

45.42 lb
Miscellaneous

Country of Origin

Taiwan
Warranty

Limited Warranty

2 Year
