Raritan Dominion KX III DKX3-UST KVM Switchbox

Name: Raritan Dominion KX III DKX3-UST KVM Switchbox
Brand: RARITAN
SKU: 1Z9458
Price: 1002.18 USD
Availability: InStock

RARITAN

PCN#

1Z9458

MFG#

DKX3-UST

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,002.18

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

2 Computer(s)
1920 x 1080
2 x Network (RJ
45)
8 x USB
USB 2.0
1 x HDMI
Rack
mountable, Desktop
1 x DisplayPort
1U

Product Condition: New and Factory Fresh

Shipping Weight: 6 lbs.

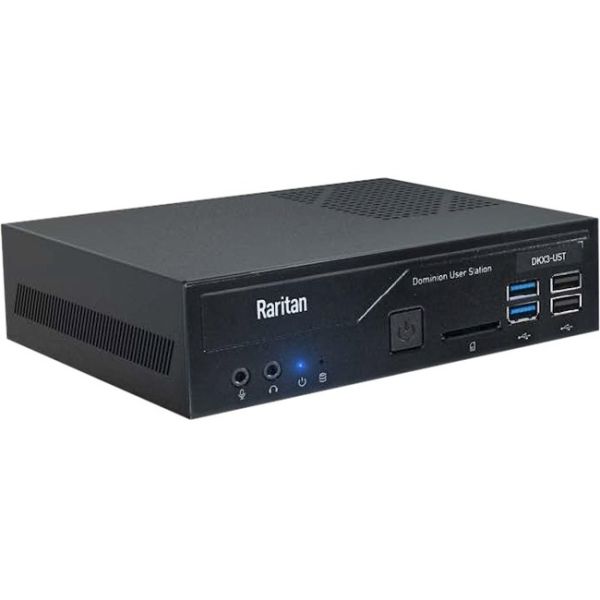

Raritan Dominion KX III DKX3-UST KVM Switchbox

Overview

Tech Specs

Specifications

Manufacturer	Legrand Group
Manufacturer Part Number	DKX3-UST
Manufacturer Website Address	http://www.legrand.us
Brand Name	Raritan
Product Line	Dominion
Product Series	KX III
Product Model	DKX3-UST
Product Name	Dominion KX III DKX3-UST KVM Switchbox
Marketing Information	HIGH PERFORMANCE IP KVM SWITCH ACCESS The Dominion® KX User Stations are standalone appliances for high performance IP access to servers connected to Dominion® KX III and KX IV switches, accessed by DSAM, RDP, VNC, VMware virtual machines, web links and SSH connections, together with optional CommandCenter integration. The slim form factor allows them to sit on a desk, be mounted in a standard 19" rack, or VESA-mounted on the back of a monitor. Deploy using standard Cat5 cabling and Ethernet/IP technology. Simultaneously access, view, and control multiple servers, spread across one, two, or three (KX IV User Station) monitors. Or use the new keyboard and mouse sharing feature to work across 4, 6, 9 or more monitors! Web-based remote control of User Stations connected to wall monitors in studios and control rooms. There are two Dominion User Stations. The original Dominion KX III User Station is recommended for use with the KX III, one or two monitors and servers up to 1080p. The new, high performance Dominion KX IV User Station is recommended for use with the Dominion KX IV-101, higher video resolutions up to 4K, larger numbers of KVM sessions and up to 3 monitors. The Dominion User Stations can replace outdated analog matrix switches, supplement inflexible broadcast systems or be deployed anywhere hassle-free IP access is needed. They are perfect for broadcast labs, studios, control rooms, offices, and data centers. HIGH PERFORMANCE KX III AND KX IV USER APPLIANCES Two Powerful Intel-based platforms Stream multiple video sessions at 30 to 60 frames per second Ultra-fast connections and sub-second switching Supports VGA, DVI, HDMI, USB-C & DisplayPort video Virtual media, USB audio, Smartcard Dual video/monitor support with two Dominion KX IV-101's KX IV User Station supports: 4K video, 3 monitors and more KVM sessions PRODUCTIVE AND POWERFUL USER INTERFACE Multiple simultaneous IP connections across one, two, or three monitors Mouse sharing feature supports 4, 6, 9 or more monitors Scan servers and optionally save screenshots Favorites and hot-key switching Productive window management Save & restore window layouts, even across multiple User Stations Chinese, German and Japanese language support FLEXIBLE IP SOLUTION - EASY TO DEPLOY Flexible dual LAN or WAN access Use corporate and/or separate LAN Connects with Cat5 cabling Access hundreds of servers and devices PC/Laptop access also available Desktop, rack & VESA mountable Support for RDP, VNC, VMware virtual machines, web links, SSH and DSAM connections CommandCenter for centralized login and access
Product Type	KVM Switchbox

Technical Information

Number of Computers Supported

Video

Maximum Video Resolution

1920 x 1080

Interfaces/Ports

Network (RJ-45)	Yes
USB	Yes
USB 2.0	Yes
HDMI	Yes
DisplayPort	Yes
Number of Network (RJ-45) Ports	2
Number of USB Ports	8
Number of HDMI Ports	1
Number of DisplayPorts	1

Power Description

Input Voltage Range

100-240V AC

Physical Characteristics

Form Factor	Rack-mountable Desktop
Rack Height	1U
Height	1.7"
Width	6.5"
Depth	7.5"
Weight (Approximate)	3.09 lb
