VTRAK J5960 240TB 30 8TB

by
PROMISE TECHNOLOGY
PCN#
11NX34
MFG#
VTJ5960DXX08HU
main product photo
fotorama-image
fotorama-image
fotorama-image
fotorama-image
fotorama-image
$15,508.75
cps

Extended & Accidental Damage Protection Plans Available Details

Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 60 x HDD Supported
  • 30 x HDD Installed
  • 240 TB Installed HDD Capacity

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 133 lbs.

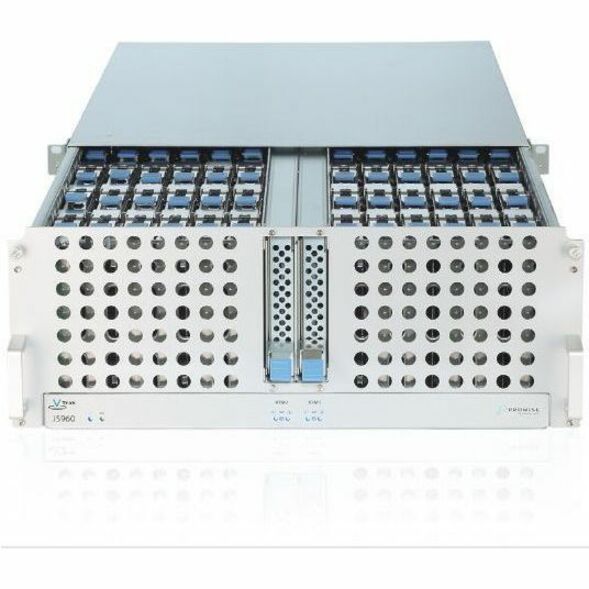

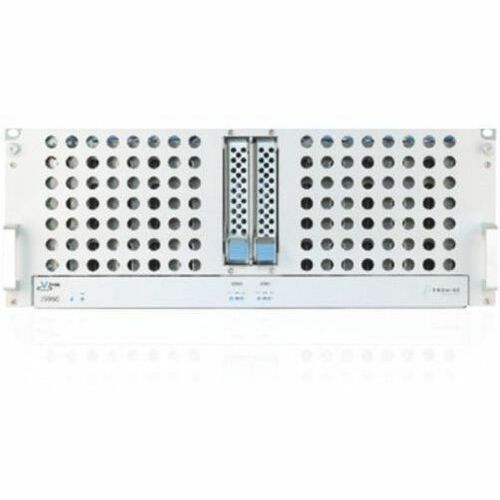

Promise VTrak J5960 NAS Storage System
Overview
Tech Specs
Optimized for High-Performance DatacenterThe VTrak J5960 is designed for enterprise environments that require very large capacity, high bandwidth and high speed. VTrak J5960 features six external 12Gb/s SAS ports per input/output (I/O) module; a total of twelve 12Gb/s SAS ports on each dual I/O module chassis, delivering the extremely high performance required for modern data centers. Optimized for high-speed computing applications, cloud platforms and enterprise applications with up to 15GB/s aggregate transfer rate with 60 HDDs for heavy workload scenarios. A JBOD with Green DNAVTrak J5960 continues our record of using green technologies, incorporating green design (such as tiered power management), green production methods, and a commitment to environmental protection. In addition to green design, VTrak J5960 PSUs are certified 80 Plus Platinum and Energy Star Ready for high power conversion efficiency at different loads

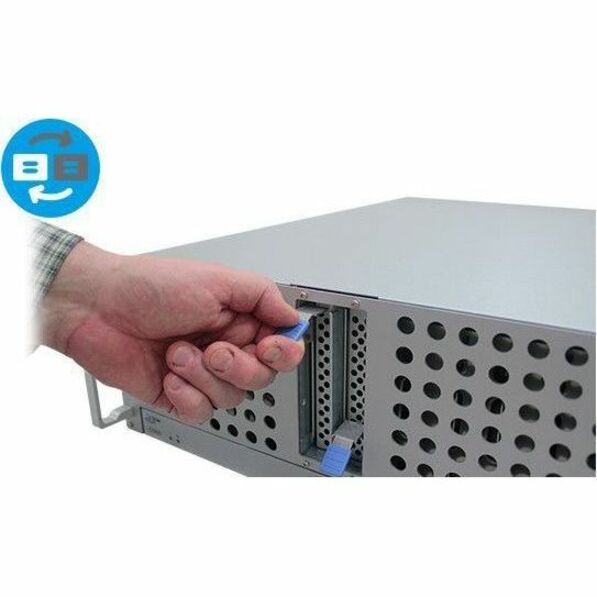

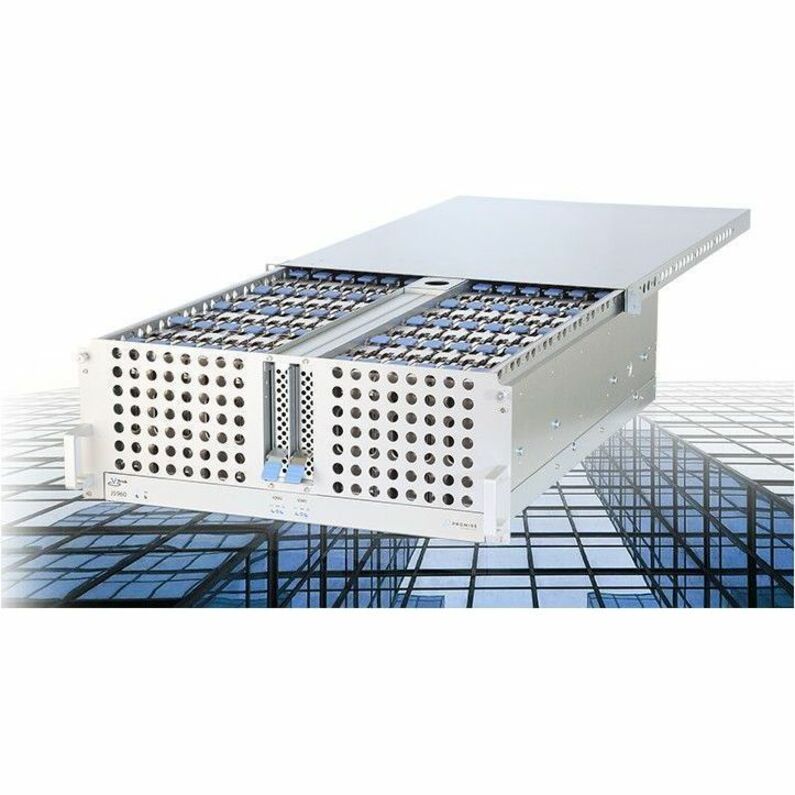

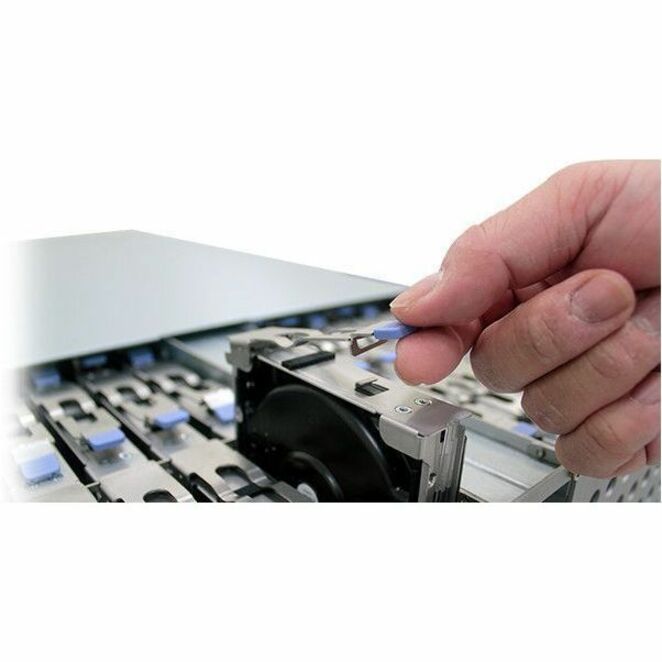

91% efficiency for 20% loads, 94% efficiency for 50% loads, and 91% efficiency for 100% loads. MaintainabilityThe cable-less innovative mechanical design of the VTrak J5960 enclosure and sliding rail system make it easy to service and maintain. The compact enclosure depth of 666 mm is ideal for data center with equipped racks of 1000 mm depth. It features a sliding top and sturdy sliding rail system that enables easy access to all HDDs and the interior while remaining safely mounted in the rack. SAS IO modules are accessible for replacement from the front while SAS data ports remain at the back for host connectivity. The VTrak J5960 is unbeatable when it comes to physi- cal maintenance of the system and accessibility of components.Product TypeNAS Storage SystemStorageNumber of Hard Drives Supported60Number of Hard Drives Installed30Total Hard Drive Capacity Installed240 TBHard Drive Interface12Gb/s SASHard Drive Configuration30 x 8TBNetwork & CommunicationEthernet TechnologyGigabit EthernetI/O ExpansionsNumber of Total Expansion Bays60Number of 3.5" Bays60ControllersNumber of Controllers2Controller Type12Gb/s SASRAID SupportedYesInterfaces/PortsHDMIYesNetwork (RJ-45)YesNumber of Network (RJ-45) Ports1VGAYesManagement & ProtocolsProtocols
  • SSH
  • Telnet
  • SMP
Power DescriptionNumber of Power Supplies Installed2Maximum Power Supply Wattage1200 WRedundant Power SupplyYesPhysical CharacteristicsHeight7"Width17.5"Depth26.2"Form FactorRack-mountableMiscellaneousEnvironmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
