PEGASUSPRO R16 256TB 16X16TB SATA CPU I7 10G BASE-T 64GB DDR

Name: PEGASUSPRO R16 256TB 16X16TB SATA CPU I7 10G BASE-T 64GB DDR
Brand: PROMISE TECHNOLOGY
SKU: 9FY031
Price: 16177.24 USD
Availability: InStock

PROMISE TECHNOLOGY

PCN#

9FY031

MFG#

PPR16XX10B16TU

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$16,177.24

Extended & Accidental Damage Protection Plans Available Details

2-Year $1,449.99

3-Year $2,118.99

Estimated Shipment:

Product Highlights:

Intel Core i7 i7
8700 Hexa
core (6 Core) 3.20 GHz
16 x HDD Supported
16 x HDD Installed
256 TB Installed HDD Capacity
Serial ATA/600
16 x SSD Supported
0 x SSD Installed
64 GB RAM DDR4 SDRAM
12Gb/s SAS Controller
RAID Supported
0, 1, 5, 6, 10, 50, 60 RAID Levels
16 x Total Bays
16 x 2.5"/3.5" Bay
2 x Total Slot(s)
10 Gigabit Ethernet, Gigabit Ethernet
HDMI
VGA
6 USB Port(s)
2 USB 2.0 Port(s)
Network (RJ
45)
Rack
mountable

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 79 lbs.

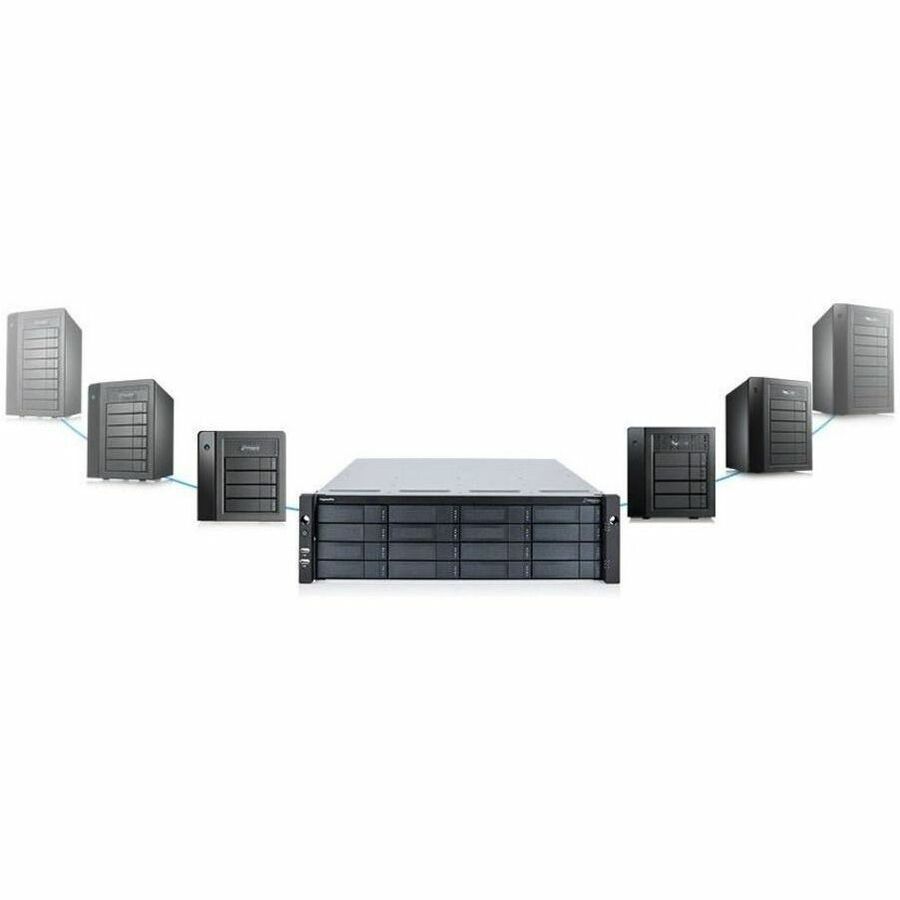

Promise PegasusPro R16 NAS/DAS Storage System

Overview

Tech Specs

Specifications

Manufacturer	Promise Technology
Manufacturer Part Number	PPR16XX10B16TU
Manufacturer Website Address	http://www.promise.com
Brand Name	Promise
Product Line	PegasusPro
Product Series	R
Product Model	R16
Product Name	PegasusPro R16 NAS/DAS Storage System
Marketing Information	Technology Breakthrough-FileBoost™ Convert from DAS to NAS and vice-versa with FileBoost™ for the first time, reducing hours of troublesome transferring and sharing time to just one-click. Performance and Sharing Recommended for medium to large editing teams. Dual Thunderbolt™ 3 ports (AJA Write:2809MB/s, Read:2784MB/s)* supports up to five 4K concurrent editors and sharing with up to twenty NAS users with 10G Ethernet switch. Investment Protection for Pegasus Users Aggregate, share content and expand up to total 6 daisy chain on Pegasus3 and/or Pegasus32 to ensure the best utilization of asset to Pegasus users, in addition, allow to be upgraded and adapted to fit future needs, e.g. 8K definition. No Compromising Performance Embrace high performance file sharing for collaborative workflow features on Final Cut Pro X, Adobe Premiere Pro, DaVinci etc. Ease of Use Plug and Play. Intuitive and simple PROMISE Utility Pro to simplify user and data administration, enables seamless transition and ease of use to end users. Data Protection is essential Worldwide most robust PROMISE RAID engine, stable and high performance. Easy backup to NAS and Cloud. Cost Effective All-in-one storage to support Thunderbolt™ DAS/Ethernet NAS/Thunderbolt™ NAS. Thunderbolt™ -to-Ethernet networking connects shared asset storage to workstations. Scale up storage capacity with up to 6 JBOD expansion units on PegasusPro R16.
Product Type	NAS/DAS Storage System

Storage

Number of Hard Drives Supported	16
Number of Hard Drives Installed	16
Total Hard Drive Capacity Installed	256 TB
Hard Drive Interface	Serial ATA/600
Hard Drive Configuration	16 x 16TB
Number of Solid State Drive Supported	16
Number of Solid State Drive Installed	0

Processor & Chipset

Processor Manufacturer	Intel
Processor Type	Core i7
Processor Model	i7-8700
Processor Core	Hexa-core (6 Core)
Processor Speed	3.20 GHz

Memory

Standard Memory	64 GB
Memory Technology	DDR4 SDRAM

Network & Communication

Ethernet Technology

10 Gigabit Ethernet
Gigabit Ethernet

I/O Expansions

Number of Total Expansion Bays	16
Number of 2.5"/3.5" Bays	16
Total Number of Expansion Slots	2.0
Expansion Slot Type	PCI Express

Controllers

Controller Type	12Gb/s SAS
RAID Supported	Yes
RAID Levels	0, 1, 5, 6, 10, 50, 60

Interfaces/Ports

Drive Interface	Serial ATA/600
Host Interface	Thunderbolt 3
HDMI	Yes
Total Number of USB Ports	6
Number of USB 2.0 Ports	2
Network (RJ-45)	Yes
Number of Network (RJ-45) Ports	6
VGA	Yes
Number of Thunderbolt 3 Ports	2

Physical Characteristics

Height	5.2"
Width	17.6"
Depth	19.8"
Form Factor	Rack-mountable
Weight (Approximate)	74.96 lb

Miscellaneous

Package Contents

PegasusPro R16 NAS/DAS Storage System
2M Cable (US)

Warranty

Limited Warranty

3 Year
