MATRIX COMPLETE 3X3 VIDEO WALL 500 NIT 165 IN. DIAGONAL 9+2

Name: MATRIX COMPLETE 3X3 VIDEO WALL 500 NIT 165 IN. DIAGONAL 9+2
Brand: PLANAR LARGE FORMAT DISPLAYS
SKU: JM3441
Price: 67384.1 USD
Availability: OutOfStock

PLANAR LARGE FORMAT DISPLAYS

PCN#

JM3441

MFG#

998-1882-02

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Estimated Shipment:

Product Highlights:

13.75 ft LCD
3x3 Video Wall
24 Hours/7 Days Operation
5760 x 3240
16:9
8 ms
500 Nit
HDMI
SerialEthernet

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

Planar Clarity Matrix G3 Complete LX55M-L Digital Signage Display

Overview

Tech Specs

Specifications

Manufacturer	Leyard
Manufacturer Part Number	998-1882-02
Manufacturer Website Address	http://www.planar.com
Brand Name	Planar
Product Line	Clarity Matrix G3 Complete
Product Model	LX55M-L
Product Name	Clarity Matrix G3 Complete LX55M-L Digital Signage Display

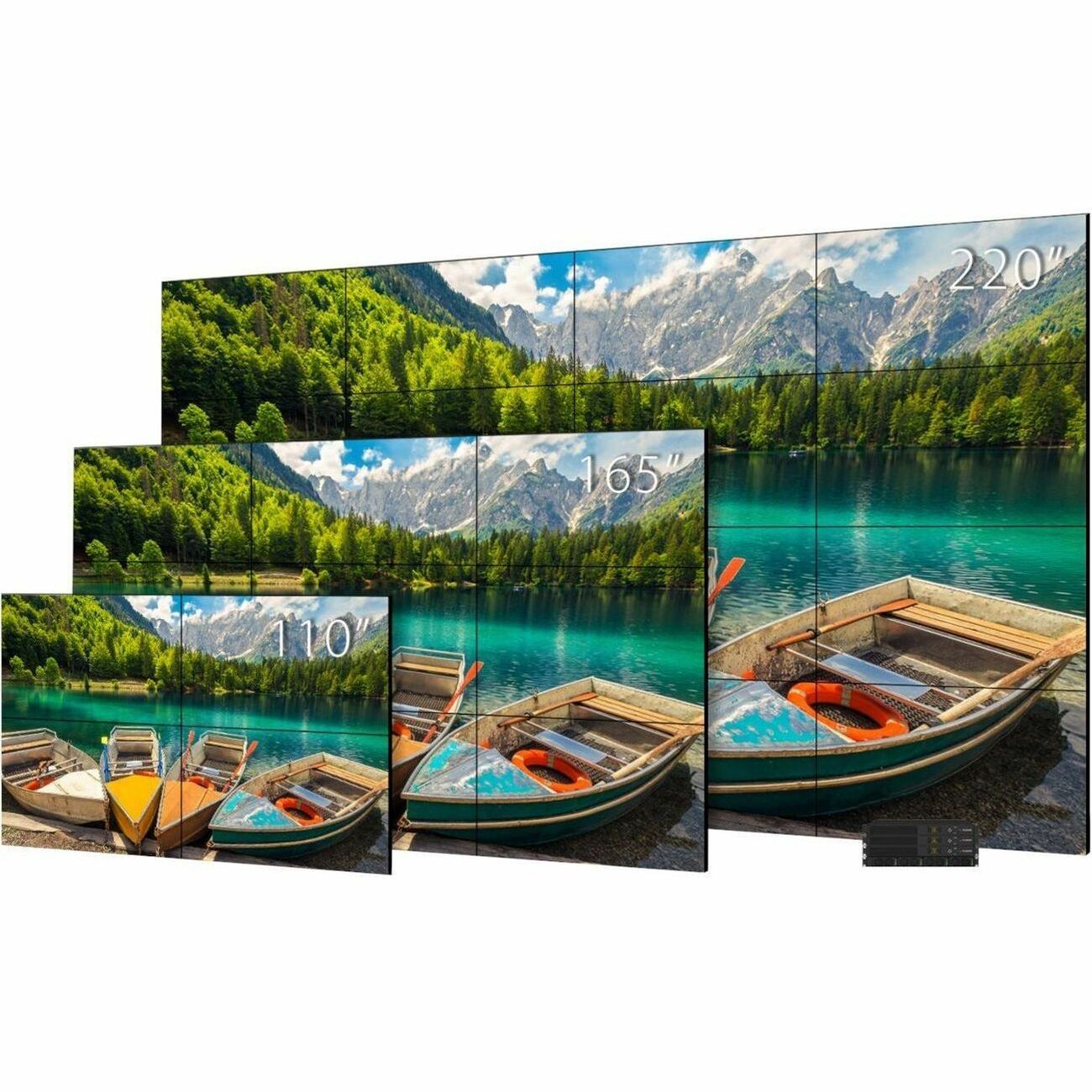

Marketing Information	LCD Video Wall System The Clarity® Matrix® G3 Complete™ LX55M-L 3x3 is a pre-packaged, ready-to-install, LCD video wall that includes nine Full HD Clarity Matrix LX55M video wall displays, cables, trim, mounts, remote power supply with redundancy, and off-board Planar® Video Controller. The 165" video wall delivers 24x7 reliability, 6K resolution, high brightness and the narrowest tiled bezels in the industry.
Product Type	Digital Signage Display

Technical Information

Video Wall Compatible	Yes
Bezel Width	34.6 mil
Operation Hours	24 Hours/7 Days
Maximum Heat Generation	7614.3 kJ

Display & Graphics

Number of Screens	9
Video Wall Configuration	3x3
Viewable Screen Size	13.75 ft
Screen Size Class	13.75 ft
Display Screen Type	LCD
Display Resolution	5760 x 3240
Response Time	8 ms
Aspect Ratio	16:9
Orientation	Landscape
Maximum LED Life	5.7 Year

Video

Dynamic Contrast Ratio	10,000:1
Brightness	500 Nit

Network & Communication

Ethernet

Yes

Interfaces/Ports

HDMI	Yes
DisplayPort	Yes
Serial	Yes
Number of HDMI Inputs	4
Number of DisplayPorts	2
Number of Network (RJ-45) Ports	9
Number of HDMI 2.0 Ports	4

Power Description

Input Voltage

120 V AC
230 V AC

Environmental Conditions

Minimum Operating Temperature	41°F (5°C)
Maximum Operating Temperature	104°F (40°C)
Minimum Operating Humidity	20%
Maximum Operating Humidity	90%

Physical Characteristics

Mount Type	Wall Mountable
Height	80.7"
Width	11.9 ft
Depth	3.6"
Weight (Approximate)	443 lb

Miscellaneous

Package Contents	Clarity Matrix G3 Complete LX55M-L Digital Signage Display Cables Trim Mounts Remote Power Supply With Redundancy Off-Board Planar® Video Controller
Application/Usage	Commercial
Environmental Compliance	Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty

3 Year
