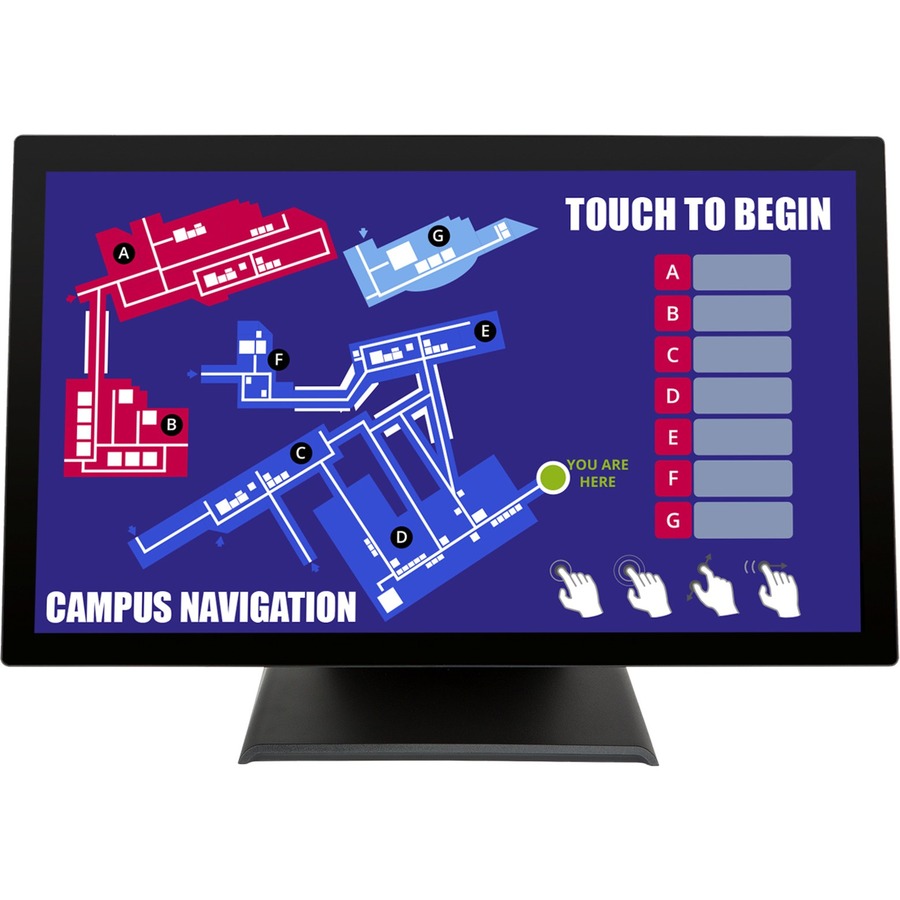

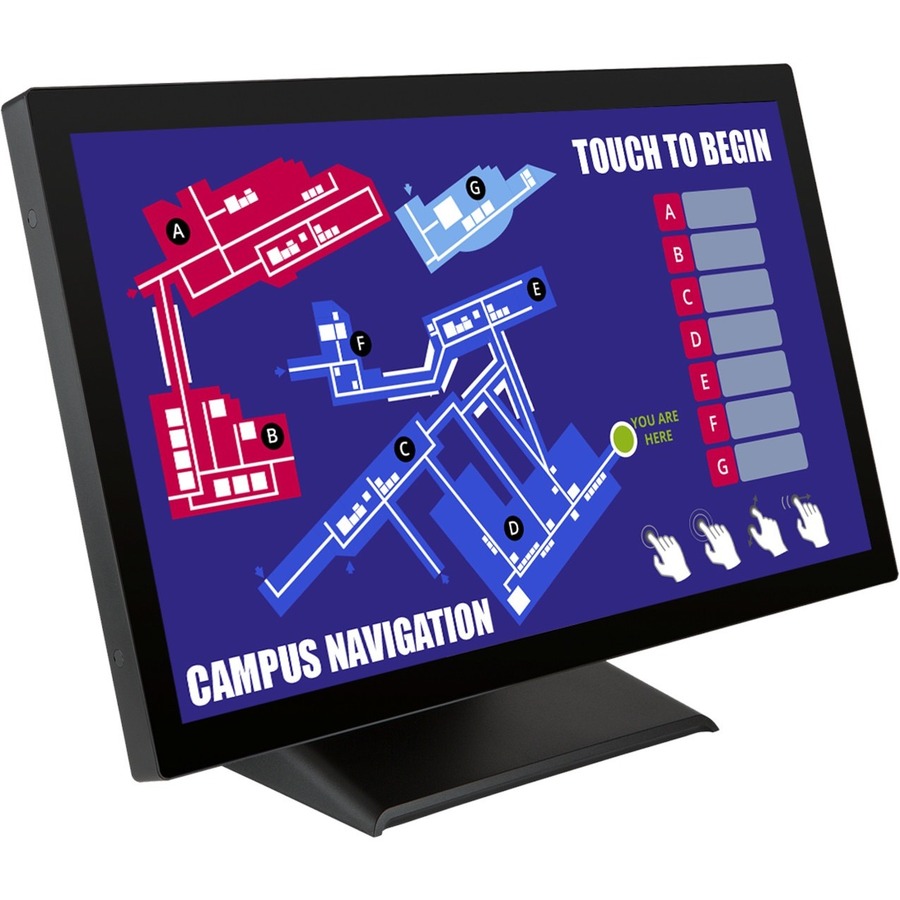

Planar PT2245PW 22" Class LCD Touchscreen Monitor - 16:9 - 14 ms

Name: Planar PT2245PW 22" Class LCD Touchscreen Monitor - 16:9 - 14 ms
Brand: PLANAR SMALL FORMAT
SKU: 9FR461
Price: 501.34 USD
Availability: InStock

PLANAR SMALL FORMAT

PCN#

9FR461

MFG#

997-7416-01

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$501.34

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

21.5" Viewable
Projected Capacitive
10 Point(s) Multi
touch Screen
1920 x 1080
Full HD
16.7 Million Colors
212 Nit
Edge LED Backlight
HDMI
USB
VGA
DisplayPort
3 Year

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

Planar PT2245PW 22" Class LCD Touchscreen Monitor - 16:9 - 14 ms

Overview

Tech Specs

Specifications

Manufacturer	Leyard
Manufacturer Part Number	997-7416-01
Manufacturer Website Address	http://www.planar.com
Brand Name	Planar
Product Model	PT2245PW
Product Name	PT2245PW 22" Touch Screen Point Of Sale Monitor

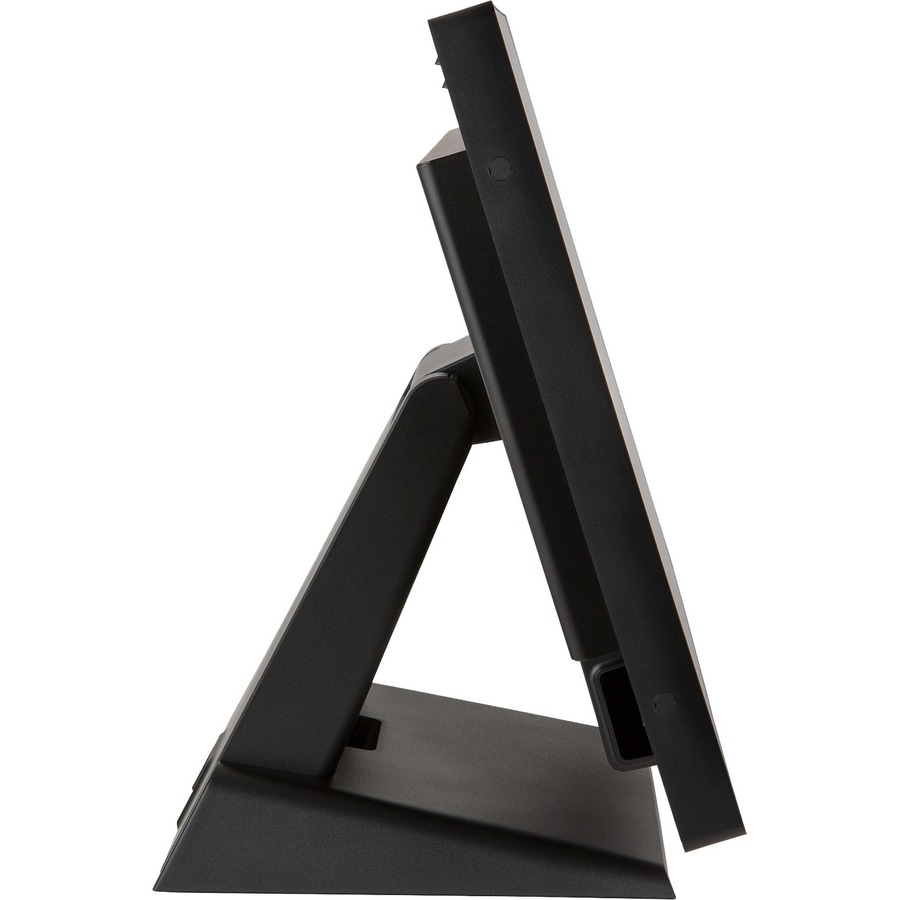

Marketing Information	The 22" , Full HD Planar® PT2245PW multi-point touch LCD monitor features an ultra-thin profile and a sleek, edge-to-edge glass surface for imageconscious retail, hospitality, or healthcare organizations. It offers 10-point simultaneous touch for use as a kiosk or point-of-sale system and is available with HDMI, DP, and VGA inputs. It features a full range desk stand that tilts from 0 to 90° and features built-in 100mm VESA for easy mounting.
Product Type	LCD Touchscreen Monitor

Technical Information

Screen Size Class	22"
Viewable Screen Size	21.5"
Screen Mode	Full HD
Response Time	14 ms
Response Time Details	14ms Typical
Aspect Ratio	16:9
Horizontal Viewing Angle	178°
Vertical Viewing Angle	178°
Mount Type	Desk Mountable
Backlight Technology	Edge LED
Features	Ultra Slim Multi Language Display On-screen Display (OSD) Cable Lock Slot
Stand Adjustments	Tilt

Video

Maximum Resolution	1920 x 1080
Color Supported	16.7 Million Colors
Native Contrast Ratio	1,000:1
Brightness	212 Nit

Touchscreen Information

Touchscreen Type	Projected Capacitive
Multi-touch Screen	Yes
Number of Simultaneous Touchpoints	10

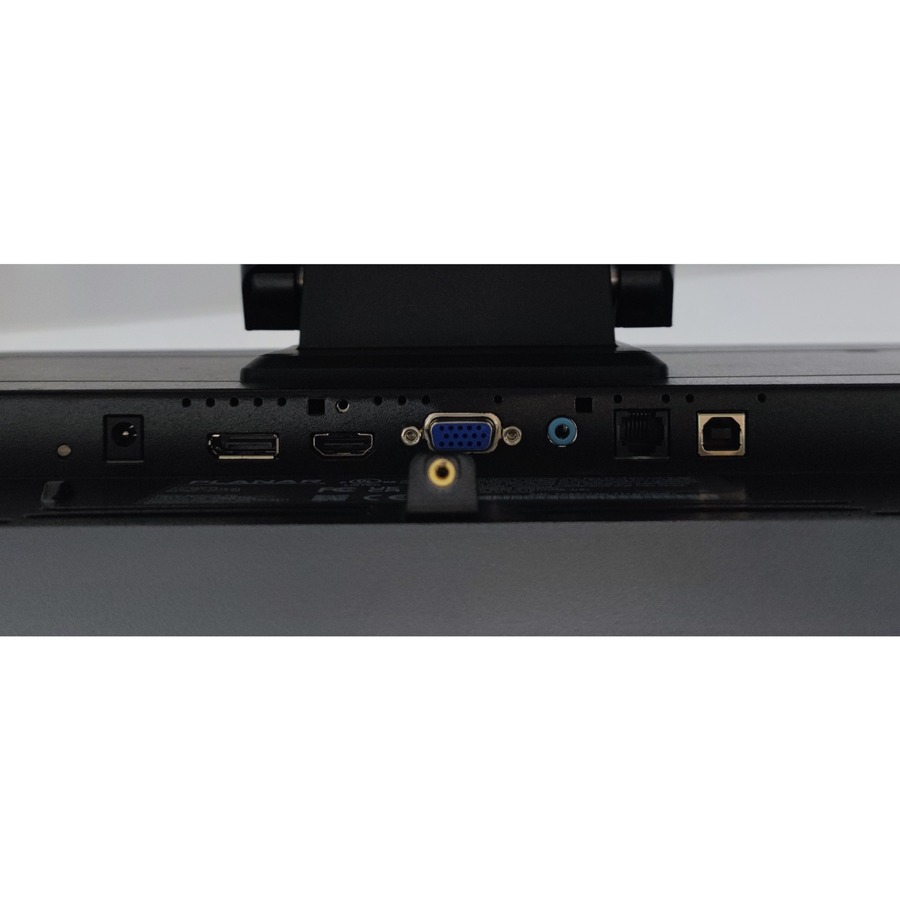

Interfaces/Ports

HDMI	Yes
USB	Yes
VGA	Yes
DisplayPort	Yes

Physical Characteristics

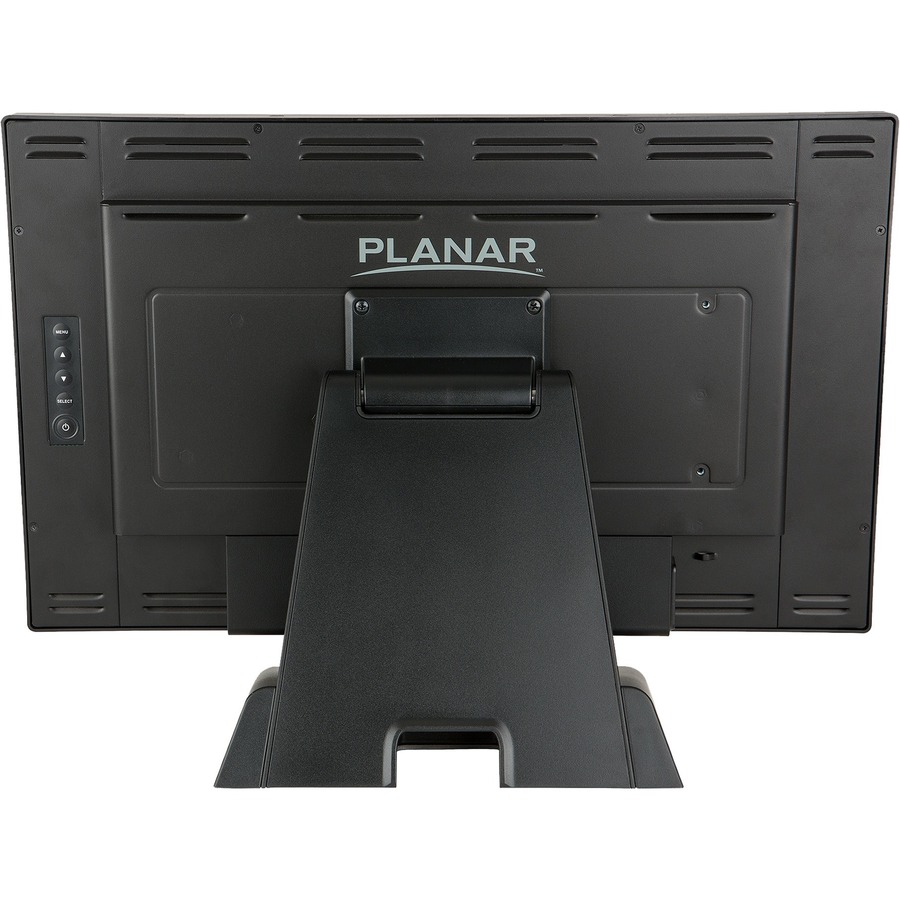

VESA Mount Compatible	Yes
VESA Mount Standard	100 x 100
Height	13.8"
Width	20.4"
Depth	8.6"
Height with Stand	12.30"
Width with Stand	20.40"
Depth with Stand	1.80"
Weight (Approximate)	11 lb
Weight with Stand (Approximate)	17.20 lb

Miscellaneous

Package Contents	PT2245PW 22" Touch Screen Point Of Sale Monitor DC Power Supply Power Cord VGA Cable Audio cable USB Cable (A to B) HDMI Cable User's Guide Quick Start Guide Cable Cover Screw
Environmentally Friendly	Yes

Warranty

Limited Warranty

3 Year
