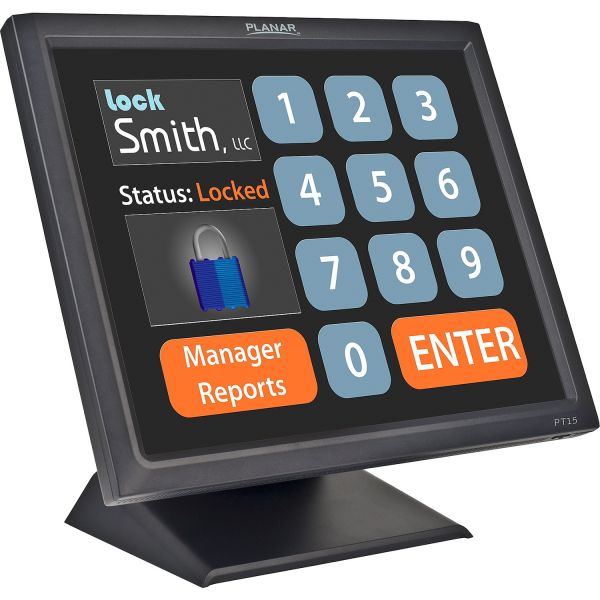

Planar PT1545R 15" Class LCD Touchscreen Monitor - 4:3 - 8 ms

Name: Planar PT1545R 15" Class LCD Touchscreen Monitor - 4:3 - 8 ms
Brand: PLANAR SMALL FORMAT
SKU: 9FR459
Price: 311.7 USD
Availability: InStock

PLANAR SMALL FORMAT

PCN#

9FR459

MFG#

997-5967-02

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$311.70

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

15" Viewable
5
wire Resistive
1 Point(s)
1024 x 768
XGA
16.2 Million Colors
280 Nit
Edge LED Backlight
Speakers
HDMI
USB
VGA
DisplayPort
Black

Product Condition: New and Factory Fresh

Shipping Weight: 15 lbs.

Planar PT1545R 15" Class LCD Touchscreen Monitor - 4:3 - 8 ms

Overview

Tech Specs

Specifications

Manufacturer	Leyard
Manufacturer Part Number	997-5967-02
Manufacturer Website Address	http://www.planar.com
Brand Name	Planar
Product Model	PT1545R
Product Name	PT1545R 15" Touch Screen Point Of Sale Monitor
Marketing Information	The upgraded Planar® PT1545R 15" touch screen monitor now comes with HDMI and DP inputs. It remains cost effective and is perfect for use in retail, point-of-sale, government, education, healthcare, and kiosk applications
Product Type	LCD Touchscreen Monitor

Technical Information

Screen Size Class	15"
Viewable Screen Size	15"
Screen Mode	XGA
Response Time	8 ms
Response Time Details	8ms Typical
Aspect Ratio	4:3
Horizontal Viewing Angle	160°
Vertical Viewing Angle	150°
Backlight Technology	Edge LED
Features	Anti-glare Multi Language Display On-screen Display (OSD) Cable Lock Slot
Stand Adjustments	Tilt

Video

Maximum Resolution	1024 x 768
Standard Refresh Rate	75 Hz
Color Supported	16.2 Million Colors
Native Contrast Ratio	800:1
Brightness	280 Nit

Audio

Speakers

Yes

Touchscreen Information

Touchscreen Type	5-wire Resistive
Number of Simultaneous Touchpoints	1

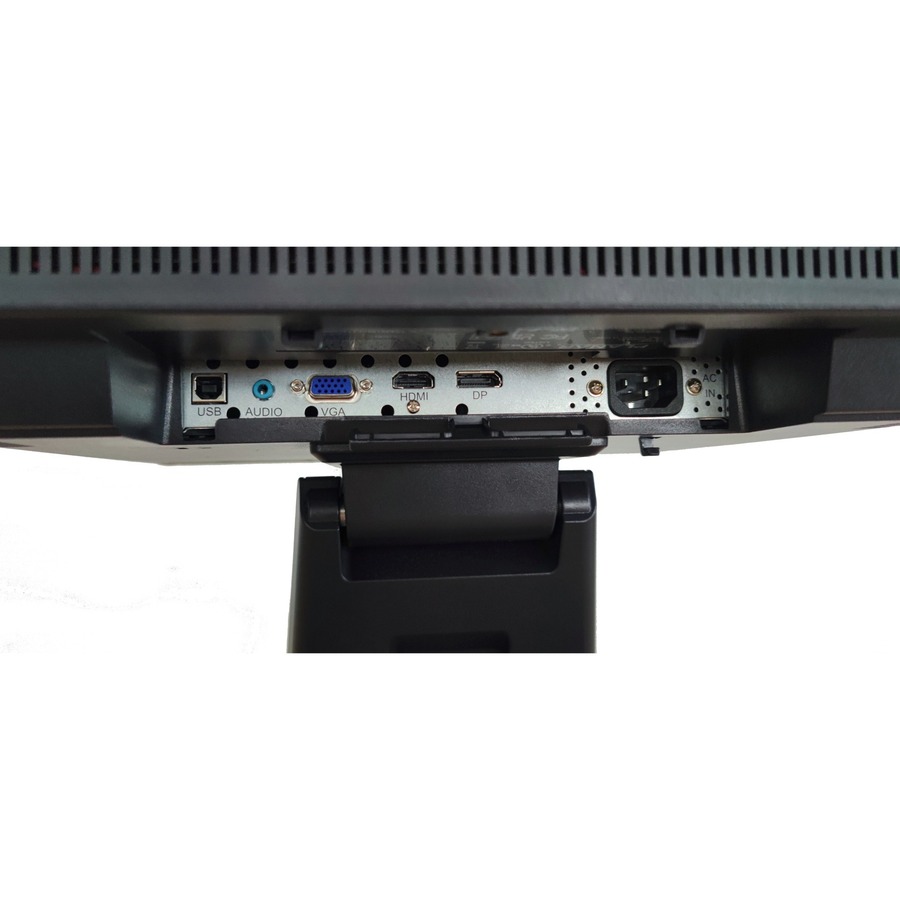

Interfaces/Ports

HDMI	Yes
USB	Yes
VGA	Yes
DisplayPort	Yes

Power Description

Operating Power Consumption

10.60 W

Physical Characteristics

VESA Mount Compatible	Yes
VESA Mount Standard	100 x 100
Color Family	Black
Product Color	Black
Height	10.8"
Width	13.8"
Depth	2.3"
Height with Stand	12.10"
Width with Stand	13.80"
Depth with Stand	8"
Weight (Approximate)	7.30 lb
Weight with Stand (Approximate)	10.60 lb

Miscellaneous

Package Contents	PT1545R 15" Touch Screen Point Of Sale Monitor Power Cord VGA Cable Audio cable USB Cable (A to B) HDMI Cable User's Guide Quick Start Guide Cable Cover Screw
Environmentally Friendly	Yes
