IDS-710 MANAGED SWITCH 8 X 10/100/1000 2 X SFP

by
PERLE SYSTEMS
PCN#
04XL85
MFG#
07017230

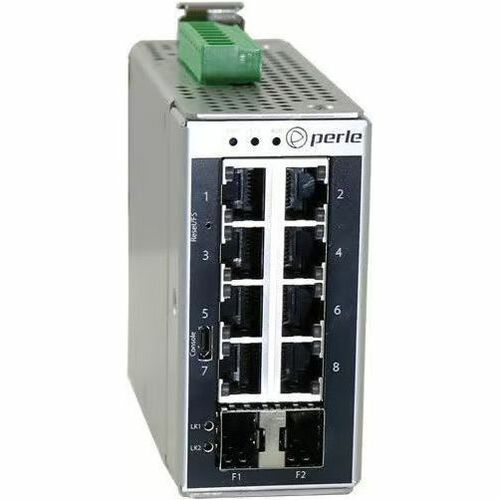

main product photo
fotorama-image
$1,173.98
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 10 Ports
  • Manageable
  • Gigabit Ethernet, 2.5 Gigabit Ethernet

Show more

Product Condition: New and Factory Fresh
Limited Warranty5 Year
Shipping Weight: 2 lbs.
Perle IDS-710 Ethernet Switch

The IDS-710 is a 10 port Managed Ethernet Switch that can operate in industrial environments providing advanced performance and enabling real-time deterministic network operation. Eight 10/100/1000-Base-T Ethernet ports are available for networking Gigabit and Fast Ethernet devices. The two SFP slots support 10/100/1000 on Copper or 1G/2.5G on Fiber. This flexibility allows for easy adaptation to network growth and changes.

The SFP slots allow for flexible network configurations using

Overview
SFP transceivers supplied by Perle,Product TypeEthernet SwitchTechnical InformationFeaturesFanlessPlug and PlayIP20DHCP SnoopingInterfaces/PortsTotal Number of Network Ports10Network (RJ-45)YesPort/Expansion Slot Details8 x 10/100/1000Base-T Gigabit Ethernet RJ-45 Network Port2 x 1/2.5 Gigabit Ethernet TP/SFP Combo Expansion SlotMedia & PerformanceMedia Type SupportedTwisted PairOptical FiberEthernet TechnologyGigabit Ethernet2.5 Gigabit EthernetNetwork Technology10/100/1000Base-T2.5GBase-XMaximum Data Transfer Rate320 MB/sI/O ExpansionsTotal Number of Expansion Slots2Expansion Slot TypeSFPNumber of SFP Slots2Network & CommunicationLayer Supported2Networking StandardsIEEE 802.3IEEE 802.3uIEEE 802.3abIEEE 802.3zIEEE 802.3xIEEE 802.1DIEEE 802.1wIEEE 802.1sIEEE 802.1QIEEE 802.1pIEEE 802.1xIEEE 802.3adIEEE 802.1abManagement & ProtocolsManageableYesReliabilityMTBF252377 HourPower DescriptionInput Voltage12 V DC24 V DC48 V DCPower SourceDCRedundant Power Supply SupportedYesPower Consumption8 WPlug/Connector TypeTerminal BlockPhysical CharacteristicsProduct MaterialAluminumMetalForm FactorDIN Rail MountableWall MountableHeight3.7"Width1.8"Depth4.3"Weight (Approximate)12.35 ozMiscellaneousPackage ContentsIDS-710 Ethernet SwitchTerminal blockInstallation guide
Application/UsageIndustrialGovernmentOutdoorEnterpriseCertifications & Standards
Tech Specs
Cisco or other manufacturers of MSA compliant SFPs. In addition, they make utilizing fiber is easy in environments where high levels of electromagnetic interference (EMI) is a common phenomenon, like industrial plants. This interference can cause data corruption over copper-based Ethernet links. However, data transmitted over fiber optic cable is completely immune to this type of noise ensuring optimal data transmission across the plant floor.Perle Industrial-grade Ethernet Switches are designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, government, military, oil and gas, mining and outdoor applications. These rugged fan-less switches are hardened to provide superior reliability in -10 to 60°C. Or, choose the IDS-710-XT, where every component has been designed and tested to handle operating temperatures between -40 and 70°C.The simple Plug and Play installation available in Perle's Fast Setup feature gets your Ethernet devices networked immediately. The familiar Command Line Interface (CLI), via in-band Telnet or the out-band serial console port, will be appreciated by CCNA (Cisco Certified Network Associate) and CCNP (Cisco Certified Network Professional) trained engineers.The IDS-710 Managed Switches have Enterprise-grade features for environments where extensive security, QoS, and network integration functionality is required. They can be managed with an IPv6 address and supports a comprehensive set of management functions including MRP (IEC62439-2), PROFINET, Modbus TCP, management VLAN, Management Access Lists, Password Strength requirements, RMON, N
1 port mirroring, and local alert log.All Perle Industrial Ethernet Switches only use high-end components from the leading chip manufacturers to ensure the highest level of durability and reliability. In addition, all units have a corrosion resistance aluminum case and dual redundant power input with reverse polarity and overload protection.Perle has been designing industrial hardware since 1976. We used this expertise to design the toughest Ethernet switches on the market that will keep your system running for years to come.Product TypeEthernet SwitchTechnical InformationFeatures
  • Fanless
  • Plug and Play
  • IP20
  • DHCP Snooping
Interfaces/PortsTotal Number of Network Ports10Network (RJ-45)YesPort/Expansion Slot Details
  • 8 x 10/100/1000Base-T Gigabit Ethernet RJ-45 Network Port
  • 2 x 1/2.5 Gigabit Ethernet TP/SFP Combo Expansion Slot
Media & PerformanceMedia Type Supported
  • Twisted Pair
  • Optical Fiber
Ethernet Technology
  • Gigabit Ethernet
  • 2.5 Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 2.5GBase-X
Maximum Data Transfer Rate320 MB/sI/O ExpansionsTotal Number of Expansion Slots2Expansion Slot TypeSFPNumber of SFP Slots2Network & CommunicationLayer Supported2Networking Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3z
  • IEEE 802.3x
  • IEEE 802.1D
  • IEEE 802.1w
  • IEEE 802.1s
  • IEEE 802.1Q
  • IEEE 802.1p
  • IEEE 802.1x
  • IEEE 802.3ad
  • IEEE 802.1ab
Management & ProtocolsManageableYesReliabilityMTBF252377 HourPower DescriptionInput Voltage
  • 12 V DC
  • 24 V DC
  • 48 V DC
Power SourceDCRedundant Power Supply SupportedYesPower Consumption8 WPlug/Connector TypeTerminal BlockPhysical CharacteristicsProduct Material
  • Aluminum
  • Metal
Form Factor
  • DIN Rail Mountable
  • Wall Mountable
Height3.7"Width1.8"Depth4.3"Weight (Approximate)12.35 ozMiscellaneousPackage Contents
  • IDS-710 Ethernet Switch
  • Terminal block
  • Installation guide
Application/Usage
  • Industrial
  • Government
  • Outdoor
  • Enterprise
Certifications & Standards Safety
  • CE Mark
  • UL/IEC 61010-1 and UL/IEC 61010-2
  • UL/EN/IEC 62368-1
  • CAN/CSA C22.2 No. 62368-1
Emissions
  • FCC 47 Part 15 Class A, EN55032 (CISPR32) Class A
  • ICES-003
  • EN61000-6-4 (Emissions for industrial environments)
  • CISPR 32
    2015/EN 55032
    2015 (Class A)
  • CISPR 24
    2010/EN 55024
    2010
  • EN61000-3-2
EMC and Immunity
  • CISPR 24 / EN55024
  • CISPR 32 / EN55032
  • IEC/EN 61000-4-2 (ESD)
    Contact discharge +/- 4kv, Air discharge +/- 8kv
  • IEC/EN 61000-4-3 (RS)
    80mhz to 16hz ; 20v/m, 1.5hkz to 2.0ghz ; 10 v/m, 2.0ghz to 2.7 ghz ; 5 v/m
  • IEC/EN 61000-4-4 (EFT)
    DC power line +/- 2kv, data line +/- 1kv
  • IEC/EN 61000-4-5 (Surge)
    DC power line, Line/Line +/- 1kv, Line/Earth +/- 2kv, data line /earth +/- 2kv
  • IEC/EN 61000-4-6 (CS)
    150mhz-80mhz 10vrms
  • IEC/EN 61000-4-8 (Magnetic Field)
    30 A/M
  • EN 61000-4-11
  • IEC/EN 61000-6-2 (General Immunity in Industrial Environments)
Country of OriginTaiwanEnvironmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
WarrantyLimited Warranty5 Year
