409G3C2SD10MD05XT 6PORT MANAGED SWITCH GE RJ GE SC 2XSM10KM MM XTMP

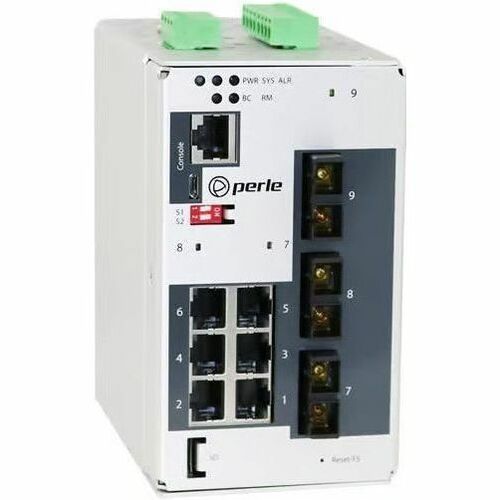

The IDS-409Gis a9 port Managed Ethernet Switch that can operate in industrial environments providing advanced performance and enabling real-time deterministic network operation. Choose any combination of10/100/1000-Base-T Ethernet copper portsand1000Base-X fiber ports to meet the needs of your environment.

Utilizing fiber is critical in environments, like industrial plants, where high levels of electromagnetic interference (EMI)is a common phenomenon. This interference can cause data corruption over copper-based Ethernet links. However, data transmitted over fiber optic cable is completely immune to this type of noise ensuring optimal data transmission across the plant floor.

With over 82 models, the Perle IDS-409G offers a choice of connectors, fiber types, temperature support and operating distances.

Perle Industrial-grade Ethernet Switches are designed to stand up to extreme temperatures, surges, vibrations, and shocks found in industrial automation, government, military, oil and gas, mining and outdoor applications.

Simple Plug and Play installation to get your Ethernet devices networked immediately is available with Perle's Fast Setup feature. The familiar Command Line Interface (CLI),via in-band Telnet or the out-band serial console port,will be appreciated by CCNA(Cisco Certified Network Associate) and CCNP(Cisco Certified Network Professional) trained engineers.

P-Ring, management VLAN,QoS,RMON,N:1 port mirroring and local alert log, are only a few of the comprehensive management functions supported in theIDS-409G. In addition, the switch can be managed with an IPv6 address.

These rugged fan-less switches that are hardened to provide superior reliability in -10 to 60°C.In addition, every component on every industrial (XT) model has been designed and tested to handle operating temperatures between-40 and 75°C.

All Perle Industrial Ethernet Switches only use high-end components from the leading chip manufacturers to ensure the highest level of durability and reliability. In addition, all units have a corrosion resistance aluminum case and dual redundant power input with reverse polarity and overload protection.

For over 35 years Perle has been designing industrial hardware.This expertise was used to design the toughest Ethernet switches on the market that will keep your system running for years to come.

• IP20
• Plug and Play
• Fanless
• Remote Monitoring (RMON)

• 6 x 10/100/1000BASE-T Gigabit Ethernet RJ-45 Network Port
• 3 x 1000BASE-SX/LX/LH Duplex SC Connector

• Twisted Pair
• Optical Fiber

• Single-mode
• Multi-mode

• Gigabit Ethernet
• Fast Ethernet

• 10/100/1000Base-T
• 1000Base-SX/LX/LH

• IEEE 802.3x
• IEEE 802.1D
• IEEE 802.1w
• IEEE 802.1Q
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z
• IEEE 802.1p
• IEEE 802.3ad
• IEEE 802.1ab

• 18 V DC
• 30 V DC
• 9.6 V DC
• 60 V DC
• 24 V AC

• Power Supply
• AC/DC

• DIN Rail Mountable
• Compact
• Panel-mountable
• Wall Mountable

• Network
• Government
• Industrial
• Outdoor
• Automation Industry
• Server
