IOLAN SDG2 W WRLS DEVICE SVR 2XDB9M RS232/422/485 802.11 ABGN

Name: IOLAN SDG2 W WRLS DEVICE SVR 2XDB9M RS232/422/485 802.11 ABGN
Brand: PERLE SYSTEMS
SKU: ZM7278
Price: 595.52 USD
Availability: InStock

PERLE SYSTEMS

PCN#

ZM7278

MFG#

04031674

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$595.52

Extended & Accidental Damage Protection Plans Available Details

2-Year $66.99

3-Year $89.99

Free Shipping

Estimated Shipment:

Product Highlights:

512 MB
Twisted Pair x Network (RJ
45)
2 x Serial Port
10/100/1000Base
T
Gigabit Ethernet
IEEE 802.11a/b/g/n/i
Wireless LAN
ISM Band ISM Band
UNII Band UNII Band
Management Port
Wall Mountable, Panel
mountable, DIN Rail Mountable

Product Condition: New and Factory Fresh

Shipping Weight: 2 lbs.

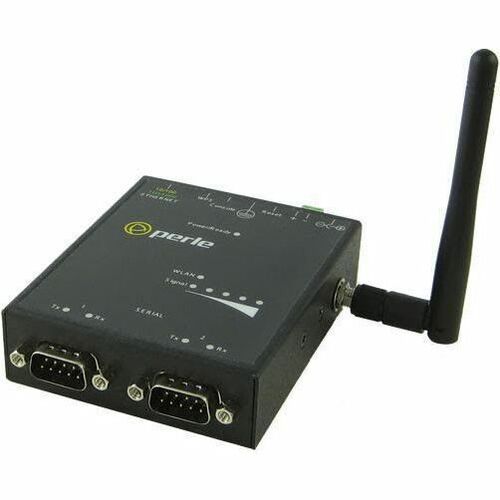

Perle IOLAN SDG2 W Secure Wireless Device Server

Overview

Tech Specs

Specifications

Manufacturer	Perle Systems, Inc
Manufacturer Part Number	04031674
Manufacturer Website Address	http://www.perle.com
Brand Name	Perle
Product Line	IOLAN
Product Series	SDG
Product Model	SDG2 W
Product Name	IOLAN SDG2 W Secure Wireless Device Server
Marketing Information	IOLAN SDG2 W Device Server: Wireless LAN (WiFi) client IEEE 802.11 a, b, g, n @ 2.4Ghz/5Ghz, 2 x DB9M connectors with software selectable RS232/422/485 interface, 10/100/1000 Ethernet, advanced data encryption, user authentication and event management security features included, IPv6, COM port redirector, 15kv ESD, AC power adapter included. A Serial to Ethernet solution to easily connect devices with RS232, RS422 or RS485 serial interfaces to Ethernet LANs for access to network server applications. Ideal for applications that require authentic serial communications across a wireless LAN using Wireless Access Points (WAPs).
Product Type	Device Server

Technical Information

IP Rating

IP40

Processor & Chipset

Processor Manufacturer	ARM
Processor Speed	600 MHz

Memory

Standard Memory

512 MB

Media & Performance

Media Type Supported

Twisted Pair

Wireless Specifications

Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11a/b/g/n/i
ISM Band	Yes
UNII Band	Yes
Network Band	Dual Band

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Standard	10/100/1000Base-T

Interfaces/Ports

Network (RJ-45)	Yes
Serial Port	Yes
Management Port	Yes
Number of Serial Ports	2

Environmental Conditions

Minimum Operating Temperature	-40°F (-40°C)
Maximum Operating Temperature	167°F (75°C)

Power Description

Input Voltage	30 V DC
Input Voltage Range	9 VDC to 30 VDC
Power Consumption	4.23 W

Physical Characteristics

Product Material	Metal
Form Factor	Wall Mountable Panel-mountable DIN Rail Mountable
Height	0.9"
Width	3"
Depth	3.5"
Weight (Approximate)	8.82 oz

Miscellaneous

Country of Origin

Canada
