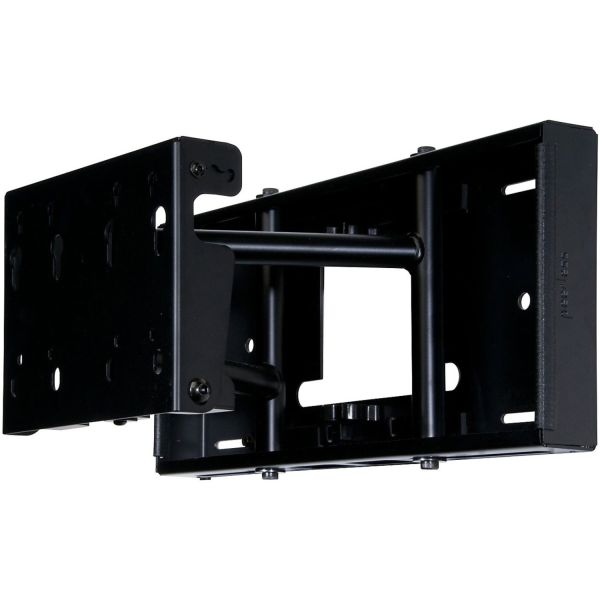

Peerless Flat Panel Pull-out Swivel Wall Mount

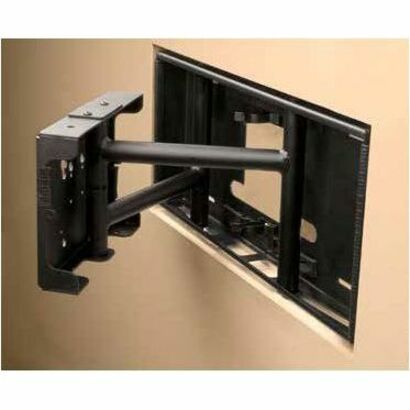

The SP850 Pull-Out Pivot Mount combines the best features of a wall mount and a pivot arm. In the closed position, the SP850 acts as a flat or tilting wall mount. At only 2.31" from the wall, its unique wall plate and built-in cable management neatly hide all components and cords. Extended, the SP850's sturdy arm construction smoothly glides the display out 10.68" from the wall and allows the flat panel display to pivot up to 45°. This feature not only enables the display to be positioned foran optimal viewing angle, but it also provides easy access to the back of the display for hassle-free maintenance. The SP850 is also ideal in applications where the display needs to be recessed into the wall, custom framed or aligned into a multi-display wall.

• Pivot
• Cable Management
• Expandable
• Sturdy

• 100 x 100
• 200 x 100

• 1 x Wall mount assembly
• 1 x Locking tab
• 1 x Spacer (0.219 ID x 0.5 OD x 0.125H )
• 4 x Hex head wood screw (14 x 2.5")
• 4 x Alligator anchor
• 2 x Polyester mesh sleeve (18")
• 4 x Cable tie
• 2 x Phillips screw (M4 x 5 mm)
• 1 x Bumper strip
• 2 x Plastic cable mount
• 4 x Socket head screw (M10 x 15 mm)
• 4 x Retaining spacer (.198 x .313 x .437H)
• 1 x Security allen wrench (4 mm)
• 4 x Phillips screw (M3 x 4 mm)
• 2 x Spring clip
• 5 x Screw (M5 x 10 mm)
• 4 x Screw (M4 x 12 mm)
• 4 x Screw (M4 x 20 mm)
• 1 x Screw (M5 x 40 mm)

Comes with VESA 100mm & 200 x 100mm adapter plate

Plasma/ LCD Flat Panel Display: 26" - 58"
