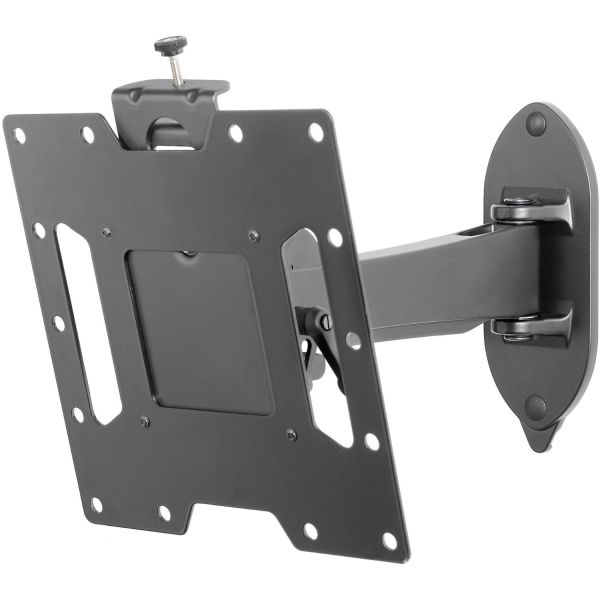

Peerless SmartMount Pivot Wall Arm

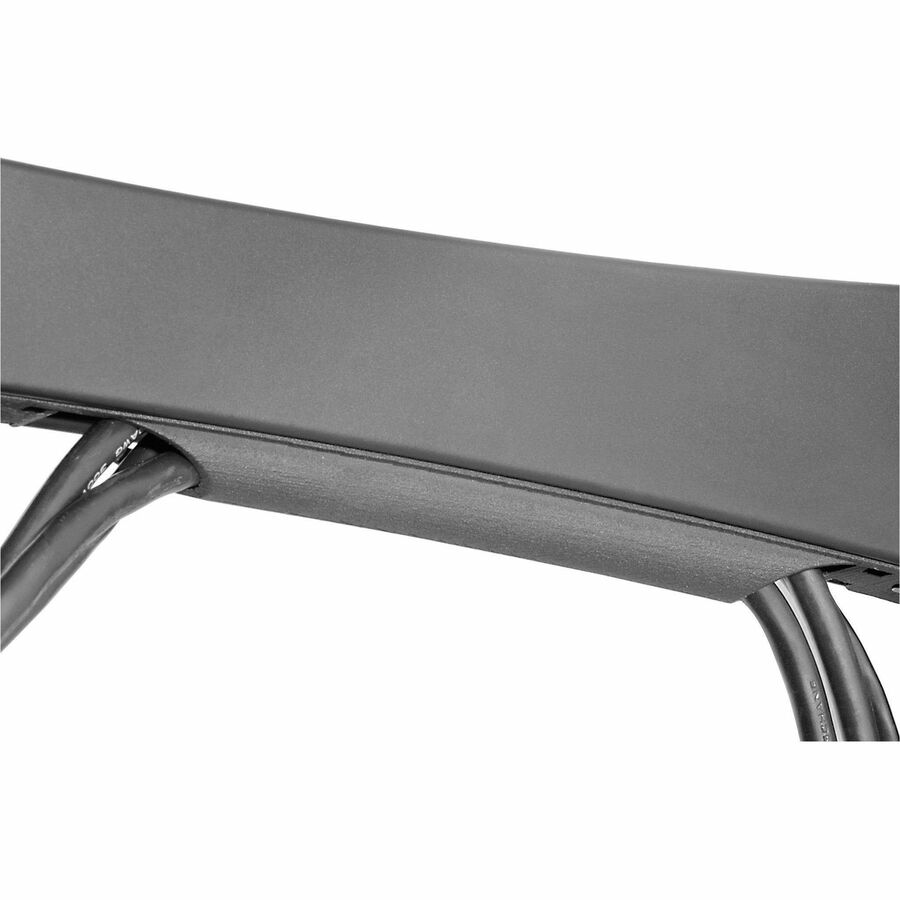

The SmartMount^® Pivoting Wall Mount series offers the most versatile installation features and mounting options. Vertical adjustment ability allows for post installation leveling, making it easier than ever to find the perfect display position. With SP740P, extend the display up to 12.41" (315mm) or fully-retract it to just 3.3" (77mm) from the wall for an improved viewing angle. The display can now simply be installed by a single person with the Hook-and-Hang™ system. One-Touch™ tilt technology offers +15°/-5° vertical tilt movement for the ideal viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.

• Tilt
• Swivel
• Pivot
• Hook-and-Hang Design

• High Gloss
• Epoxy Paint

• 100 x 100
• 200 x 100
• 200 x 200

• Wall Mount
• Wall and Display Installation Hardware
• Installation Instructions

• Comes with VESA 75, 100, 200 x 100, 200 x 200 adapter Plate
• Pre-assembled for fast and easy installation

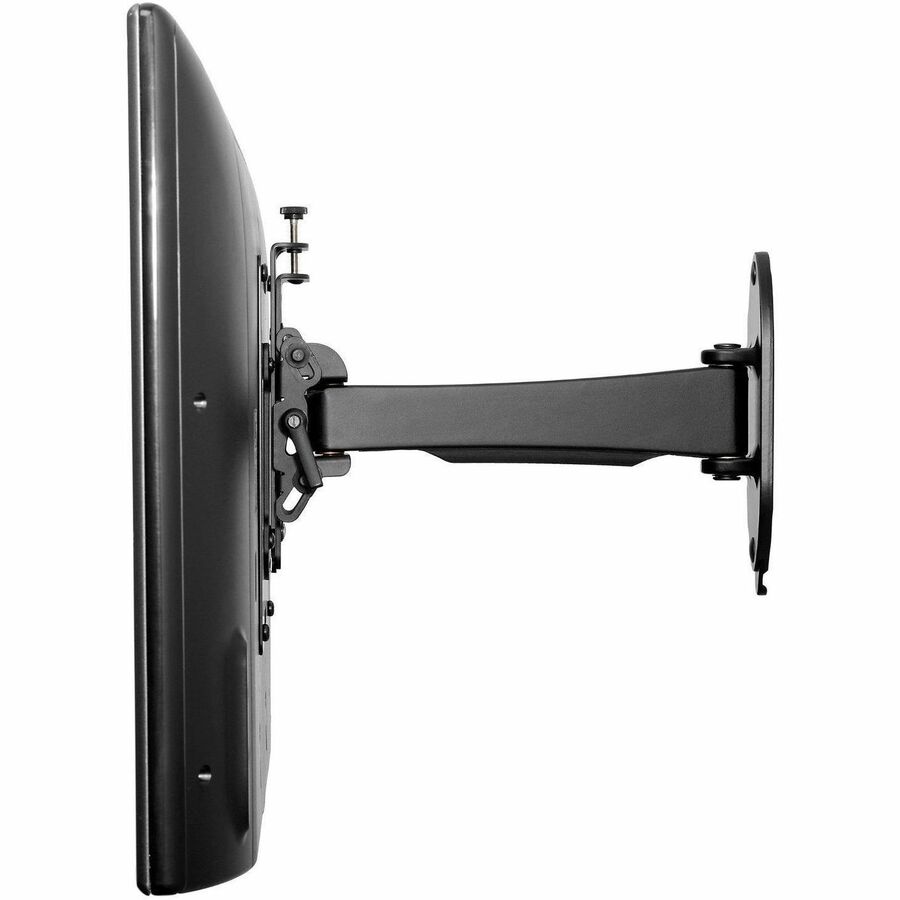

• Arm extends from wall up to 10" or folds flat to save space
• Two tensionable pivot points for extensive adjustment of viewing angle

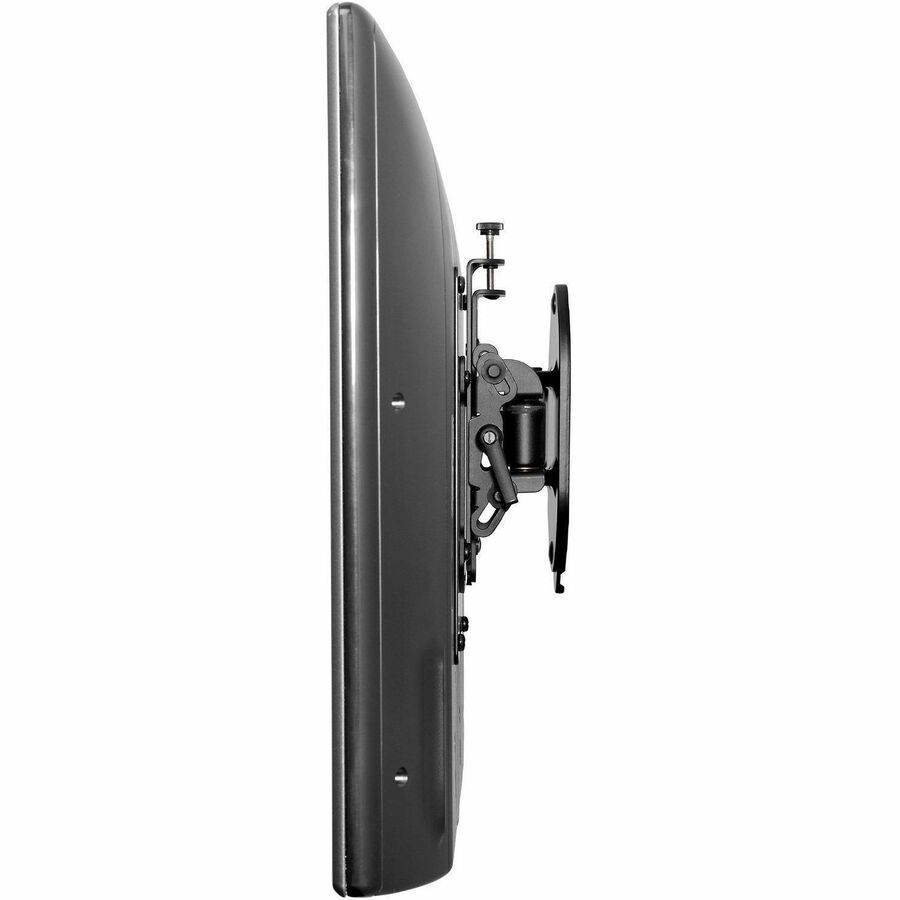

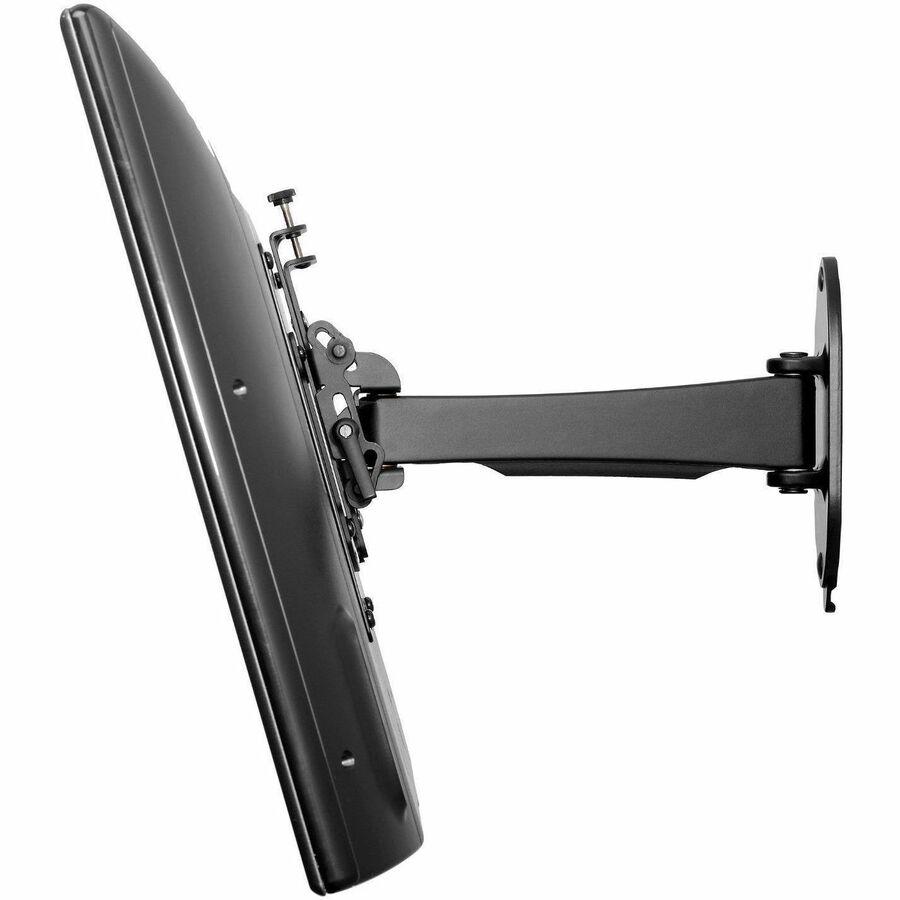

• 20º of smooth, continuous, one-touch tilt (5º up, 15º down)
• Adjustable roll of 7º in either direction allows screen to be easily leveled
• Includes hardware for installation to a single wood stud or concrete
• UL tested to four times stated weight load

22" to 43" LCD Screens

• UL
• VESA
